SCM Minimax F 52ES

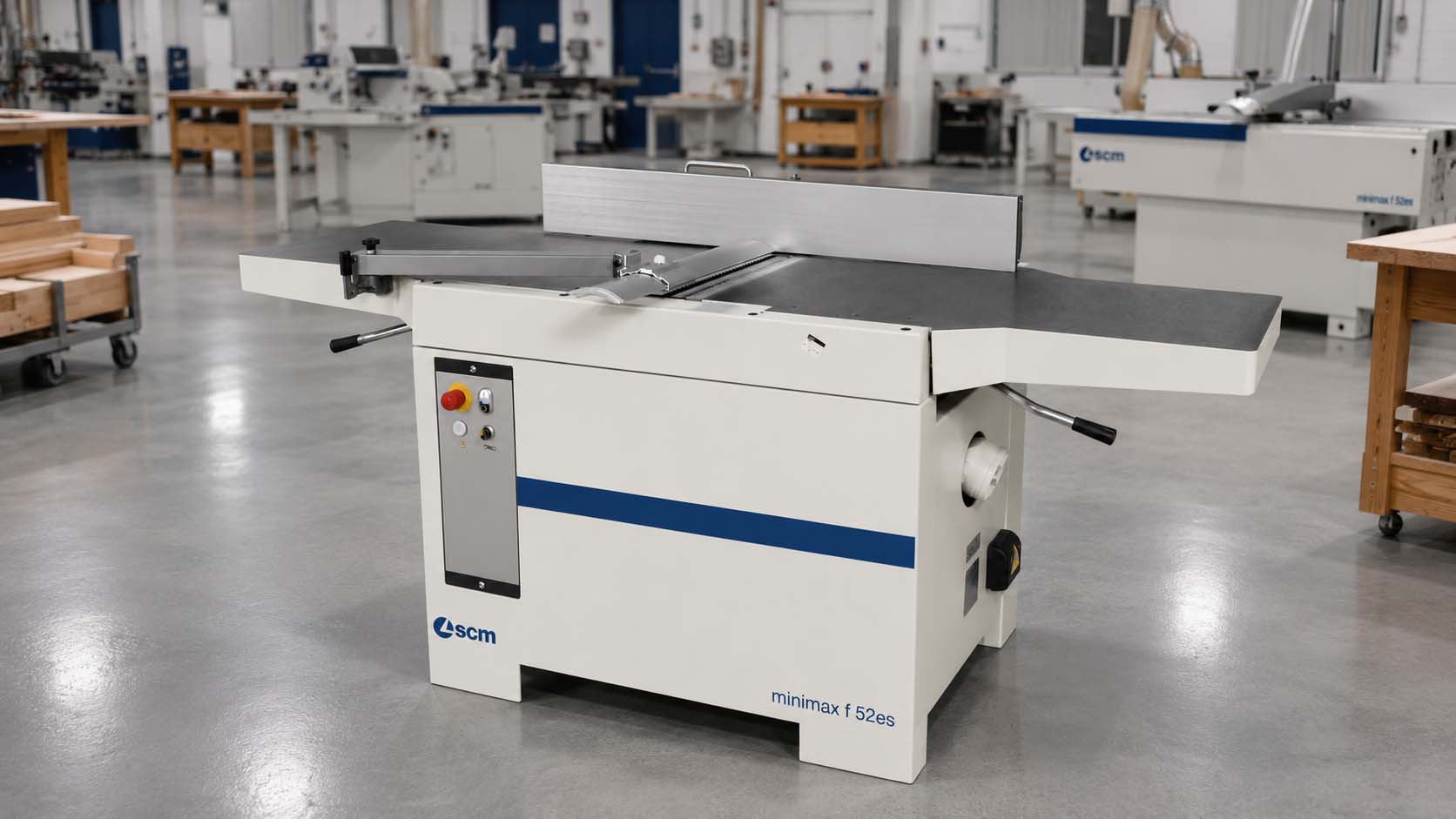

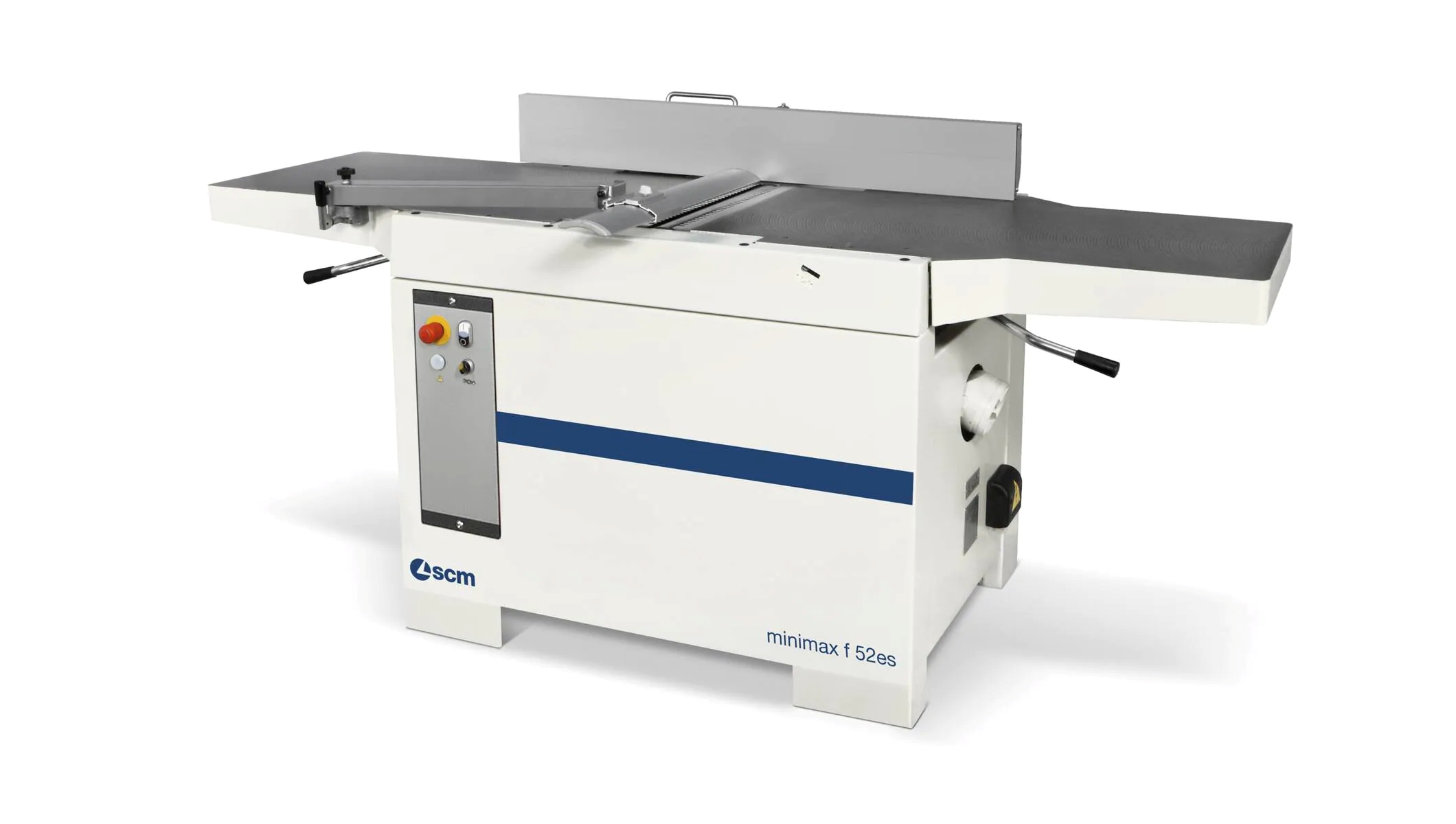

SCM Minimax F 52ES Surface Planer / Jointer
A compact 520 mm SCM surfacer planer / jointer for craftsmen, cabinet shops, furniture shops, and smaller production environments needing wide-stock preparation without stepping into the Class or L’invincibile lineup.
Wide 20-inch-class surfacing capacity in a compact Minimax platform.
The SCM Minimax F 52ES is a dedicated surface planer / jointer for shops that need wide solid-wood preparation in a compact professional machine. It gives cabinet shops, furniture builders, millwork operations, and custom woodworking shops a 520 mm working width without moving directly into SCM’s heavier Class F 520 or flagship L’invincibile F 7 platforms.
For Titan, the key sales position is simple: this is the wide-capacity Minimax jointer for shops that are outgrowing smaller machines but do not need the full investment, long-table package, or production feature set of the Class or L’invincibile lineup.
Best-fit shop profile
The F 52ES is the right machine conversation when the customer needs 520 mm jointing width, clean reference faces, and SCM build quality in a compact footprint.
520 mm width, cast-iron table support, 120 mm cutterblock, and HSS / TERSA / Xylent cutterhead flexibility.
The Minimax F 52ES gives demanding craftsmen and smaller production shops a 520 mm working width, 2250 mm total surfacing table length, 120 mm cutterblock with four standard knives, 520 x 30 x 3 mm knife dimensions, 8 mm maximum stock removal, and available cutterhead paths including HSS, TERSA, and Xylent depending on package.
520 mm working width
The major selling point is true 20-inch-class surfacing capacity in the Minimax range, ideal for wider boards, furniture parts, cabinet stock, and custom work.
Compact professional build
The F 52ES gives shops wide SCM surfacing capability without requiring the heavier footprint or feature package of the Class F 520 or F 7.
8 mm stock removal
The 8 mm maximum stock removal gives the machine serious cut capacity for face flattening, edge jointing, and solid-wood stock preparation.
Xylent availability
The optional Xylent spiral-knife cutterhead gives customers a premium upgrade path for finish quality, lower machining noise, chip evacuation, and insert convenience.
Built for wide hardwood surfacing, glue-joint preparation, furniture parts, millwork stock, and compact production workflows.
The F 52ES is a dedicated standalone surfacer / jointer. It should not be confused with the FS 52ES combination planer-thicknesser. This machine is for face jointing, edge jointing, flattening, reference-face creation, and glue-joint preparation.
Cabinet Shop Stock
Strong fit for face-frame stock, cabinet rails and stiles, island posts, hardwood components, glue-joint preparation, and wider solid-wood parts.
Furniture Production
Useful for tabletop stock, legs, rails, aprons, frame parts, wide boards, and reference-face preparation.
Architectural Millwork
Practical for trim stock, custom solid-wood components, long boards, wide blanks, and millwork parts requiring clean reference faces.
Door & Window Shops
Supports stile and rail preparation, frame stock, long edge jointing, and solid-wood component flattening before downstream machining.
Custom Woodworking
A strong fit for wide board surfacing, custom joinery, slab-adjacent preparation within machine limits, and general solid-wood prep.
Glue-Up Preparation
Helps shops create cleaner reference faces, straighter mating edges, and more consistent glue-ups before thicknessing, ripping, or machining.
SCM Minimax F 52ES
A dedicated standalone 520 mm surface planer / jointer for demanding craftsmen and compact production shops that need wide solid-wood preparation.
The SCM Minimax F 52ES is a standalone surfacer planer / jointer built for shops that need wide solid-wood preparation in a compact professional machine. With a 520 mm working width, it gives cabinet shops, furniture builders, custom woodworking shops, and millwork operations the ability to prepare wider boards and components than smaller jointers can handle.
The machine’s core specification package includes a 120 mm diameter cutterblock, four standard knives, 520 x 30 x 3 mm knife dimensions, 8 mm maximum stock removal, and 2250 mm total surfacing table length. These specs make the F 52ES practical for flattening reference faces, jointing long edges, preparing glue-ups, and building a more consistent solid-wood workflow.
SCM highlights the machine’s finish quality, rigidity, and cutterhead options. The standard cutterblock uses four knives, while the optional Xylent spiral-knife cutterhead is designed to improve finish quality, reduce machining noise, improve chip evacuation, and extend knife life through four-sided rotatable inserts.
Dealer package data confirms the F 52ES can be configured with standard HSS, TERSA, or Xylent cutterblocks. The same data lists a 1200 x 150 mm tilting fence, 0–45° fence tilt, 1 x 120 mm extraction outlet, and motor package options including 5 kW / 6.6 HP standard and 7 kW / 9.5 HP with automatic star-delta start. These details should be confirmed against Titan’s current Canadian SCM package before final SKU publishing.
Titan sales position
Position the Minimax F 52ES around wide surfacing capacity, compact footprint, SCM reliability, cutterhead flexibility, and improved solid-wood preparation for shops that are outgrowing smaller jointers.
Use the F 52ES as the wide-capacity Minimax option before moving into Class or L’invincibile.
The Minimax F 52ES gives the customer 520 mm surfacing width in a compact SCM platform. Use it when 20-inch-class width matters but the customer does not need the heavier production package of the Class F 520 or premium F 7.
Good: Minimax F 41ES
Best for shops that need SCM Minimax surfacing quality but do not require the wider 520 mm F 52ES platform.
Better: Minimax F 52ES
Best for shops needing 520 mm jointing capacity, clean reference faces, and SCM build quality in a compact Minimax platform.
Best: Class F 520 / F 7
Best when the shop needs heavier production features, longer tables, higher-end packages, and premium shop-floor positioning.
Minimax F 52ES specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm final model name, standalone F 52ES identity, cutterhead package, electrical package, motor package, fence package, dust extraction, installation, startup, training, warranty, and service details before SKU-level publishing.
For shops outgrowing smaller jointers but not ready for the full Class or L’invincibile investment.
The Minimax F 52ES should be sold as a compact wide-capacity stock-preparation machine. The correct fit depends on stock width, board length, species, cutterhead preference, glue-up workflow, dust collection, electrical requirements, and whether the customer needs the F 52ES, Class F 520, or F 7.
Strong fit for
Shops that need 520 mm wide-stock preparation, clean reference faces, and SCM reliability without moving into a larger production-class jointer package.
Confirm during quoting
The F 52ES is package dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM Minimax F 52ES machine quote.
Send Titan your stock widths, board lengths, species, current jointer limitations, cutterhead preference, glue-up workflow, dust collection, shop power, and installation requirements. We will help confirm whether the Minimax F 52ES, Class F 520, or L’invincibile F 7 is the right fit.
