SCM Action M CNC Vertical Frame Press
Numerically controlled vertical frame press for automatic door and window-frame assembly, fast format changes, high clamping power, and precise squareness in medium-to-large production shops.
The CNC-controlled vertical frame press for fast, square, repeatable door and window-frame assembly.

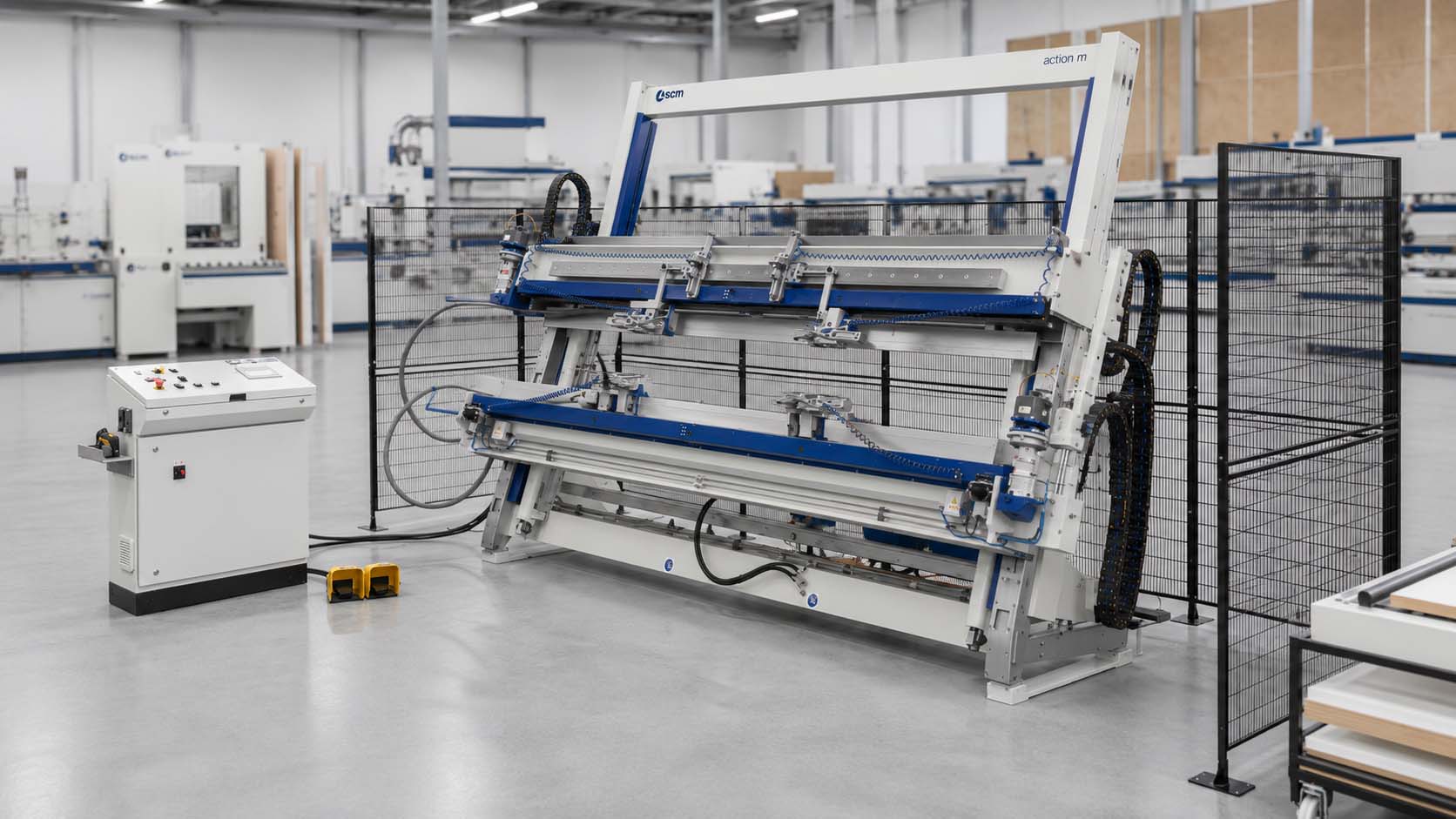

The SCM Action M CNC is a hydraulic, numerically controlled vertical frame press for automatic assembly of doors and window frames. This is not a CNC router or machining centre; it is a CNC-controlled assembly and clamping machine built for frame squaring, pressing, bonding, and fast changeover between frame formats.
For Titan, Action M CNC should be positioned as a production frame-assembly solution for window, door, shutter, and solid-wood frame manufacturers that need more automation, higher clamping force, and faster setup than a manual or semi-manual frame press.
Best-fit shop profile
Action M CNC is the right machine conversation when the customer is fighting out-of-square frames, slow manual clamp changes, inconsistent pressure, too much operator handling, or an assembly bottleneck after machining and profiling.
CNC self-positioning crossbars, 14-ton vertical thrust, 3-ton horizontal thrust, pneumatic preassembly support, high-rigidity structure, and touch-screen control.
The Action M CNC helps door and window manufacturers reduce frame setup time, improve squareness, and apply consistent clamping force across different frame sizes and formats.
CNC format changes
CNC self-positioning crossbars reduce setup time when moving between different door and window-frame dimensions.
High clamping power
14 tons of vertical thrust and 3 tons of horizontal thrust support serious production-level frame pressing and bonding.
Accurate squareness
The high-rigidity frame structure is built to help maintain accurate frame squareness during the pressing cycle.
Preassembly support
Pneumatic preassembly pistons help operators position frame elements before the press cycle begins.
Built for window-frame assembly, door-frame assembly, shutters, slatted shutters, production lines, and high-force frame bonding.
Action M CNC is the assembly-side machine in the window and door workflow. WindorFlex, Windor NT1, Formula Ten, and profiling machines prepare the components; Action M CNC clamps, squares, bonds, and unloads the frame.
Window-Frame Assembly
Pressing, squaring, and gluing window frames after machining, profiling, drilling, routing, and tenoning operations.
Door-Frame Assembly
Assembly and squaring of solid-wood doors, door frames, frame parts, and related door/window components.
Shutters & Slatted Shutters
Frame pressing and assembly support for shutter manufacturers working with repeated frame sizes and profile formats.
Medium-to-Large Production
Best for manufacturers that need high clamping force, fast setup, CNC positioning, and repeatable frame squareness.
After Profiling Lines
Designed to keep up with modern profiling and machining lines where frame assembly must not become the bottleneck.
Full Window/Door Systems
Pairs naturally with Windor NT1, WindorFlex, Formula Ten tenoners, profiling equipment, and traditional joinery machinery.
SCM Action M CNC
A hydraulic CNC-controlled vertical frame press designed for automatic assembly of doors and window frames.

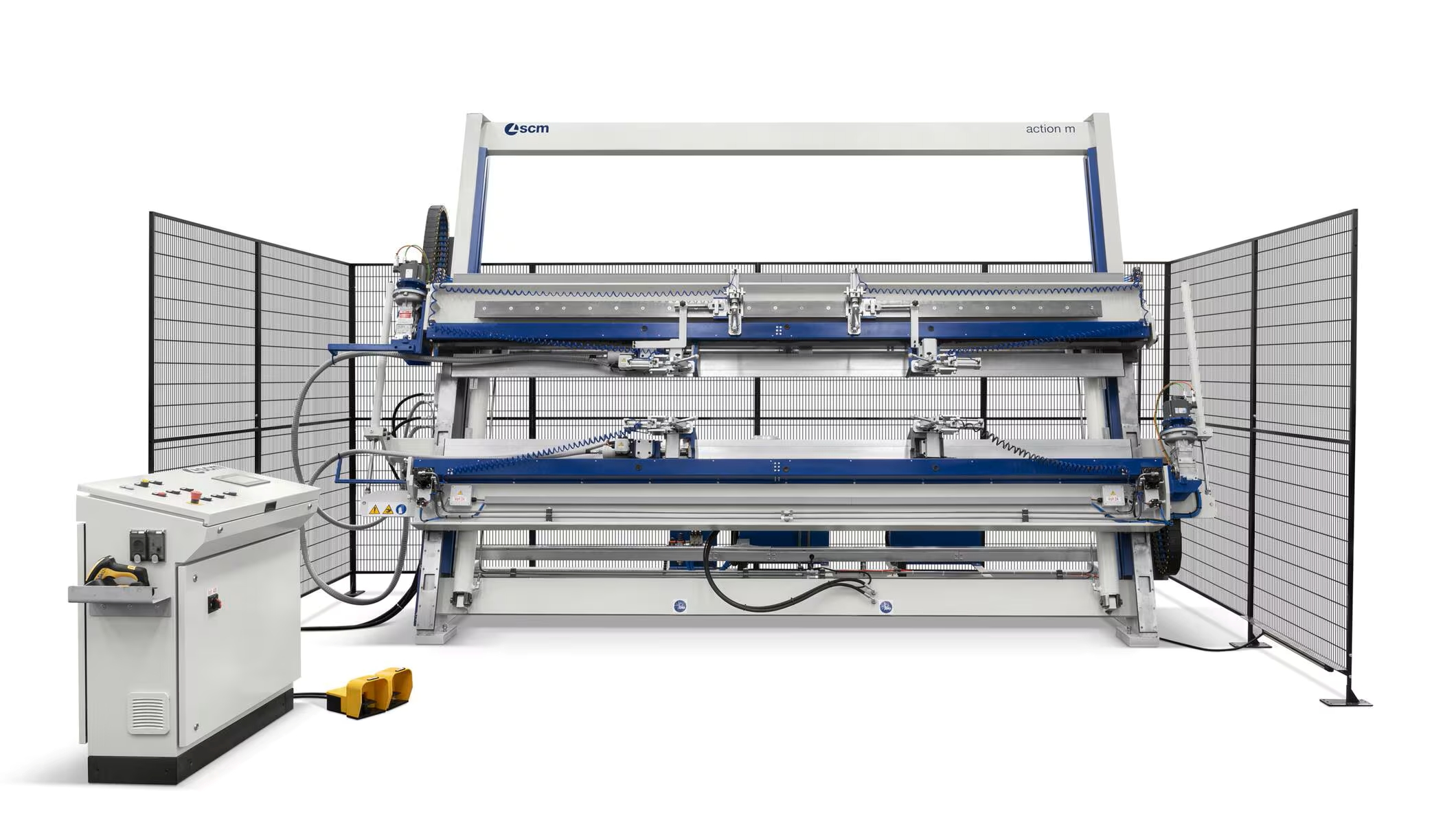

The SCM Action M CNC is a hydraulic CNC-controlled vertical frame press designed for automatic assembly of doors and window frames. It is built for medium and large manufacturers that need strong clamping force, repeatable squareness, and fast setup changes between frame formats.
The key upgrade over a standard manual or semi-manual frame press is CNC self-positioning of the crossbars. This reduces setup time and helps operators move between frame sizes more efficiently.
Pneumatic preassembly pistons help position the frame elements before pressing, while the high-rigidity machine structure supports accurate squareness during the clamping cycle. The machine is also equipped with a touch-screen control panel for operator-friendly use.
The machine is available in two main working sizes: Action M CNC 30-20 with 3000 x 2000 mm maximum working dimensions, and Action M CNC 35-25 with 3500 x 2500 mm maximum working dimensions. Both versions use 14 tons of vertical thrust, 3 tons of horizontal thrust, and a 9 kW hydraulic pump.
From a Titan Equipment standpoint, Action M CNC should be sold as a frame-assembly productivity machine. It belongs in conversations where the customer already machines door or window parts and now needs a better way to clamp, square, bond, and unload finished frames.
Titan sales position
Position Action M CNC around frame squareness, high pressing force, faster setup, and automated production flow for door and window manufacturers that need CNC self-positioning and repeatable clamping performance.
Use Action M CNC as the best production frame-press choice above manual clamps and non-CNC Action M.
Action M CNC assembles and presses frames. Windor NT1 and WindorFlex machine components before assembly. Action P belongs in cabinet/carcass pressing, not door and window-frame pressing.
Good: Manual Frame Clamps
Best only for lower-volume shops where manual clamp changes, slower setup, and operator variation are still acceptable.
Better: Action M
Best for strong vertical frame pressing without CNC self-positioning, when the customer does not need full CNC format change.
Best Frame Press: Action M CNC
Best for CNC-controlled crossbar positioning, higher thrust, fast setup, pneumatic preassembly, and production frame assembly.
Full Production System
Use Windor NT1 or WindorFlex plus Action M CNC when the customer wants a machining-and-assembly workflow.
Action M CNC specifications without table formatting.
Final published specifications should follow the quoted Titan/Canadian configuration. Confirm selected model, counter-shapes, quick-format package, electrical, hydraulic and pneumatic requirements, frame pads, footprint, rigging, startup, training, warranty, and service path.
For door and window manufacturers that need CNC self-positioning, high clamping power, fast setup changes, pneumatic preassembly support, and repeatable frame squareness.
Action M CNC should be sold as a frame-assembly productivity machine. The correct package depends on frame size, frame type, unfinished or prefinished surfaces, pressure requirements, counter-shapes, pressing pads, hydraulic and pneumatic requirements, electrical service, installation space, and production workflow.
Strong fit for
Shops that already machine door or window components and need a better way to clamp, square, bond, and unload finished frames.
Confirm during quoting
Action M CNC is configuration dependent. Final customer-facing publishing should match Titan’s quoted Canadian configuration.
Request an SCM Action M CNC machine quote.
Send Titan your frame sizes, frame types, production volume, current assembly process, squareness issues, pressing requirements, unfinished or prefinished frame needs, counter-shape requirements, hydraulic/pneumatic setup, electrical service, and whether this will pair with Windor NT1, WindorFlex, Formula Ten, or profiling machinery.
