A compact single-blade vertical panel saw for accurate horizontal and vertical sheet sizing, upright material support, and efficient panel breakdown in cabinet, closet, furniture, millwork, and training environments.
Compact vertical panel sizing with single-blade simplicity and multiple format options for space-conscious production.

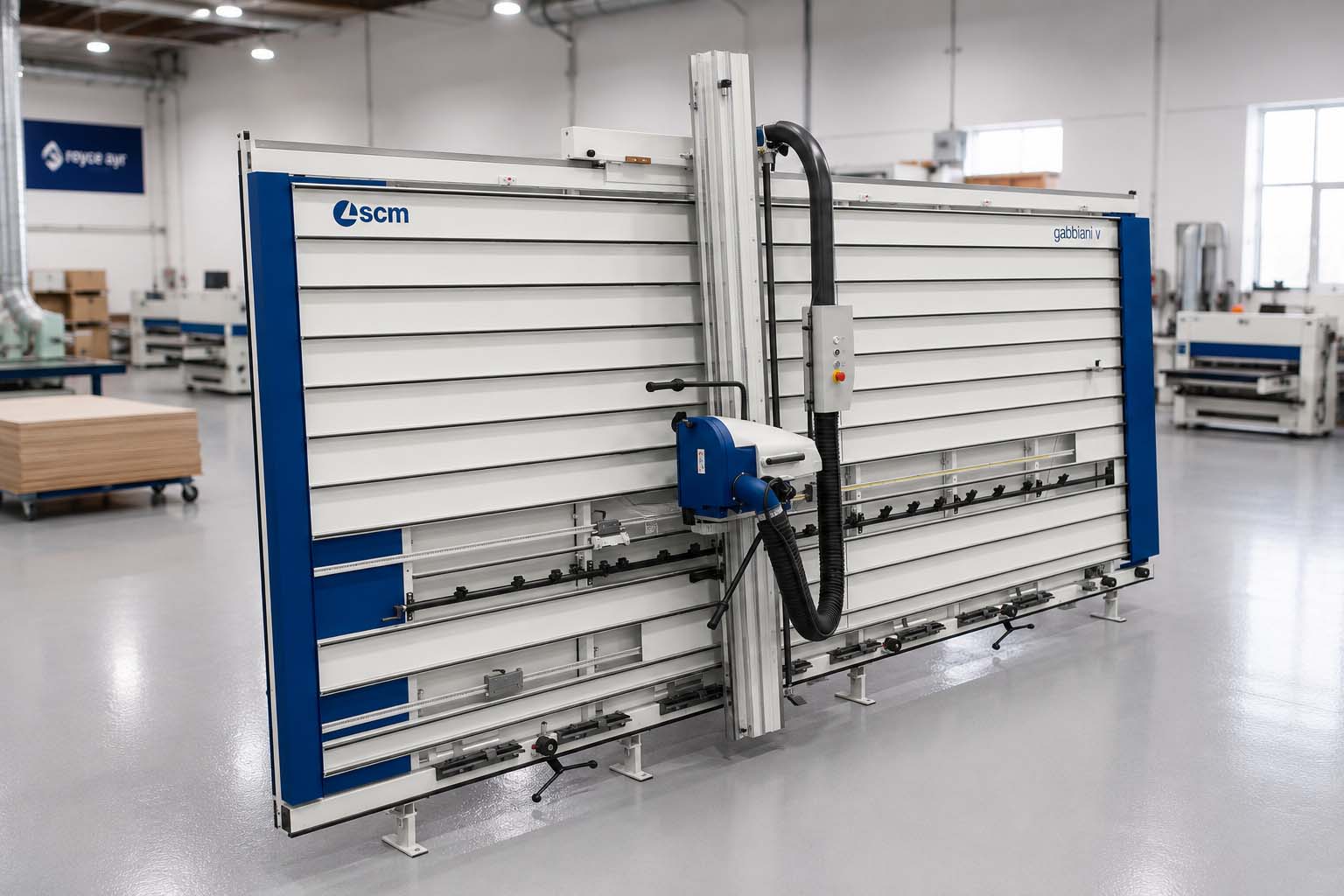

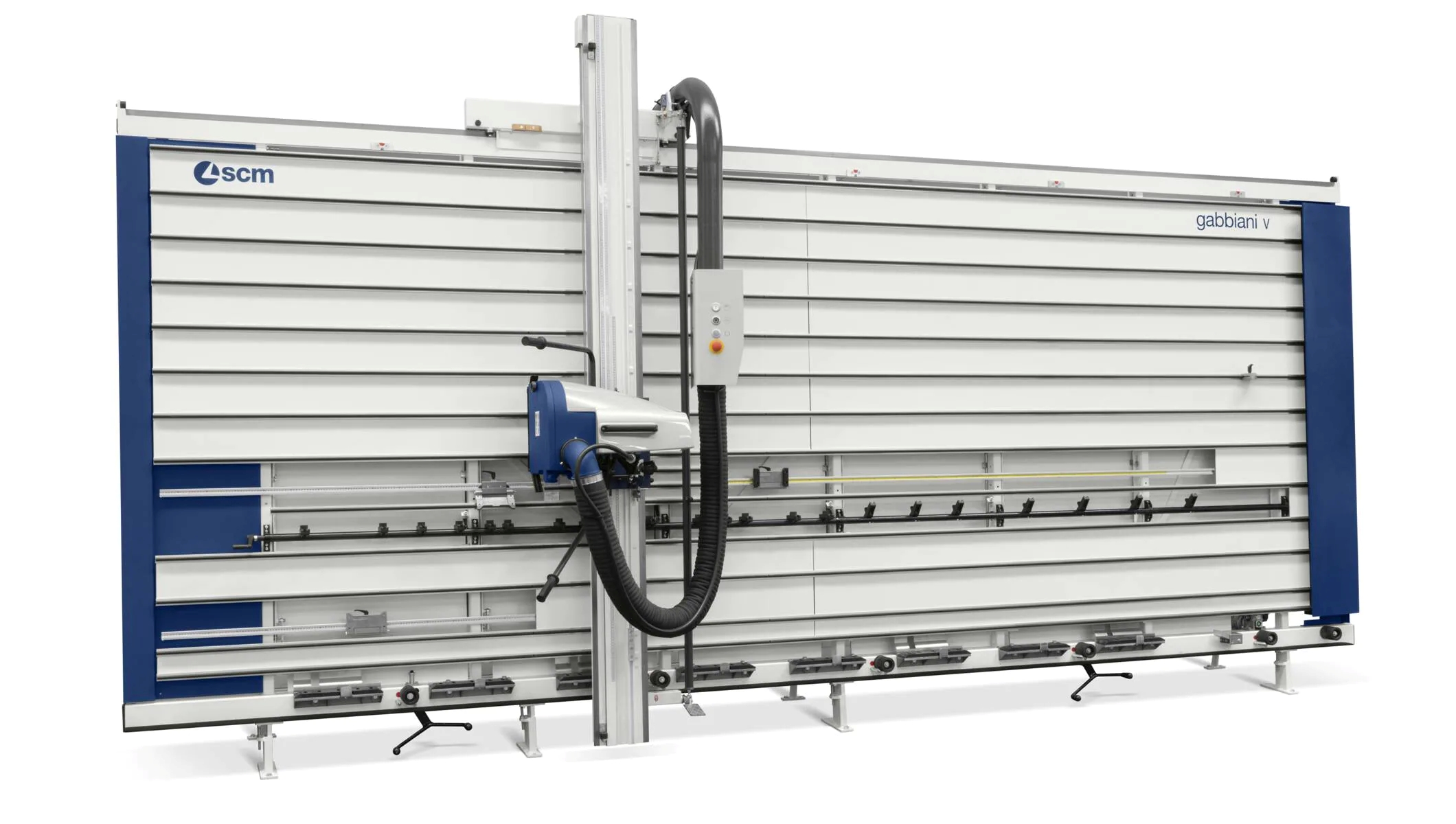

The SCM Gabbiani V is the accessible single-blade model in the Gabbiani vertical panel saw family. It supports horizontal and vertical cutting while keeping the panel upright against the machine frame, reducing the floor area required for sheet breakdown compared with many horizontal cutting workflows.
The V family includes V25, V32, V42, and V53 formats. Published family capacities span 2500–5300 mm horizontal cut length, 2200–5200 mm vertical cut length, 60–80 mm cutting thickness, and 250–300 mm main-blade diameter depending on the selected model.
Its straightforward cutting architecture suits shops that need dependable panel sizing without a scoring system. The exact format, blade package, supports, stops, extraction, electrical requirements, installation, and service scope should be selected around the customer’s material sizes and production workflow.
2500–5300 mmCut Length by Model
2200–5200 mmVertical Cut by Model
60–80 mmCut Thickness by Model
250–300 mmMain Blade by Model
Capability Matrix
One compact vertical panel saw. Five focused sheet-sizing capabilities.
The Gabbiani V organizes panel breakdown around upright support, horizontal and vertical cuts, single-blade operation, multiple format choices, and a compact shop footprint.
Mode 01
Vertical Panel Cutting
Supports vertical sizing while the sheet remains upright and supported against the machine frame.
Mode 02
Horizontal Panel Cutting
Handles horizontal cuts for cabinet parts, shelves, partitions, backs, furniture panels, and other sheet-good components.
Mode 03
Single-Blade Sizing
Uses one main blade for straightforward panel cutting where a scoring system is not required.
Mode 04
Multiple Format Range
V25, V32, V42, and V53 formats allow the cutting length and height to be matched to the shop’s sheet sizes and floor plan.
Mode 05
Compact Upright Handling
The vertical architecture keeps full sheets supported and concentrates panel sizing into a smaller floor area.
Production Advantages
Built for practical panel sizing, compact floor use, and straightforward single-blade operation.
The Gabbiani V gives smaller and mid-sized shops a dedicated SCM vertical cutting platform without adding scoring-system complexity.
Single-Blade Simplicity
A straightforward main-blade system supports practical horizontal and vertical sheet sizing for general panel-processing work.
Compact Production Footprint
The upright layout reduces the loading and outfeed area required by many horizontal cutting methods.
Electro-Welded Frame Support
The published electro-welded construction provides a stable machine structure for repeated panel-cutting work.
Equipment Range
Lineup Positioning
Manual Sheet Breakdown
Track Saw or Sliding-Table Saw
Suitable for lower-volume work where the operator stages, measures, supports, and repositions each sheet manually.
Dedicated Upright Cutting
Conventional Vertical Panel Saw
Adds supported upright handling and a defined cutting station for compact panel breakdown and repeat sizing.
SCM Single-Blade Vertical Saw
SCM Gabbiani V25 / V32 / V42 / V53
Adds SCM Gabbiani construction, multiple format choices, upright horizontal and vertical cutting, and a straightforward single-blade workflow.
Technical Specifications
Gabbiani V Family
Machine Profile
ManufacturerSCM
SeriesGabbiani
ModelsV25 / V32 / V42 / V53
Machine TypeSingle-blade vertical panel saw
Cutting Capacity
Horizontal Cut Length2500–5300 mm by model
Vertical Cut Length2200–5200 mm by model
Cutting Thickness60–80 mm by model
Cutting OrientationHorizontal and vertical
Blade and Structure
Blade SystemSingle main blade
Blade Diameter250–300 mm by model
Optional Widia ToolingConfiguration-dependent
Frame ConstructionElectro-welded
Handling and Support
Panel OrientationUpright support
Floor-Space StrategyCompact vertical layout
Stops and SupportsReview by configuration
Dust ExtractionReview with selected package
Materials and Applications
Panel MaterialsMDF, plywood, particleboard and laminated panels
Production UsesCabinet, closet, furniture and casework
Project WorkMillwork, fixtures and training shops
Downstream WorkEdgebanding, boring, CNC and assembly
Project Configuration
Format SelectionV25 / V32 / V42 / V53
Blade PackageMaterial-specific review
AccessoriesStops, supports and handling options
Site and UtilitiesFootprint, electrical, extraction and installation
Production Environments
Where the Gabbiani V Fits
A strong match for production environments that need compact upright sheet sizing and practical single-blade operation.
Cabinet and Closet Manufacturing
Cuts sides, shelves, partitions, backs, fillers, finished ends, and system panels before edgebanding, boring, CNC work, or assembly.
Furniture and Casework Production
Supports repeat sizing of MDF, plywood, particleboard, laminated panels, and production blanks for furniture and casework.
Millwork and Training Environments
Fits decorative-panel, fixture, custom millwork, school, and mixed sheet-goods environments where floor space is limited.
Compact Panel Sizing · Upright Workflow
A dedicated vertical cutting station that brings order, support, and repeatable sheet sizing into a smaller production footprint.
The Gabbiani V gives cabinet, closet, furniture, millwork, and training shops a practical way to move full sheets through horizontal and vertical cuts while keeping the material upright and supported.
Its single-blade architecture is straightforward to understand and well suited to general panel sizing where a scoring system is not required. Multiple format choices allow the machine to be matched to the shop’s sheet sizes and available floor area.
The result is a cleaner, more organized panel-breakdown station that can feed edgebanding, boring, CNC machining, assembly, and other downstream operations with properly sized components.
