80T Triple Chip Grind (TCG) with Negative Hook Angle
Dimensions
10"Diameter x 5/8"Bore (D10 x b5/8)
Application
Ultra Fine Burr-Free Aluminum Profiles,Thin-Walled Alloys,Brass Tubing &Dense Plastics
Walter · Precision Non-Ferrous Saw Tooling
Premium 80T TCG
Non-Ferrous Saw Blade
80T TCG Non-Ferrous Blade

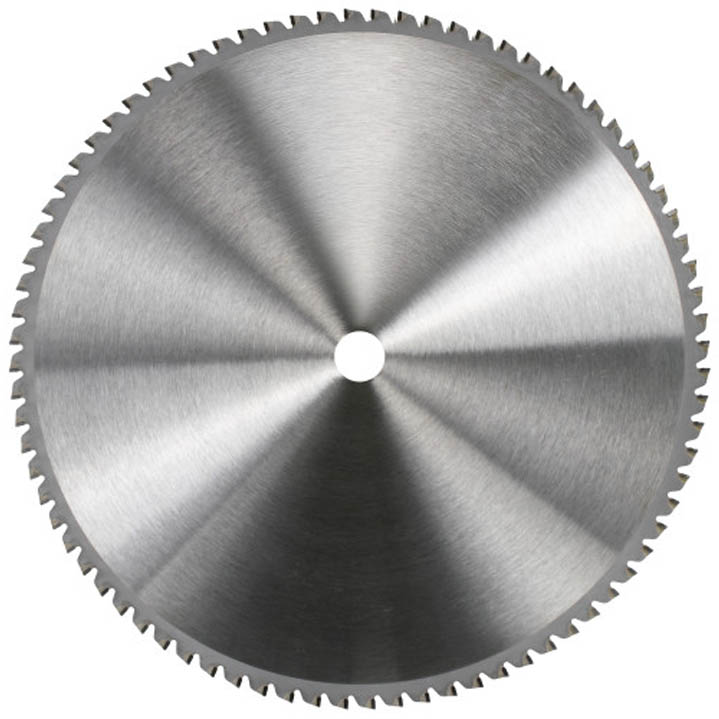

A professional Walter carbide-tipped non-ferrous circular saw blade with a 10-inch diameter, 5/8-inch bore, 80-tooth Triple Chip Grind configuration, and negative hook geometry. It is intended for compatible thin-wall aluminum profiles, brass, copper, acrylics, dense plastics, and other non-ferrous production-cutting applications.
10 inOutside Diameter
80TTooth Count
TCGTriple Chip Grind
5/8 inBore / Arbour
Tool Type
80T TCG Non-Ferrous Blade
This production blade combines a double-tensioned steel plate, micro-grain carbide-tipped teeth, Triple Chip Grind geometry, and a negative hook angle for controlled cutting in compatible non-ferrous metals and plastics.
Designed for compatible industrial saws using a 5/8-inch arbour and supporting the required 10-inch blade capacity, flange geometry, secure workholding, guarding, spindle rotation, and operating-speed range.
Main Product Description
The Walter Premium Industrial High-Performance Non-Ferrous Metal Cutting Saw Blade 23-010 001 080 is designed for production environments requiring controlled chip formation, stable tracking, and refined cut quality in compatible non-ferrous metals and plastics. Its verified configuration combines a 10-inch diameter, 5/8-inch bore, 80 carbide-tipped teeth, Triple Chip Grind geometry, and a negative hook angle.
TCG geometry alternates trapezoidal and flat-raker teeth to divide the cutting load and manage hard or brittle surfaces. The high-density 80-tooth layout supports compatible thin-wall aluminum profiles, brass rods and extrusions, copper tubing, acrylics, and dense plastics where minimized burring, reduced grabbing, and smooth visible edges are priorities.
The laser-cut, double-tensioned steel plate and micro-grain carbide tips support dimensional stability during demanding cutting cycles. Before installation, confirm 10-inch blade capacity, 5/8-inch arbour fit, flange contact, kerf and plate-clearance requirements, negative-hook orientation, spindle rotation, maximum RPM, guarding, workholding, and the suitability of any lubrication method for the machine and material.
Technical Specifications
80T TCG Non-Ferrous Blade 23-010 001 080
BrandWalter
Product TypeHigh-Performance Non-Ferrous Metal Cutting Saw Blade
SKU23-010 001 080
Family / SeriesPrecision Non-Ferrous Saw Tooling
Model DesignationD10xb5/8x80T TCG Non-Ferrous
Outside Diameter10 in
Bore / Arbour5/8 in
Tooth Count80T
Tooth GeometryTCG / Triple Chip Grind
Hook GeometryNegative Hook Angle
Active Cutting MaterialMicro-Grain Carbide-Tipped Teeth
Machine / System FitDesigned for compatible industrial saws using a 5/8-inch arbour and supporting the required 10-inch blade capacity, flange geometry, secure workholding, guarding, spindle rotation, and operating-speed range.
Application Matrix
Best Fit Applications
Thin-Wall Aluminum Profiles
Copper Tubes & Sleeves
Brass Extrusion Trimming
Acrylic & Dense Plastics
Non-Ferrous Production Cutting
Performance Details
Product Highlights
01
High-Density 80T Layout
The dense tooth frequency reduces material removal per tooth and supports smooth, low-burr finishes in compatible thin-wall and non-ferrous profiles.
02
Negative Hook Geometry
The negative rake profile helps control self-feeding tendencies and supports stable cutting when the workpiece is correctly clamped and supported.
03
Polished TCG Carbide Tips
Alternating trapezoidal and flat-raker carbide teeth divide the cutting load and manage heat and edge quality in compatible soft metals and plastics.
Before Machining
Compatibility & Installation Notes
Confirm 10-inch blade capacity, 5/8-inch arbour fit, flange contact, kerf and plate-clearance requirements, negative-hook tooth orientation, spindle rotation, maximum RPM, guarding, workholding, and machine-specific material limits before installation. Keep the blade and flanges clean, inspect carbide tips and plate condition, securely clamp profiles and tubing, and use only machine-approved cutting fluids, waxes, or dry-cutting procedures.
Production Outcome
Controlled Non-Ferrous Cutting
The Walter Premium Industrial High-Performance Non-Ferrous Metal Cutting Saw Blade 23-010 001 080 combines a 10-inch diameter, 5/8-inch bore, 80-tooth Triple Chip Grind configuration, negative hook geometry, carbide-tipped cutting edges, and a double-tensioned steel plate for compatible aluminum, brass, copper, acrylic, and plastic cutting operations.
Correct machine fit, flange condition, operating speed, secure workholding, feed rate, material support, chip control, approved lubrication practice, and guarding are essential for achieving the intended cutting quality and service life.
