100T Triple Chip Grind (TCG) with Negative Hook Angle
Dimensions
12"Diameter x 1"Bore (D12 x b1)
Application
Ultra Fine Burr-Free Aluminum Profiles,Thin-Walled Alloys,Brass Tubing &Dense Plastics
Walter · Precision Non-Ferrous Saw Tooling
Premium 100T TCG
Non-Ferrous Saw Blade
100T TCG Non-Ferrous Blade

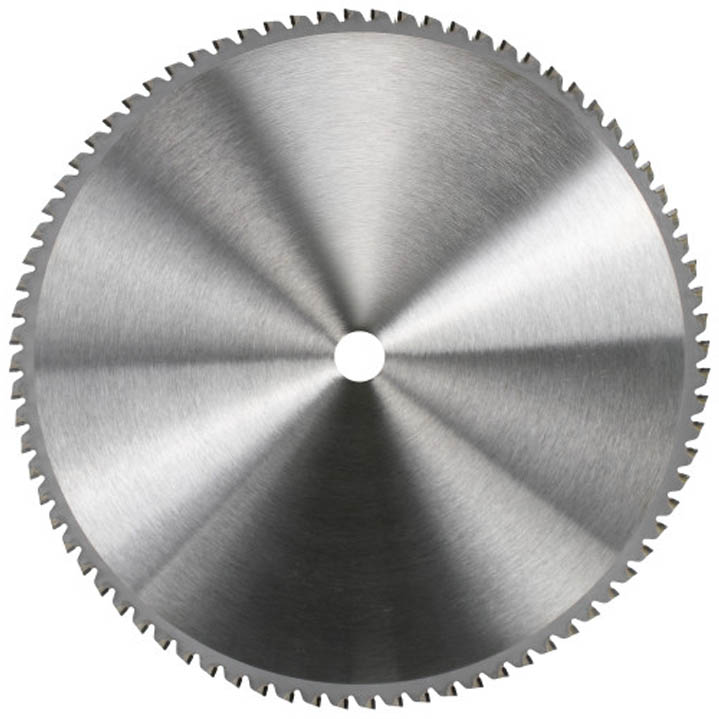

A professional Walter carbide-tipped non-ferrous circular saw blade with a 12-inch diameter, 1-inch bore, 100-tooth Triple Chip Grind configuration, and 5-degree negative hook geometry. It is intended for compatible aluminum profiles and sheet, brass, copper, acrylics, dense plastics, and other high-finish non-ferrous production-cutting applications.
12 inOutside Diameter
100TTooth Count
TCGTriple Chip Grind
1 inBore / Arbour
Tool Type
100T TCG Non-Ferrous Blade
This fine-pitch production blade combines a double-tensioned industrial steel plate, carbide-tipped teeth, Triple Chip Grind geometry, and a 5-degree negative hook angle for controlled cutting in compatible non-ferrous metals and plastics.
Designed for compatible chop-mitre saws and special machines using a 1-inch arbour and supporting the required 12-inch blade capacity, flange geometry, secure workholding, guarding, spindle rotation, and operating-speed range.
Main Product Description
The Walter Premium Industrial High-Performance Non-Ferrous Metal Cutting Saw Blade 23-012 002 100 is designed for production environments requiring controlled chip formation, stable tracking, and refined cut quality in compatible non-ferrous metals and plastics. Its verified configuration combines a 12-inch diameter, 1-inch bore, 100 carbide-tipped teeth, Triple Chip Grind geometry, a 0.128-inch kerf, a 0.102-inch plate, and a 5-degree negative hook angle.
TCG geometry alternates trapezoidal and flat-raker teeth to divide the cutting load and manage hard or brittle surfaces. The high-density 100-tooth layout supports compatible aluminum profiles and sheet, brass components, copper tubing, acrylics, and dense plastics where minimized burring, reduced grabbing, controlled gullet loading, and smooth visible edges are priorities.
The laser-cut, double-tensioned steel plate and carbide tips support dimensional stability during demanding cutting cycles. Before installation, confirm 12-inch blade capacity, 1-inch arbour fit, flange contact, 0.128-inch kerf and 0.102-inch plate clearances, negative-hook orientation, spindle rotation, maximum RPM, guarding, secure material clamping, and the suitability of coolant or lubricant for the machine and material.
Technical Specifications
100T TCG Non-Ferrous Blade 23-012 002 100
BrandWalter
Product TypeType 23 High-Performance Non-Ferrous Metal Cutting Saw Blade
SKU23-012 002 100
Family / SeriesPrecision Non-Ferrous Saw Tooling
Model DesignationD12xb1x100T TCG Non-Ferrous
Outside Diameter12 in
Kerf0.128 in
Plate Thickness0.102 in
Bore / Arbour1 in
Tooth Count100T
Tooth GeometryTCG / Triple Chip Grind
Hook Angle5° Negative
Additional Verified DetailsActive Cutting Material: TC Carbide-Tipped Teeth · Blade Body: Laser-Cut, Double-Tensioned Hardened Steel · Material Suitability: Aluminum Profiles and Sheet, Brass, Copper, Acrylics, and Compatible Plastics · Machine Suitability: Compatible Chop-Mitre Saws and Special Machines
Machine / System FitDesigned for compatible chop-mitre saws and special machines using a 1-inch arbour and supporting the required 12-inch blade capacity, flange geometry, secure workholding, guarding, spindle rotation, and operating-speed range.
Application Matrix
Best Fit Applications
Thin-Wall Aluminum Profiles
Aluminum Sheet Processing
Brass & Copper Components
Acrylic & Dense Plastics
Fine Non-Ferrous Production Cutting
Performance Details
Product Highlights
01
100-Tooth TCG Geometry
The fine-pitch alternating trapezoidal and flat-raker sequence balances chip loads and supports smooth, low-burr finishes in compatible non-ferrous materials.
02
5° Negative Hook Angle
The negative rake profile helps control self-feeding and gullet loading when profiles, sheet, tubing, and plastic components are correctly clamped and supported.
03
Stable Industrial Plate
The 0.102-inch double-tensioned steel plate and 0.128-inch kerf support tracking stability and controlled heat expansion during production cutting.
Before Machining
Compatibility & Installation Notes
Confirm 12-inch blade capacity, 1-inch arbour fit, flange contact, 0.128-inch kerf and 0.102-inch plate clearances, 5-degree negative-hook tooth orientation, spindle rotation, maximum RPM, guarding, workholding, and machine-specific material limits before installation. Keep the blade and flanges clean, inspect carbide tips and plate condition, clamp the material firmly, and use only machine-approved coolant, lubricant, wax, or dry-cutting procedures.
Production Outcome
Fine Non-Ferrous Cutting
The Walter Premium Industrial High-Performance Non-Ferrous Metal Cutting Saw Blade 23-012 002 100 combines a 12-inch diameter, 1-inch bore, 100-tooth Triple Chip Grind configuration, 5-degree negative hook geometry, carbide-tipped cutting edges, a 0.128-inch kerf, and a 0.102-inch double-tensioned steel plate.
Correct machine fit, flange condition, operating speed, secure workholding, feed rate, material support, chip control, approved coolant or lubrication practice, and guarding are essential for achieving the intended cutting quality and service life.
