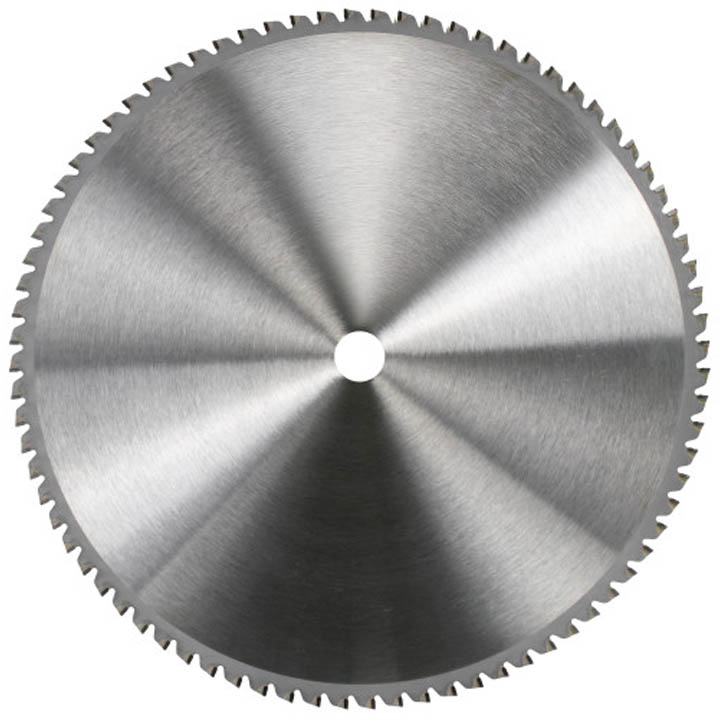

A professional Walter carbide-tipped non-ferrous circular saw blade with a 12-inch diameter, 1-inch bore, 80-tooth Triple Chip Grind configuration, and negative hook geometry. It is intended for compatible aluminum extrusions, brass profiles, copper tubing, acrylics, dense plastics, and other non-ferrous production-cutting applications.
12 inOutside Diameter
80TTooth Count
TCGTriple Chip Grind
1 inBore / Arbour
Tool Type
80T TCG Non-Ferrous Blade
This production blade combines a double-tensioned industrial steel plate, micro-grain carbide-tipped teeth, Triple Chip Grind geometry, and a negative hook angle for controlled cutting in compatible non-ferrous metals and plastics.
Designed for compatible industrial saws using a 1-inch arbour and supporting the required 12-inch blade capacity, flange geometry, secure workholding, guarding, spindle rotation, and operating-speed range.
Main Product Description
The Walter Premium Industrial High-Performance Non-Ferrous Metal Cutting Saw Blade 23-012 002 080 is designed for production environments requiring controlled chip formation, stable tracking, and refined cut quality in compatible non-ferrous metals and plastics. Its verified configuration combines a 12-inch diameter, 1-inch bore, 80 carbide-tipped teeth, Triple Chip Grind geometry, and a negative hook angle.
TCG geometry alternates trapezoidal and flat-raker teeth to divide the cutting load and manage hard or brittle surfaces. The 80-tooth layout supports compatible aluminum storefront extrusions, brass profiles, copper tubing and busbar, acrylics, and dense plastic sheet where minimized burring, reduced grabbing, and smooth visible edges are priorities.
The laser-cut, double-tensioned industrial plate and micro-grain carbide tips support dimensional stability during demanding cutting cycles. Before installation, confirm 12-inch blade capacity, 1-inch arbour fit, flange contact, kerf and plate-clearance requirements, negative-hook orientation, spindle rotation, maximum RPM, guarding, workholding, and the suitability of any lubrication method for the machine and material.
Technical Specifications
80T TCG Non-Ferrous Blade 23-012 002 080
BrandWalter
Product TypeHigh-Performance Non-Ferrous Metal Cutting Saw Blade
SKU23-012 002 080
Family / SeriesPrecision Non-Ferrous Saw Tooling
Model DesignationD12xb1x80T TCG Non-Ferrous
Outside Diameter12 in
Bore / Arbour1 in
Tooth Count80T
Tooth GeometryTCG / Triple Chip Grind
Hook GeometryNegative Hook Angle
Active Cutting MaterialMicro-Grain Carbide-Tipped Teeth
Additional Verified DetailsMaterial Suitability: Aluminum Extrusions, Copper Tubing and Busbar, Brass Profiles, Acrylics, and Compatible Dense Plastics · Application: Fine Non-Ferrous Extrusion, Profile, Tubing, Busbar, and Plastic Cutting
Machine / System FitDesigned for compatible industrial saws using a 1-inch arbour and supporting the required 12-inch blade capacity, flange geometry, secure workholding, guarding, spindle rotation, and operating-speed range.
Application Matrix
Best Fit Applications
Aluminum Storefront Extrusions
Copper Busbar & Tubing
Industrial Brass Profiles
Acrylic & Dense Plastic Sheet
Non-Ferrous Production Cutting
Performance Details
Product Highlights
01
80-Tooth TCG Geometry
The alternating trapezoidal and flat-raker sequence balances chip loads and supports smooth, low-burr finishes in compatible non-ferrous materials.
02
Negative Hook Angle
The negative rake profile helps control self-feeding and workpiece-grab tendencies when profiles, tubing, and sheet are correctly clamped and supported.
03
Thermally Stable Plate
The laser-cut, double-tensioned industrial plate supports tracking stability and controlled heat expansion during extended non-ferrous production cuts.
Before Machining
Compatibility & Installation Notes
Confirm 12-inch blade capacity, 1-inch arbour fit, flange contact, kerf and plate-clearance requirements, negative-hook tooth orientation, spindle rotation, maximum RPM, guarding, workholding, and machine-specific material limits before installation. Keep the blade and flanges clean, inspect carbide tips and plate condition, securely clamp profiles, tubing, busbar, and sheet, and use only machine-approved cutting fluids, waxes, or dry-cutting procedures.
Production Outcome
Controlled Non-Ferrous Cutting
The Walter Premium Industrial High-Performance Non-Ferrous Metal Cutting Saw Blade 23-012 002 080 combines a 12-inch diameter, 1-inch bore, 80-tooth Triple Chip Grind configuration, negative hook geometry, carbide-tipped cutting edges, and a double-tensioned industrial plate for compatible aluminum, brass, copper, acrylic, and plastic cutting operations.
Correct machine fit, flange condition, operating speed, secure workholding, feed rate, material support, chip control, approved lubrication practice, and guarding are essential for achieving the intended cutting quality and service life.
