Saw BladeSKU 15-010 011 080
Match the 5/8 in bore and all locating features to the machine mounting.
Main Product Description

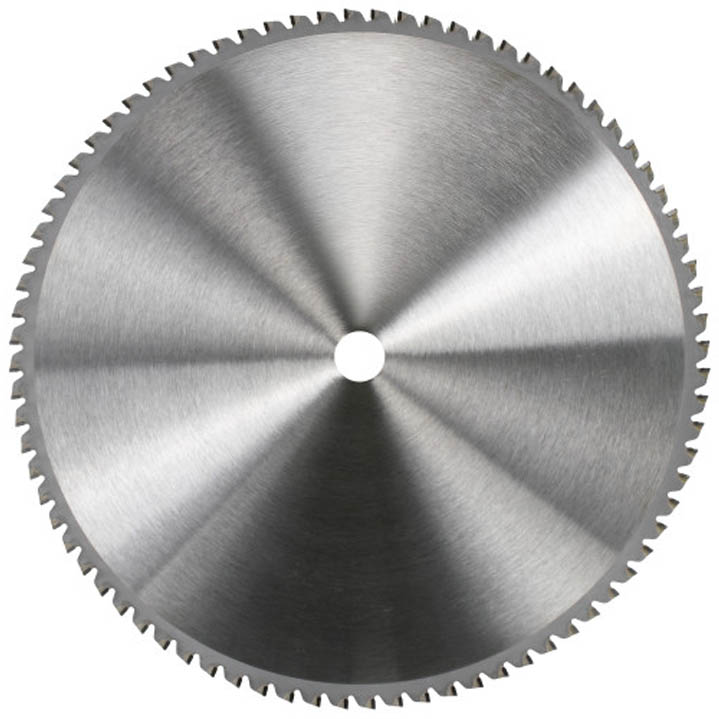

This Walter R-4ATB mitre saw blade is designed to make mitre and cut-off cuts. It is suitable for wood mouldings.
The blade is intended for controlled crosscutting in a suitable saw. Secure the workpiece and check the blade diameter, bore and permitted speed against the machine. Carbide tips form the working edges, supported by the tool body.
The blade diameter is 10 in, with 80 teeth. The 5/8 in bore must match the arbor and the complete mounting arrangement. Its nominal kerf is .102 in.
Technical Specifications
15-010 011 080 · R-4ATB Mitre Saw Blade
BrandWalter
SKU15-010 011 080
Product ClassSaw Blade
Product TypeR-4ATB Mitre Saw Blade
Family / SeriesType 15
Manufacturer Part Number15-010 011 080
Cutting Diameter (D)10 in
Kerf (B).102 in
Plate Thickness (b).072 in
Bore Diameter (d)5/8 in
Cutting MaterialCarbide Tipped
Number of Teeth80
Tooth GeometryR-4ATB (Raker + Alternate Top Bevel)
Hook Angle (degrees)-5
Workpiece Materialswood mouldings
Configuration Details
Tool Configuration
mitre cuts in wood mouldings
Performance Details
Product Highlights
01
Working geometry
The blade is intended for controlled crosscutting in a suitable saw.
02
Cutting material
Carbide tips form the working edges, supported by the tool body.
03
This version
The blade diameter is 10 in, with 80 teeth. The 5/8 in bore must match the arbor and the complete mounting arrangement. Its nominal kerf is .102 in.
Before Machining
Compatibility & Installation Notes
Match the part number, mounting dimensions and machine configuration before use. Follow the tool and machine manufacturer’s operating instructions.
Production Outcome
R-4ATB Mitre Saw Blade
Walter 15-010 011 080 is designed to make mitre and cut-off cuts. It is suitable for wood mouldings.
The blade is intended for controlled crosscutting in a suitable saw. Secure the workpiece and check the blade diameter, bore and permitted speed against the machine. Carbide tips form the working edges, supported by the tool body.
The blade diameter is 10 in, with 80 teeth. The 5/8 in bore must match the arbor and the complete mounting arrangement. Its nominal kerf is .102 in. Match the 5/8 in bore and all locating features to the machine mounting.
For help selecting this version, share your machine model, workpiece material and intended operation with Titan.
