High-Helix Upcut Geometry
The upcut configuration helps pull chips upward and clear them from the cut where efficient evacuation is a priority.

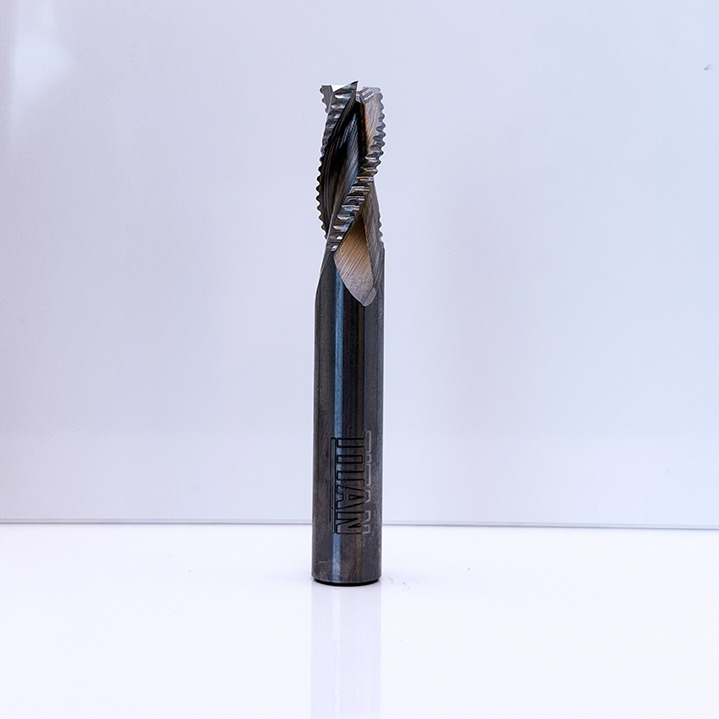

Royce Ayr 3 Flute Upcut High Helix Ripper Bit 1/2" (12.7mm)
CA$195.40
In stock
SKU
R60-01703
Product Type
3 Flute Upcut High Helix Ripper Bit
Series
High Helix Ripper Upcut
Cutting Diameter
1/2 in (12.7 mm)
Cutting Edge
1-1/8 in (28.58 mm)
Shank
1/2 in (12.7 mm)
Overall Length
3-1/2 in (88.9 mm)
Flutes
3
Rotation
Right-Hand (RH)
Material
HW
Coating
None
Application
Chip Evacuation,Difficult Wood Grain CNC Routing
3-Flute Upcut High Helix
Ripper Router Bit
Upcut High Helix Ripper Bit
Uncoated HW solid-carbide right-hand 3-flute upcut high-helix ripper router bit designed for CNC routing where chip evacuation, reduced cutting load, and controlled machining through difficult wood grains are important. Its 1/2-inch cutting diameter, 1-1/8-inch cutting edge, matching 1/2-inch shank, and 3-1/2-inch overall length suit production work in moulding, millwork, stair, railing, construction, and related wood-routing applications.
D=1/2 in12.7 mm Diameter
CE=1-1/8 in28.58 mm Cutting Edge
Sh=1/2 in12.7 mm Shank
OAL=3-1/2 in88.9 mm Overall Length
Upcut High Helix Ripper Bit
This production tool combines HW solid-carbide construction, three high-helix upcut flutes, right-hand rotation, and serrated ripper tooth geometry to support chip evacuation and controlled cutting through difficult wood grain.
HW / Solid Carbide3 FlutesRH High Helix UpcutSKU R60-01703
Designed for compatible CNC routers using a precision 1/2-inch collet or approved toolholding assembly with right-hand spindle rotation.
Main Product Description
The Royce Ayr 3-Flute Upcut High Helix Ripper Router Bit R60-01703 is designed for CNC router work where chip evacuation, reduced cutting load, and tear-out control are important during production routing. Its serrated tooth design is intended to reduce tear-out in difficult wood grains while lowering the horsepower required to cut.
The high-helix upcut geometry helps pull chips upward and away from the cut, supporting routing operations where efficient evacuation is a priority. The 1/2-inch cutting diameter, 1-1/8-inch cutting edge, matching 1/2-inch shank, and 3-1/2-inch overall length provide a common production format for compatible CNC router collets and toolholders.
This uncoated HW solid-carbide tool uses three high-helix upcut flutes and right-hand rotation. It is suited to moulding, millwork, construction components, stair parts, railing components, and related wood-machining applications when correctly matched to the machine, material, programmed depth, feed speed, RPM, chip extraction, and hold-down system. RPM/feed data and country of origin are not specified by the supplied source.
Technical Specifications
High-Helix Upcut Ripper Bit R60-01703
- Royce Ayr
- 3-Flute Upcut High Helix Ripper Router Bit
- R60-01703
- High Helix Ripper Upcut
- CNC Router
- 0.5000 in / 1/2 in (12.7 mm)
- 1.125 in / 1-1/8 in (28.58 mm)
- 0.500 in / 1/2 in (12.7 mm)
- 3.500 in / 3-1/2 in (88.9 mm)
- 3
- Upcut
- High Helix
- Tooth Design: Serrated Ripper-Style Tooth Design · Rotation: RH / Right-Hand · Cutting Material: HW / Solid Carbide · Coating: None · RPM / Feed Data: Not Specified by Supplied Source · Country of Origin: Not Specified by Supplied Source · Material Compatibility: Wood, Sheet Goods, and Difficult Wood Grains · Listed Industries: Moulding & Millwork; Construction Industry; Stairs & Railings · Primary Applications: CNC Routing, Chip Evacuation, Ripper-Style Roughing, Profiling, and Production Wood Machining
- Designed for compatible CNC routers using a precision 1/2-inch collet or approved toolholding assembly with right-hand spindle rotation.
Best Fit Applications
Difficult Wood Grain Routing
Upcut Chip Evacuation
Moulding & Millwork Production
Stair & Railing Components
Construction Wood Machining
Product Highlights
Serrated Ripper Tooth Design
The serrated tooth form is intended to reduce tear-out in difficult wood grains while lowering cutting horsepower demand.
1/2-Inch CNC Format
The 1/2-inch diameter and shank with a 1-1/8-inch cutting edge fit common compatible production CNC router setups.
Compatibility & Installation Notes
Confirm that the CNC router spindle, collet, and toolholder accept an exact 1/2-inch (12.7 mm) shank and support right-hand rotation. Verify collet condition, runout, tool projection, available clearance, programmed cutting depth, RPM, feed speed, chipload, material suitability, workholding, guarding, and dust or chip extraction. Because this is an upcut tool, confirm that upward cutting action is appropriate for the required top-edge finish and part-hold-down strategy.
Improve 1/2-Inch High-Helix Routing
The Royce Ayr 3-Flute Upcut High Helix Ripper Router Bit R60-01703 provides an uncoated HW solid-carbide solution for CNC routing where chip evacuation and controlled cutting in difficult wood grain matter.
Its 1/2-inch cutting diameter, 1-1/8-inch cutting edge, matching shank, three-flute high-helix upcut geometry, right-hand rotation, and 3-1/2-inch overall length support production machining when correctly held and operated.
