01
Cleaner Top Edges
Downcut geometry pushes the top veneer, laminate, or melamine face downward into the panel. That makes the 3/8 downcut a strong choice when the top edge is visible and top-surface breakout is the main concern.

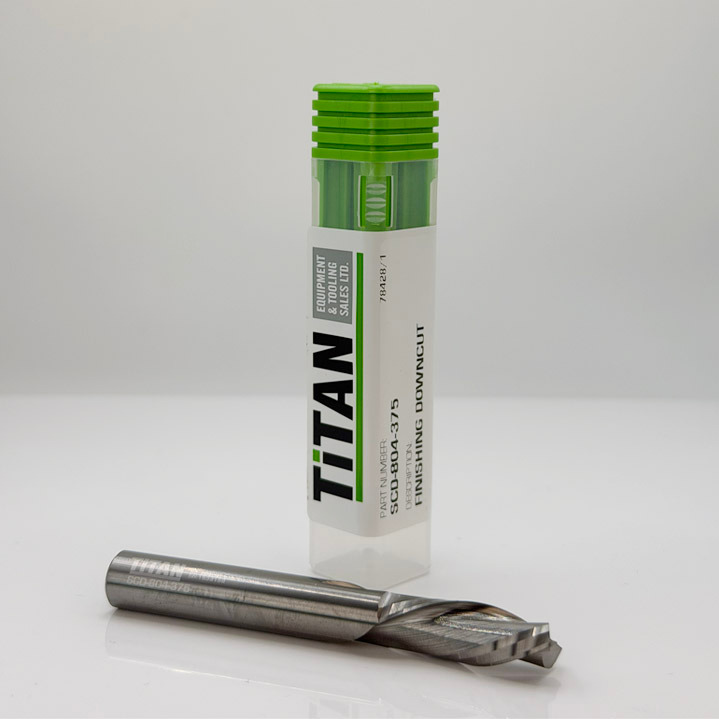

GreenCap Solid Carbide Down Cut 3/8 (9.53mm)
CA$56.25
In stock
SKU
SCD-804-375
Product Type
Solid Carbide Down Cut Router Bit
Diameter
3/8 in (9.53 mm)
Cutting Length
1 in (25.40 mm)
Shank Diameter
3/8 in (9.53 mm)
Overall Length
3 in (76.20 mm)
Flute Quantity
2 Flute
Cut Direction
Down Cut
GreenCap By Titan Equipment And Tooling Sales
GreenCap 3/8 Inch Solid Carbide Downcut Bit For Clean Top Edges, Dados, Grooves, Pockets, And Controlled Routing
The GreenCap 3/8 inch solid carbide downcut bit is a production-friendly CNC router tool for shops that need clean top-surface control with more strength than smaller detail cutters. It is a practical choice for grooves, rabbets, dado pockets, shallow recesses, MDF, plywood, laminated panels, melamine-faced material, templates, and cabinet-component details where the top face has to stay clean.
A downcut bit is especially useful when the visible surface of the panel matters. Instead of pulling fibres upward, the cutting action pushes the top face downward into the material. That helps reduce top-edge breakout and makes this tool a strong fit for parts where the upper face will remain visible, receive hardware, or move directly into assembly with minimal cleanup.
The Short Answer
Use 3/8 Inch When You Need More Muscle Than A Small Detail Bit. But More Control Than A Large Production Cutter.
A 3/8 inch downcut bit sits in one of the most useful zones for cabinet and furniture work. It is strong enough for repeatable routing, stable enough for clean wall control, and still small enough to handle features that a 1/2 inch cutter would oversize.
Compared with 1/4 inch and smaller tools, the 3/8 inch gives the shop more rigidity, more edge support, better feed confidence, and a wider operating window. Compared with 1/2 inch tooling, it provides a smaller radius and better access into medium-sized features.
GreenCap is a professional tooling line made by Titan Equipment and Tooling Sales for shops that want tooling choices matched to real CNC production work, not generic one-size-fits-all cutting.
3/8 Inch Downcut
Solid Carbide
Clean Top Edge
Dados
Pocket Dados
Grooves
Rabbets
Cabinet Parts
3/8 Inch Downcut Advantages
Why Shops Use A 3/8 Downcut
The GreenCap 3/8 inch downcut is selected when the job needs clean top edges, controlled feature geometry, and enough tool strength to run confidently in real production. It is not a full-sheet compression tool and it is not a tiny detail cutter. It is the solid, dependable middle-ground downcut for CNC work where the top face matters.
02
Medium Dados
Dados should be programmed as controlled shapes, not just a straight centreline pass. A 3/8 downcut can machine both dado walls with a rectangular toolpath while keeping the top shoulders clean.
03
Better Rigidity Than 1/4
When the feature allows it, stepping up from 1/4 inch to 3/8 inch gives more tool mass, less deflection, stronger side-wall control, and more confidence in repeated production routing.
04
Smaller Radius Than 1/2
A 3/8 cutter can fit into tighter internal features than a 1/2 inch bit. Use it when the design needs a smaller inside corner, narrower pocket, or feature width that cannot accept 1/2 inch tooling.
05
Controlled Pocket Dados
A pocket dado needs four clean edges, not one slot. The 3/8 downcut works well when the pocket is large enough for the tool to trace the rectangle, clean the shoulders, and control the top perimeter.
06
Good Feature Cutter
This is a strong choice for grooves, rabbets, hinge or hardware clearances, spoilboard-sensitive pockets, fixture work, templates, and details where a larger production cutter is too big.
07
Heat Awareness
Downcut tools push chips downward, so chip clearing matters. Use sensible depths, strong dust collection, correct feed, and avoid rubbing. Fine dust, heat, or squealing means the process needs adjustment.
08
Production Confidence
The value of the 3/8 downcut is repeatability. It gives shops a stable cutter for clean-top work when smaller detail bits feel too fragile and 1/2 inch tooling is physically too large.
Diameter Selection
Why Choose 3/8 Inch Over Smaller Detail Bits Or A 1/2 Inch?
Diameter selection starts with the feature. The cutter must fit the groove, pocket, dado, radius, and finish requirement. The 3/8 inch downcut is selected when the feature is large enough to accept a stronger cutter, but not large enough to justify a 1/2 inch bit.
1
Use 3/8 Instead Of 1/4
When the feature can accept the larger diameter and the shop wants more rigidity, more feed confidence, improved wall control, and a stronger tool.
2
Use 3/8 Instead Of 3/16 Or 1/8
When the feature no longer requires a tiny radius. The 3/8 cutter is stronger, less delicate, and better suited to repeatable production routing.
3
Use 3/8 Instead Of 1/2
When the 1/2 inch bit would oversize the feature, leave too large an inside radius, or prevent the tool from properly tracing the dado or pocket shape.
4
Use 1/2 When The Job Allows
For larger profiles, heavier material removal, long straight cuts, and maximum rigidity, 1/2 inch tooling is usually the better production choice when the geometry allows it.
5
Dado Rule
A quality dado is usually a machined rectangle. A pocket dado is a pocket with four controlled edges. Program the shape so the tool defines the walls, not just the centreline.
Compared With 1/4 Inch
The 1/4 inch cutter wins when the feature is too small for 3/8. The 3/8 inch cutter wins when the feature allows a larger diameter and the shop wants better stiffness, stronger edge support, cleaner walls, and a wider process window.
Compared With 3/16 And 1/8 Inch
Smaller cutters are for tiny details, narrow inlays, very small pockets, and the tightest internal radii. The 3/8 inch downcut is the step up when those small diameters are no longer necessary and production stability matters more.
Compared With 1/2 Inch
The 1/2 inch cutter is stronger and better for larger, heavier production cuts. The 3/8 inch downcut is chosen when 1/2 inch is too large for the feature, too large for the inside radius, or too aggressive for the desired pocket or dado geometry.
Where It Fits Best
Use the 3/8 inch downcut for medium grooves, cabinet dados, pocket dados, rabbets, template work, clean-top openings, shallow pockets, and top-face-sensitive panel features where the geometry supports a 3/8 cutter.
Best-Practice Playbook
How To Get The Most From 3/8 Inch Downcut Tooling
Treat the GreenCap 3/8 inch solid carbide downcut as a clean-top feature cutter. It is strong enough for confident medium-feature routing, but it still needs the right program, chip clearing, and depth strategy to perform well.
Use it when the top surface must remain clean and the geometry is too small for 1/2 inch tooling or too demanding for smaller detail cutters. For dados and pockets, program the actual shape. A clean dado should define both side walls; a pocket dado needs four controlled edges, not a single line cut through the panel.
Best Use
Medium dados, grooves, rabbets, clean-top pockets, templates, and cabinet features where 1/2 inch is too large.
Avoid Using It For
Large full-depth panel cutouts, heavy perimeter profiling, or jobs where a 1/2 inch compression or downcut tool fits the geometry better.
Top-Face Priority
Downcut action helps protect the visible top surface, making it useful for laminated faces, veneer faces, melamine, and clean cabinet-component details.
Chip Clearing
Because chips are driven downward, manage depth of cut, dust collection, and feed rate so chips do not pack into the groove or pocket.
Feature Geometry
Confirm the designed width, radius, and wall requirements. Use 3/8 only when it fits the feature without overcutting the design.
Step Up When Possible
Use the largest cutter that fits the feature. Step up to 1/2 inch when the geometry allows and the job needs stronger, faster production cutting.
Validation Notes For Shop Teams
Prove The Cut On Your CNC
A 3/8 inch downcut can produce excellent clean-top results, but it still needs a tuned process. Test the material, depth strategy, toolpath shape, chip clearing, and finish expectation before locking the cutter into production.
Confirm The Feature
Check the designed width, pocket size, inside radius, and wall requirements. Use 3/8 inch when smaller tools are unnecessary and 1/2 inch is too large.
Watch Chip Evacuation
Downcut tools can pack chips into the cut. Monitor dust collection, chip size, edge heat, sound, and whether the groove or pocket is clearing properly.
Inspect The Top Edge
Measure width, depth, side-wall quality, top-edge cleanliness, corner radius, and fit. The value of 3/8 downcut tooling is clean top-surface control with better strength than smaller cutters.
Final Recommendation: Use 3/8 Inch For Strong, Clean-Top Feature Routing
The GreenCap 3/8 inch solid carbide downcut bit is the right choice when the part needs a clean top surface, the feature is too large to justify fragile detail tooling, and a 1/2 inch bit would be too large for the design. It is a practical middle-ground downcut for dados, grooves, rabbets, shallow pockets, templates, cabinet details, and controlled CNC feature work.
Choose 3/8 inch when the geometry allows a stronger cutter than 1/4 inch or smaller, but still requires tighter access than 1/2 inch. Step up to 1/2 inch whenever the feature allows and the job demands heavier material removal, faster cutting, or maximum rigidity.
Choose 3/8 Inch
For medium dados, grooves, rabbets, clean-top pockets, and stronger feature routing.
Choose Smaller Tools
For very narrow grooves, tiny pockets, inlays, and the smallest internal radii.
Choose 1/2 Inch
For larger profiles, heavy material removal, long cuts, and maximum production rigidity.
Dado Logic
Machine dados and pocket dados as shapes with controlled walls, not as simple straight-line slots.
Diameter
3/8 inch for medium features with more strength than smaller detail bits.
Cut Direction
Downcut geometry helps protect the visible top face.
Best Fit
Dados, pocket dados, grooves, rabbets, templates, and clean-top feature work.
Comparison
Stronger than small detail cutters; tighter than 1/2 inch.
GreenCap
A professional tooling line made by Titan Equipment and Tooling Sales.
Quick HighlightsFast overview of the 3/8 inch downcut, clean top-edge control, solid carbide strength, and shop fit.
Product OverviewWhat the GreenCap 3/8 inch solid carbide downcut bit is built to do.
GreenCap By Titan Equipment And Tooling Sales
GreenCap 3/8 Inch Solid Carbide Downcut Bit For Clean Top Edges, Dados, Grooves, Pockets, And Controlled Routing
The GreenCap 3/8 inch solid carbide downcut bit is a production-friendly CNC router tool for shops that need clean top-surface control with more strength than smaller detail cutters. It is a practical choice for grooves, rabbets, dado pockets, shallow recesses, MDF, plywood, laminated panels, melamine-faced material, templates, and cabinet-component details where the top face has to stay clean.
A downcut bit is especially useful when the visible surface of the panel matters. Instead of pulling fibres upward, the cutting action pushes the top face downward into the material. That helps reduce top-edge breakout and makes this tool a strong fit for parts where the upper face will remain visible, receive hardware, or move directly into assembly with minimal cleanup.
The Short Answer
Use 3/8 Inch When You Need More Muscle Than A Small Detail Bit. But More Control Than A Large Production Cutter.
A 3/8 inch downcut bit sits in one of the most useful zones for cabinet and furniture work. It is strong enough for repeatable routing, stable enough for clean wall control, and still small enough to handle features that a 1/2 inch cutter would oversize.
Compared with 1/4 inch and smaller tools, the 3/8 inch gives the shop more rigidity, more edge support, better feed confidence, and a wider operating window. Compared with 1/2 inch tooling, it provides a smaller radius and better access into medium-sized features.
GreenCap is a professional tooling line made by Titan Equipment and Tooling Sales for shops that want tooling choices matched to real CNC production work, not generic one-size-fits-all cutting.
3/8 Inch Downcut
Solid Carbide
Clean Top Edge
Dados
Pocket Dados
Grooves
Rabbets
Cabinet Parts
3/8 Downcut AdvantagesClean top edges, medium dados, grooves, pockets, and production-friendly feature work.
3/8 Inch Downcut Advantages
Why Shops Use A 3/8 Downcut
The GreenCap 3/8 inch downcut is selected when the job needs clean top edges, controlled feature geometry, and enough tool strength to run confidently in real production. It is not a full-sheet compression tool and it is not a tiny detail cutter. It is the solid, dependable middle-ground downcut for CNC work where the top face matters.
01
Cleaner Top Edges
Downcut geometry pushes the top veneer, laminate, or melamine face downward into the panel. That makes the 3/8 downcut a strong choice when the top edge is visible and top-surface breakout is the main concern.
02
Medium Dados
Dados should be programmed as controlled shapes, not just a straight centreline pass. A 3/8 downcut can machine both dado walls with a rectangular toolpath while keeping the top shoulders clean.
03
Better Rigidity Than 1/4
When the feature allows it, stepping up from 1/4 inch to 3/8 inch gives more tool mass, less deflection, stronger side-wall control, and more confidence in repeated production routing.
04
Smaller Radius Than 1/2
A 3/8 cutter can fit into tighter internal features than a 1/2 inch bit. Use it when the design needs a smaller inside corner, narrower pocket, or feature width that cannot accept 1/2 inch tooling.
05
Controlled Pocket Dados
A pocket dado needs four clean edges, not one slot. The 3/8 downcut works well when the pocket is large enough for the tool to trace the rectangle, clean the shoulders, and control the top perimeter.
06
Good Feature Cutter
This is a strong choice for grooves, rabbets, hinge or hardware clearances, spoilboard-sensitive pockets, fixture work, templates, and details where a larger production cutter is too big.
07
Heat Awareness
Downcut tools push chips downward, so chip clearing matters. Use sensible depths, strong dust collection, correct feed, and avoid rubbing. Fine dust, heat, or squealing means the process needs adjustment.
08
Production Confidence
The value of the 3/8 downcut is repeatability. It gives shops a stable cutter for clean-top work when smaller detail bits feel too fragile and 1/2 inch tooling is physically too large.
Diameter SelectionWhen to choose 3/8 inch instead of smaller detail bits or 1/2 inch tooling.
Diameter Selection
Why Choose 3/8 Inch Over Smaller Detail Bits Or A 1/2 Inch?
Diameter selection starts with the feature. The cutter must fit the groove, pocket, dado, radius, and finish requirement. The 3/8 inch downcut is selected when the feature is large enough to accept a stronger cutter, but not large enough to justify a 1/2 inch bit.
1
Use 3/8 Instead Of 1/4
When the feature can accept the larger diameter and the shop wants more rigidity, more feed confidence, improved wall control, and a stronger tool.
2
Use 3/8 Instead Of 3/16 Or 1/8
When the feature no longer requires a tiny radius. The 3/8 cutter is stronger, less delicate, and better suited to repeatable production routing.
3
Use 3/8 Instead Of 1/2
When the 1/2 inch bit would oversize the feature, leave too large an inside radius, or prevent the tool from properly tracing the dado or pocket shape.
4
Use 1/2 When The Job Allows
For larger profiles, heavier material removal, long straight cuts, and maximum rigidity, 1/2 inch tooling is usually the better production choice when the geometry allows it.
5
Dado Rule
A quality dado is usually a machined rectangle. A pocket dado is a pocket with four controlled edges. Program the shape so the tool defines the walls, not just the centreline.
Compared With 1/4 Inch
The 1/4 inch cutter wins when the feature is too small for 3/8. The 3/8 inch cutter wins when the feature allows a larger diameter and the shop wants better stiffness, stronger edge support, cleaner walls, and a wider process window.
Compared With 3/16 And 1/8 Inch
Smaller cutters are for tiny details, narrow inlays, very small pockets, and the tightest internal radii. The 3/8 inch downcut is the step up when those small diameters are no longer necessary and production stability matters more.
Compared With 1/2 Inch
The 1/2 inch cutter is stronger and better for larger, heavier production cuts. The 3/8 inch downcut is chosen when 1/2 inch is too large for the feature, too large for the inside radius, or too aggressive for the desired pocket or dado geometry.
Where It Fits Best
Use the 3/8 inch downcut for medium grooves, cabinet dados, pocket dados, rabbets, template work, clean-top openings, shallow pockets, and top-face-sensitive panel features where the geometry supports a 3/8 cutter.
Best-Practice PlaybookHow to run 3/8 inch downcut tooling with clean top surfaces and proper chip clearing.
Best-Practice Playbook
How To Get The Most From 3/8 Inch Downcut Tooling
Treat the GreenCap 3/8 inch solid carbide downcut as a clean-top feature cutter. It is strong enough for confident medium-feature routing, but it still needs the right program, chip clearing, and depth strategy to perform well.
Use it when the top surface must remain clean and the geometry is too small for 1/2 inch tooling or too demanding for smaller detail cutters. For dados and pockets, program the actual shape. A clean dado should define both side walls; a pocket dado needs four controlled edges, not a single line cut through the panel.
Best Use
Medium dados, grooves, rabbets, clean-top pockets, templates, and cabinet features where 1/2 inch is too large.
Avoid Using It For
Large full-depth panel cutouts, heavy perimeter profiling, or jobs where a 1/2 inch compression or downcut tool fits the geometry better.
Top-Face Priority
Downcut action helps protect the visible top surface, making it useful for laminated faces, veneer faces, melamine, and clean cabinet-component details.
Chip Clearing
Because chips are driven downward, manage depth of cut, dust collection, and feed rate so chips do not pack into the groove or pocket.
Feature Geometry
Confirm the designed width, radius, and wall requirements. Use 3/8 only when it fits the feature without overcutting the design.
Step Up When Possible
Use the largest cutter that fits the feature. Step up to 1/2 inch when the geometry allows and the job needs stronger, faster production cutting.
Shop ValidationWhat to test before putting the 3/8 inch downcut into production.
Validation Notes For Shop Teams
Prove The Cut On Your CNC
A 3/8 inch downcut can produce excellent clean-top results, but it still needs a tuned process. Test the material, depth strategy, toolpath shape, chip clearing, and finish expectation before locking the cutter into production.
Confirm The Feature
Check the designed width, pocket size, inside radius, and wall requirements. Use 3/8 inch when smaller tools are unnecessary and 1/2 inch is too large.
Watch Chip Evacuation
Downcut tools can pack chips into the cut. Monitor dust collection, chip size, edge heat, sound, and whether the groove or pocket is clearing properly.
Inspect The Top Edge
Measure width, depth, side-wall quality, top-edge cleanliness, corner radius, and fit. The value of 3/8 downcut tooling is clean top-surface control with better strength than smaller cutters.
Final RecommendationWhere the cutter fits in the GreenCap tooling lineup.
Final Recommendation: Use 3/8 Inch For Strong, Clean-Top Feature Routing
The GreenCap 3/8 inch solid carbide downcut bit is the right choice when the part needs a clean top surface, the feature is too large to justify fragile detail tooling, and a 1/2 inch bit would be too large for the design. It is a practical middle-ground downcut for dados, grooves, rabbets, shallow pockets, templates, cabinet details, and controlled CNC feature work.
Choose 3/8 inch when the geometry allows a stronger cutter than 1/4 inch or smaller, but still requires tighter access than 1/2 inch. Step up to 1/2 inch whenever the feature allows and the job demands heavier material removal, faster cutting, or maximum rigidity.
Choose 3/8 Inch
For medium dados, grooves, rabbets, clean-top pockets, and stronger feature routing.
Choose Smaller Tools
For very narrow grooves, tiny pockets, inlays, and the smallest internal radii.
Choose 1/2 Inch
For larger profiles, heavy material removal, long cuts, and maximum production rigidity.
Dado Logic
Machine dados and pocket dados as shapes with controlled walls, not as simple straight-line slots.
Quick SummaryShort reference points for mobile shoppers.
Diameter
3/8 inch for medium features with more strength than smaller detail bits.
Cut Direction
Downcut geometry helps protect the visible top face.
Best Fit
Dados, pocket dados, grooves, rabbets, templates, and clean-top feature work.
Comparison
Stronger than small detail cutters; tighter than 1/2 inch.
GreenCap
A professional tooling line made by Titan Equipment and Tooling Sales.
