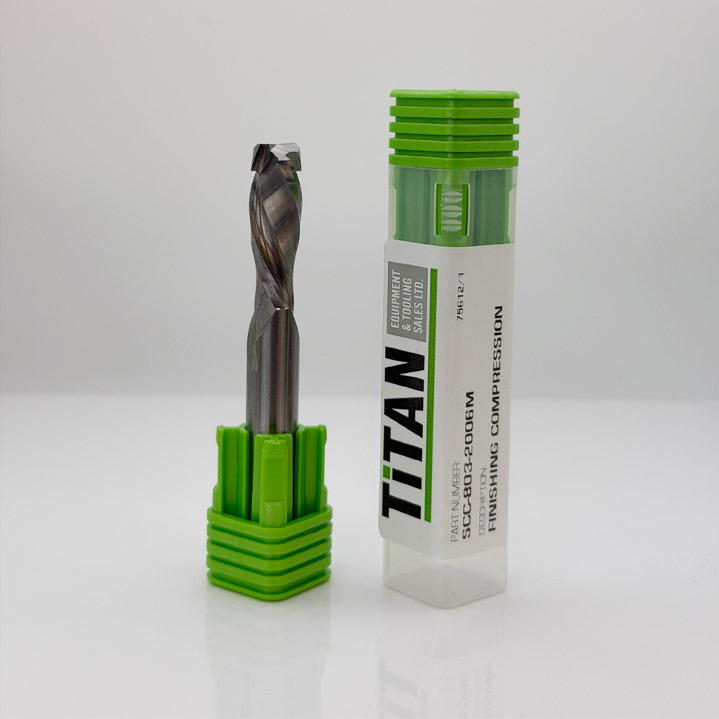

The GreenCap 3/8 inch compression spiral with 0.188 inch upcut is built for CNC shops that need clean top and bottom edges in through-cut panel work, but still want the material yield and tighter internal geometry of a 3/8 inch cutter. It is a practical production tool for cabinet parts, casework components, nested sheets, laminated panels, MDF-core material, plywood-core panels, and veneer-faced sheet goods.
The 0.188 inch upcut section is the important detail. On a compression spiral, the tip shears upward to help protect the bottom face as the tool exits the sheet, while the upper cutting section shears downward to control the top face. With a 0.188 inch upcut, that transition is kept low on the tool, which is useful for common cabinet-panel work where the shop wants the top face controlled by downshear while still supporting the bottom exit edge.
A straight upcut evacuates chips well but can lift the top face. A straight downcut protects the top face but pushes chips downward. A compression spiral combines both directions so the top and bottom faces can be controlled in a through cut.
This 3/8 GreenCap version is especially useful when the job needs cleaner two-sided cutting than an upcut or downcut alone, but does not need the wider kerf and added rigidity of a 1/2 inch compression bit.
The GreenCap 3/8 inch compression spiral with 0.188 inch upcut is built for CNC shops that need clean top and bottom edges in through-cut panel work, but still want the material yield and tighter internal geometry of a 3/8 inch cutter. It is a practical production tool for cabinet parts, casework components, nested sheets, laminated panels, MDF-core material, plywood-core panels, and veneer-faced sheet goods.
The 0.188 inch upcut section is the important detail. On a compression spiral, the tip shears upward to help protect the bottom face as the tool exits the sheet, while the upper cutting section shears downward to control the top face. With a 0.188 inch upcut, that transition is kept low on the tool, which is useful for common cabinet-panel work where the shop wants the top face controlled by downshear while still supporting the bottom exit edge.
A straight upcut evacuates chips well but can lift the top face. A straight downcut protects the top face but pushes chips downward. A compression spiral combines both directions so the top and bottom faces can be controlled in a through cut.
This 3/8 GreenCap version is especially useful when the job needs cleaner two-sided cutting than an upcut or downcut alone, but does not need the wider kerf and added rigidity of a 1/2 inch compression bit.
The diameter tells you the kerf. The upcut length tells you where the compression action begins. On this GreenCap tool, the 0.188 inch upcut section helps define how the cutter manages the bottom edge, top edge, chip movement, and first-pass strategy.
The 0.188 inch upcut section places the changeover point low on the cutter. In full-depth panel cutting, that helps the bottom face benefit from upward shear while the top face remains controlled by the downward cutting action above the transition.
Compression geometry is used when both faces matter. This makes the tool a strong fit for nested cabinet parts, exposed panels, finished casework components, laminated sheets, and panels that need to move downstream without heavy edge cleanup.
The 3/8 diameter removes less material than a 1/2 inch tool. That can help with nesting efficiency, small inside details, tighter corners, and layouts where a wider cutter would waste material or force larger internal radii.
Solid carbide gives the tool the stiffness and edge-holding foundation needed for CNC router work. It helps the cutting geometry stay accurate under load, especially in abrasive panel materials and repeat production nests.
With any compression bit, shallow first passes can behave like an upcut if the tool has not cut deeper than the upcut section. For clean top-face work, the program should be tested so the compression zone is actually engaged when finish quality matters.
This tool fits common cabinet sheet goods: melamine, MDF-core panels, plywood-core panels, laminated sheets, veneer-faced material, cabinet sides, partitions, decks, stretchers, backs, and nested production components.
Compared with smaller detail tools, 3/8 gives more strength and better feed confidence. Compared with 1/2 inch, it keeps the cut narrower and the inside geometry tighter while still offering meaningful production capability.
Step up to 1/2 inch when maximum rigidity, longer straight cuts, heavier full-depth removal, wider safe operating window, and finished-panel stability matter more than tighter geometry or kerf savings.
The diameter tells you the kerf. The upcut length tells you where the compression action begins. On this GreenCap tool, the 0.188 inch upcut section helps define how the cutter manages the bottom edge, top edge, chip movement, and first-pass strategy.
The 0.188 inch upcut section places the changeover point low on the cutter. In full-depth panel cutting, that helps the bottom face benefit from upward shear while the top face remains controlled by the downward cutting action above the transition.
Compression geometry is used when both faces matter. This makes the tool a strong fit for nested cabinet parts, exposed panels, finished casework components, laminated sheets, and panels that need to move downstream without heavy edge cleanup.
The 3/8 diameter removes less material than a 1/2 inch tool. That can help with nesting efficiency, small inside details, tighter corners, and layouts where a wider cutter would waste material or force larger internal radii.
Solid carbide gives the tool the stiffness and edge-holding foundation needed for CNC router work. It helps the cutting geometry stay accurate under load, especially in abrasive panel materials and repeat production nests.
With any compression bit, shallow first passes can behave like an upcut if the tool has not cut deeper than the upcut section. For clean top-face work, the program should be tested so the compression zone is actually engaged when finish quality matters.
This tool fits common cabinet sheet goods: melamine, MDF-core panels, plywood-core panels, laminated sheets, veneer-faced material, cabinet sides, partitions, decks, stretchers, backs, and nested production components.
Compared with smaller detail tools, 3/8 gives more strength and better feed confidence. Compared with 1/2 inch, it keeps the cut narrower and the inside geometry tighter while still offering meaningful production capability.
Step up to 1/2 inch when maximum rigidity, longer straight cuts, heavier full-depth removal, wider safe operating window, and finished-panel stability matter more than tighter geometry or kerf savings.
This is not a general-purpose substitute for every 3/8 cutter. It is a specific solution for through-cut sheet goods where the shop needs both faces controlled, wants the narrower kerf of 3/8, and is cutting material thick enough for the compression geometry to work properly.
A 0.188 inch upcut section is short enough to keep the transition low, while still giving the bottom edge upward shear support during a through cut. It is a good choice when the job is focused on common cabinet-panel cutting rather than deep bottom-side lifting action.
Choose 3/8 for tighter internal geometry, better nesting yield, lower material removal, and smaller corner radius. Choose 1/2 when the cut is long, heavy, finish-critical, or when rigidity and chip room are more important than kerf savings.
A downcut protects the top face but can pack chips downward. A compression spiral is the better fit when the tool is through-cutting and both the top and bottom faces need to be controlled in the same operation.
Top chipping, bottom breakout, dust instead of chips, heat marks, squealing, edge fuzz, rising spindle load, or inconsistent part size usually means the tool, feed, RPM, hold-down, or pass strategy needs attention.
This is not a general-purpose substitute for every 3/8 cutter. It is a specific solution for through-cut sheet goods where the shop needs both faces controlled, wants the narrower kerf of 3/8, and is cutting material thick enough for the compression geometry to work properly.
A 0.188 inch upcut section is short enough to keep the transition low, while still giving the bottom edge upward shear support during a through cut. It is a good choice when the job is focused on common cabinet-panel cutting rather than deep bottom-side lifting action.
Choose 3/8 for tighter internal geometry, better nesting yield, lower material removal, and smaller corner radius. Choose 1/2 when the cut is long, heavy, finish-critical, or when rigidity and chip room are more important than kerf savings.
A downcut protects the top face but can pack chips downward. A compression spiral is the better fit when the tool is through-cutting and both the top and bottom faces need to be controlled in the same operation.
Top chipping, bottom breakout, dust instead of chips, heat marks, squealing, edge fuzz, rising spindle load, or inconsistent part size usually means the tool, feed, RPM, hold-down, or pass strategy needs attention.
The GreenCap 3/8 compression spiral with 0.188 inch upcut performs best when the router is set up as a complete cutting system. Toolholder condition, collet cleanliness, stickout, spoilboard flatness, vacuum hold-down, chip evacuation, feed rate, RPM, and material thickness all affect whether the compression geometry produces the intended edge quality.
For finished cabinet parts, the goal is to make clean chips and control both faces of the sheet. The upcut section should support the lower face, the downcut section should control the upper face, and the program should avoid leaving the finish cut in a shallow upcut-only condition.
The GreenCap 3/8 compression spiral with 0.188 inch upcut performs best when the router is set up as a complete cutting system. Toolholder condition, collet cleanliness, stickout, spoilboard flatness, vacuum hold-down, chip evacuation, feed rate, RPM, and material thickness all affect whether the compression geometry produces the intended edge quality.
For finished cabinet parts, the goal is to make clean chips and control both faces of the sheet. The upcut section should support the lower face, the downcut section should control the upper face, and the program should avoid leaving the finish cut in a shallow upcut-only condition.
The 0.188 inch upcut detail gives the tool a specific cutting behaviour, but every CNC, vacuum table, spoilboard, material batch, and toolpath behaves differently. Test the actual part geometry before locking it into production.
The 0.188 inch upcut detail gives the tool a specific cutting behaviour, but every CNC, vacuum table, spoilboard, material batch, and toolpath behaves differently. Test the actual part geometry before locking it into production.
The GreenCap 3/8 inch compression spiral with 0.188 inch upcut is the right choice when a cabinet shop needs clean top and bottom edges, a narrower 3/8 kerf, tighter internal geometry, and a compression design suited to common through-cut panel work.
Use it for nested cabinet parts, finished sheet components, melamine, MDF-core panels, plywood-core panels, laminated sheets, and veneer-faced materials where the part needs to come off the CNC with both faces controlled. Step up to 1/2 inch when the job demands maximum rigidity, heavier removal, longer cuts, and the widest safe production window.
The GreenCap 3/8 inch compression spiral with 0.188 inch upcut is the right choice when a cabinet shop needs clean top and bottom edges, a narrower 3/8 kerf, tighter internal geometry, and a compression design suited to common through-cut panel work.
Use it for nested cabinet parts, finished sheet components, melamine, MDF-core panels, plywood-core panels, laminated sheets, and veneer-faced materials where the part needs to come off the CNC with both faces controlled. Step up to 1/2 inch when the job demands maximum rigidity, heavier removal, longer cuts, and the widest safe production window.
