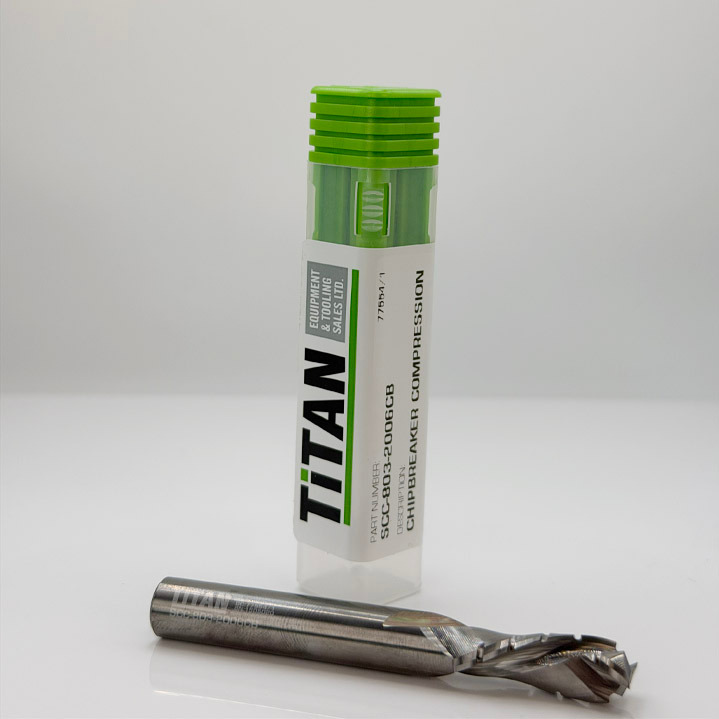

The GreenCap 3/8 chipbreaker compression bit is built for cabinet shops, millwork producers, furniture manufacturers, and panel processors that need a production cutter with stronger chip control than a standard compression bit. It is designed for nested sheet processing where material yield, machine load, edge control, and repeatable production all matter.
A standard 3/8 compression bit uses a continuous cutting edge to produce a clean top and bottom face. A chipbreaker compression bit keeps the compression concept, but adds small interrupted cutting features that split the chip as the tool cuts. That makes the tool more aggressive, helps break up long chips, can reduce cutting pressure, and can make dust and chip evacuation easier in demanding panel materials.
The GreenCap 3/8 chipbreaker compression bit is the right choice when the material is abrasive, the nest is dense, the cut length is long, or the machine benefits from a cutter that breaks the chip instead of trying to peel one continuous ribbon through the sheet.
The GreenCap standard 3/8 compression bit is usually the better choice when the cleanest possible finished edge is the main goal. Its continuous edge can leave a smoother wall than a chipbreaker profile, especially on visible edges or parts that will not receive additional trimming, sanding, or edge treatment.
Both tools belong in a professional tooling program. Use the chipbreaker version when production pressure, chip evacuation, tool load, and abrasive sheet goods are driving the job. Use the standard version when the finished edge quality is the deciding factor.
A chipbreaker compression bit is not just a roughing tool and it is not just a standard compression bit with a different name. It is a production cutter designed to split chips, manage cutting pressure, and still protect the top and bottom faces of the sheet when the compression zone is set correctly.
The interrupted cutting profile breaks material into smaller chips instead of producing one long continuous chip. That can help reduce cutting pressure, improve evacuation, and make the tool more comfortable in dense or abrasive sheet goods.
The compression geometry helps protect both sides of the panel. The lower section supports the bottom face while the upper section pushes down on the top face, helping reduce breakout in laminated and prefinished materials.
By splitting the chip, the tool can reduce the force required to move through the material. That is helpful on nested cabinet parts, longer toolpaths, and jobs where heat, load, or hold-down are starting to limit the cut.
The 3/8 diameter removes less material than a 1/2 inch tool and allows tighter internal radii. That makes it useful for dense nests, smaller parts, hardware clearance details, and production geometry that does not need a larger cutter.
Smaller chips are easier to clear from the cut path. That can reduce chip recutting, heat build-up, edge polishing, and the dusty cutting condition that shortens tool life and hurts part quality.
Melamine, MDF-core panels, particleboard, plywood glue lines, laminates, and composite sheets can be tough on cutting edges. The chipbreaker format helps the tool stay productive when the material fights back.
Compared with a standard 3/8 compression bit, the chipbreaker version is more aggressive and better for chip control, load reduction, and production cutting. The standard version usually wins when the smoothest possible finished edge is the priority.
The 1/2 inch tool gives more rigidity, chip room, and long-cut stability. The 3/8 chipbreaker gives tighter radius capability, less material removal, and lower cutting pressure when the job favours compact geometry and sheet yield.
Choose this tool when the job needs the face protection of a compression bit, but the material or production conditions call for stronger chip management than a standard smooth-edge compression cutter provides.
The standard 3/8 compression bit has a smoother, continuous cutting edge and is usually preferred for the cleanest finished wall. The chipbreaker version has interrupted cutting features that split chips, reduce load, and improve chip handling, but may leave a slightly more textured edge depending on material and settings.
Straight upcut tooling can pull fibres upward on the top face. Straight downcut tooling can push chips downward and stress the bottom face. Compression tooling combines both directions so the top and bottom surfaces are supported during full-depth panel cutting.
Move to a 1/2 compression bit when the job needs maximum rigidity, long-run stability, larger chip room, heavier material removal, or the most forgiving setup for full-depth finished panels and exposed edges.
Watch for dust instead of chips, heat marks, squealing, edge polish, top or bottom chip-out, fuzzy walls, rising spindle load, poor vacuum hold-down, and vibration from excessive stickout or worn collets.
The GreenCap 3/8 chipbreaker compression bit performs best when the shop treats chip formation as part of the process. The goal is to create controlled chips, clear them from the toolpath, protect both panel faces, and keep the cutter moving through the material instead of rubbing, polishing, and heating the edge.
Use this tool when the cut benefits from smaller chips and reduced cutting pressure. Use the standard 3/8 compression bit when the final wall finish is the first priority. Use a 1/2 compression bit when the job needs maximum rigidity, heavier removal, and a wider process window.
Every CNC router, spindle, vacuum table, spoilboard, material batch, dust system, and feed strategy behaves differently. Validate the GreenCap 3/8 chipbreaker compression bit against your standard 3/8 compression process before locking it into production.
The GreenCap 3/8 chipbreaker compression bit is a strong fit when a shop wants the top-and-bottom face control of a compression bit, but also needs stronger chip management, lower cutting pressure, and better behaviour in demanding nested sheet production.
Choose the standard GreenCap 3/8 compression bit when the smoothest finished edge is the priority. Choose the GreenCap 3/8 chipbreaker compression bit when chip control, load reduction, abrasive materials, long toolpaths, and production confidence matter more than achieving the smoothest possible wall directly off the router.
GreenCap is made by Titan Equipment and Tooling Sales as a professional product line for shops that want tooling decisions to support part quality, machine uptime, and real cabinet-production economics.
