01
Higher Rigidity
The main reason to move into 3/4 inch tooling is stiffness. A larger diameter resists bending better than 1/2 or 3/8 tooling, helping the cut stay straighter through long profiles, larger parts, and heavier full-depth work.

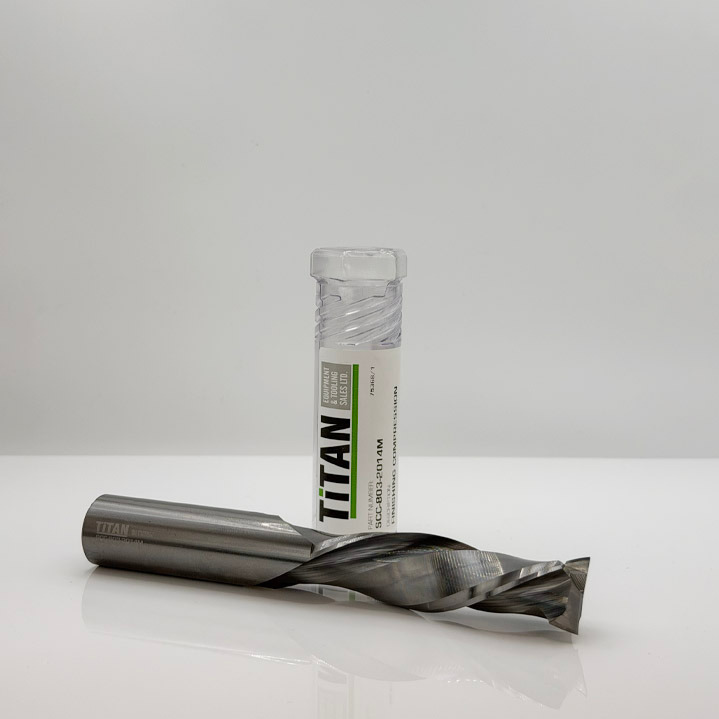

GreenCap Solid Carbide Compression Spiral 3/4 (19.05mm)
CA$550.25
In stock
SKU
SCC-803-2014M
Product Type
Solid Carbide Compression Spiral Router Bit
Diameter
3/4 in (19.05 mm)
Cutting Length
2-5/8 in (66.68 mm)
Shank Diameter
3/4 in (19.05 mm)
Overall Length
5-1/4 in (133.35 mm)
Flute Quantity
2 Flute
Cut Direction
Compression Spiral
Up Cut Length
0.250 in (6.35 mm)
Quick HighlightsFast overview of the cutter, diameter, materials, and shop fit.
Titan Equipment and Tooling Sales
GreenCap 3/4 Inch Compression Bit For Heavy-Duty Panel Routing
The GreenCap 3/4 inch compression bit is a heavy-duty step-up tool for CNC shops that need more stability than a standard 1/2 inch or 3/8 inch compression bit can deliver. It is built for larger panels, longer full-depth profiles, thicker or tougher sheet goods, and production work where wall quality and edge consistency matter more than squeezing the smallest possible kerf from the sheet.
In cabinet and panel processing, 3/8 and 1/2 inch cutters are the common everyday choices. The 3/4 inch GreenCap compression bit sits above those tools as a more rigid production option. Use it when the part is large enough, the inside corner radius is acceptable, and the shop needs a stronger cutter to hold cleaner walls, reduce chatter, and keep top and bottom faces protected through the cut.
The Practical Shop Answer
Use 3/4 Inch When 1/2 Inch Is Working Too Hard. Stay Smaller When Geometry or Yield Matters More.
A 3/4 inch compression bit removes more material than a 1/2 or 3/8 inch cutter, so it needs the right machine, spindle, toolholder, vacuum, feed rate, and chip evacuation. It is not the first choice for tight interior features or yield-sensitive cabinet nesting.
The payoff is stability. The larger diameter helps resist deflection, hold straighter walls, and stay more confident in long cuts. That makes it a strong choice for large cabinet parts, finished panels, oversized components, thicker plywood-core materials, laminated panels, and profiles where a smaller tool has shown chatter or movement.
For standard finished cabinet parts, the 1/2 inch compression bit remains a practical default. For tight internal radii, small geometry, and lower material loss, the 3/8 inch cutter still has a clear place. The 3/4 inch option is for heavier work where stability is the reason for stepping up.
3/4 Inch Compression
Heavy-Duty Routing
Long Edge Profiles
Full-Depth Cutting
Plywood Core
Laminated Panels
Larger Parts
Step-Up Rigidity
Product OverviewWhat the GreenCap 3/4 inch compression bit is built to do.
Titan Equipment and Tooling Sales
GreenCap 3/4 Inch Compression Bit For Heavy-Duty Panel Routing
The GreenCap 3/4 inch compression bit is a heavy-duty step-up tool for CNC shops that need more stability than a standard 1/2 inch or 3/8 inch compression bit can deliver. It is built for larger panels, longer full-depth profiles, thicker or tougher sheet goods, and production work where wall quality and edge consistency matter more than squeezing the smallest possible kerf from the sheet.
In cabinet and panel processing, 3/8 and 1/2 inch cutters are the common everyday choices. The 3/4 inch GreenCap compression bit sits above those tools as a more rigid production option. Use it when the part is large enough, the inside corner radius is acceptable, and the shop needs a stronger cutter to hold cleaner walls, reduce chatter, and keep top and bottom faces protected through the cut.
The Practical Shop Answer
Use 3/4 Inch When 1/2 Inch Is Working Too Hard. Stay Smaller When Geometry or Yield Matters More.
A 3/4 inch compression bit removes more material than a 1/2 or 3/8 inch cutter, so it needs the right machine, spindle, toolholder, vacuum, feed rate, and chip evacuation. It is not the first choice for tight interior features or yield-sensitive cabinet nesting.
The payoff is stability. The larger diameter helps resist deflection, hold straighter walls, and stay more confident in long cuts. That makes it a strong choice for large cabinet parts, finished panels, oversized components, thicker plywood-core materials, laminated panels, and profiles where a smaller tool has shown chatter or movement.
For standard finished cabinet parts, the 1/2 inch compression bit remains a practical default. For tight internal radii, small geometry, and lower material loss, the 3/8 inch cutter still has a clear place. The 3/4 inch option is for heavier work where stability is the reason for stepping up.
3/4 Inch Compression
Heavy-Duty Routing
Long Edge Profiles
Full-Depth Cutting
Plywood Core
Laminated Panels
Larger Parts
Step-Up Rigidity
3/4 Inch Compression Advantages
Built for Bigger Panels, Cleaner Walls, and More Stability
A 3/4 inch compression bit is selected when the shop needs a stronger, more stable cutter than the common 1/2 or 3/8 choices. It is a production tool for larger geometry, longer cuts, and materials that punish smaller diameters.
02
Cleaner Long Walls
Long exposed edges can show chatter, washboard marks, heat, and deflection. The 3/4 inch GreenCap compression bit gives the shop more wall-control confidence when cutting larger panels, gables, fixture parts, and long perimeter profiles.
03
Top and Bottom Face Protection
Compression geometry is used when both faces of the panel matter. The lower section helps protect the bottom face while the upper section helps protect the top face, making the tool useful for finished sheet goods and through-cut panel work.
04
Larger Open Geometry
A 3/4 inch cutter leaves a larger inside corner radius than 1/2 or 3/8. That is acceptable on many large parts, open profiles, fixture panels, and structural components, but it should be avoided where tight internal corners are required.
05
Better Chip Room
The larger cutting path and flute area can help a properly tuned setup evacuate chips more confidently in demanding cuts. The goal is still healthy chips, not dust. Chips carry heat away and help protect the edge quality.
06
Heavier Material Removal
A 3/4 inch tool removes more material per linear inch than smaller compression bits. That is useful only when the added stability improves the finished result enough to justify the extra kerf, cutting force, and machine load.
07
Finished Panel Confidence
For larger finished panels, long gables, exposed sides, and heavy profiles, the added diameter can help hold a cleaner edge longer through the cut. It is a stability tool first, not a material-saving tool.
08
Not for Tight Detail
The 3/4 inch cutter is not the best choice for tight pockets, small inside corners, narrow dados, or dense nests where every bit of sheet yield matters. Use it when the geometry and production need match the tool.
3/4 Inch Compression AdvantagesBigger panels, cleaner walls, rigidity, and step-up stability.
3/4 Inch Compression Advantages
Built for Bigger Panels, Cleaner Walls, and More Stability
A 3/4 inch compression bit is selected when the shop needs a stronger, more stable cutter than the common 1/2 or 3/8 choices. It is a production tool for larger geometry, longer cuts, and materials that punish smaller diameters.
01
Higher Rigidity
The main reason to move into 3/4 inch tooling is stiffness. A larger diameter resists bending better than 1/2 or 3/8 tooling, helping the cut stay straighter through long profiles, larger parts, and heavier full-depth work.
02
Cleaner Long Walls
Long exposed edges can show chatter, washboard marks, heat, and deflection. The 3/4 inch GreenCap compression bit gives the shop more wall-control confidence when cutting larger panels, gables, fixture parts, and long perimeter profiles.
03
Top and Bottom Face Protection
Compression geometry is used when both faces of the panel matter. The lower section helps protect the bottom face while the upper section helps protect the top face, making the tool useful for finished sheet goods and through-cut panel work.
04
Larger Open Geometry
A 3/4 inch cutter leaves a larger inside corner radius than 1/2 or 3/8. That is acceptable on many large parts, open profiles, fixture panels, and structural components, but it should be avoided where tight internal corners are required.
05
Better Chip Room
The larger cutting path and flute area can help a properly tuned setup evacuate chips more confidently in demanding cuts. The goal is still healthy chips, not dust. Chips carry heat away and help protect the edge quality.
06
Heavier Material Removal
A 3/4 inch tool removes more material per linear inch than smaller compression bits. That is useful only when the added stability improves the finished result enough to justify the extra kerf, cutting force, and machine load.
07
Finished Panel Confidence
For larger finished panels, long gables, exposed sides, and heavy profiles, the added diameter can help hold a cleaner edge longer through the cut. It is a stability tool first, not a material-saving tool.
08
Not for Tight Detail
The 3/4 inch cutter is not the best choice for tight pockets, small inside corners, narrow dados, or dense nests where every bit of sheet yield matters. Use it when the geometry and production need match the tool.
Selection Map
When a 3/4 Inch Compression Bit Makes Sense
The GreenCap 3/4 inch compression bit should be selected when the shop is trying to solve a stability problem, not when the job simply needs a standard through-cut. It is the right move when larger parts, longer edges, and heavier cuts need more cutter strength.
1
Large Panels and Long Profiles
Use 3/4 inch for long full-depth profiles, oversized cabinet parts, fixture panels, larger furniture components, and broad open shapes.
2
When 1/2 Inch Deflects
If 1/2 inch tooling is leaving chatter, wall taper, inconsistent dimensions, or finish variation, 3/4 inch can provide a stronger cutting platform.
3
When Radius Is Acceptable
A 3/4 inch cutter creates a 3/8 inch inside corner radius. Use it only where that radius is acceptable or where inside corners will be relieved separately.
4
When the Machine Can Support It
The router must have the spindle power, toolholding, vacuum, fixturing, dust collection, and rigidity to carry the larger cutter safely and consistently.
5
When Stability Beats Kerf Savings
Use 3/4 inch when a straighter, more stable finished edge is worth more than the material savings of a smaller diameter cutter.
3/4 Inch vs 1/2 Inch
The 1/2 inch compression bit is the standard finished-panel workhorse for many cabinet shops. Move to 3/4 inch when the part is larger, the cut is longer, the material is heavier, or the 1/2 inch tool is showing deflection, chatter, heat, or wall-quality issues. Stay with 1/2 inch when you want a strong all-around cutter with less kerf, less cutting force, smaller inside radius, and better suitability for normal cabinet nesting.
3/4 Inch vs 3/8 Inch
The 3/8 inch compression bit is useful for tight internal corners, reduced kerf, lighter cutting pressure, lower spindle demand, and better nest yield. The 3/4 inch bit is selected for the opposite reason: more rigidity, more wall control, more stability in long cuts, and better confidence on larger finished parts. Choose 3/8 for small geometry and yield. Choose 3/4 when strength and stability matter more.
Where 3/4 Inch Fits Best
This cutter fits large cabinet parts, long finished edges, bigger plywood-core panels, laminated panels, fixture work, furniture components, display components, and open profiles where the toolpath benefits from the added stiffness and the part can accept the larger corner radius.
The Kerf Reality
A 3/4 inch cutter removes more material than a 1/2 inch or 3/8 inch cutter. That is not automatically better. It is justified when the larger diameter produces a cleaner, straighter, more reliable part and reduces the risk of chatter, rework, or remake costs.
Diameter Selection MapWhy to choose 3/4 over 1/2 or 3/8 inch tooling.
Selection Map
When a 3/4 Inch Compression Bit Makes Sense
The GreenCap 3/4 inch compression bit should be selected when the shop is trying to solve a stability problem, not when the job simply needs a standard through-cut. It is the right move when larger parts, longer edges, and heavier cuts need more cutter strength.
1
Large Panels and Long Profiles
Use 3/4 inch for long full-depth profiles, oversized cabinet parts, fixture panels, larger furniture components, and broad open shapes.
2
When 1/2 Inch Deflects
If 1/2 inch tooling is leaving chatter, wall taper, inconsistent dimensions, or finish variation, 3/4 inch can provide a stronger cutting platform.
3
When Radius Is Acceptable
A 3/4 inch cutter creates a 3/8 inch inside corner radius. Use it only where that radius is acceptable or where inside corners will be relieved separately.
4
When the Machine Can Support It
The router must have the spindle power, toolholding, vacuum, fixturing, dust collection, and rigidity to carry the larger cutter safely and consistently.
5
When Stability Beats Kerf Savings
Use 3/4 inch when a straighter, more stable finished edge is worth more than the material savings of a smaller diameter cutter.
3/4 Inch vs 1/2 Inch
The 1/2 inch compression bit is the standard finished-panel workhorse for many cabinet shops. Move to 3/4 inch when the part is larger, the cut is longer, the material is heavier, or the 1/2 inch tool is showing deflection, chatter, heat, or wall-quality issues. Stay with 1/2 inch when you want a strong all-around cutter with less kerf, less cutting force, smaller inside radius, and better suitability for normal cabinet nesting.
3/4 Inch vs 3/8 Inch
The 3/8 inch compression bit is useful for tight internal corners, reduced kerf, lighter cutting pressure, lower spindle demand, and better nest yield. The 3/4 inch bit is selected for the opposite reason: more rigidity, more wall control, more stability in long cuts, and better confidence on larger finished parts. Choose 3/8 for small geometry and yield. Choose 3/4 when strength and stability matter more.
Where 3/4 Inch Fits Best
This cutter fits large cabinet parts, long finished edges, bigger plywood-core panels, laminated panels, fixture work, furniture components, display components, and open profiles where the toolpath benefits from the added stiffness and the part can accept the larger corner radius.
The Kerf Reality
A 3/4 inch cutter removes more material than a 1/2 inch or 3/8 inch cutter. That is not automatically better. It is justified when the larger diameter produces a cleaner, straighter, more reliable part and reduces the risk of chatter, rework, or remake costs.
How to Get the Most From GreenCap
Run the 3/4 Inch Compression Bit Like a Heavy-Duty Production Tool
The GreenCap 3/4 inch compression bit performs best when the shop treats it as a deliberate step-up cutter. Confirm the part geometry first. Confirm the inside radius is acceptable. Confirm the machine can hold the part securely. Then build the feed, RPM, depth strategy, lead-in, and chip evacuation around the larger diameter.
The goal is not to use a larger cutter everywhere. The goal is to use the right cutter where it solves a real problem. Use 3/4 inch when it improves stability, wall quality, and production confidence. Use 1/2 or 3/8 when they produce the required edge with less load, less kerf, tighter geometry, and better material yield.
Use 3/4 for Stability
Choose 3/4 inch when deflection, chatter, long edge quality, and wall straightness are the production problems being solved.
Use 1/2 for Finished Panels
Choose 1/2 inch for standard cabinet panels, reliable compression performance, good rigidity, and balanced production cutting.
Use 3/8 for Tight Geometry
Choose 3/8 inch for smaller parts, tighter inside corners, reduced kerf, lighter cutting pressure, and material-yield strategy.
Respect the Radius
A 3/4 inch tool leaves a larger inside corner radius than standard smaller cutters. Do not select it for tight pockets or detailed interior geometry.
Control the Setup
Use proper toolholding, minimal stickout, strong vacuum or fixturing, clean collets, stable spoilboards, and correct chip evacuation.
Watch the Edge
Chatter, dust, heat, wall taper, fuzzy edges, and rising spindle load mean the process needs adjustment before full production.
How to Get the Most From GreenCapSetup guidance and practical shop-floor selection rules.
How to Get the Most From GreenCap
Run the 3/4 Inch Compression Bit Like a Heavy-Duty Production Tool
The GreenCap 3/4 inch compression bit performs best when the shop treats it as a deliberate step-up cutter. Confirm the part geometry first. Confirm the inside radius is acceptable. Confirm the machine can hold the part securely. Then build the feed, RPM, depth strategy, lead-in, and chip evacuation around the larger diameter.
The goal is not to use a larger cutter everywhere. The goal is to use the right cutter where it solves a real problem. Use 3/4 inch when it improves stability, wall quality, and production confidence. Use 1/2 or 3/8 when they produce the required edge with less load, less kerf, tighter geometry, and better material yield.
Use 3/4 for Stability
Choose 3/4 inch when deflection, chatter, long edge quality, and wall straightness are the production problems being solved.
Use 1/2 for Finished Panels
Choose 1/2 inch for standard cabinet panels, reliable compression performance, good rigidity, and balanced production cutting.
Use 3/8 for Tight Geometry
Choose 3/8 inch for smaller parts, tighter inside corners, reduced kerf, lighter cutting pressure, and material-yield strategy.
Respect the Radius
A 3/4 inch tool leaves a larger inside corner radius than standard smaller cutters. Do not select it for tight pockets or detailed interior geometry.
Control the Setup
Use proper toolholding, minimal stickout, strong vacuum or fixturing, clean collets, stable spoilboards, and correct chip evacuation.
Watch the Edge
Chatter, dust, heat, wall taper, fuzzy edges, and rising spindle load mean the process needs adjustment before full production.
Shop Validation
Prove the Diameter Before Production
A 3/4 inch compression bit can be an excellent step-up tool, but it should be tested against the normal 1/2 and 3/8 options before being locked into a job. Use the same material, same toolpath style, same finish expectations, and the same machine setup.
Compare Wall Quality
Cut the same long profile with 3/4, 1/2, and 3/8 where practical. Inspect wall straightness, chatter, heat, fuzzing, chip-out, edge polish, and whether the part is ready for the next operation.
Measure the Tradeoff
Track cycle time, spindle load, hold-down confidence, kerf loss, part yield, internal radius, cleanup time, and whether the larger cutter actually produces a better production result.
Lock the Recipe
Document material, feed, RPM, depth strategy, ramping, lead-in, lead-out, stickout, collet condition, toolholder, vacuum zones, spoilboard condition, and the exact GreenCap bit used.
Shop ValidationHow to prove the larger diameter before running production.
Shop Validation
Prove the Diameter Before Production
A 3/4 inch compression bit can be an excellent step-up tool, but it should be tested against the normal 1/2 and 3/8 options before being locked into a job. Use the same material, same toolpath style, same finish expectations, and the same machine setup.
Compare Wall Quality
Cut the same long profile with 3/4, 1/2, and 3/8 where practical. Inspect wall straightness, chatter, heat, fuzzing, chip-out, edge polish, and whether the part is ready for the next operation.
Measure the Tradeoff
Track cycle time, spindle load, hold-down confidence, kerf loss, part yield, internal radius, cleanup time, and whether the larger cutter actually produces a better production result.
Lock the Recipe
Document material, feed, RPM, depth strategy, ramping, lead-in, lead-out, stickout, collet condition, toolholder, vacuum zones, spoilboard condition, and the exact GreenCap bit used.
Final Recommendation: Use 3/4 Inch When Stability Is the Upgrade
The GreenCap 3/4 inch compression bit is the right choice when a standard 1/2 inch or 3/8 inch cutter is not giving the shop enough stability. Use it for larger panels, longer finished edges, plywood-core materials, laminated panels, oversized components, and full-depth profiles where the added rigidity can reduce deflection and improve wall quality.
Do not choose 3/4 inch when the job is really about tight inside corners, narrow features, small parts, or maximum material yield. For standard finished panels, 1/2 inch is usually the practical default. For reduced kerf and tighter geometry, 3/8 inch is usually the better fit.
GreenCap is made by Titan Equipment and Tooling Sales as a professional CNC tooling line for shops that want tooling decisions to support part quality, machine uptime, and real production economics.
Choose 3/4 Inch
Larger parts, long cuts, heavier panels, open geometry, better rigidity, and stability-critical wall quality.
Choose 1/2 Inch
Standard finished panels, cabinet parts, reliable compression performance, and balanced production cutting.
Choose 3/8 Inch
Tighter internal radii, smaller parts, reduced kerf, lighter cutting force, and yield-conscious nests.
Bottom Line
Step up to 3/4 inch only when the added rigidity improves the finished result enough to justify the larger kerf.
Final RecommendationWhen the 3/4 inch compression bit is the correct GreenCap choice.
Final Recommendation: Use 3/4 Inch When Stability Is the Upgrade
The GreenCap 3/4 inch compression bit is the right choice when a standard 1/2 inch or 3/8 inch cutter is not giving the shop enough stability. Use it for larger panels, longer finished edges, plywood-core materials, laminated panels, oversized components, and full-depth profiles where the added rigidity can reduce deflection and improve wall quality.
Do not choose 3/4 inch when the job is really about tight inside corners, narrow features, small parts, or maximum material yield. For standard finished panels, 1/2 inch is usually the practical default. For reduced kerf and tighter geometry, 3/8 inch is usually the better fit.
GreenCap is made by Titan Equipment and Tooling Sales as a professional CNC tooling line for shops that want tooling decisions to support part quality, machine uptime, and real production economics.
Choose 3/4 Inch
Larger parts, long cuts, heavier panels, open geometry, better rigidity, and stability-critical wall quality.
Choose 1/2 Inch
Standard finished panels, cabinet parts, reliable compression performance, and balanced production cutting.
Choose 3/8 Inch
Tighter internal radii, smaller parts, reduced kerf, lighter cutting force, and yield-conscious nests.
Bottom Line
Step up to 3/4 inch only when the added rigidity improves the finished result enough to justify the larger kerf.
Rigidity
3/4 inch is selected when stiffness is the main production problem.
Radius
Use when the part can accept the larger inside corner radius.
Kerf
The wider cut must be justified by improved stability and edge quality.
Machine
Requires strong toolholding, vacuum, spindle power, and chip evacuation.
GreenCap
Professional CNC tooling made by Titan Equipment and Tooling Sales.
Quick SummaryShort reference points for mobile shoppers.
Rigidity
3/4 inch is selected when stiffness is the main production problem.
Radius
Use when the part can accept the larger inside corner radius.
Kerf
The wider cut must be justified by improved stability and edge quality.
Machine
Requires strong toolholding, vacuum, spindle power, and chip evacuation.
GreenCap
Professional CNC tooling made by Titan Equipment and Tooling Sales.
