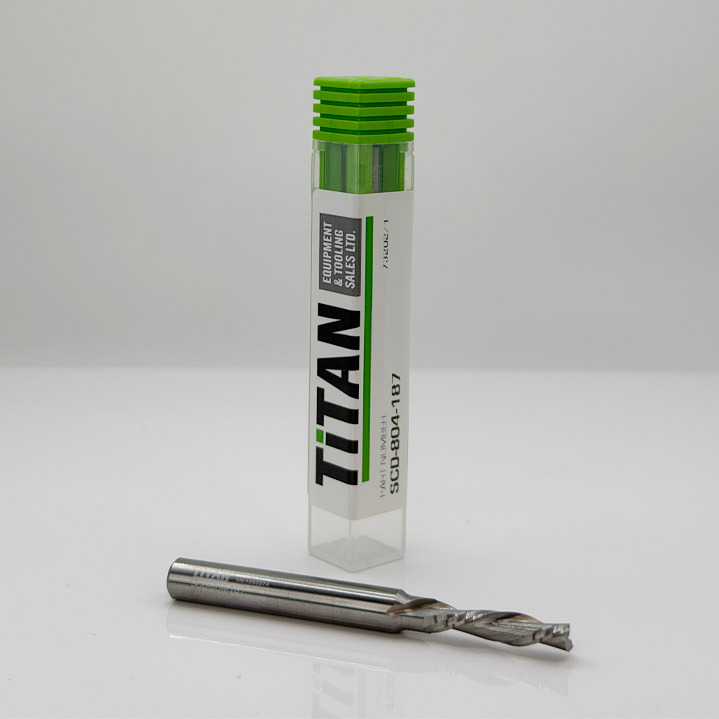

The GreenCap 3/16 inch solid carbide downcut bit is a precision CNC router tool for shops that need more strength than a very small detail cutter, but still need tighter geometry than a standard 3/8 inch or 1/2 inch bit can provide. It fits the gap between fine-detail tooling and full production tooling.
Use this cutter when the job calls for narrow dados, smaller pockets, compact interior cutouts, shallow grooves, clean top-face details, inlay-style work, hardware recesses, or tight internal radii where a 3/8 inch tool is physically too large. It gives the programmer a small-diameter option without going as delicate as a 1/8 inch bit.
A 3/16 inch downcut bit is not meant to replace your 3/8 inch or 1/2 inch production cutters. Those larger tools are stronger, faster, more rigid, and better suited for heavy panel work when the geometry allows them.
The 3/16 inch downcut earns its place when the part feature is small enough that a 3/8 inch tool would leave too large of a corner radius, overcut the detail, or force a wider groove than the design requires.
Compared with a 1/8 inch bit, the 3/16 inch gives the shop a stronger small-tool option. It still handles tight geometry, but with more diameter, more edge support, and a better safety margin for slightly larger dados, pockets, and shallow profile work.
The GreenCap 3/16 inch downcut is for the features that are too small for 3/8 or 1/2 inch tooling, but too demanding to comfortably hand over to a tiny detail cutter. It is a practical choice for small-to-medium detail routing where top-surface quality matters.
A 3/16 inch cutter can leave a much tighter inside radius than a 3/8 inch tool. That makes it useful for compact details, smaller pocket corners, narrow grooves, and design features where a larger cutter would oversize the internal corner or force a wider toolpath.
Downcut geometry pushes the top fibres and surface layer into the panel. That helps protect the visible face on melamine, laminates, veneer-faced material, prefinished panels, MDF, plywood, and detail work where top-edge breakout is unacceptable.
When a dado or groove is too narrow for a 3/8 inch cutter, the 3/16 inch downcut gives the programmer a smaller tool that can still define both side walls with a controlled rectangular toolpath instead of a rough single centreline pass.
Pocket dados, hardware recesses, shallow rectangular pockets, and compact component details require clean walls on all sides. A 3/16 inch downcut can enter smaller features while still giving more tool strength than a very small cutter.
When the feature does not truly require a 1/8 inch cutter, stepping up to 3/16 inch gives more diameter, more rigidity, and more stability. That helps reduce tool stress, side loading, heat sensitivity, and the risk of breaking a very small bit.
Compared with 3/8 inch or 1/2 inch tooling, the 3/16 inch removes less material per pass. That can help on delicate details, narrow features, smaller panels, and specialty cuts where precision matters more than raw removal rate.
This tool rewards smart programming. Use realistic depth steps, smooth lead-ins, chip-clearing moves, and appropriate feed rates. It is small enough that forcing it into heavy full-depth work can create heat, chatter, breakage, or finish problems.
Use 3/16 inch when the geometry demands it. If the same feature can be cut properly with 3/8 inch or 1/2 inch tooling, the larger cutter will usually be faster, stronger, and better for production stability.
Diameter choice should start with the feature. A cutter has to physically fit the geometry, produce the correct inside radius, and leave the required finish. The 3/16 inch downcut is selected when the shop needs a compact tool with more strength than 1/8 inch, but a smaller cutting footprint than 3/8 inch or 1/2 inch.
The 1/8 inch cutter wins when the feature is extremely small or the corner radius must be as tight as possible. The 3/16 inch wins when the feature can accept a slightly larger radius and the shop wants more rigidity, more edge support, and a less fragile small-tool option.
The 3/8 inch cutter is stronger and better for general production routing, but it cannot create the same tight internal geometry. Use 3/16 inch for smaller rectangular dados, compact pockets, narrow grooves, and details where the 3/8 inch diameter is simply too large.
The 1/2 inch cutter is the better production tool for larger profiles, full-depth panel work, heavy material removal, and long straight cuts. The 3/16 inch downcut is chosen when the feature is too small for a 1/2 inch cutter and top-face finish still matters.
A clean dado is normally programmed as a rectangle or controlled pocket, not just a straight centreline slot. That lets the tool define two clean side walls. A pocket dado has four edges, so the toolpath must clean all four sides while respecting the radius left by the cutter.
Treat the GreenCap 3/16 inch solid carbide downcut as a precision small-feature cutter. It is stronger than a very small detail tool, but it is still not a heavy production cutter. Let larger tools handle the roughing, through-cuts, and high-volume material removal whenever the design allows.
Use the 3/16 inch downcut when the top surface must stay clean and the geometry is too small for 3/8 inch or 1/2 inch tooling. Program it with smooth entries, controlled step-downs, good chip clearing, and conservative engagement so the cutter can produce clean details without overheating or packing chips.
A 3/16 inch downcut can solve small-geometry problems, but it still needs a tuned process. Test the exact material, toolpath, depth strategy, and finish expectation before locking the cutter into production.
The GreenCap 3/16 inch solid carbide downcut bit is the right choice when the feature is too small for standard 3/8 inch or 1/2 inch tooling, but the job needs more cutter strength than a very small detail bit. It is a practical middle-ground tool for narrow dados, small pockets, shallow grooves, top-face-sensitive details, and compact internal geometry.
Choose 3/16 inch when the design demands it. Step down to 1/8 inch only when the feature truly requires an even smaller radius. Step up to 3/8 inch or 1/2 inch whenever the feature allows, especially for stronger cutting, faster cycle times, longer profiles, and heavier material removal.
