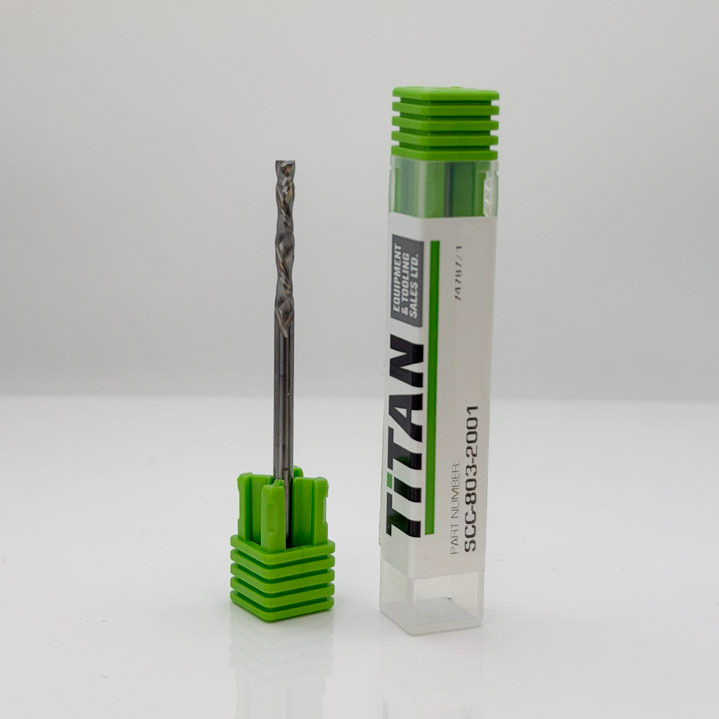

The GreenCap 1/8 inch compression spiral bit is a precision CNC router tool for small through-cut features where both the top and bottom faces need edge control. It is built for fine cabinet details, compact nested components, small inside profiles, tight internal radii, narrow part geometry, laminate-faced panels, veneer-faced material, MDF-core panels, plywood-core panels, and sheet goods where a larger compression tool cannot physically fit the programmed feature.
A compression spiral combines upward and downward cutting action in one tool. The lower section supports the bottom face while the upper section pushes down on the top face. When the compression transition is placed correctly inside the material thickness, the cutter can help reduce top chipping and bottom breakout in through-cut work. On a 1/8 inch diameter, that advantage comes with a tight process window: the tool is small, the flute space is limited, and setup discipline matters.
The reason to choose a 1/8 inch compression spiral is not speed or brute strength. The reason is access. It belongs on features that are too small for 3/8 inch or 1/2 inch compression tooling, but still need cleaner top and bottom faces than an upcut or downcut alone may provide.
Use it for small through-profiles, tight inside corners, fine nested part geometry, laminate or veneer details, and compact components where the visible faces matter. Do not force it into heavy perimeter cutting, aggressive roughing, large cabinet-part profiling, or jobs that a stronger 3/8 inch or 1/2 inch compression bit can handle better.
The professional rule is simple: use the largest cutter that fits the feature cleanly. Choose 1/8 inch only when the part geometry or inside radius requires it.
The GreenCap 1/8 inch compression spiral is a specialty cutter for small features that still need compression-style face control. It gives the programmer access to fine geometry while helping protect both sides of the material when the tool is set up correctly.
Compression geometry helps control both the top and bottom faces of a through-cut panel. That makes the 1/8 inch version useful when small profiles still need cleaner faces than a straight upcut or downcut strategy can provide.
A 1/8 inch cutter can create much tighter internal geometry than 3/8 inch or 1/2 inch tooling. Use it when the inside radius, slot width, or part detail cannot accept a larger compression bit.
The small diameter removes less material and can support compact part spacing. It is useful for fine nested layouts where material yield and small-feature access matter more than maximum production speed.
Use this tool for small through-cut profiles, compact panel details, thin internal cutouts, small nested components, and fine part features where compression face control is still required.
Compression tools only work correctly when the upcut and downcut sections are positioned properly in the material. On a 1/8 inch tool, confirming that transition is especially important before production.
Solid carbide construction supports edge retention and small-feature accuracy. On a cutter this small, runout, stickout, collet condition, and toolpath quality have a major impact on the final result.
This is not a heavy roughing cutter. A 1/8 inch compression bit needs realistic engagement, good chip load, smooth entry moves, controlled depth strategy, and minimal side loading to avoid heat and breakage.
Choose 1/8 inch when geometry demands it. Use 3/8 inch or 1/2 inch compression whenever the feature allows a stronger, more stable, and more forgiving tool.
The 1/8 inch compression spiral is the small-feature answer when the job needs cleaner top and bottom faces, but the feature is too tight for standard compression tooling. It is selected for geometry first and face control second. It is not selected for heavy material removal.
A 1/8 upcut is better for chip evacuation, pocket clearing, and bottom-side chip movement. A 1/8 compression spiral is better for through-cut features where both top and bottom faces need edge control.
A 1/8 downcut is usually better for shallow grooves, top-face-sensitive engraving, and small pockets where the visible top face is the priority. The 1/8 compression spiral belongs in through-cut work where both sides matter.
A 3/8 compression bit is stronger, more stable, and better for everyday nested cabinet cutting. The 1/8 inch version is used only when the programmed detail is too tight for 3/8 inch tooling.
A 1/2 compression bit is the stronger production default for finished panels, long cuts, and heavier material removal. The 1/8 inch compression spiral is the specialty cutter for fine geometry and small controlled features.
Treat the GreenCap 1/8 inch compression spiral as a fine-feature through-cutting tool. Use it when the geometry is too small for larger compression tooling and the material still needs cleaner top and bottom edge control.
Keep the toolpath realistic. The smaller the tool, the less forgiveness there is for runout, excessive stickout, poor chip load, aggressive engagement, weak hold-down, or a bad entry move. Test the feature in the actual material before releasing the tool into production.
Every router, spindle, holder, spoilboard, dust system, material batch, and part geometry behaves differently. Validate the GreenCap 1/8 inch compression spiral in the exact material and feature before approving it for production.
The GreenCap 1/8 inch compression spiral bit is the right choice when the part feature is too small for larger compression tooling and the shop still needs clean top and bottom edges in a through-cut operation. It is a specialty tool for fine geometry, not a replacement for stronger production cutters.
Use 3/8 inch or 1/2 inch compression when the geometry allows. Use upcut for chip evacuation and pocket clearing. Use downcut when shallow top-face quality is the main concern. Use 1/8 inch compression when the feature is small, the cut goes through, and both faces matter.
