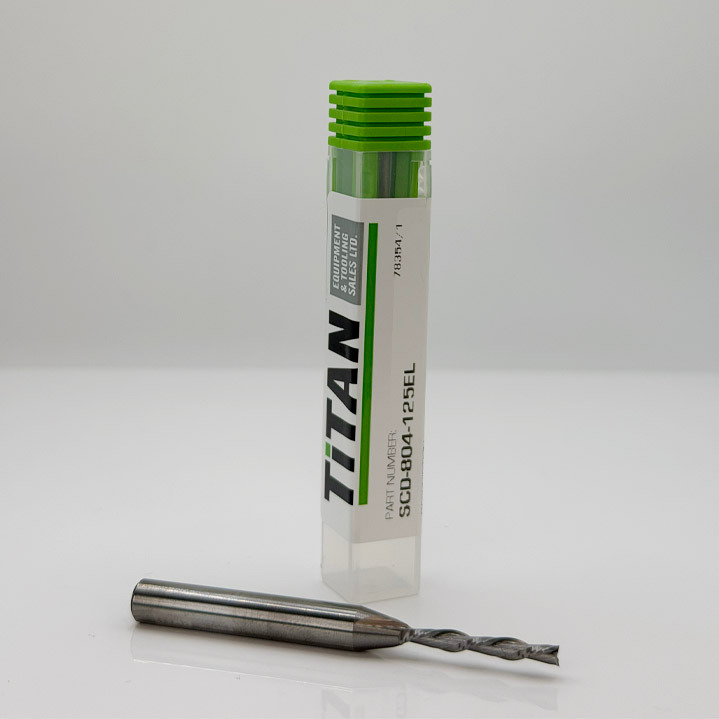

The GreenCap 1/8 inch two-flute solid carbide downcut bit is a precision CNC tool for work that is too small, too detailed, or too top-surface-sensitive for standard 3/8 inch and 1/2 inch tooling. This is not the tool you reach for when the goal is heavy material removal. It is the tool you reach for when the part geometry demands a small diameter, tight inside radius, clean top edge, or controlled shallow feature.
In a cabinet shop or panel-processing environment, the larger 3/8 and 1/2 inch cutters remain the standard choices for most cutouts, profiles, larger grooves, and production passes. The 1/8 inch downcut belongs in a different role: fine routing, small dados, narrow slots, pocket details, inlay work, shallow hardware recesses, small interior corners, and top-face-sensitive laminated panels where a larger tool simply cannot fit the geometry.
A 1/8 inch downcut bit gives the programmer access to details that larger tooling cannot produce cleanly. It can create tighter inside corners, narrower dado features, smaller pocket details, and cleaner top edges on small parts or delicate top surfaces.
The tradeoff is strength. A 1/8 inch cutter is much smaller and less rigid than 3/8 or 1/2 inch tooling, so it should be programmed with controlled depths, appropriate feed rates, good dust extraction, and toolpaths that avoid forcing the bit into heavy full-depth material removal.
If the feature can be made properly with a 3/8 or 1/2 inch cutter, the larger tool will usually be faster, stronger, more forgiving, and better suited for high-volume production. If the feature physically requires a small radius, narrow channel, tight detail, or delicate top-face finish, the 1/8 inch downcut is the correct specialty choice.
The GreenCap 1/8 inch downcut is a specialty cutter. It wins when the part needs smaller geometry than a 3/8 or 1/2 inch tool can create, or when the visible top surface needs to stay crisp through a shallow routing operation.
The smaller the cutter, the tighter the inside corner it can leave. A 1/8 inch tool can produce detail that a 3/8 or 1/2 inch cutter physically cannot match without leaving oversized corner radii or requiring a secondary cleanup operation.
Downcut geometry pushes the top fibres and surface layer downward. That makes the tool useful for shallow grooves, top-face detailing, inlays, laminated surfaces, veneer-faced material, and small features where top-edge breakout is the main concern.
A narrow dado or groove should be machined as a controlled shape, not treated like a single straight centreline pass. The 1/8 inch cutter lets the programmer trace a rectangle or pocket toolpath to define both side walls cleanly.
For pocket dados, hardware recesses, and small rectangular pockets, the cutter must clean all four edges. A 1/8 inch downcut is useful when the pocket is too small for a 3/8 or 1/2 inch tool to enter while still maintaining the intended corner size.
The two-flute design gives a small-diameter tool a practical balance between clean shearing action and chip formation. With the right feed and RPM, it can leave a clean surface without overloading the tiny cutting edge.
For logos, decorative grooves, small pockets, shallow texturing, and inlay-style toolpaths, the 1/8 inch downcut gives the shop fine control without switching to a fragile engraving point or a cutter too large for the design.
This tool should be treated as a precision cutter. Use shallower passes, controlled engagement, smooth ramping, and proper chip evacuation. It is not meant to replace larger cutters for heavy through-cuts or full-sheet production profiling.
Use 1/8 inch when geometry demands it. Use 3/8 inch when you need a stronger small-to-medium production cutter. Use 1/2 inch when the job needs stability, speed, and a wider safety margin for larger cuts.
The reason to choose a 1/8 inch downcut bit is not because it is stronger or faster than standard production tooling. It is chosen because the geometry is smaller. When the part has a narrow detail, tight corner, small pocket, shallow top-face groove, or small rectangular dado that a larger tool cannot machine correctly, the 1/8 inch cutter becomes the right tool.
A 3/8 inch cutter is much stronger, more rigid, and more appropriate for everyday cabinet-part routing, larger grooves, perimeter passes, and production work. The 1/8 inch wins only when the feature is too small for 3/8 inch tooling or when the inside radius needs to be much tighter.
A 1/2 inch cutter is the better choice for stability, feed-rate confidence, longer tool life, heavier material removal, and larger full-depth cuts. The 1/8 inch is not competing with it for throughput; it is used when the 1/2 inch tool is simply too large for the feature.
A centreline pass only follows the middle of the feature. For a dado, the toolpath should control the actual width and both side walls. For a pocket dado, it should define all four edges. That is where a small-diameter downcut can make a clean rectangular feature instead of just cutting a slot.
Downcut tools push chips downward. In shallow work, that helps the top surface. In deeper slots or pockets, chips can pack into the cut. Use proper dust extraction, pocket clearing, air assist where appropriate, and toolpaths that let the chips leave the cut before heat builds up.
Treat the GreenCap 1/8 inch two-flute downcut as a precision tool. Let larger cutters handle the roughing, through-cutting, and heavy material removal when possible. Bring the 1/8 inch tool in for the fine geometry, tight corners, small pockets, narrow dados, and clean top-face features that bigger tooling cannot produce properly.
Good programming matters. Use entry moves that do not shock the tool, keep the depth of cut realistic, avoid excessive tool stickout, clear chips from pockets, and make sure the spindle speed and feed rate create actual chips instead of heat and dust. A small cutter can do excellent work when the toolpath respects its size.
A 1/8 inch tool can produce beautiful small features, but it has a smaller operating window than larger tooling. Test the exact material, toolpath, depth strategy, and finish requirement before locking it into a production program.
The GreenCap 1/8 inch two-flute solid carbide downcut bit is the right choice when the feature is small, the top edge matters, and the geometry cannot be produced properly with standard 3/8 or 1/2 inch tooling. It is a precision detail cutter for controlled features, not a replacement for larger production tools.
Use it for small rectangular dados, pocket dados, narrow grooves, inlays, shallow hardware recesses, small inside corners, and top-face-sensitive routing. Step back up to 3/8 or 1/2 inch whenever the feature allows, especially for heavier cutting, faster production, long profiles, or full-depth panel work.
