01
Two-Sided Edge Control
Compression geometry supports both faces during through-cutting. This helps reduce top chipping and bottom breakout in laminated, melamine, veneer-faced, MDF-core, plywood-core, and finished sheet materials.

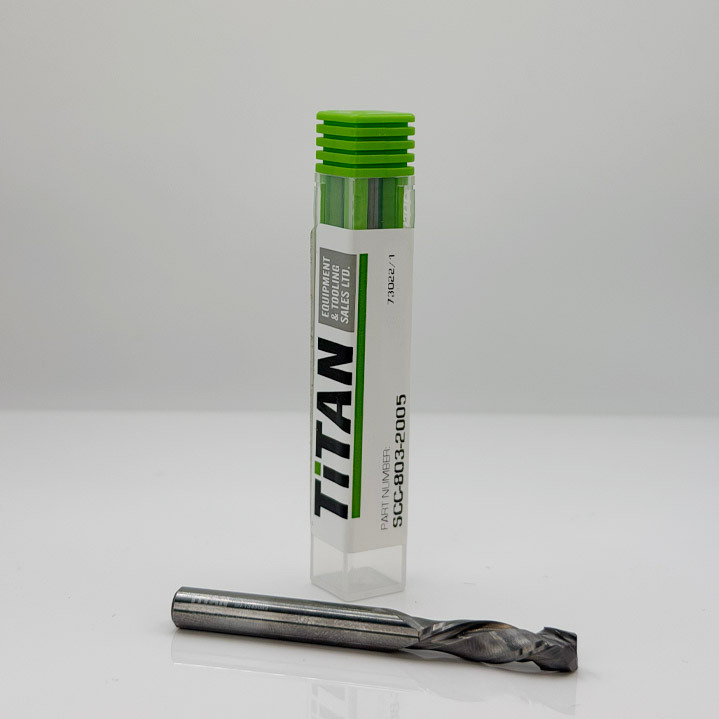

GreenCap Solid Carbide Compression Spiral 1/4 (6.35mm)
CA$75.95
In stock
SKU
SCC-803-2005
Product Type
Solid Carbide Compression Spiral Router Bit
Diameter
1/4 in (6.35 mm)
Cutting Length
7/8 in (22.23 mm)
Shank Diameter
1/4 in (6.35 mm)
Overall Length
2-1/2 in (63.50 mm)
Flute Quantity
2 Flute
Cut Direction
Compression Spiral
Application
Mortise Compression (MTCE)
GreenCap Compression Spiral Tooling
GreenCap 1/4 Inch Compression Spiral Bit For Tight Nested Parts, Small Profiles, and Clean Two-Sided Through-Cuts
The GreenCap 1/4 inch compression spiral bit is a precision CNC router tool for shops that need clean top-and-bottom edge control in smaller through-cut features. It is built for compact cabinet parts, furniture components, casework details, small profiles, internal cutouts, tight inside geometry, nested sheet details, and production work where a 3/8 inch or 1/2 inch compression bit is physically too large.
Compression geometry combines upward and downward cutting action so the material is supported from both directions during through-cutting. That makes this cutter a better choice than a straight upcut or straight downcut when both faces of the sheet need to stay clean. The tradeoff is strength and process window: a 1/4 inch cutter is not as rigid or forgiving as 3/8 inch or 1/2 inch tooling, so toolpath control, stickout, chip load, hold-down, and cut strategy matter.
The Short Shop-Floor Answer
Use 1/4 Inch Compression When 1/8 Is Too Delicate and 3/8 Is Too Large. It Is the Small-Feature Production Middle Ground.
A 1/4 inch compression spiral gives the programmer more strength than 1/8 inch tooling while still fitting into smaller features than a 3/8 inch cutter. It is useful when the part needs a tight inside radius, a narrower kerf, or smaller CNC detail but still requires clean faces on both sides of the sheet.
Use it for small through-cuts, compact nested parts, tight profiles, small cutouts, controlled internal geometry, and detail work where both faces matter. Step up to 3/8 or 1/2 inch whenever the geometry allows because larger tools are more rigid, more stable, and more forgiving in production.
For shallow grooves, top-face dados, and pocket details that do not break through the sheet, compression may not be the first choice. Use downcut or upcut geometry when the feature is shallow and the priority is top-face protection or chip evacuation rather than two-sided through-cut control.
1/4 Inch Diameter
Compression Spiral
Solid Carbide
Tight Geometry
Nested CNC Parts
Two-Sided Edge Control
Small Profiles
Cabinet Components
Why This Cutter Exists
Built for Small-Feature Compression Cutting With Cleaner Top and Bottom Faces
The GreenCap 1/4 inch compression spiral is selected when the feature is too small for standard 3/8 or 1/2 inch compression tooling, but the cut still needs face control on both sides of the material. It is a detail-capable compression cutter, not a heavy roughing tool.
02
Tighter Inside Radius
A 1/4 inch cutter creates a smaller inside radius than 3/8 or 1/2 inch tooling. Use it where part geometry, small notches, cutouts, or compact nested details cannot accept a larger toolpath.
03
Stronger Than 1/8 Inch
Compared with a 1/8 inch compression tool, the 1/4 inch diameter gives the cutter more body, more stiffness, and a better process window when the feature can accept the larger radius.
04
Smaller Than 3/8 Inch
A 3/8 compression bit is stronger and better for general nested cabinet work, but it cannot fit every detail. The 1/4 inch compression spiral fills the smaller-feature gap.
05
Narrower Kerf
The smaller diameter removes less material than 3/8 or 1/2 inch tooling. That can help with tight nest layouts, compact parts, and details where material use or toolpath clearance is limited.
06
Solid Carbide Accuracy
Solid carbide construction helps maintain cutting geometry and edge retention during high-speed CNC routing. That matters on small tools where runout, heat, and deflection affect results quickly.
07
Not a Heavy Cutter
The 1/4 inch compression spiral should not be forced into heavy full-depth routing that can be handled by 3/8 or 1/2 inch tooling. Use controlled engagement and realistic depth strategy.
08
Right-Size Cutter Logic
Use the largest cutter that fits the feature cleanly. Choose 1/4 inch when 1/8 is too delicate and 3/8 or 1/2 inch is too large for the programmed detail.
Selection Map
Why Choose 1/4 Inch Compression Over 1/8, 3/8, or 1/2 Inch?
The 1/4 inch compression spiral is selected for small through-cut geometry where both faces matter and the feature needs more strength than a 1/8 inch cutter can comfortably provide. It is not the default for large production cutting. It is the cutter for the middle zone between fine-detail tooling and standard cabinet-production compression tooling.
1
Choose It for Small Through-Cuts
Use 1/4 inch compression when the cut breaks through the sheet and the top and bottom faces both need edge control.
2
Choose It Over 1/8 Inch
Move up when the feature can accept a larger radius and the job needs more stiffness, more feed confidence, and more production stability.
3
Step Up When Geometry Allows
Use 3/8 or 1/2 inch compression for general cabinet parts, long cuts, heavier engagement, and production work where the larger tool fits.
4
Not a Dado Default
For shallow dados, pocket dados, and top-face grooves, choose the toolpath and cutter based on wall control, bottom cleanup, chip flow, and top-face priority.
5
Respect Small-Tool Limits
Use short stickout, clean collets, smooth entries, correct chip load, and controlled engagement to avoid heat, deflection, and broken tooling.
Compared With 1/8 Compression
A 1/8 compression cutter is for the tightest details and smallest inside radii. The 1/4 inch compression spiral is stronger and more stable when the feature can accept the larger diameter, making it the better choice for small production features that still need clean faces.
Compared With 3/8 Compression
A 3/8 compression bit is stronger and usually better for everyday nested cabinet parts. The 1/4 inch version is chosen when the internal radius, narrow feature, part spacing, or geometry prevents the 3/8 inch tool from fitting correctly.
Compared With 1/2 Compression
A 1/2 compression bit gives maximum rigidity, long-cut stability, and a wider production window. The 1/4 inch compression spiral is not competing for heavy routing; it is used when the feature is too small for the larger cutter.
Compared With Upcut or Downcut
Upcut prioritizes chip evacuation. Downcut prioritizes top-face control. Compression is selected for through-cuts where both faces matter. Match the cutter to the feature depth and surface requirement before production.
Best-Practice Playbook
Run 1/4 Inch Compression Like a Controlled Small-Feature Tool
Treat the GreenCap 1/4 inch compression spiral as a precision through-cut cutter for smaller geometry. It works best when the toolpath is realistic, the compression transition is positioned correctly, the cutter is not overloaded, and the machine setup is clean enough to support a small-diameter tool.
Let 3/8 and 1/2 inch tooling handle larger cabinet parts, long full-depth routes, and heavier material removal whenever geometry allows. Bring the 1/4 inch compression spiral in when the feature is smaller but still requires top-and-bottom edge control.
Use It For
Small through-cuts, compact nested parts, tight internal profiles, smaller cabinet details, and features that need clean top and bottom faces.
Do Not Use It For
Heavy roughing, large perimeter routing, long high-load cuts, or features that can be made better with a stronger 3/8 or 1/2 inch cutter.
Compression Zone
Match the cutter and cut strategy to the material thickness so the upcut and downcut portions support the faces correctly.
Dado Strategy
For dados and pocket dados, define the rectangle or pocket shape intentionally. Control the walls and ends instead of relying on a single centreline cut.
Small Tool Discipline
Use clean collets, short stickout, smooth ramping, good hold-down, and chip load that makes chips instead of dust.
Step-Up Rule
Use 3/8 or 1/2 inch compression whenever the feature can accept the larger tool and the job benefits from more rigidity.
Validation Notes for Shop Teams
Prove the Small Compression Cut On Your CNC
A 1/4 inch compression spiral can solve small through-cut geometry, but it depends on the router, spindle, toolholding, spoilboard, vacuum, material, and programmed engagement. Validate the tool in the actual material before releasing it into production.
Inspect Both Faces
Check top chip-out, bottom breakout, laminate fracture, fuzzing, edge texture, and whether the part is clean enough for the next operation.
Watch Tool Load
Small compression tools are sensitive to heat, deflection, and aggressive engagement. Dust, squeal, chatter, or dark edges mean the process needs adjustment.
Compare Larger Tools
Run the feature with 1/4 and then compare against 3/8 or 1/2 where possible. Use the larger cutter when it fits and produces a stronger, more stable result.
Final Recommendation: Use 1/4 Inch Compression for Small Through-Cuts That Need Clean Faces
The GreenCap 1/4 inch compression spiral bit is the right choice when the part feature is too small for 3/8 or 1/2 inch tooling but still needs top-and-bottom edge control in a through-cut. It is stronger than 1/8 inch tooling, more detail-friendly than 3/8 inch tooling, and useful for compact nested work where both faces matter.
Step up to 3/8 or 1/2 inch compression whenever the geometry allows. Step down to 1/8 inch only when the radius or detail requires it. Use upcut or downcut instead when the feature is shallow and the priority is chip evacuation or top-face protection rather than two-sided through-cut performance.
Choose 1/4 Compression
For small through-cut features, compact profiles, and top-and-bottom face control.
Choose 1/8 Compression
When the inside radius or feature detail is too small for 1/4 inch tooling.
Choose 3/8
When the feature allows a stronger tool and the job needs more production stability.
Choose 1/2
For maximum rigidity, heavier routing, long cuts, and a wider production process window.
1/4 Inch
Small-feature compression cutter for compact geometry and tighter internal radii.
Compression
Designed to help control top and bottom faces in through-cut work.
Use Case
Small through-cuts, tight profiles, compact nested parts, and controlled cabinet details.
Step Up
Use 3/8 or 1/2 when the feature allows stronger, more stable tooling.
GreenCap
A professional tooling line by Titan Equipment and Tooling Sales.
