01
Cleaner Top Edges
Downcut geometry pushes the visible top surface downward into the panel. That makes the 1/2 downcut a strong choice for laminated faces, veneer faces, melamine, MDF, plywood, and clean cabinet-component features.

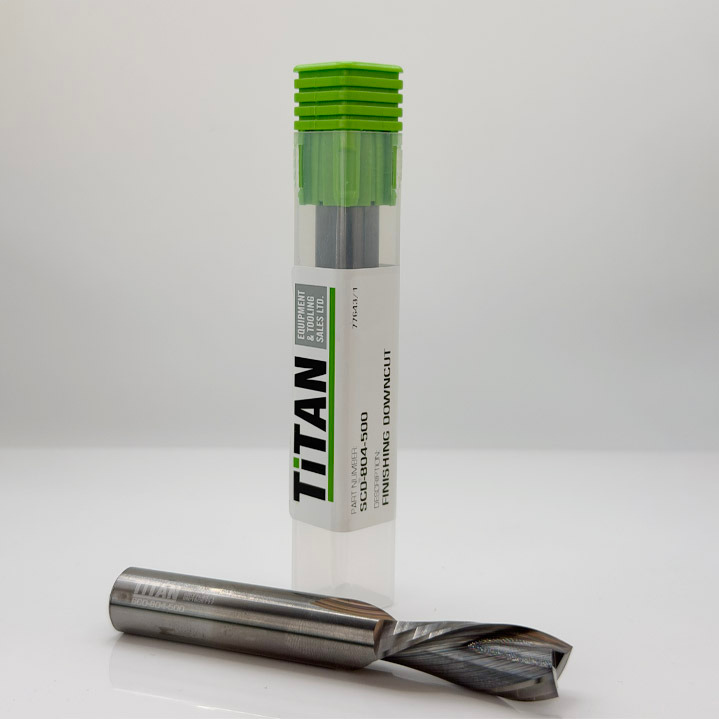

GreenCap Solid Carbide Down Cut 1/2 (12.7mm)
CA$90.00
In stock
SKU
SCD-804-500
Product Type
Solid Carbide Down Cut Router Bit
Diameter
1/2 in (12.70 mm)
Cutting Length
1-1/4 in (31.75 mm)
Shank Diameter
1/2 in (12.70 mm)
Overall Length
3-1/2 in (88.90 mm)
Flute Quantity
2 Flute
Cut Direction
Down Cut
GreenCap By Titan Equipment And Tooling Sales
GreenCap 1/2 Inch Solid Carbide Downcut Bit For Clean Top Edges, Larger Dados, Wider Grooves, And Stable CNC Feature Routing
The GreenCap 1/2 inch solid carbide downcut bit is the heavy-duty standard choice when a shop needs clean top-edge control and the feature is large enough to accept a larger diameter cutter. It is built for larger grooves, wider dados, rabbets, shallow pockets, fixture work, templates, MDF, plywood, melamine-faced panels, laminated sheet goods, and cabinet-component details where the upper face needs to stay clean.
The reason to select a 1/2 inch downcut over a 3/8 inch downcut is not because bigger is always better. It is because the job may need more rigidity, cleaner long walls, more stable pocket geometry, better resistance to deflection, and a wider production window. When the toolpath and feature size allow it, the 1/2 inch diameter gives the cutter more strength and stability at the point of cut.
The Short Answer
Use 1/2 Inch When The Feature Allows It. Step Down Only When The Geometry Demands It.
A 1/2 inch downcut bit is selected when the work is large enough that the added diameter becomes an advantage. Wider dados, larger pocket dados, long grooves, broad rabbets, and bigger clean-top features benefit from the stronger cutter body and better side-wall control.
Compared with 3/8 inch tooling, the 1/2 inch bit is more rigid and better suited for long, straight, repeatable feature cuts. The 3/8 inch still wins when the dado, pocket, inside radius, or part geometry is too small for a 1/2 inch cutter.
GreenCap is a professional tooling line made by Titan Equipment and Tooling Sales for shops that want each cutter matched to real CNC production use, not generic tooling copy.
1/2 Inch Downcut
Solid Carbide
Clean Top Edge
Wide Dados
Pocket Dados
Long Grooves
Rabbets
Cabinet Parts
1/2 Inch Downcut Advantages
Why Shops Use A 1/2 Downcut
The GreenCap 1/2 inch downcut is selected when top-surface quality matters and the shop wants the strongest practical downcut option for larger feature routing. It is not the cutter for tiny details. It is the cutter for clean-top routing where the geometry is large enough to benefit from more diameter, more stiffness, and more wall stability.
02
More Rigidity Than 3/8
The 1/2 inch diameter gives more cutter mass and a stiffer tool body. That helps reduce deflection, improve wall straightness, and keep larger features more consistent from part to part.
03
Wider Dados
Dados should be machined as controlled rectangles, not simple centreline scratches. On wider dados, the 1/2 downcut can trace the walls with stronger edge support and cleaner top shoulders.
04
Larger Pocket Dados
Pocket dados need four clean edges. When the pocket is large enough, 1/2 inch tooling gives stronger wall control and faster cleanup than smaller cutters that may require more passes.
05
Long Groove Stability
Long grooves and rabbets can reveal tool deflection quickly. The 1/2 inch downcut gives better stability across longer runs, helping keep the groove straight, consistent, and clean at the top edge.
06
Heavier Feature Routing
When the cut involves more material removal, larger surfaces, or repeated production passes, the 1/2 inch diameter provides more strength and a wider operating window than 3/8 inch and smaller tooling.
07
Chip Control Awareness
Downcut tools push chips downward, so the process still needs smart depths, dust collection, and feed control. The 1/2 inch body helps, but chip packing still needs to be managed.
08
Production Confidence
The value of the 1/2 downcut is consistency. Use it when a larger cutter fits the feature and the shop wants cleaner top edges with stronger geometry and less tool movement under load.
Diameter Selection
Why Choose 1/2 Inch Over 3/8 Inch Or Smaller?
The rule is simple: use the largest cutter that properly fits the feature and finish requirement. A 1/2 inch downcut is selected when the geometry is large enough and the job benefits from more rigidity, better wall control, and stronger production stability than a 3/8 inch or smaller downcut can provide.
1
Use 1/2 Instead Of 3/8
When the dado, groove, pocket, or rabbet is large enough and the shop wants more stiffness, cleaner long walls, better repeatability, and heavier cutting confidence.
2
Use 3/8 Instead Of 1/2
When the feature is too narrow, the inside radius must be smaller, or a 1/2 inch cutter would overcut the geometry before the toolpath can define the walls.
3
Use Smaller Detail Bits
For very small grooves, inlays, delicate pocket corners, tiny radii, and detail work where even 3/8 inch is too large for the feature.
4
Top-Face Priority
Choose downcut geometry when the visible top face is the priority. For through-cuts where both top and bottom edges matter, choose the correct compression tool instead.
5
Dado Rule
A quality dado is usually a machined rectangle. A pocket dado is a pocket with four controlled edges. Program the shape so the tool defines the walls, not just the centreline.
Compared With 3/8 Inch
The 3/8 inch cutter wins when the feature is smaller or needs a tighter inside radius. The 1/2 inch cutter wins when the feature is large enough and the shop wants stronger side-wall control, less deflection, and better stability in wider dados, grooves, and pockets.
Compared With 1/4 Inch And Smaller
Smaller cutters are for detail geometry, very narrow features, and tight radii. The 1/2 inch downcut is the step up when those small diameters are unnecessary and the job is better served by strength, rigidity, and repeatable production routing.
Where 1/2 Inch Fits Best
Use the 1/2 inch downcut for wider dados, longer grooves, broad rabbets, larger pocket dados, template work, clean-top openings, fixture features, and cabinet details where the geometry supports a larger tool.
Where Not To Force It
Do not use 1/2 inch simply because it is stronger. If the feature is too small, the internal radius is too tight, or the pocket cannot accept the cutter, step down to 3/8 inch, 1/4 inch, 3/16 inch, or 1/8 inch as required.
Best-Practice Playbook
How To Get The Most From 1/2 Inch Downcut Tooling
Treat the GreenCap 1/2 inch solid carbide downcut as a clean-top, stability-first feature cutter. It is at its best when the feature is large enough to accept the diameter and the shop wants a stronger cutter than 3/8 inch can provide.
For dados and pockets, program the actual shape. A clean dado should define both side walls; a pocket dado needs four controlled edges. The 1/2 inch downcut gives the best result when it is allowed to machine those walls with adequate clearance, correct depth strategy, strong chip evacuation, and sensible feed control.
Best Use
Wider dados, long grooves, broad rabbets, larger pocket dados, templates, and clean-top features where the geometry supports 1/2 inch.
Avoid Using It For
Tiny pockets, narrow inlays, small grooves, tight inside radii, or any feature where the 1/2 inch diameter would overcut the design.
Top-Face Priority
Downcut action helps protect the visible top surface, making it useful for laminated faces, veneer faces, melamine, and clean cabinet-component details.
Chip Clearing
Because chips are driven downward, manage depth of cut, dust collection, and feed rate so chips do not pack into the groove or pocket.
Feature Geometry
Confirm width, pocket size, inside radius, and wall requirements. Use 1/2 inch only when it fits the feature cleanly.
Step Down When Needed
Use 3/8 inch or smaller tooling when the design needs a tighter radius, narrower feature, or more controlled access than 1/2 inch can provide.
Validation Notes For Shop Teams
Prove The Cut On Your CNC
A 1/2 inch downcut can produce excellent clean-top results in larger features, but it still needs the right toolpath, depth strategy, and chip clearing. Test the geometry before locking it into production.
Confirm The Feature
Check the designed width, pocket size, inside radius, and wall requirements. Use 1/2 inch when the feature is large enough to gain from the extra rigidity.
Watch Chip Evacuation
Downcut tools can pack chips into the cut. Monitor dust collection, chip size, edge heat, sound, and whether the groove or pocket is clearing properly.
Inspect The Walls
Measure width, depth, side-wall quality, top-edge cleanliness, corner radius, and fit. The value of 1/2 downcut tooling is clean top-surface control with stronger wall stability.
Final Recommendation: Use 1/2 Inch For Strong, Clean-Top Routing When The Feature Allows It
The GreenCap 1/2 inch solid carbide downcut bit is the right choice when the part needs a clean top surface, the feature is large enough to accept the diameter, and the shop wants more rigidity than a 3/8 inch cutter can provide. It is a stability-first tool for wider dados, larger pockets, long grooves, rabbets, templates, and production CNC feature work.
Choose 1/2 inch when the geometry allows a larger cutter and the job benefits from better wall control, reduced deflection, stronger cutting confidence, and repeatability. Step down to 3/8 inch or smaller only when the feature width, inside radius, or pocket geometry demands a smaller tool.
Choose 1/2 Inch
For wider dados, larger pocket dados, long grooves, broad rabbets, and stronger clean-top routing.
Choose 3/8 Inch
When the feature is too narrow for 1/2 inch or the inside radius needs to be smaller.
Choose Smaller Tools
For very small grooves, tiny pockets, inlays, delicate details, and the tightest internal radii.
Dado Logic
Machine dados and pocket dados as shapes with controlled walls, not as simple straight-line slots.
Diameter
1/2 inch for larger features with maximum standard downcut rigidity.
Cut Direction
Downcut geometry helps protect the visible top face.
Best Fit
Wider dados, pocket dados, grooves, rabbets, templates, and clean-top feature work.
Comparison
Stronger than 3/8 inch; use 3/8 when the feature needs a smaller radius.
GreenCap
A professional tooling line made by Titan Equipment and Tooling Sales.
