SCM Formula Unilev 150

SCM Formula · Unilev 150

SCM Formula Unilev 150 Universal Belt Sander

A professional oscillating vertical belt sanding centre for edge sanding, profile sanding, shaped workpieces, angled parts, panels, cabinet components, and joinery production.

Oscillating Vertical Abrasive Belt
12 / 24 Belt Speed · m/sec
0°–45° Table and Fence Tilt
1440 × 710 Worktable · mm
Request Machine Quote

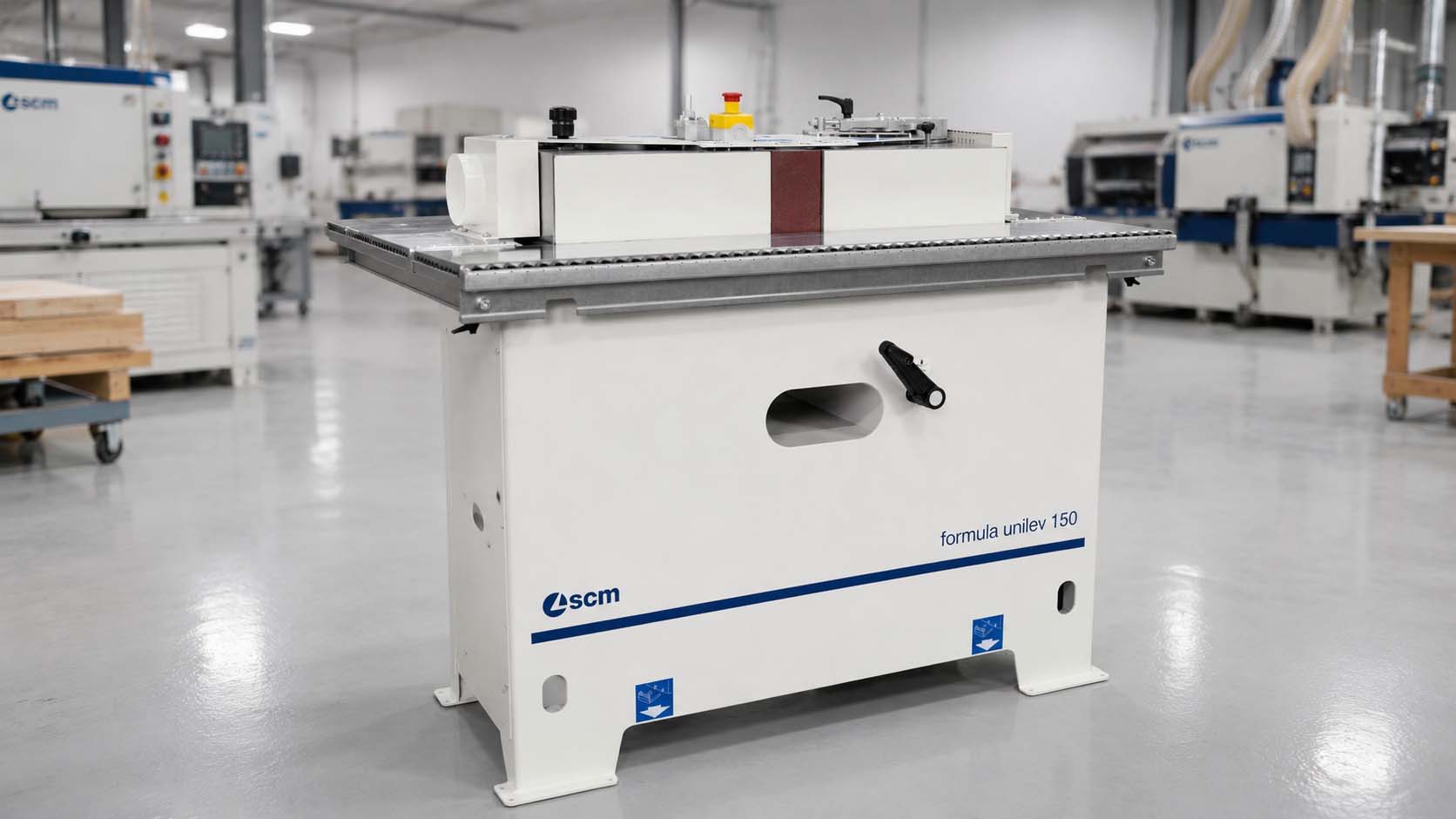

SCM Formula Unilev 150 universal belt sander in a professional woodworking shop
Machine Overview

Controlled sanding without moving into a larger automated system.

The SCM Formula Unilev 150 is a professional universal sanding centre for shops that need more control than hand sanding, bench sanding, or improvised edge-sanding setups can provide.

Its oscillating vertical abrasive belt, dual belt speeds, large worktable, adjustable table and fence, front panel extension, rear support, and supplementary roller table create a flexible production station for everyday sanding work.

The machine supports cabinet components, solid wood, veneered panels, furniture parts, profiles, shaped pieces, angled workpieces, frames, trims, and panel-edge preparation.

2170 mm Abrasive Belt Length
150 mm Abrasive Belt Height
130 mm Vertical Oscillation
2.2 / 3 kW Two-Speed Motor · S1
Capability Matrix

One sanding station. Multiple production roles.

The Unilev 150 combines straight-edge support, profile control, angled work capability, shaped-part handling, and larger panel support.

Mode 01

Edge Sanding

Refines straight edges on solid wood, veneered panels, shelves, cabinet parts, frames, and furniture components.

Mode 02

Profile Sanding

Supports profile refinement and detail sanding on shaped woodworking components, trims, frames, and joinery parts.

Mode 03

Angled Work

Handles bevelled, tilted, mitred, and angled parts using the adjustable table and fence geometry.

Mode 04

Shaped Pieces

A supplementary roller table supports irregular and shaped workpieces during controlled sanding.

Mode 05

Panel Support

The large worktable, mobile front extension, and rear support improve control on panels and longer parts.

Production Advantages

Built around control, flexibility, and repeatability.

Key machine functions support consistent sanding results across changing part sizes, materials, profiles, and production requirements.

Oscillating Belt Control

Vertical oscillation improves sanding consistency and distributes abrasive wear across the belt surface during regular production work.

Dual-Speed Operation

Belt speeds of 12 and 24 m/sec allow sanding performance to be matched to different materials, surfaces, and finishing requirements.

Adjustable Work Geometry

Table and fence adjustment from 0° to 45° supports bevelled, mitred, angled, and non-standard workpiece geometry.

Equipment Range

Lineup Positioning

Entry Level

Hand / Bench Sanding

Suitable for occasional touch-up work, but limited in consistency, speed, operator control, and repeatability on production components.

Dedicated Station

Disc / Edge Sanding

A practical step when the shop needs dedicated support for straight edges, bevels, small profiles, and routine cleanup work.

Professional System

Formula Unilev 150

Adds oscillating belt sanding, larger workpiece support, angled-part capability, shaped-piece handling, and flexible daily production use.

Technical Specifications

Formula Unilev 150
Machine Profile
  • Manufacturer SCM
  • Series Formula
  • Model Unilev 150
  • Machine Type Universal Sanding Centre
Sanding System
  • Primary Use Edge, profile, shaped and angled sanding
  • Belt Length 2170 mm
  • Belt Height 150 mm
  • Vertical Oscillation 130 mm
Worktable and Adjustment
  • Worktable 1440 × 710 mm
  • Table and Fence Tilt 0°–45°
  • Belt Position Height adjustable
  • Rear Support Adjustable stop for tilted workpieces
Performance
  • Belt Speeds 12 / 24 m/sec
  • Motor Power 2.2 / 3 kW S1
  • Belt Motor Two-speed belt motor
  • Production Role Daily sanding support
Support and Handling
  • Panel Support Mobile front extension
  • Shaped Pieces Supplementary roller table
  • Dust Control Roller-table extraction support
  • Workpiece Types Edges, profiles, shaped parts and panels
Production Applications
  • Cabinet Parts Shelves, panels, frames and components
  • Millwork Trims, profiles, frames and stair parts
  • Furniture Solid wood and veneered components
  • Finishing Cleanup, bevels and edge preparation
Production Environments

Where the Unilev 150 Fits

A flexible sanding platform for professional woodworking environments that need more control than manual sanding.

Cabinet Shops

Supports edge sanding, panel-edge preparation, cabinet component finishing, shelves, frame parts, and repeat shop-floor sanding tasks.

Millwork and Joinery

Useful for custom profiles, angled components, frames, stair parts, trims, rails, and irregular workpieces.

Furniture Production

Improves sanding control on solid wood, veneered panels, shaped pieces, furniture components, and parts requiring repeatable finishing preparation.

Machine Detail · Workshop Presence

A compact sanding station that elevates the entire production floor.

The Unilev 150 combines a compact footprint, clean industrial design, and serious day-to-day usefulness. It feels precise, planted, and purpose-built without becoming oversized or overcomplicated.

For teams working on panels, custom shapes, edges, and finish preparation, the machine creates a more refined workflow with better access, cleaner control, smoother part handling, and a dedicated professional sanding environment.

It looks sharp in the showroom, feels right in production, and makes the sanding process more intentional, capable, and repeatable.

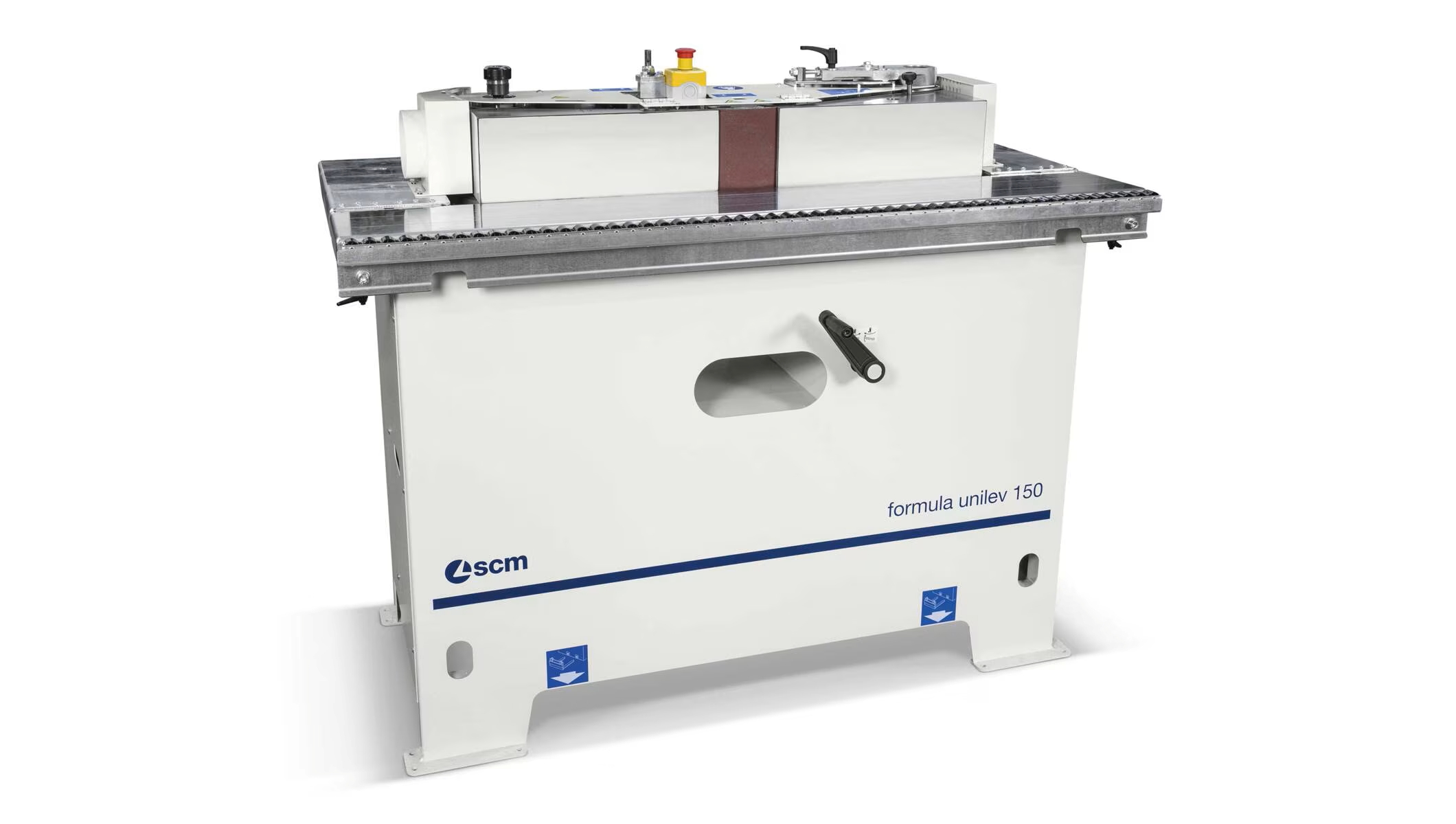

SCM Formula Unilev 150 secondary machine view
