A specialized multi-workstation CNC machining centre for repeated solid-wood components requiring routing, drilling, turning, shaping, and five-axis machining across four simultaneous workstations.
Four-at-a-time CNC machining for repeated shaped and rotational solid-wood components.

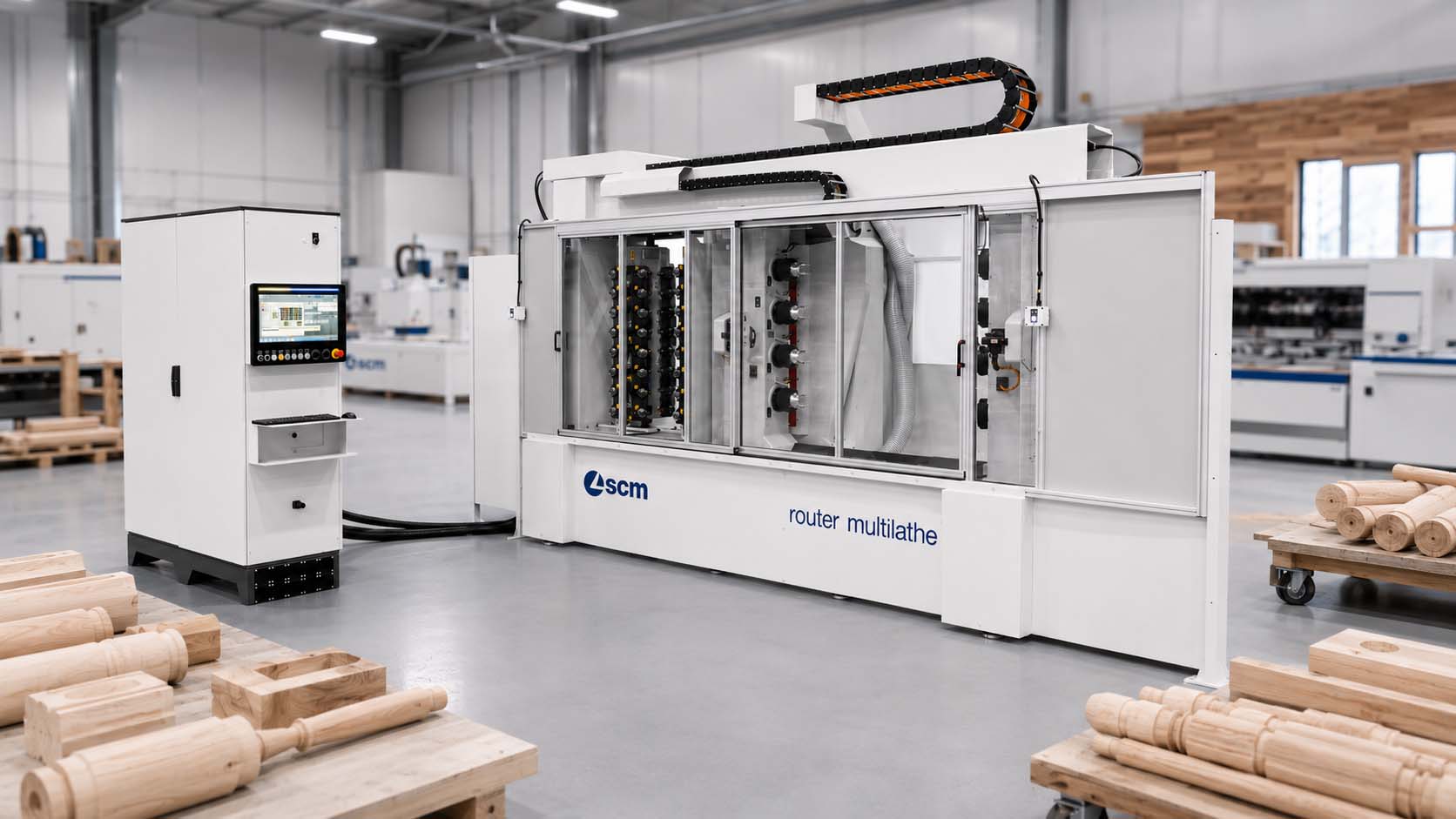

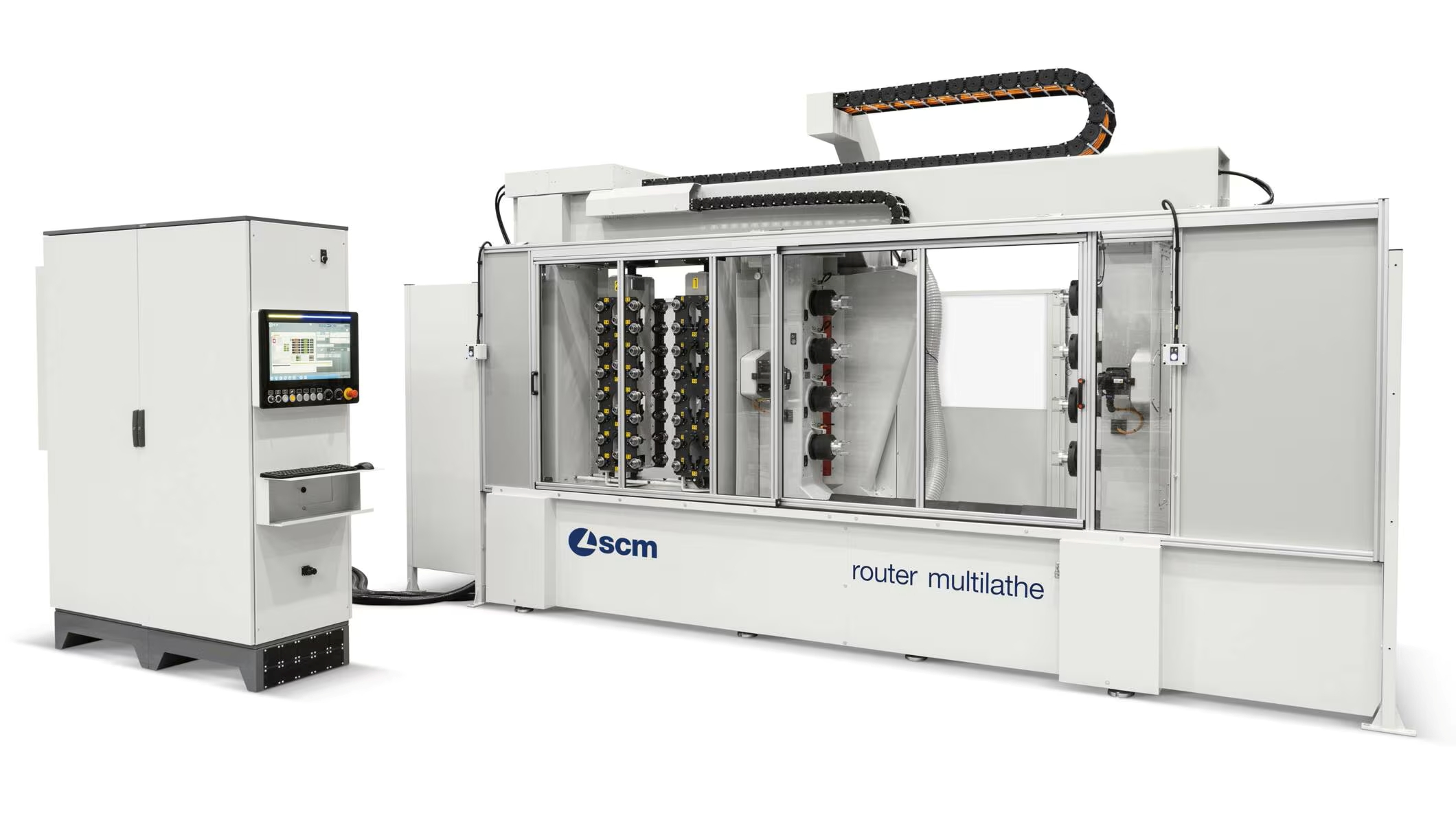

The SCM Router Multilathe is a dedicated CNC machining centre built around four workstations with NC-controlled rotating axes, allowing four identical components to be machined simultaneously.
Each workstation is served by a five-axis electrospindle, combining routing, drilling, turning, shaping, and finishing operations in one controlled cycle with one positioning strategy.
The machine is intended for repeat component families where batch volume, tooling discipline, workholding, programming, and consistent multi-operation machining justify a specialized production platform rather than a general-purpose flat-table router.
4Simultaneous Workstations
13 kWMaximum Electrospindle Power
30000 rpmMaximum Spindle Speed
112Automatic Tool Positions
Capability Matrix
Production Modes
Combine five-axis machining and NC-controlled rotation to complete complex repeated components in one production cycle.
Mode 01
Five-Axis Routing
Machine shaped faces, contours, pockets, profiles, and angled features on complex solid-wood components.
Mode 02
Multi-Angle Drilling
Complete holes and connection features within the same programmed setup used for routing and shaping.
Mode 03
Rotational Turning
Use the NC-controlled rotating axes for balusters, legs, posts, rails, and other rotational component geometry.
Mode 04
One-Position Machining
Reduce repositioning by combining multiple operations around the component within one controlled workholding cycle.
Mode 05
Four-Station Production
Machine four identical components simultaneously when the part family and batch size suit parallel production.
Production Advantages
Specialized Architecture for Repeat Component Families
The Router Multilathe combines parallel machining, rotational control, and a large automatic tool inventory.
Four Components Per Cycle
Four simultaneous workstations create a direct production advantage when the same component is required in repeat batches.
Five-Axis Process Consolidation
Routing, drilling, turning, shaping, and finishing operations can be coordinated around the workpiece with fewer handling stages.
112-Position Tool Management
The automatic tool store supports complex part programs and varied machining operations without constant manual tool changes.
Equipment Range
Lineup Positioning
Separate Machines
Router, Drill & Lathe Workflow
Suitable where parts can move between dedicated machines and manual repositioning remains acceptable.
Five-Axis CNC
Single-Station Complex Machining
Supports complex shaping and angled machining where one component is processed at a time.
SCM Router Multilathe
Four-Station Rotational CNC Production
Dedicated parallel machining for repeated solid-wood components requiring routing, drilling, turning, and five-axis operations.
Technical Specifications
SCM Router Multilathe
Machine Profile
Manufacturer
SCM
Model
Router Multilathe
Machine Type
Multi-workstation CNC machining centre for solid-wood elements
Shaped millwork, sculpted parts, decorative elements, and multi-operation components produced as recurring families.
Parallel CNC Production
Build the process around the repeat component family.
The Router Multilathe is most effective when part geometry, workholding, tooling, programming, and batch volume are engineered together as one production system.
Four simultaneous stations can consolidate several operations and reduce repeated positioning, but the application must be qualified around real component drawings, material, length, diameter, swing, cycle requirements, and finish expectations.
Final configuration should confirm software and post-processing, clamping and fixtures, tooling inventory, utilities, dust extraction, enclosure, floor space, installation, commissioning, operator training, and ongoing service support.
