A compact entry-level automatic edgebander for small shops requiring dependable glue-pot edge application, standard thin-edge capacity, strip-edge flexibility, and a controlled first step beyond manual edging.
A practical first automatic edgebander for standard panel programs.

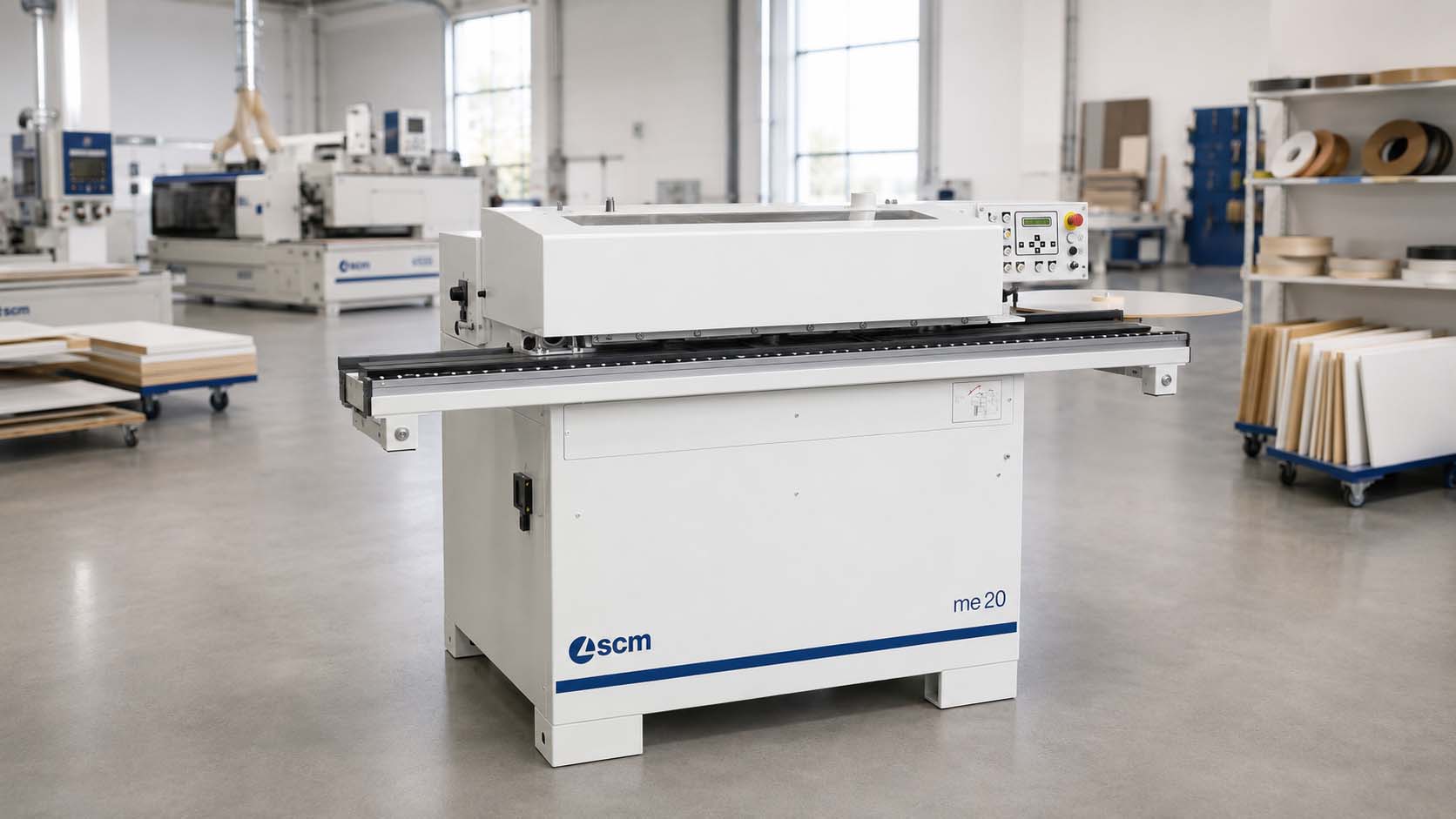

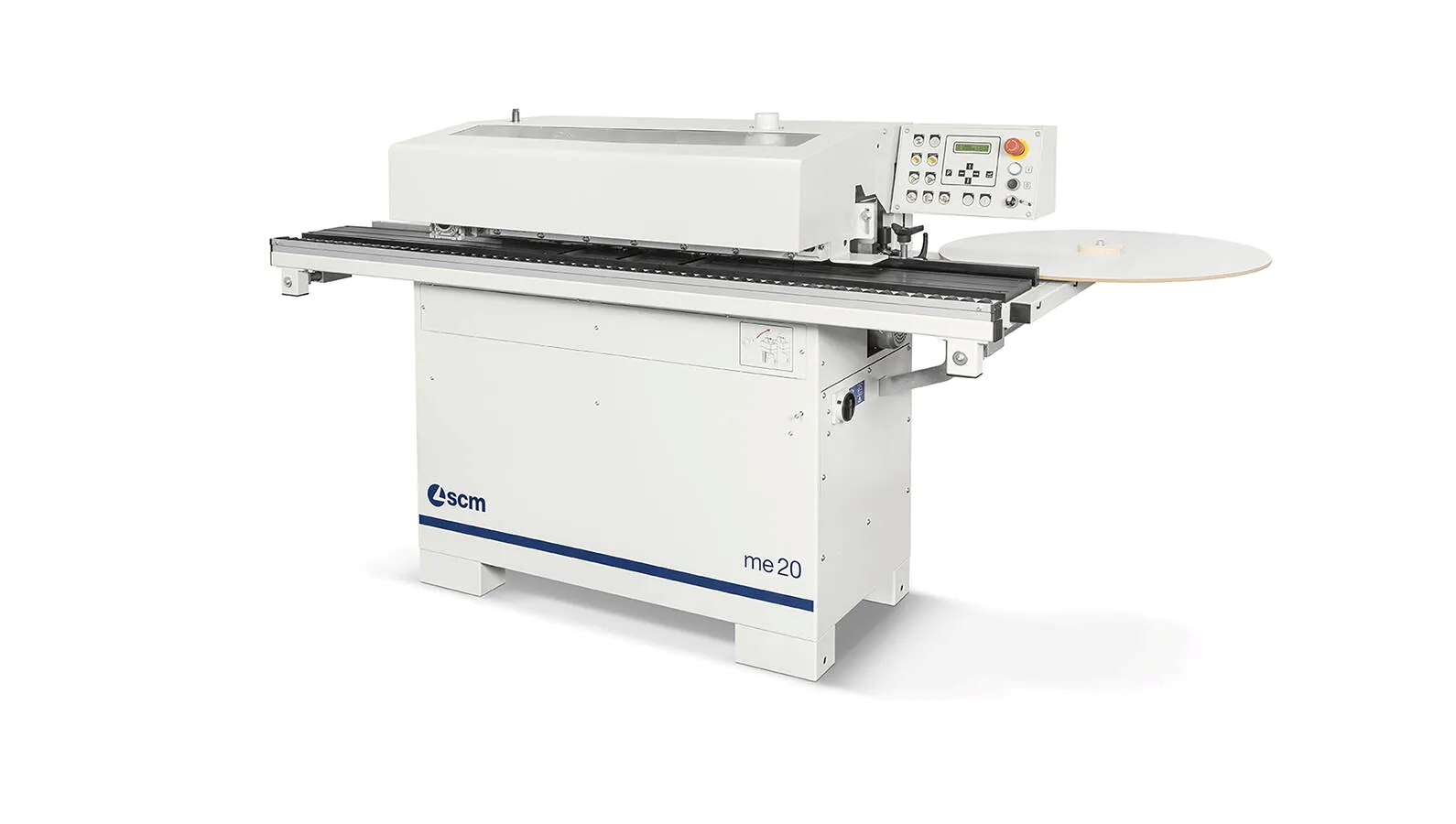

The SCM ME 20 is a compact automatic glue-pot edgebander for small cabinet, closet, furniture, casegoods, custom woodworking, light commercial millwork, and panel-processing shops moving beyond manual edge application.
Its supplied working data includes a 1950 × 180 mm worktable, 0.4–2 mm rolled-edge capacity, 5 mm strip-edge capacity, 12–50 mm panel height, 180 / 65 mm minimum panel dimensions, and 6 m/min feed speed.
Automatic edge-roll loading, pneumatic guillotine cutting, glue-pot application, top/bottom trimming, scraping, and buffing depend on the selected package and must be confirmed against the quoted Canadian configuration.
6 m/minFeed Speed
2 mmMaximum Rolled Edge
5 mmStrip Edge Capacity
180 / 65 mmMinimum Length / Width
Capability Matrix
Production Modes
Configure the ME 20 around standard edge loading, adhesive application, cutting, trimming, and final cleanup requirements.
Mode 01
Automatic Edge Loading
Feed rolled edge into the machine through the available automatic edge-roll loading package.
Mode 02
Glue-Pot Application
Apply adhesive and edge material through the selected compact glue-pot configuration.
Mode 03
Pneumatic Guillotine Cutting
Cut leading and trailing edge material with the package-dependent pneumatic guillotine unit.
Mode 04
Top & Bottom Trimming
Trim the applied edge to the panel surfaces through the selected top/bottom trimming units.
Mode 05
Scraping & Buffing
Reduce visible residue and secondary cleanup with scraping and buffing units where quoted.
Production Advantages
A Controlled First Step Into Automatic Edgebanding
The ME 20 packages standard edge application and finishing functions into a compact format for smaller production departments.
Compact Automatic Workflow
The machine gives smaller shops an automatic process without moving immediately into a larger ME, Olimpic, or Stefani platform.
Standard Thin-Edge Range
The 0.4–2 mm rolled-edge range is suited to common cabinet, closet, furniture, and casework programs.
Small-Shop Footprint
The 1950 × 180 mm published worktable and 6 m/min feed speed suit lower-volume shops with limited floor space.
Equipment Range
Lineup Positioning
Manual / Portable
Manual Edge Application
For occasional edge work, basic glue application, and low-volume panel finishing.
SCM ME 20
Entry Compact Automatic Edgebanding
For 2 mm rolled edge, 5 mm strip edge, 6 m/min feed speed, and package-dependent loading, cutting, trimming, and finishing units.
Compact Upgrade
SCM ME 25 / ME 28T
For broader edge capacity, larger compact-machine capability, or dedicated pre-milling before glue application.
Technical Specifications
SCM ME 20
Machine Profile
Manufacturer
SCM
Model
ME 20
Machine Type
Entry Compact Automatic Glue-Pot Edge Bander
Primary Role
Standard automatic edgebanding for small shops and light panel production
Table & Panel Capacity
Published Worktable
1950 × 180 mm
Panel Height
12–50 mm
Minimum Panel Length
180 mm
Minimum Panel Width
65 mm
Edge & Feed Data
Rolled Edge Thickness
0.4–2 mm
Strip Edge Thickness
5 mm
Feed Speed
6 m/min
Worktable Height
904 mm reference
Loading, Cutting & Trimming
Edge Loading
Automatic edge-roll loading where equipped
Leading / Trailing Cut
Pneumatic guillotine where equipped
Surface Trimming
Top/bottom trimming by quoted composition
Final Cleanup
Scraping and buffing where quoted
Glue System & Utilities
Glue System
Glue-pot package; exact adhesive and loading equipment confirmed by quote
Compressed Air
6 bar basis
Dust Extraction
Requirements confirmed by final operating-unit package
Electrical
Voltage, phase, power draw, and CSA requirements confirmed by quote
Configuration & Support
Package Confirmation
Edge loading, guillotine, glue pot, trimming, scraping, and buffing
Materials
Rolled and strip edge materials confirmed for the application
Installation Review
Floor space, extraction, air, electrical, access, and delivery route
Support
Delivery, installation, startup, training, warranty, and service confirmed by quote
Production Environments
Where the ME 20 Fits
For compact production departments requiring dependable standard edge application and less manual panel finishing.
Small Cabinet Shops
Kitchen shelves, gables, fillers, utility panels, finished ends, drawer fronts, and standard cabinet components.
Closet, Storage & Furniture
Closet shelving, partitions, wardrobe parts, panel furniture, side panels, fronts, and small repeat batches.
Custom Woodworking & Light Millwork
Office, retail, reception, institutional, renovation, and custom casework requiring clean standard edges.
Entry Automatic Edge Department
Replace manual edge application with a structured compact machine process.
The ME 20 brings edge loading, glue application, cutting, trimming, and optional cleanup units into a practical automatic workflow for smaller shops.
Its thin-edge focus and compact dimensions make it suitable for standard cabinet, closet, furniture, and light casework programs.
Final configuration should confirm panel and edge ranges, automatic edge-roll loading, pneumatic guillotine, glue-pot equipment, top/bottom trimming, scraping, buffing, compressed air, dust extraction, electrical service, CSA requirements, installation, training, and support.
