A compact automatic wide-belt sanding and calibrating machine for craftsmen, cabinet shops, furniture makers, joinery shops, veneer shops, and smaller woodworking companies that need professional sanding accuracy in a space-conscious platform.
The smallest practical step into professional automatic wide-belt sanding.

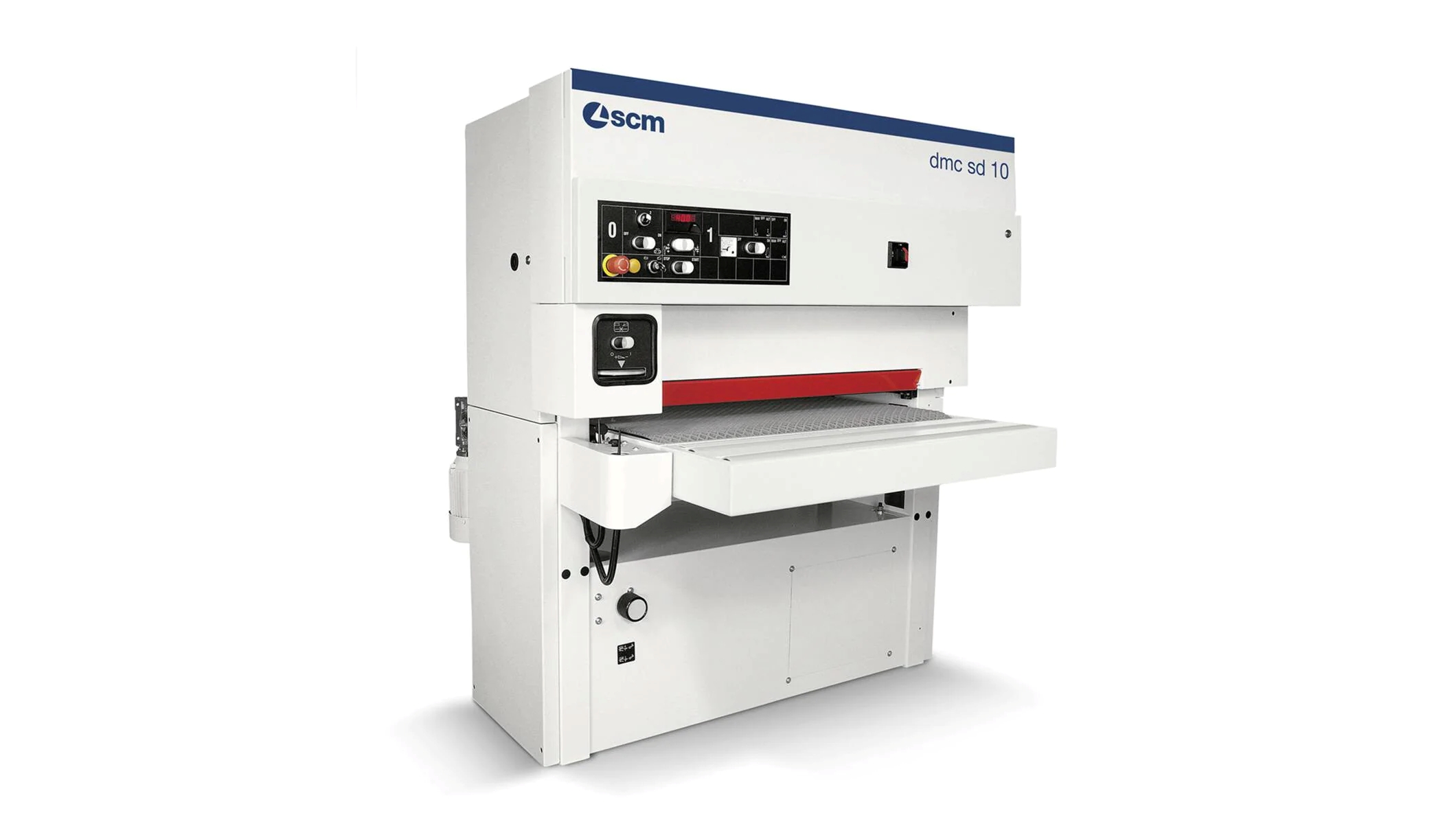

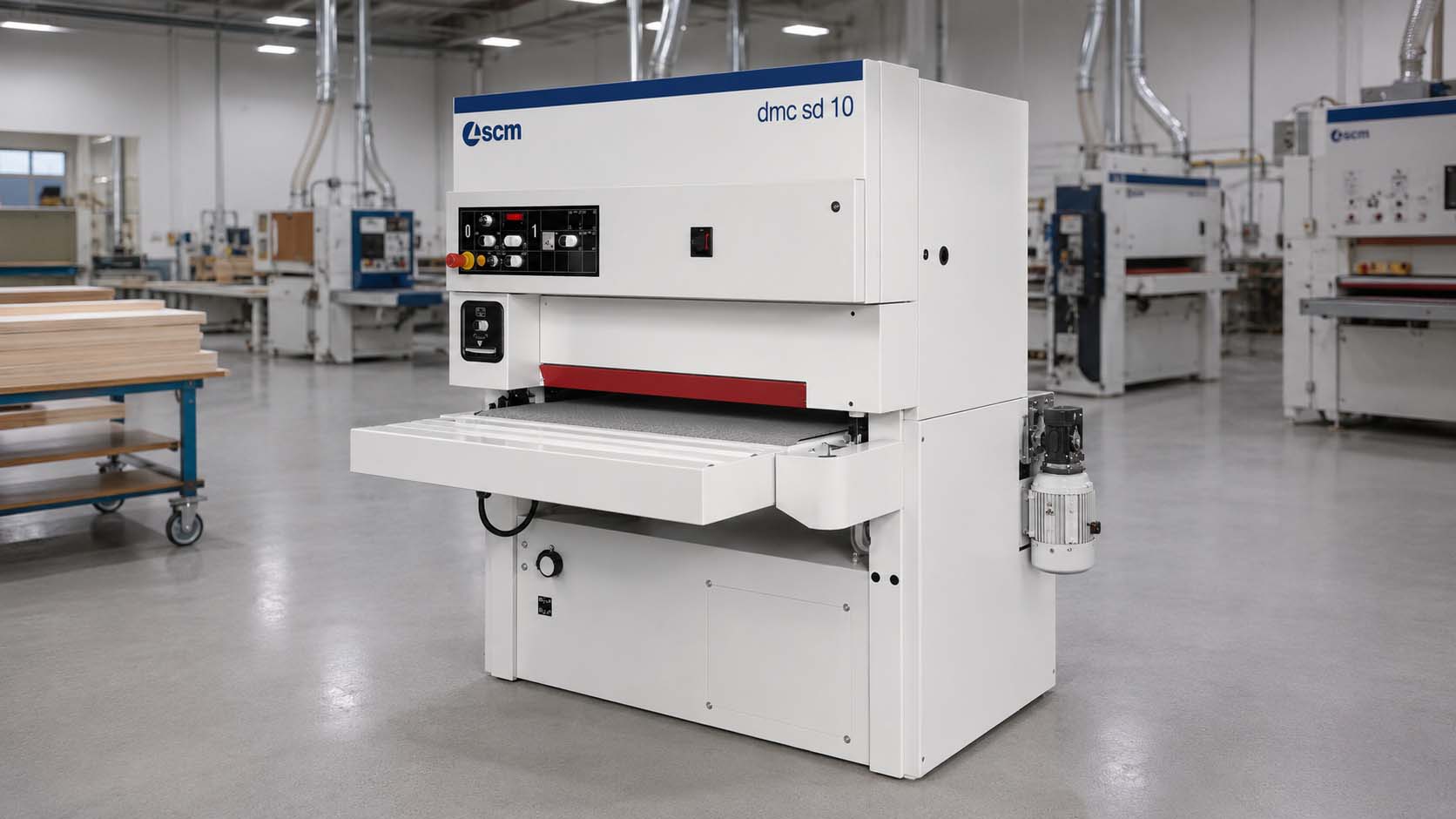

The SCM DMC SD 10 brings automatic wide-belt sanding and calibration into a compact 950 mm production format for shops moving beyond hand sanding, drum sanding, or lighter-duty equipment.
Its CS 95 combined roller-pad head supports calibration and finish sanding on solid wood, veneered panels, cabinet parts, furniture components, joinery pieces, and other smaller production work.
Automatic table positioning, automatic belt centering, diamond-profile material transport, and program-based control support repeatable setup and stable workpiece feed.
950 mmWorking Width
1525 mmSanding Belt Length
5.5 kWStandard Main Motor
4.5 / 9 m/minFeed Speed
Capability Matrix
One compact sanding platform. Five focused production roles.
The DMC SD 10 is configured around calibration, solid-wood and veneer sanding, cabinet and furniture components, controlled finish preparation, and repeatable automatic production.
Mode 01
Calibration and Stock Removal
The roller section supports panel levelling, controlled stock removal, and thickness preparation before finish sanding.
Mode 02
Solid Wood and Veneer Sanding
Stable feed and controlled sanding action support solid wood, veneered panels, frames, furniture parts, and sensitive surfaces.
Provides automatic feed, table positioning, belt centering, controlled pressure, and repeatable production results.
Compact Automatic Sanding · Calibration and Finish Preparation
A professional sanding station that gives smaller shops better control over calibration, veneer work, and finish-ready surfaces.
The DMC SD 10 combines automatic material feed, a compact 950 mm working width, and a combined roller-pad head in a machine designed for cabinet, furniture, joinery, veneer, solid-wood, and custom production.
Its CS 95 configuration brings calibration and finish sanding into one organized process while automatic table positioning and belt centering support repeatable setup.
For manufacturers moving beyond hand sanding or lighter equipment, the SD 10 creates a more consistent relationship between material preparation, machine settings, sanding pressure, transport stability, and finish-ready output.
