A compact automatic planer and throughfeed moulder for repeatable four-sided production, S4S stock preparation, cabinet components, furniture parts, millwork profiles, door and window stock, stair parts, and solid-wood moulding work.
The compact step from manual joinery into controlled four-sided production.

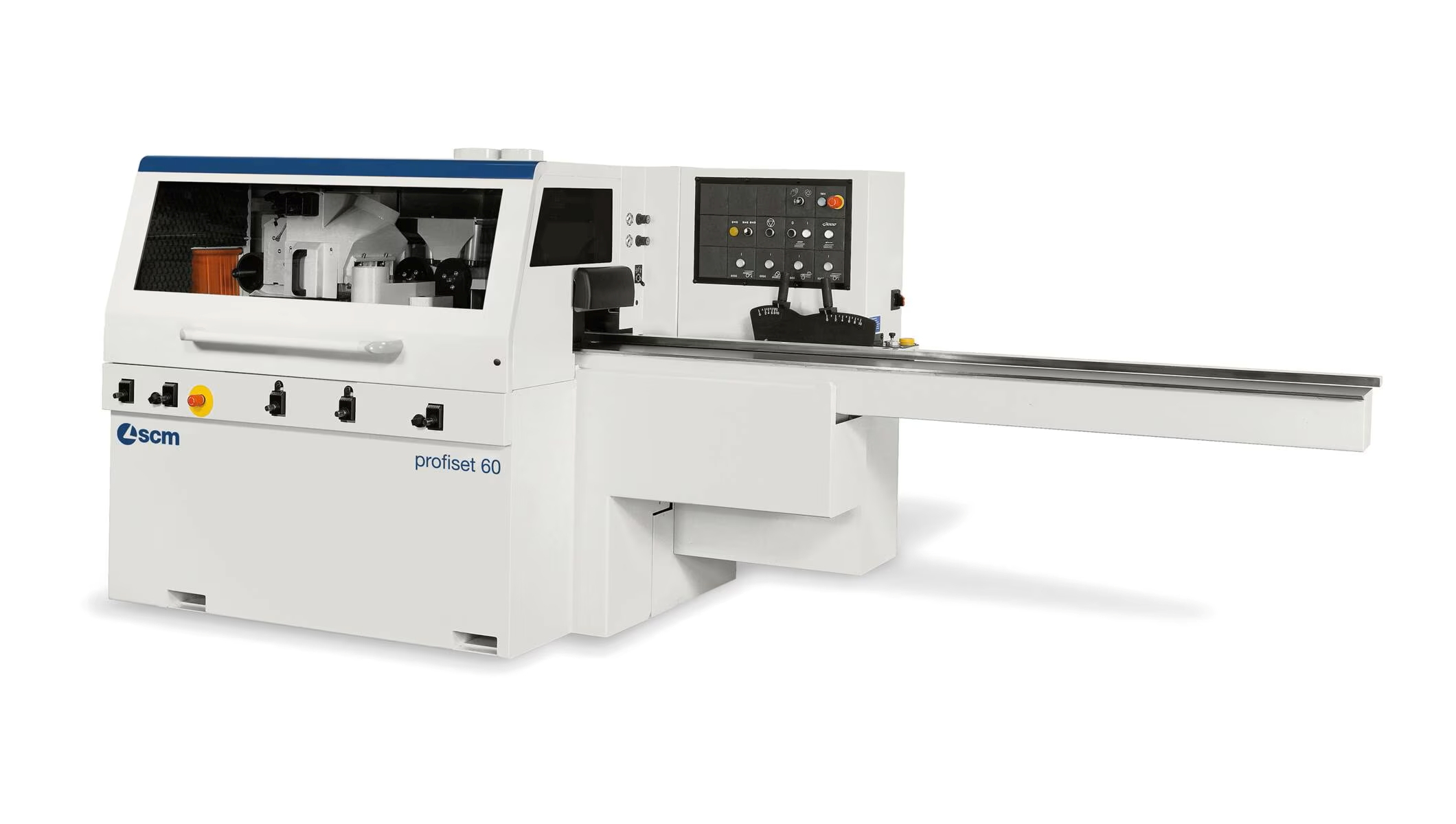

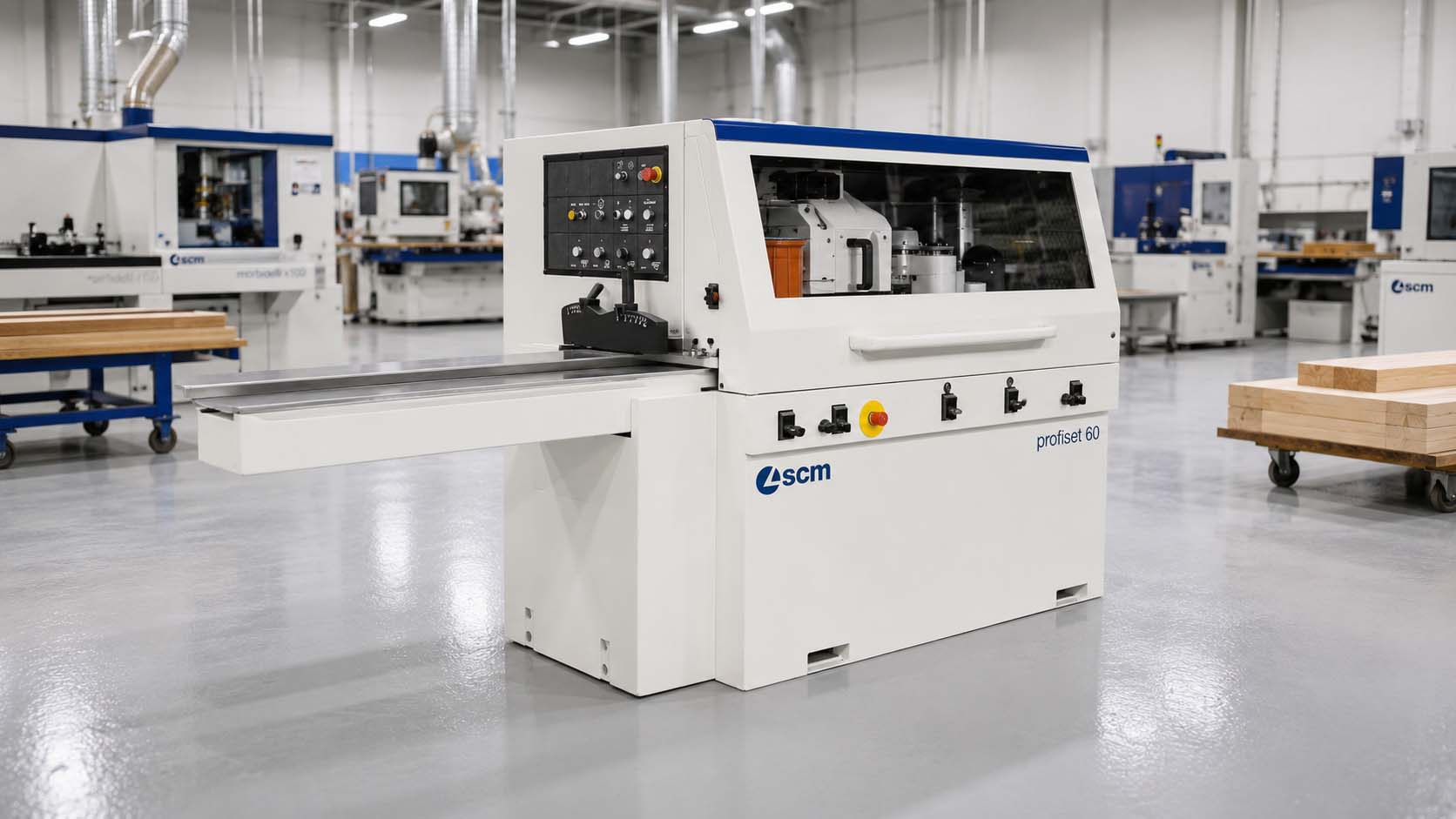

The SCM Profiset 60 is an automatic planer and throughfeed moulder for shops that need repeatable S4S work, profile production, cleaner stock consistency, and fewer manual handling stages.
It brings planing and profile operations into one controlled throughfeed sequence rather than moving material repeatedly between a jointer, planer, shaper, and power feeder.
With up to six spindles, four available compositions, EASY PLUS control, T-SET rapid tool locking, and a practical 230 × 120 mm working envelope, it gives growing shops production capability without the footprint of a larger industrial moulder platform.
230 mmMaximum Working Width
120 mmMaximum Working Height
25 m/minMaximum Feed Speed
6Maximum Spindle Count
Capability Matrix
Production Modes
Use the selected spindle composition to move from square-stock preparation into repeat profile work and compact production moulding.
Mode 01
Four-Sided Planing
Prepare straight, square, consistent S4S stock in a controlled automatic throughfeed process.
Mode 02
Profile Moulding
Produce trim, casing, beads, frame stock, rails, furniture parts, and other straight profiled components.
Mode 03
Multi-Side Processing
Combine multiple longitudinal operations in one pass using the selected spindle composition.
Mode 04
Controlled Feed
Use gearbox drive, cardan joints, pneumatic roller pressure, and inverter speed control to stabilize material movement.
Mode 05
Repeat Production
Support recurring cabinet, furniture, millwork, stair, door, and window component families with repeatable setup.
Production Advantages
Compact Automation With Practical Setup Control
The Profiset 60 is built around stable feeding, useful spindle flexibility, and operator-focused daily setup.
Reduced Material Handling
Combining multiple machining stages into one throughfeed sequence reduces repeated movement between separate conventional machines.
Stable Feed Control
Gearbox drive, cardan joints, pneumatic roller pressure, inverter speed adjustment, and worktable lubrication support consistent stock travel.
EASY PLUS + T-SET
EASY PLUS control and T-SET rapid tool locking support easier adjustments, faster tool changes, and a more practical operator workflow.
Equipment Range
Lineup Positioning
Conventional Workflow
Separate Jointer, Planer & Shaper
Suitable where manual handling, repeated setup, and lower output remain acceptable.
Compact Automatic
Profiset 40-Class Production
A smaller automatic four-sided platform for basic production planing and lighter profile work.
SCM Profiset 60
Flexible Compact Production
Up to six spindles, four compositions, EASY PLUS, T-SET, and a 230 × 120 mm working envelope for growing production needs.
Technical Specifications
SCM Profiset 60
Machine Profile
Manufacturer
SCM
Series / Model
Profiset 60 / 60 EP naming confirmed by quote
Machine Type
Compact Automatic Planer & Throughfeed Moulder
Primary Material
Straight solid-wood stock and profiled linear components
Move recurring solid-wood work into one controlled process.
The Profiset 60 gives a growing shop a practical route away from repeated handling between separate preparation and profiling machines.
Its value is strongest where the shop repeatedly produces square stock, face-frame components, rails, stiles, trim, beads, frame stock, furniture parts, stair components, or door and window profiles.
Final configuration should confirm the exact spindle composition, working section, profile list, tooling, EASY PLUS and T-SET package, short-piece requirements, dust extraction, electrical service, installation, training, and production support.
