A production-focused edgebander for shops moving beyond entry-level edge processing.

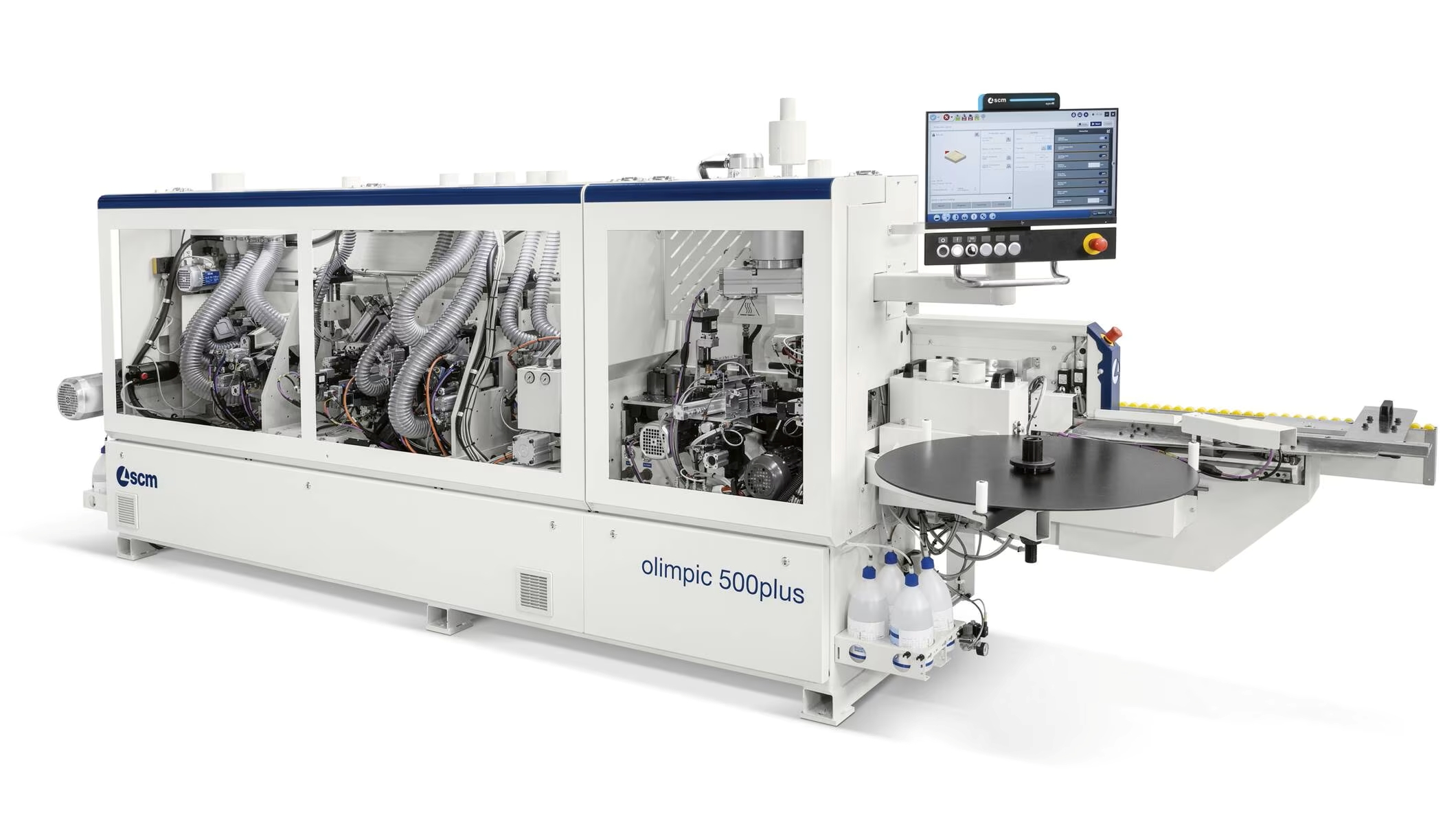

The SCM Olimpic 500Plus is a single-sided automatic edge bander for medium-sized companies that need cleaner edge quality, faster repeat setup, and broader glue flexibility than a basic automatic machine can provide.
Its working range supports panels from 8 to 60 mm thick, standard edge material from 0.3 to 8 mm, a 60 mm minimum panel width, and feed speeds from 12 to 18 m/min. Solid-wood edge capacity up to 12 mm is configuration-dependent.
SGP glue-pot technology, EVA and PUR capability, available hot-air technology, two-radius finishing, and HP-version NC-axis options are selected and confirmed around the quoted machine composition.
18 m/minMaximum Feed Speed
60 mmMaximum Panel Thickness
8 mmStandard Maximum Edge
60 mmMinimum Panel Width
Capability Matrix
Production Modes
Configure the Olimpic 500Plus around the panel mix, edge materials, glue requirements, finishing sequence, and setup demands of the shop.
Mode 01
Edge Application
Apply thin edges, common cabinet edging, and selected heavier edge materials within the quoted capacity package.
Mode 02
EVA & PUR Gluing
Use the configured SGP glue-pot package for everyday EVA production or PUR applications requiring a different bond strategy.
Mode 03
Available Hot-Air Processing
Support compatible hot-air edge programs when the required technology is included in the selected machine configuration.
Mode 04
Two-Radius Finishing
Process two true radii through the selected finishing units, including the available two-motor rounding package.
Mode 05
Narrow-Panel Production
Process panel widths down to 60 mm where the component geometry and machine setup meet the required handling conditions.
Production Advantages
Glue Flexibility and Repeatable Finishing for Growing Panel Departments
The Olimpic 500Plus is built around practical glue-system choice, two-radius processing, and stronger setup consistency.
SGP Glue-Pot Control
The configured SGP system supports controlled glue application, EVA and PUR use, and practical glue-system changeovers.
Two True Radii
Available finishing-unit compositions support two-radius programs and a two-motor rounding unit for common edge profiles.
HP-Version NC Setup
NC-axis capability for fast machining changes is available on the HP version and must be confirmed in the quoted package.
Equipment Range
Lineup Positioning
Entry Automatic
ME / K / Olimpic 300 Class
For lighter production, smaller footprints, and focused automatic edge-processing requirements.
Production Automatic
Olimpic 500 Class
For shops requiring stronger daily capacity, consistent machining units, and a practical production edgebanding platform.
SCM Olimpic 500Plus
Flexible Medium-Shop Production
For EVA, PUR, available hot-air technology, two-radius finishing, narrow-panel handling, and HP-version NC-axis options.
Technical Specifications
SCM Olimpic 500Plus
Machine Profile
Manufacturer
SCM
Series / Model
Olimpic 500Plus
Machine Type
Single-Sided Automatic Edge Bander
Primary Role
Medium-shop panel edgebanding with flexible glue and finishing options
Panel & Edge Capacity
Panel Thickness
8–60 mm
Minimum Panel Width
60 mm
Standard Edge Thickness
0.3–8 mm
Solid-Wood / Extended Edge
12 mm capability; confirm selected package
Feed & Utilities
Feed Speed
12–18 m/min
Compressed Air
6 bar basis
Dust Extraction
Connections and airflow confirmed by final machining-unit composition
Electrical
Voltage, phase, and CSA requirements confirmed by quote
Glue Technologies
Glue System
SGP glue pot
Glue Compatibility
EVA / PUR
Hot-Air Technology
Available by selected configuration
Additional Glue Equipment
Premelter and glue package confirmed by quote
Machining & Finishing
Panel Preparation
Pre-milling where included in the selected composition
Edge Processing
End trimming, fine trimming, scraping, and buffing by composition
Radius Capability
Two true radii; confirm selected finishing units
Rounding Unit
Two-motor rounding unit available by package
Control, Configuration & Support
Machine Version
Standard or HP version
NC Axes
Available on HP version; confirm selected axes and functions
Package Confirmation
Glue, hot air, premelter, finishing units, software, and handling options
Support
Delivery, installation, commissioning, training, warranty, and service confirmed by quote
Production Environments
Where the Olimpic 500Plus Fits
For medium-sized panel departments requiring more glue flexibility, finishing control, and production capacity than entry-level edgebanding provides.
Office, retail, healthcare, hospitality, institutional, and architectural casework where visible edge consistency matters.
Furniture, Casegoods & Mixed Panels
Panel furniture, fronts, doors, shelving, decorative surfaces, mixed edge materials, and changing glue or radius programs.
Medium-Shop Edge Department
Coordinate glue, finishing, and setup around the daily panel mix.
The Olimpic 500Plus becomes a stronger production platform when the glue system, machining units, radius programs, and material-handling requirements are selected together.
Its working range and available technologies support shops processing changing panels, different edge materials, EVA or PUR requirements, hot-air-compatible programs, and recurring visible-edge components.
Final configuration should confirm standard versus HP version, glue package, hot-air scope, premelter, machining and finishing units, panel and edge ranges, dust extraction, compressed air, electrical service, installation, training, and ongoing support.
