High-productivity pressing for structural timber and large glued panels.

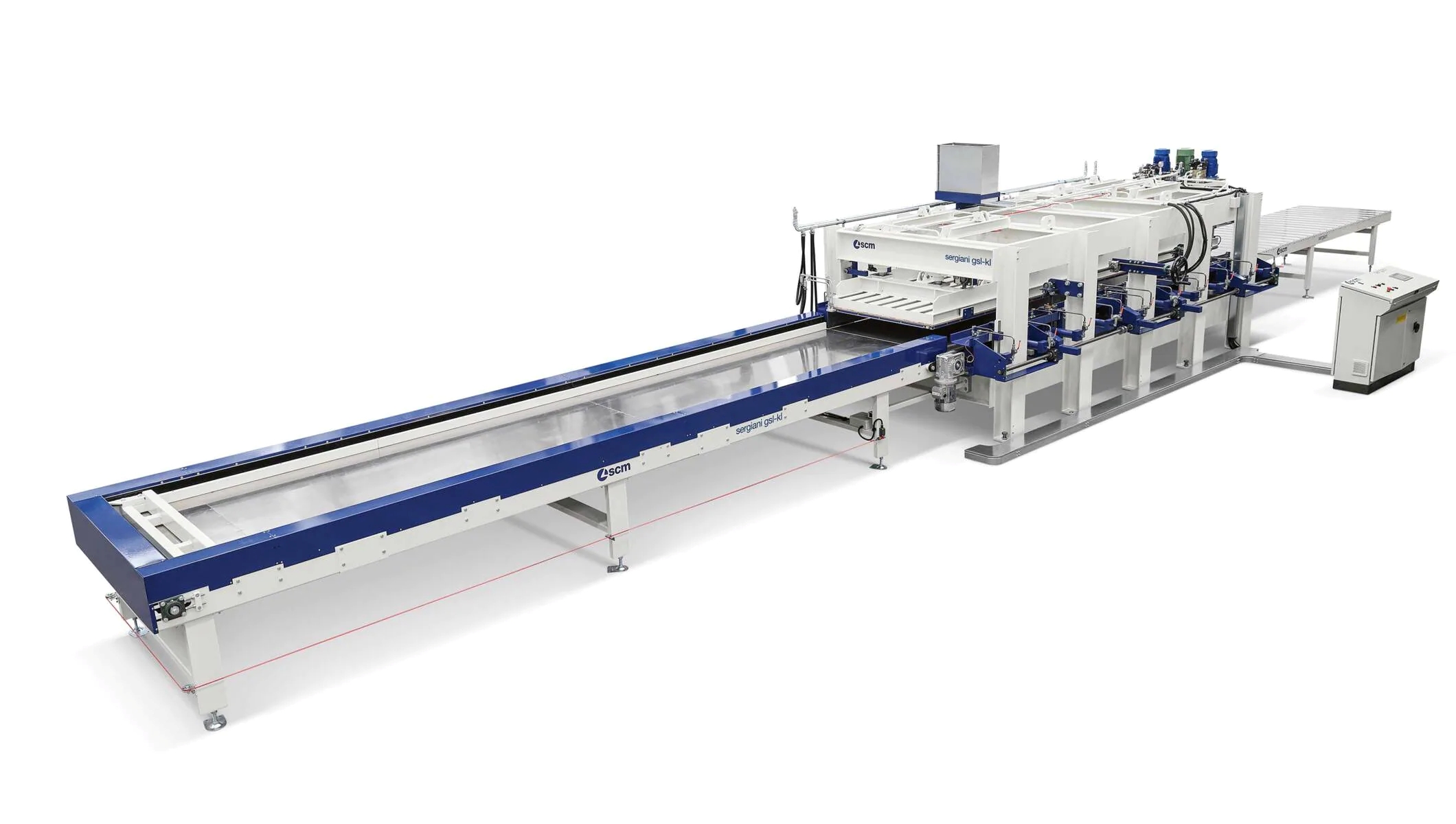

The SCM Sergiani GSL-KL is a lamellar and edge-glued panel press platform for manufacturers producing structural timber panels and large glued assemblies.
Vertical platen thrust supports finished-panel flatness, while lateral thrust is matched to the thickness family to apply controlled glue-line compression across the panel.
The press can be configured around 40, 80, or 150 mm recommended working-thickness families, 2500–5300 mm platen lengths, a 200 mm stroke, and automated composition, loading, and unloading systems.
40 / 80 / 150 mmThickness Families
2500–5300 mmPlaten Range
200 mmPress Stroke
50–110 / 7.5–77 tVertical / Lateral Thrust
Capability Matrix
One structural pressing platform. Five production roles.
The GSL-KL is configured around lamellar panels, edge-glued products, structural roof and bridge components, large glued assemblies, and automated line integration.
Mode 01
Lamellar Panel Pressing
Supports automatic production of large lamellar panels with controlled vertical pressure and a configuration matched to panel size and thickness.
Mode 02
Edge-Glued Beam Panels
Applies vertical flatness control and lateral glue-line compression for edge-glued timber panels and beam-panel assemblies.
Mode 03
Roof and Cantilever Components
Fits structural roof elements and cantilever-roof components requiring large-format pressing and stable panel geometry.
Mode 04
Bridge and Large Timber Panels
Supports bridge panels and other large structural glued-timber assemblies within the selected platen and thrust configuration.
Mode 05
Automated Line Integration
Composition, loading, unloading, and staging systems can be reviewed around glue open time, cycle requirements, and plant layout.
Production Advantages
Designed around panel flatness, glue-line compression, and configurable production flow.
The GSL-KL combines vertical platen force, thickness-matched lateral pressure, and optional line automation for structural glued-timber production.
Vertical Flatness Control
Vertical thrust from the platen supports finished-panel flatness across large structural timber panels and glued assemblies.
Lateral Glue-Line Pressure
Side thrust is selected around the working-thickness family to support pressure distribution and consistent edge-gluing.
Configurable Material Flow
Composition systems and automatic loading or unloading can be matched to the adhesive process, working cycle, staging plan, and plant layout.
Equipment Range
Lineup Positioning
Manual or Clamp-Based
Conventional Glue-Up
Suitable for lower-volume work where panel assembly, pressure application, and material handling remain largely operator managed.
Dedicated Structural Press
Production Lamellar Press
Adds controlled vertical and lateral pressure for repeat lamellar and edge-glued panel production.
Configured Automated Platform
SCM Sergiani GSL-KL
Combines thickness-specific press sizing, large platen options, controlled vertical and lateral thrust, and optional line automation.
Technical Specifications
Sergiani GSL-KL
Machine Profile
ManufacturerSCM / Sergiani
SeriesSergiani
ModelGSL-KL
Machine TypeLamellar and edge-glued panel press
Production Applications
Lamellar PanelsLarge-format glued timber panels
Edge-Glued ProductsBeam panels and structural panels
Building ComponentsRoof and cantilever-roof elements
Large AssembliesBridge panels and glued timber structures
A dedicated structural-timber press platform for lamellar panels, edge-glued products, roof elements, bridge panels, and automated large-format glued-panel production.
Structural Timber Manufacturers
Strong fit for engineered-wood and structural-component plants producing large glued timber panels.
Lamellar and Edge-Glued Panel Producers
Supports lamellar panels, edge-glued beam panels, and other thickness-sensitive glued assemblies.
Roof, Bridge and Large-Format Panel Plants
Fits roof elements, cantilever components, bridge panels, and lines requiring automated handling around the press.
Structural Timber Pressing · Lamellar and Edge-Glued Panels
A purpose-built press line that brings panel flatness, glue-line pressure, and material flow into one controlled structural-timber process.
The Sergiani GSL-KL combines vertical platen force and lateral compression so large glued timber panels can be pressed around both flatness and glue-line requirements.
Its 40, 80, and 150 mm recommended thickness families, 2500–5300 mm platen range, 200 mm stroke, and broad thrust ranges allow the platform to be matched to the product being manufactured.
Composition, loading, unloading, staging, and line handling can be reviewed as part of the complete project so the press works within the adhesive process and production rhythm.
