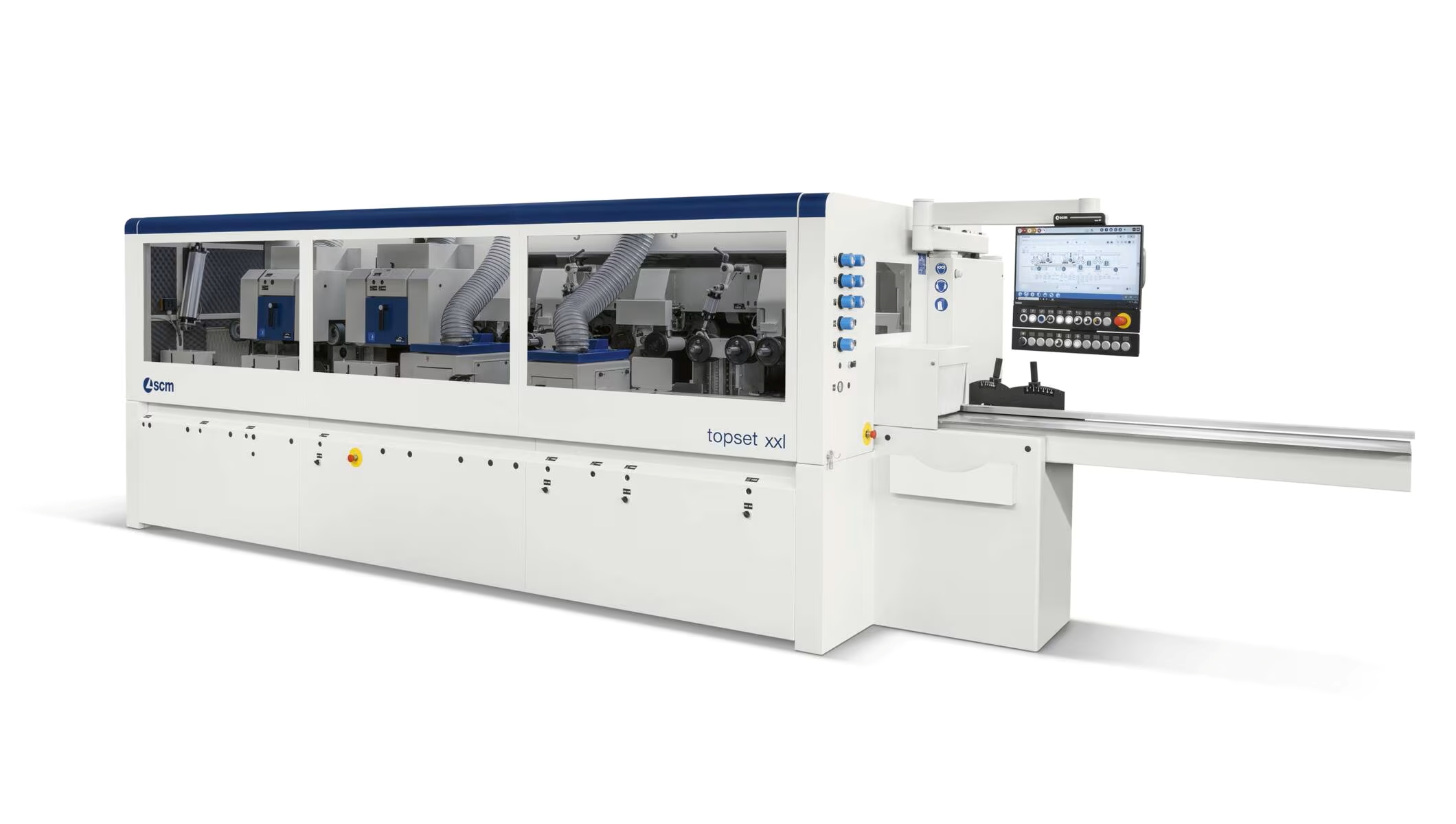

A large-section automatic throughfeed moulder for industrial solid-wood manufacturers producing beams, prismatic profiles, frames, window and door components, furniture parts, outdoor products, and marine furnishings.
Large-section moulding capacity with configurable spindle architecture.
The SCM Topset XXL expands the planer-moulder range for manufacturers that need larger working sections, heavier profiles, and repeatable multi-side machining in one controlled throughfeed process.
Its 20–320 mm finished-width range and 10–200 mm finished-thickness range suit beams, prismatic profiles, frames, linear components, window and door stock, furniture parts, garden furniture, and marine furnishings.
Seven available compositions, doubled spindle-group options, HSK configurations, and advanced control packages allow the machine to be matched to the required profile mix and production strategy.
320 mmMaximum Finished Width
200 mmMaximum Finished Thickness
40 m/minMaximum Feed Speed
12,000 rpmHSK Configuration
Capability Matrix
Five production modes for large-section solid-wood processing.
Build the machining sequence around the workpiece section, profile family, spindle composition, and required finish.
Mode 01
Large-Section Planing
Surface and size wide or thick solid-wood sections within the published 20–320 mm by 10–200 mm working envelope.
Mode 02
Profile Moulding
Machine repeat mouldings, frames, door and window profiles, furniture components, and visible solid-wood details.
Mode 03
Multi-Side Processing
Combine longitudinal operations in a controlled throughfeed sequence using the selected spindle composition.
Mode 04
Configurable Spindle Groups
Select from seven compositions, including doubled vertical or horizontal spindle groups where the application requires them.
Mode 05
Repeat Production
Support recurring part families and demanding profile mixes with electronic setup, program recall, and controlled feed.
Production Advantages
Built for section capacity, tooling flexibility, and digital control.
High-Speed HSK Capability
HSK spindle configurations with inverter control can operate from 6,000 to 12,000 rpm for demanding profile and finish requirements.
Seven Machine Compositions
Multiple layouts and doubled spindle-group options allow the machine architecture to follow the required production mix.
Advanced Control Package
Mobile PC, Maestro active 4-side, eye-M evo, and Maestro connect availability support setup, monitoring, reporting, and service visibility.
Equipment Range
Lineup Positioning
Separate Operations
Planer / Shaper Workflow
Suitable for lower-volume work where surfacing and profiling remain separate operations.
Production Throughfeed
Standard Production Moulder
Moves multiple longitudinal operations into one feed for repeated components and conventional profile sections.
Large-Section Platform
SCM Topset XXL
For beams, frames, prismatic profiles, heavy components, larger section sizes, HSK tooling, and configurable spindle architecture.
Technical Specifications
SCM Topset XXL
Machine Profile
Manufacturer
SCM
Series / Model
Topset XXL
Machine Type
Large-section automatic throughfeed moulder
Primary Material
Solid wood
Working Envelope
Minimum Finished Width
20 mm
Maximum Finished Width
320 mm
Minimum Finished Thickness
10 mm
Maximum Finished Thickness
200 mm
Feeding Roller Diameter
140 mm
Feed & Power
Feed Speed
4–40 m/min
Motor Power Range
7.5–40 kW
Standard Spindle Speed
6,000 rpm
Optional Spindle Speed
8,500 rpm
HSK & Tooling
HSK Spindle Speed
6,000–12,000 rpm
Tool-Holder Spindles
50 mm standard; 40 mm optional
Spindle Inverters
Configuration dependent
SET-UP System
Available configuration
Spindle Architecture
Machine Compositions
Seven available compositions
Vertical Units
Doubled right / left groups available
Horizontal Units
Doubled top / bottom groups available
Final Composition
Selected by application
Control & Configuration
Electronic Control
Mobile PC
Software
Maestro active 4-side
Operator Interface
eye-M evo 24-inch Full HD touchscreen
Connectivity
Maestro connect available
Dust / Electrical / Handling
Confirm by final machine composition
Production Environments
Where the Topset XXL Fits
For industrial solid-wood operations that need larger profile sections, configurable machining units, and repeat production control.
Industrial Solid-Wood Production
Beams, frames, prismatic profiles, timber components, large-section S4S, and repeat production part families.
Door, Window & Millwork
Rails, stiles, frames, heavy mouldings, architectural profiles, and long linear components.

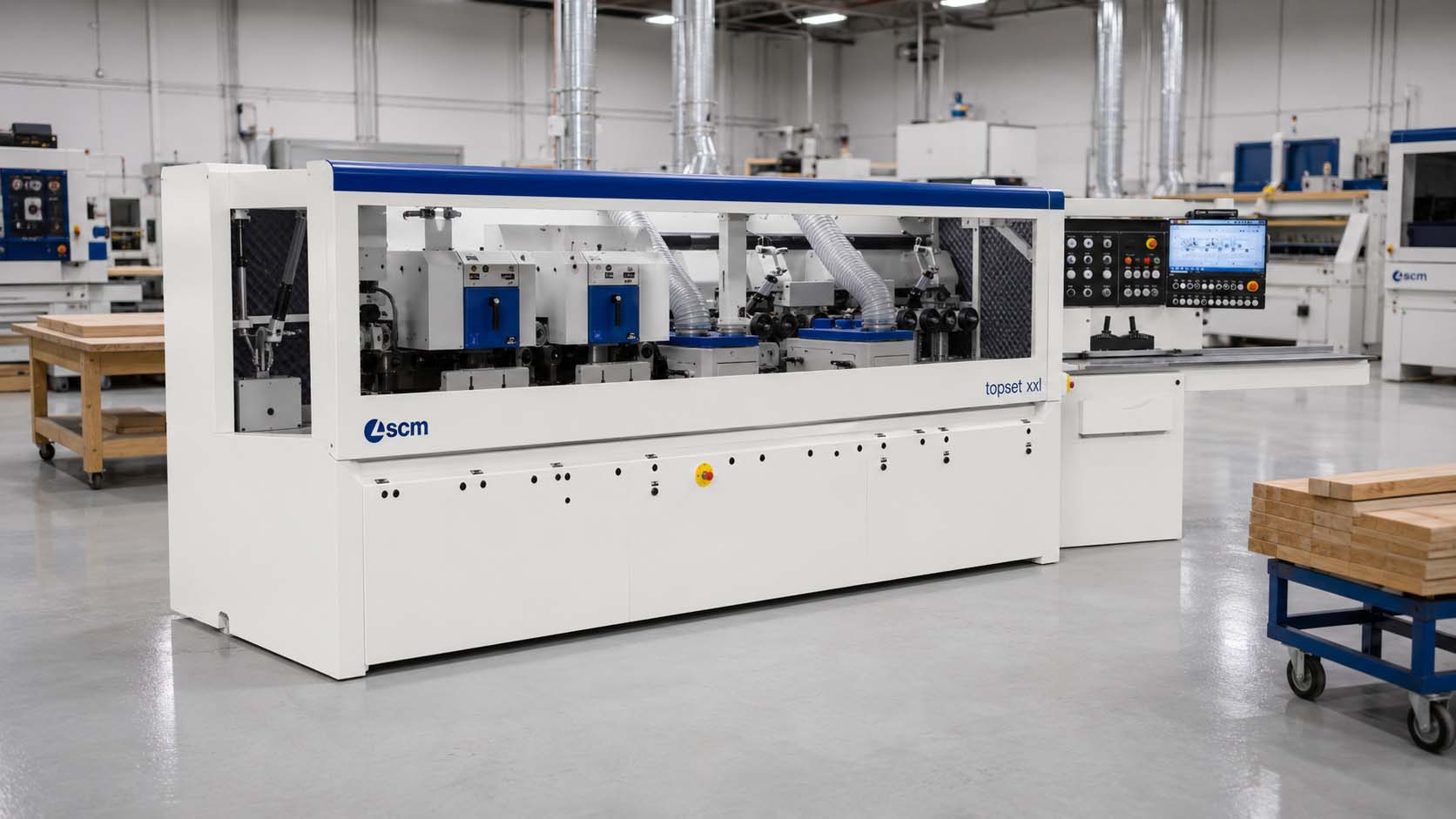

A substantial large-section moulder built around access, control, and continuous output.
The Topset XXL brings the working units, feed system, controls, and tooling architecture into one production platform for large solid-wood profiles.
Its configurable spindle groups and advanced operator interface support plants that need to move between profile families while maintaining a structured, repeatable workflow.
Final composition, HSK package, worktables, dust extraction, electrical requirements, and material handling should be confirmed around the exact production application.
