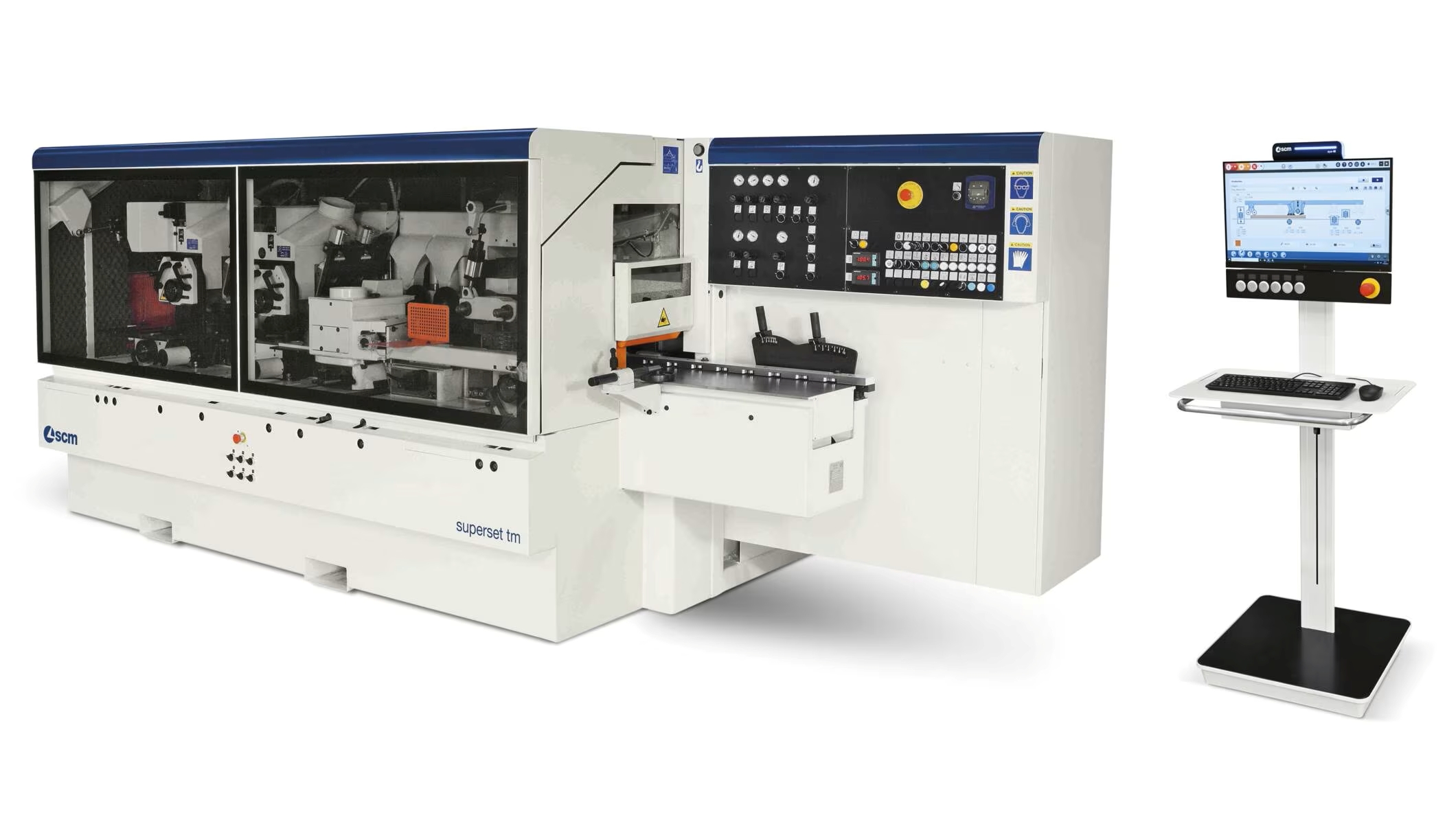

A heavy-duty automatic throughfeed moulder for large solid-wood sections, repeat profiles, frames, beams, wide parquet, door and window components, furniture parts, and continuous multi-side production.
Industrial multi-side moulding for large solid-wood parts and repeat production.
The Superset TM is an automatic throughfeed moulder developed for longitudinal solid-wood processing where a shop needs surfacing, planing, profiling, and repeat moulding in one controlled feed. Its working envelope supports frames, beams, semi-finished building components, wide parquet, carpentry profiles, furniture parts, and other large prismatic sections.
By bringing multiple machining stages into a continuous throughfeed workflow, the machine reduces repeated handling between separate planing and shaping operations. It is designed for production environments that value consistent feed control, repeatable geometry, high stock-removal capability, and scalable output across both short batches and longer runs.
Configuration details such as spindle sequence, motor sizing, feed package, HSK tooling, onboard sharpening, controls, and automatic handling are selected around the exact workpiece range and production objective.
305 mmMaximum working width
200 mmMaximum working thickness
Up to 60 m/minOptional feed package
640 mmMinimum single-piece length
Capability Matrix
One throughfeed platform for multiple solid-wood operations.
Adapt the spindle composition and tooling package to the exact section, profile, stock-removal requirement, and production sequence.
Mode 01
S4S Surfacing
Surface and size solid-wood stock on multiple faces within one controlled longitudinal feed.
Mode 02
Profile Moulding
Produce repeat mouldings, trim, furniture profiles, and shaped longitudinal components.
Mode 03
Multi-Side Processing
Combine bottom, vertical, top, and configuration-dependent additional operations in a coordinated pass.
Mode 04
Controlled Throughfeed
Maintain stable workpiece transport through the selected machining sequence at production feed speeds.
Mode 05
Repeat Production
Support recurring part families, small batches, and longer production runs with controlled setup and profile recall.
Production Advantages
Built around finish, setup, control, and production continuity.
On-Machine Finish Control
The optional Jointer system sharpens the tool directly on the machine to support machining quality at elevated feed speeds.
Faster Changeovers
The SET-UP system is designed to simplify tool changes and adjustments when the production schedule moves between profiles.
Integrated Machine Control
Mobile PC control and configuration-dependent HSK technology support programming, tool management, operator access, and repeat production workflows.
Equipment Range
Lineup Positioning
Separate Operations
Planer / Shaper Workflow
Appropriate for lower-volume production where separate surfacing and profiling stages remain practical.
Dedicated Throughfeed
Production Moulder
Moves multiple longitudinal operations into a single controlled feed for repeated components and profile families.
Large-Section Platform
SCM Superset TM
For large solid-wood parts, heavy stock removal, wide profiles, beams, frames, flooring, and industrial repeat production.
Technical Specifications
SCM Superset TM
Machine Profile
Manufacturer
SCM
Series / Model
Superset TM
Machine Type
Automatic throughfeed moulder
Primary Material
Solid wood
Working Envelope
Minimum Working Width
25 mm [15 mm optional]
Maximum Working Width
305 mm
Minimum Working Thickness
10 mm [6 mm optional]
Maximum Working Thickness
200 mm
Minimum Single Workpiece Length
640 mm
Feed & Performance
Standard Feed Speed
6–36 m/min
Optional Feed Speed
Up to 60 m/min
Standard Motor Power
7.5 kW / 10 HP
Available Motor Power
Up to 18.5 kW / 25 HP
Spindles & Tooling
Standard Spindle Speed
6000 rpm
Optional Spindle Speed
8300 rpm
Tool-Holder Spindle Diameter
40 mm standard
Planing Tool Diameter
120–140 mm
Profiling Tool Diameter
100–220 mm
Production Systems
Tool Setup
SET-UP system
Onboard Sharpening
Jointer option
Electronic Control
Mobile PC
Toolholding Technology
HSK configuration available
Configuration Notes
Spindle Composition
Selected by application
Automatic Loading / Unloading
Configuration dependent
Dust Extraction
Confirm by machine composition
Electrical / Regional Specification
Confirm by quote
Production Environments
Where the Superset TM Fits
For operations that need a heavier working envelope and a more integrated solid-wood production path.
Solid-Wood Manufacturing
Repeated S4S stock, mouldings, furniture components, structural profiles, and production part families.
Door, Window & Millwork
Rails, stiles, uprights, frames, casing, mouldings, and architectural solid-wood components.
Flooring, Beams & Large Profiles
Wide parquet, flooring blanks, beams, frames, large prismatic sections, and heavy repeat profiles.

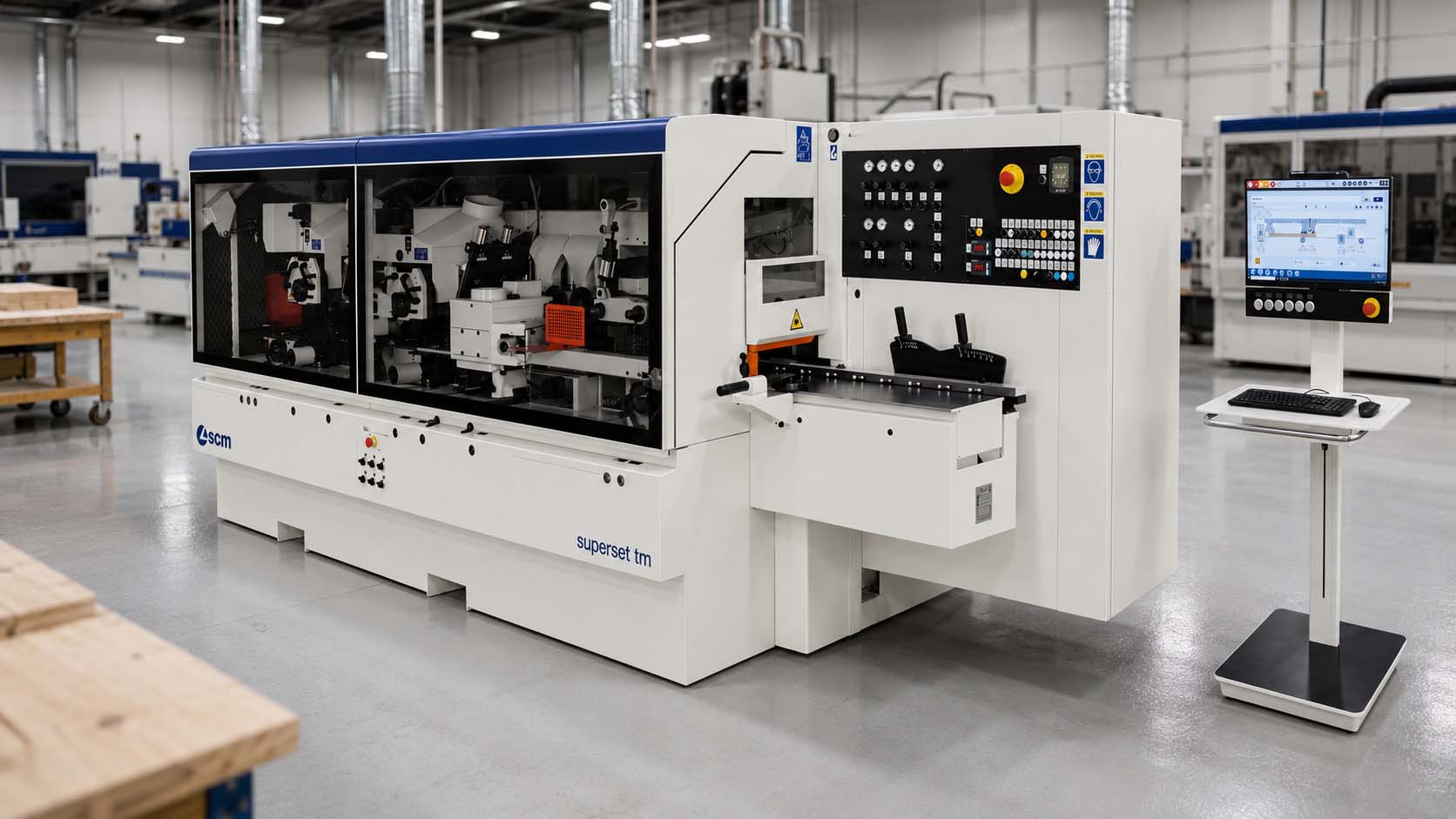

Production Presence
A substantial throughfeed platform built for controlled access and continuous output.
The enclosed machining zone, organized front access, dedicated operator interface, and extended feed path reflect the Superset TM's role as a production machine rather than a stand-alone shaping station.
For the right application, the machine consolidates several longitudinal operations into one engineered workflow, helping the shop manage repeat part geometry, large sections, and tooling changes with fewer transfers between machines.
The final configuration should be matched to the workpiece family, required spindle sequence, tooling strategy, target feed speed, infeed and outfeed handling, extraction capacity, controls, and service requirements.
