SCM Sergiani 3D Form 2M Double Membrane Press

An automatic double membrane pressing solution for laminating both faces of 3D-shaped panels and kitchen cabinet doors with natural veneer in one controlled cycle.

2600 × 1600 mmPlaten Dimensions

1390 × 2390 mmUseful Working Area

300 tonsMaximum Thrust

150 mmDaylight Opening

Request Machine Quote

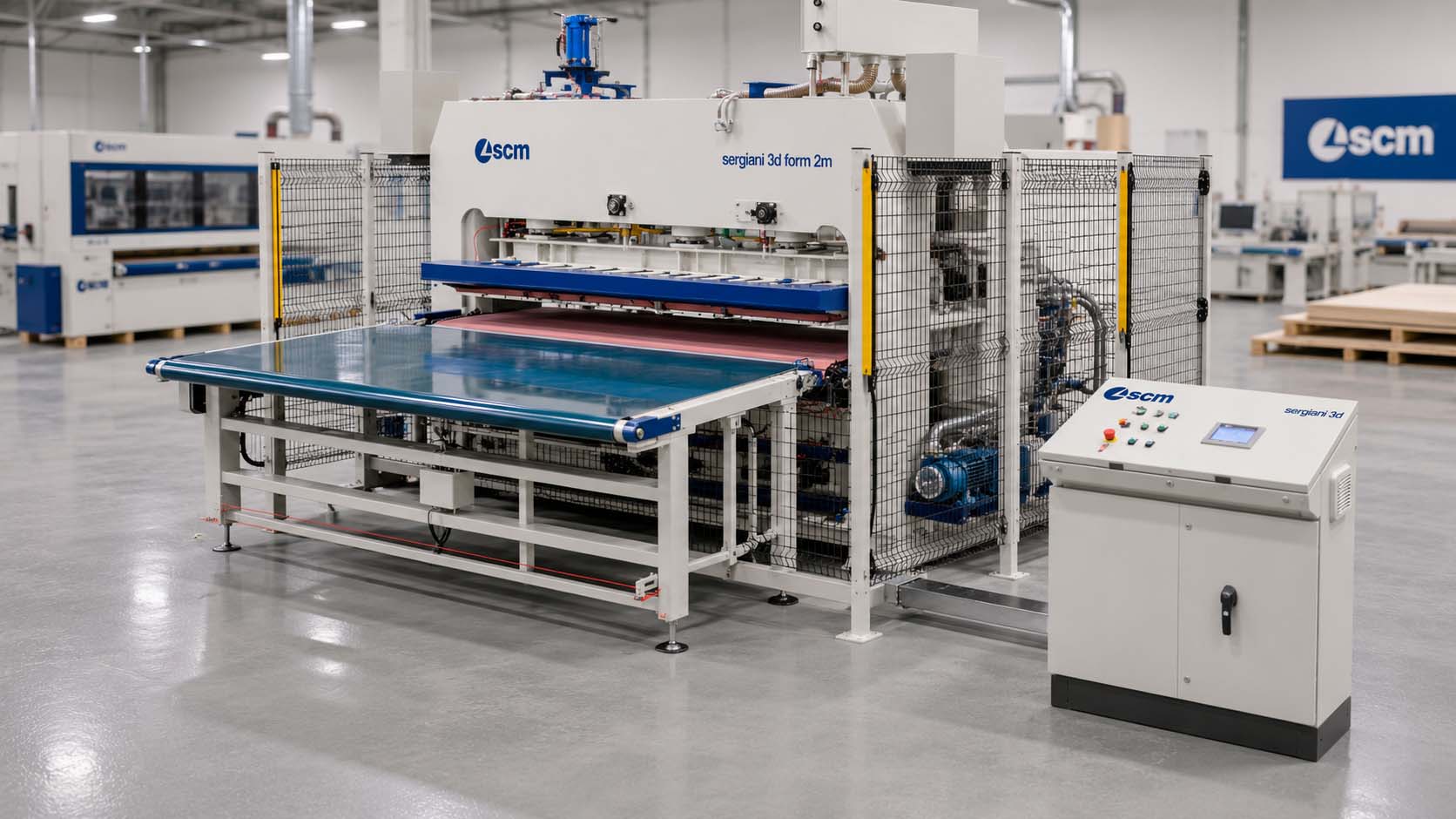

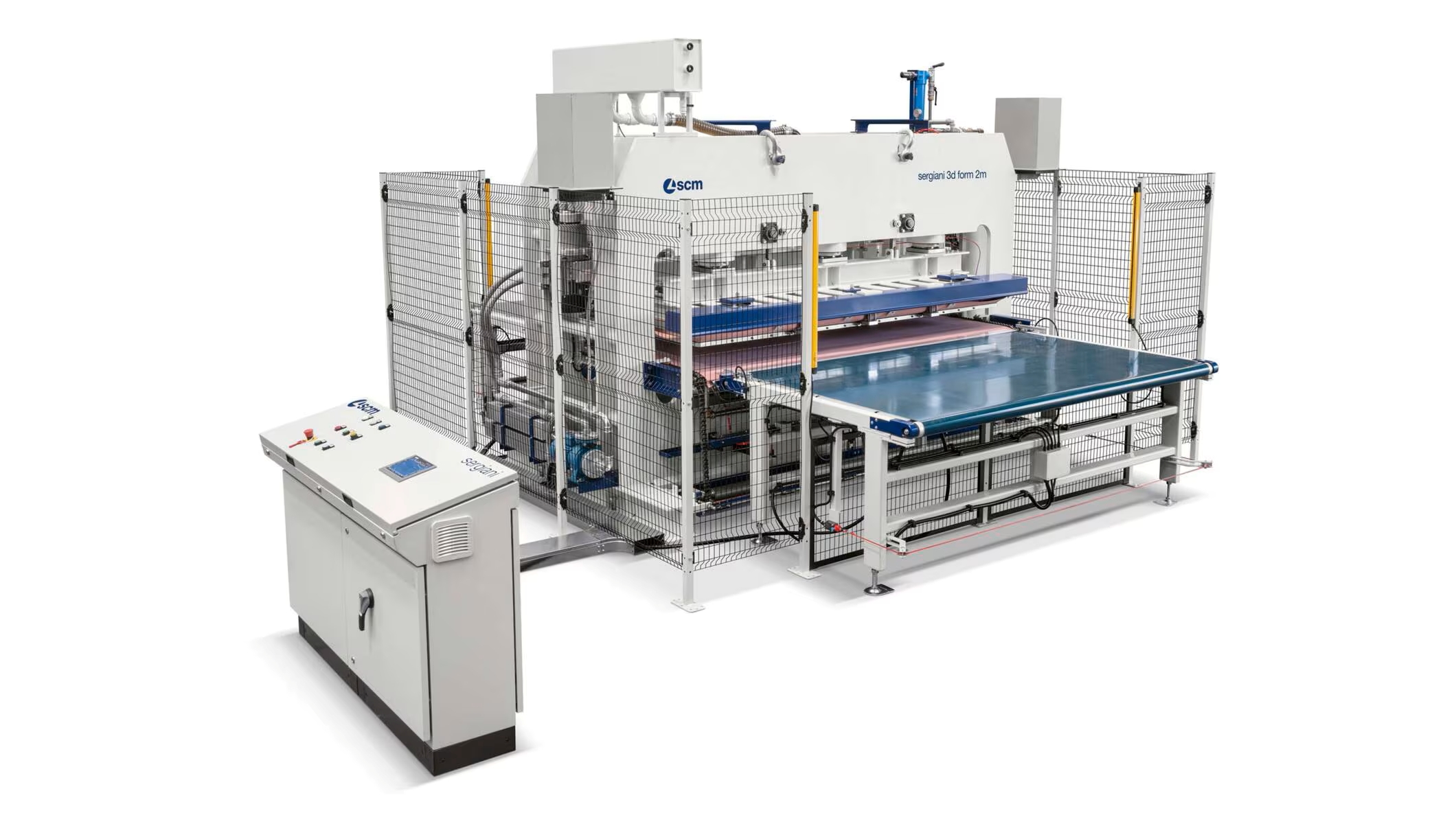

SCM Sergiani 3D Form 2M automatic double membrane laminating press

Machine Overview

Double-sided 3D veneer pressing with uniform membrane pressure.

The SCM Sergiani 3D Form 2M is an automatic double membrane press developed for laminating both faces of shaped panels and kitchen cabinet doors with natural veneer.

The double membrane system applies pressure across both sides simultaneously, supporting high definition on complex 3D shapes and a consistent finish across the workpiece.

A heavy steel-sheet structure, 300-ton maximum thrust, diathermal-oil heating, and Siemens touchscreen control create a focused industrial platform for repeat veneer production.

2600 × 1600 mmPlaten Dimensions

1390 × 2390 mmUseful Working Area

300 tonsMaximum Thrust

8 kg/cm²Maximum Specific Pressure

Capability Matrix

One double membrane platform. Five controlled laminating roles.

The 3D Form 2M is centred on simultaneous two-sided natural-veneer pressing, uniform pressure distribution, shaped-panel definition, controlled heating, and repeatable setup.

Mode 01

Double Membrane Pressing

The two-membrane system works on both faces of the panel during the same pressing cycle.

Mode 02

Two-Sided Veneer Lamination

Supports natural-veneer application on both sides of shaped panels and kitchen cabinet doors.

Mode 03

Complex 3D Shape Definition

Uniform membrane pressure supports precise contact and high definition across routed and shaped surfaces.

Mode 04

Uniform Pressure Distribution

Pressure is distributed over the membrane surface to support consistent pressing across the complete workpiece.

Mode 05

Touchscreen Process Control

The Siemens touchscreen interface provides access to machine functions and working parameters.

Production Advantages

Designed around simultaneous two-sided pressing, structural rigidity, and straightforward control.

The 3D Form 2M combines double membrane processing with a heavy press structure and touchscreen operation for repeat 3D veneer production.

Double Membrane Efficiency

Both sides of the panel can be processed simultaneously, reducing the need for separate face-by-face pressing cycles.

Heavy Steel-Sheet Structure

The rigid structure is designed to remain stable at high working pressures and support consistent press quality.

Simple Siemens Touchscreen

Machine functions and working parameters are set through an intuitive touchscreen control interface.

Equipment Range

Lineup Positioning

General 3D Lamination

Sergiani 3D Form

A configurable 3D laminating platform for shaped panels using veneer, PVC, or ABS with membrane or membrane-less cycles.

High-Productivity 3D Lamination

Sergiani 3D Form HP

A higher-productivity related platform for automated 3D laminating applications and increased tray-handling capacity.

Automatic Double Membrane

Sergiani 3D Form 2M

The double membrane solution for simultaneous two-sided natural-veneer pressing on shaped panels and kitchen doors.

Technical Specifications

Sergiani 3D Form 2M

Machine Profile

ManufacturerSCM / Sergiani
SeriesSergiani 3D Form
Model3D Form 2M
Machine TypeAutomatic double membrane press

Platen and Working Area

Platen Dimensions2600 × 1600 mm
Useful Working Area1390 × 2390 mm
Daylight Opening150 mm
Primary Workpiece3D-shaped panels and kitchen doors

Pressing Performance

Maximum Thrust300 tons
Maximum Specific Pressure8 kg/cm²
Pressure ApplicationUniform across the membrane
Membrane SystemDouble membrane

Laminating Process

Surface MaterialNatural veneer
Faces ProcessedBoth sides simultaneously
Shape CapabilityComplex 3D surfaces
Typical ComponentsPanels and kitchen cabinet doors

Heating and Controls

Heating FluidDiathermal oil
Maximum Temperature130°C
Control InterfaceSiemens touchscreen
Control ScopeMachine functions and working parameters

Structure and Production Role

Frame ConstructionThick steel-sheet structure
Production RoleAutomatic two-sided 3D veneering
Quality FocusUniform pressure and high-definition shaping
Final ConfigurationConfirm project and utility requirements

Production Environments

Where the Sergiani 3D Form 2M Fits

A focused double membrane laminating press for natural-veneer production on shaped panels, kitchen doors, furniture fronts, and complex 3D components.

Kitchen Cabinet Door Plants

Designed for shaped kitchen doors requiring natural veneer on both faces in one automatic cycle.

Furniture and 3D Panel Manufacturers

Supports complex routed and shaped components where consistent membrane pressure is essential.

Industrial Veneer Departments

Fits repeat two-sided veneering workflows that need controlled heating, touchscreen setup, and press rigidity.

Double Membrane Pressing · Natural Veneer and 3D Panels

A purpose-built pressing station for both faces of the workpiece, one controlled cycle at a time.

The Sergiani 3D Form 2M brings both faces of a shaped panel into one coordinated pressing process, reducing the separation between first-side and second-side lamination.

Its 2600 × 1600 mm platens, 1390 × 2390 mm useful working area, 300-ton maximum thrust, and 150 mm daylight create a practical industrial envelope for kitchen doors and 3D components.

Uniform membrane pressure, diathermal-oil heating, a rigid steel structure, and Siemens touchscreen control keep the workflow focused on repeat setup and high-definition veneer pressing.
