Heavy-duty edge processing with servo-assisted setup and flexible production-cell integration.

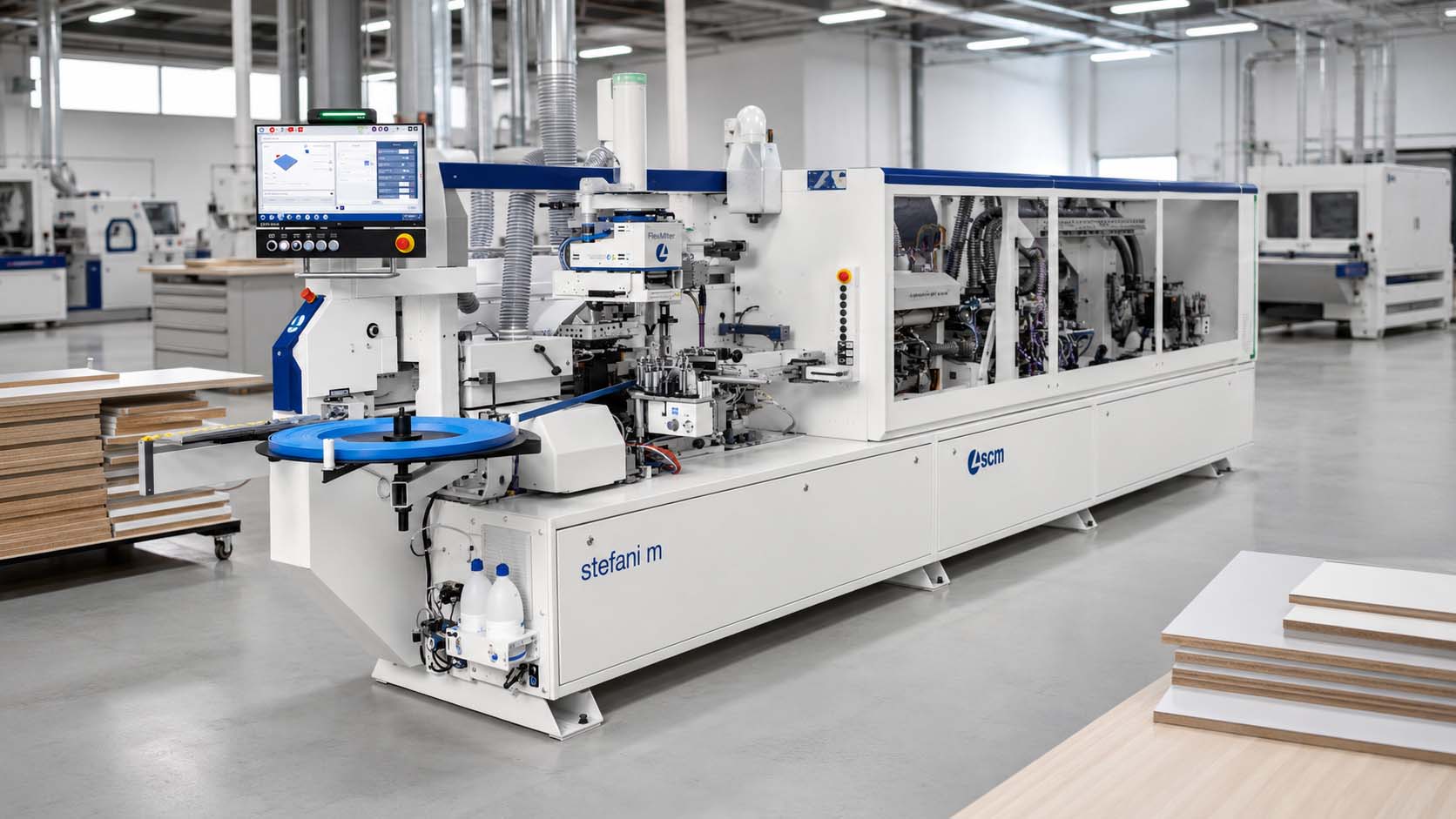

The SCM Stefani M is a heavy-duty single-sided automatic edgebander for cabinet, closet, furniture, commercial millwork, and panel-processing operations where edge quality, repeatability, and uptime are central production requirements.
The platform supports AirFusion+, EVA, and PUR gluing technologies, servo-assisted operating units, multi-edge finishing with up to three radii, and Maestro active edge software where configured.
Pre-milling, gluing, trimming, corner rounding, scraping, buffing, control, return handling, and flexible-cell integration are configured around the panel mix, edge materials, finish expectations, and changeover demands.
25 m/minMaximum Feed Speed
15 mmStandard Maximum Edge Thickness
60 mmStandard Maximum Panel Thickness
3Available Finishing Radii
Capability Matrix
Production Modes
Configure the machining sequence around edge application, profile finishing, surface protection, and the panel families produced by the shop.
Mode 01
Edge Application
Apply coil edge, solid-wood edge, or selected specialty edge materials using the configured glue and pressure system.
Mode 02
End & Fine Trimming
Trim the applied edge to the panel geometry with unit selection matched to material, thickness, and finish expectations.
Mode 03
Corner Rounding
Finish panel corners and end transitions on compatible edge and panel applications with the selected rounding package.
Mode 04
Profile & Glue Scraping
Refine the edge profile and remove residual glue according to the selected finishing-unit composition.
Mode 05
Buffing & Final Finish
Complete the edge with buffing, sanding, or other available finishing units selected for the surface and edge material.
Production Advantages
Heavy-Duty Edgebanding With Servo-Assisted Repeatability
The Stefani M can be configured around glue technology, edge material, servo-controlled setup, finishing radii, software, and the desired level of cell automation.
Multiple Gluing Technologies
AirFusion+, EVA, and PUR configurations support different glue-line, durability, moisture-resistance, colour-match, and production requirements.
Servo-Assisted Multi-Edge Setup
Electronic Touch servo-assisted operating units support repeatable setup, while multi-edge finishing can be configured for up to three different radii.
Flexible Cell Integration
The machine can be planned with return conveyors, loading and unloading systems, barcode flow, software, and flexible edgebanding-cell integration.
Equipment Range
Lineup Positioning
Industrial Edgebanding
SCM Stefani S
For modular industrial edgebanding, multiple glue technologies, softforming capability, and an automation-ready production path.
SCM Stefani M
Heavy-Duty Industrial Edgebanding
Servo-assisted setup, heavy edge capability, three-radius finishing, and repeatable high-quality production for demanding panel departments.
Advanced Automation
Stefani One / Stefani M Plus
For batch-one strategies, deeper automation, higher-output architecture, and extensively integrated multi-shift panel flow.
Technical Specifications
SCM Stefani M
Machine Profile
Manufacturer
SCM
Series / Model
Stefani M
Machine Type
Heavy-Duty Single-Sided Automatic Edgebander
Applications
Cabinet, closet, furniture, commercial millwork, and panel-processing components
Panel & Edge Capacity
Panel Thickness
8–60 mm standard; 80 mm optional
Coil Edge Thickness
0.3–15 mm standard; 22 mm optional
Solid-Wood Edge
Heavy edge applications up to the selected 15 mm / optional 22 mm package
Edge Materials
ABS, PVC, PP, PMMA, veneer, solid wood, and aluminium-look edges
Speed, Air & Glue Technologies
Working Speed
10–25 m/min
Glue Technologies
AirFusion+ / EVA / PUR
Compressed Air
6 bar basis
Glue Changeover
Multiple gluing technologies configured to the selected machine package
Machining & Finishing Units
Panel Preparation
Pre-milling according to selected composition
Edge Finishing
End trimming, fine trimming, profile processing, and scraping by composition
Multi-Edge Finishing
Up to three finishing radii with servo-assisted operating units
Final Operations
Buffing, glue scraping, profile scraping, sanding, and grooving by composition
Control & Software
Operator Interface
eye-M console where configured
Machine Software
Maestro active edge where configured
Connectivity
Maestro Connect where configured
Application Programming
Electronic Touch servo-assisted setup and edge-program control where configured
Automation & Services
Automation Path
Return conveyor, loading/unloading, flexible edgebanding cell, and future line integration
Material Flow
Standalone or integrated panel-handling strategy confirmed by quote
Utilities
Dust extraction, compressed air, voltage, phase, and CSA requirements confirmed by quote
Support
Delivery, installation, commissioning, training, warranty, and service confirmed by quote
Production Environments
Where the Stefani M Fits
For advanced panel-processing departments that need heavy-duty construction, repeatable setup, premium finishing control, and a clear automation path.
Matte, decorative, textured, high-gloss, and glue-line-sensitive panels used in furniture, doors, fronts, shelves, and casegoods.
Automation-Ready Panel Processing
Commercial millwork, fixtures, return-system planning, loading or unloading support, barcode flow, and flexible edgebanding-cell integration.
Heavy-Duty Edge Department
Build the edge process around material, finish, setup, and automation.
The Stefani M becomes a production platform when glue technology, servo-assisted units, finishing radii, controls, material handling, and software are selected as one coordinated system.
Its heavy-duty architecture supports changing edge materials, delicate and decorative surfaces, visible glue-line requirements, repeated programs, and integrated panel flow.
Final configuration should confirm panel and edge ranges, glue technology, unit composition, servo functions, finishing radii, working speed, Maestro active edge, barcode requirements, return or loading systems, utilities, installation, training, and service support.
