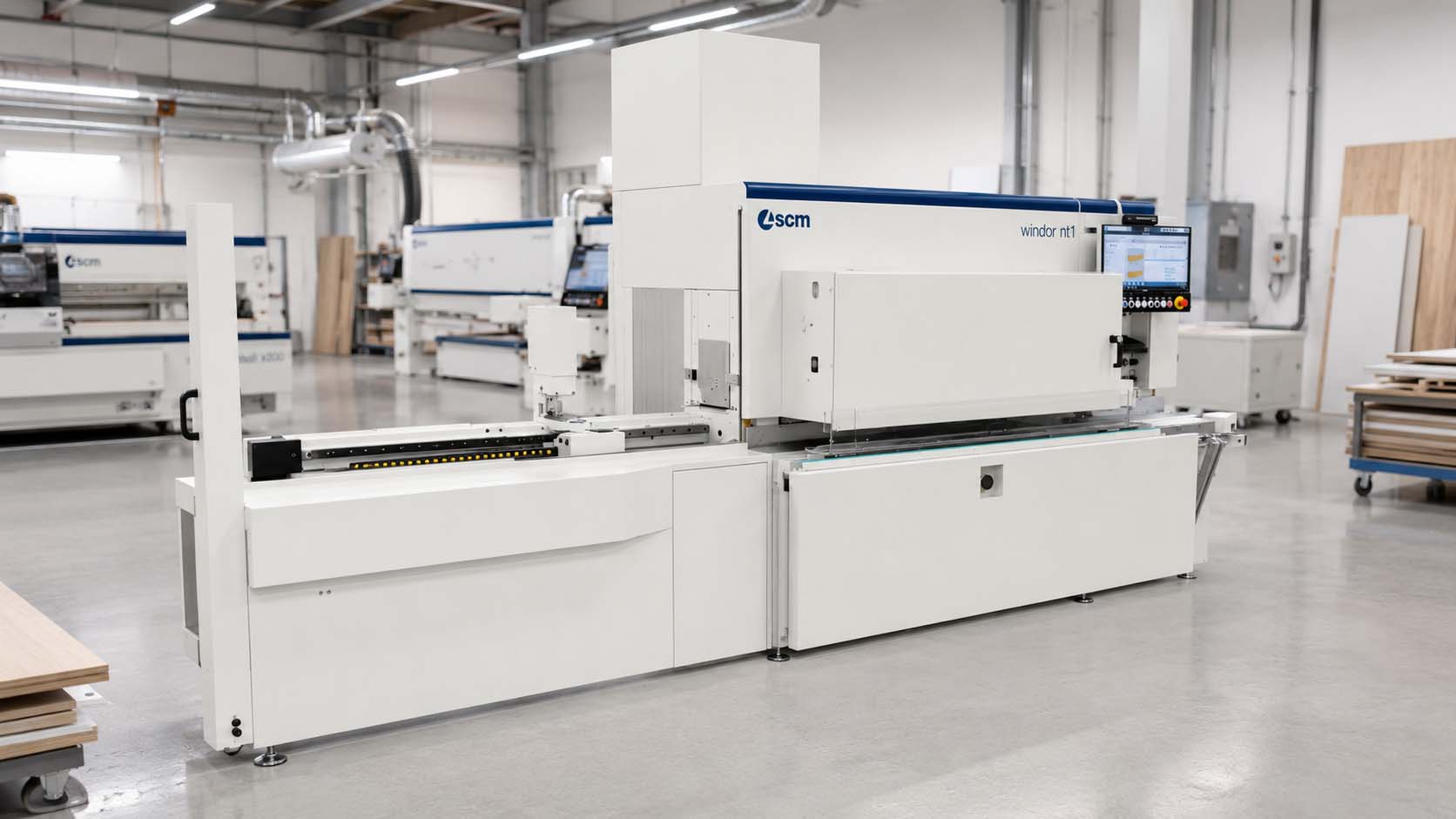

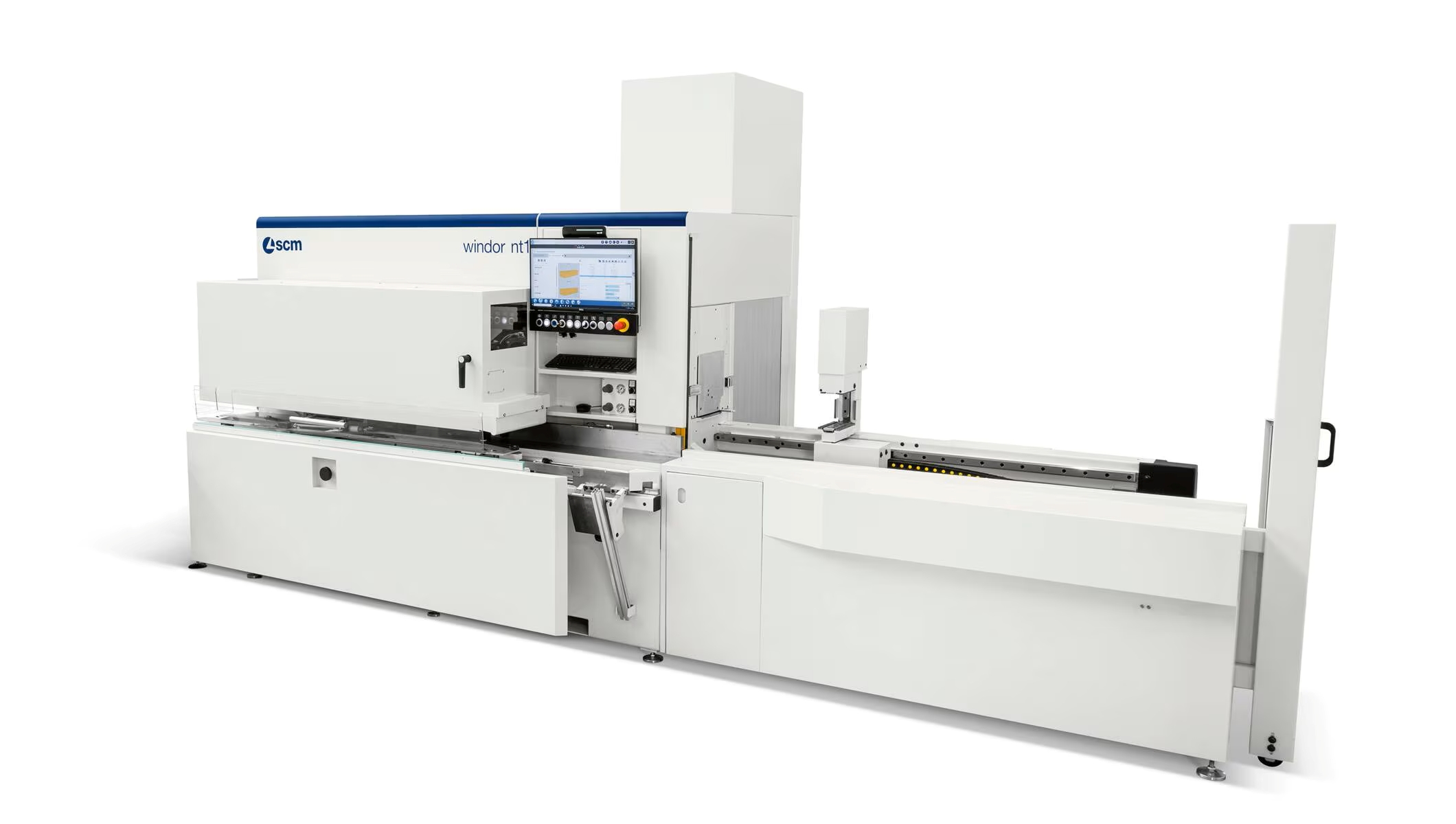

SCM Windor NT1 Angular Machining Centre for Windows & Doors
A compact enclosed machining centre that combines end cutting, straight or angled tenoning, drilling, routing, profiling, glazing-bead cut-off, and storm-proofing operations.
Bring essential window and door operations into one compact enclosed machine.
SCM Windor NT1 is designed for wood window and door manufacturers that want to reduce the number of standalone machines, manual transfers, and setup changes required to produce repeat component families.
The machine combines end cutting, straight and angled tenoning, drilling-routing, profiling, glazing-bead cut-off, and storm-proofing within an enclosed angular machining platform.
The selected workpiece-length package, profiling spindles, cutter blocks, drilling-routing equipment, saw units, software, extraction, electrical service, installation, startup, and tooling should be confirmed against the quoted Canadian configuration.
200–3000 mmStandard Length Range
40–140 mmWorkpiece Thickness
0–12 m/minTenoning Feed Speed
4–10 m/minProfiling Feed Speed
Capability Matrix
Window & Door Machining Modes
Configure Windor NT1 around the workpiece range, profile system, tenoning requirements, drilling-routing package, spindle set, software, and tooling library.
Mode 01
End Cutting
Prepare component ends as part of the integrated angular window and door machining sequence.
Mode 02
Straight & Angled Tenoning
Produce straight or angled tenons, with a maximum tenon-angle reference of ±60°.
Mode 03
Drilling & Routing
Complete hardware, joinery, recessing, routing, and complementary drilling operations through the selected unit package.
Mode 04
Profiling
Use the configured profiling spindles and cutter blocks for varied window, sash, door, and frame profiles.
Mode 05
Glazing Bead & Storm-Proofing
Support glazing-bead cut-off and storm-proof profile machining within the complete component process.
Production Advantages
Compact Process Consolidation for Window & Door Components
Windor NT1 combines core operations in one enclosed angular platform while retaining the spindle and tooling flexibility required by varied product families.
Complete-Process Compact Platform
Reduce transfers between separate machines by bringing cutting, tenoning, drilling-routing, profiling, and specialty window operations together.
Profiling Spindle Flexibility
The machine can be configured with two 50 × 320 mm profiling spindles for demanding profile families and tooling packages.
Maestro Active Windoor
SCM’s window-specific software supports production programming and optimization within the Maestro environment.
Equipment Range
Lineup Positioning
Traditional Workflow
Separate Window & Door Machines
Best for lower-volume shops using independent saws, tenoners, shapers, routers, drills, and manual part transfers.
SCM Windor NT1
Compact Complete-Process Centre
Best when the customer wants core window and door operations consolidated in one enclosed angular machining platform.
WindorFlex Automation
WindorFlex CP / 1
Best when the application requires automated loading and unloading, machining-cell architecture, longer-component flow, or greater scalability.
Technical Specifications
SCM Windor NT1
Machine Profile
Manufacturer
SCM
Model
Windor NT1
Machine Type
Compact angular machining centre for wood windows and doors
Primary Use
End cutting, tenoning, drilling-routing, profiling, glazing-bead cut-off and storm-proofing
Workpiece Capacity
Standard Workpiece Length
200–3000 mm
Optional Workpiece Length
200–3800 mm
Workpiece Thickness
40–140 mm
Maximum Tenon Angle
±60°
Feed & Process Speeds
Tenoning Feed Speed
0–12 m/min
Profiling Feed Speed
4–10 m/min
Production Strategy
Sequential processing through the angular machine layout
Changeover Basis
Tooling and program changeover depend on the selected package
Machining & Tooling Package
Profiling Spindles
Two 50 × 320 mm spindles where configured
Drilling / Routing
Configuration-dependent drilling-routing unit
Cutting Package
Saw units, cutter blocks and profile tooling confirmed by quote
Tooling Review
Profile system, joinery, hardware and storm-proofing tools matched to the application
Control & Software
Primary Software
Maestro Active Windoor
Software Environment
SCM Maestro environment
Production Data
Program, profile and workflow integration confirmed during application review
Barcode / Data Options
Confirmed against the selected software and production package
Configuration & Support
Machine Package
Tenoning side, profiling side, drilling-routing unit, saw units, cutter blocks and software
Extraction
Dust-extraction requirements confirmed against the selected machining package
Electrical
Regional electrical package confirmed by quote
Support
Installation, startup, operator and software training, tooling, warranty and service
Production Environments
Where the Windor NT1 Fits
For window and door manufacturers that need complete process coverage in a compact machine without the footprint and handling architecture of a larger automated cell.
Wood Window Manufacturing
Frames, sashes, glazing details, storm-proof profiles, tenons, drilled and routed features, and repeat window component families.
Door & Frame Production
Door-frame components, rails, stiles, jambs, profile joinery, drilling, routing, tenoning, and related hardware preparation.
Consolidate the core machining sequence for repeat window and door components.
Windor NT1 is positioned between traditional standalone production and larger WindorFlex cell automation, giving manufacturers a compact path to integrated cutting, tenoning, drilling-routing, and profiling.
The machine supports straight and angled tenons, varied profile tooling, glazing-bead and storm-proofing operations, and software-guided production through Maestro Active Windoor.
Final configuration should confirm workpiece dimensions, profile systems, spindle package, cutter blocks, drilling-routing equipment, saw units, software workflow, extraction, electrical service, floor space, installation, startup, training, warranty, and support.
