Professional Class-series thicknessing planers with 630 mm or 520 mm working width, 4–20 m/min variable feed, pneumatic roller-pressure adjustment, interchangeable rollers, and stable worktable support.
Professional SCM thicknessing in two practical working-width formats.

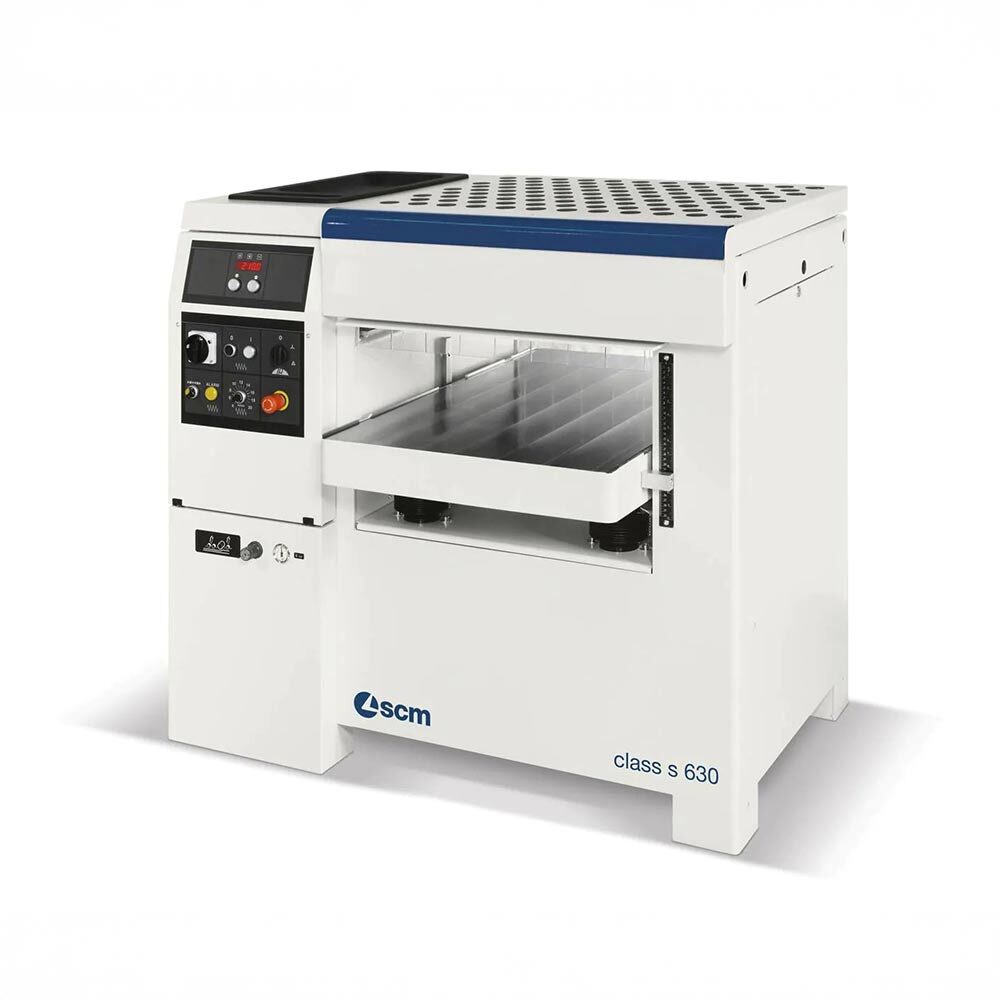

The SCM Class S 630 and S 520 are professional thicknessing planers for cabinet, furniture, millwork, joinery, stair, door, and general solid-wood production.
The S 630 provides 630 mm working width with a 640 × 1000 mm worktable, while the S 520 provides 520 mm working width with a 530 × 900 mm worktable. Both support 3.5–300 mm working height and up to 8 mm maximum stock removal.
A 4–20 m/min variable feed range, pneumatic roller-pressure adjustment, interchangeable rollers, and worktable support using large-diameter screws and side linear guides create a controlled platform for repeat daily thicknessing.
630 / 520 mmWorking Widths
3.5–300 mmWorking Height
8 mmMaximum Removal
4–20 m/minVariable Feed
Capability Matrix
One Class-series platform. Five focused thicknessing roles.
The S 630 / S 520 family supports two working-width formats, substantial stock removal, repeat dimensioning, variable feed control, and stable solid-wood preparation.
Mode 01
S 630 Wide-Capacity Thicknessing
The 630 mm working width and 640 × 1000 mm worktable support wider boards, panels, and substantial solid-wood components.
Mode 02
S 520 Professional Thicknessing
The 520 mm working width and 530 × 900 mm worktable provide Class-series performance in a narrower format.
Mode 03
Controlled Stock Removal
Both models support up to 8 mm maximum removal for dimensioning and production preparation.
Mode 04
Variable Feed Control
The 4–20 m/min feed range can be adjusted around species, removal amount, finish expectations, and daily production pace.
Mode 05
Stable Table Positioning
Large-diameter screws and side linear guides support controlled worktable movement and repeat setup.
Production Advantages
Designed around controlled feeding, adaptable roller setup, and stable worktable movement.
The Class S 630 / S 520 family combines variable feed speed, pneumatic pressure adjustment, and guided table support for professional daily solid-wood thicknessing.
Pneumatic Roller-Pressure Adjustment
Operator-adjustable roller pressure supports feeding control across different species, stock conditions, and removal amounts.
Interchangeable Rollers
The roller system can be adapted to the workpiece and production requirement within the selected machine configuration.
Large Screws and Side Linear Guides
The worktable support system promotes stable, controlled movement across the full working-height range.
Equipment Range
Lineup Positioning
Entry Thicknessing
Light-Duty Planer
Suitable for intermittent work, narrower stock, and shops with modest stock-removal and feed-control requirements.
Professional Production
Dedicated Thicknessing Planer
Adds variable feed, controlled pressure, stable table movement, and daily production capability.
Two-Width Class Platform
SCM Class S 630 / S 520
Provides 630 mm or 520 mm working width with 3.5–300 mm height capacity, 8 mm maximum removal, 4–20 m/min feed, and professional material control.
Technical Specifications
Class S 630 / S 520
Machine Profile
ManufacturerSCM
SeriesClass
ModelsS 630 / S 520
Machine TypeProfessional thicknessing planers
S 630 Capacity
Working Width630 mm
Worktable640 × 1000 mm
Working Height3.5–300 mm
Maximum Stock Removal8 mm
S 520 Capacity
Working Width520 mm
Worktable530 × 900 mm
Working Height3.5–300 mm
Maximum Stock Removal8 mm
Feed and Pressure Control
Feed Speed4–20 m/min
Roller PressurePneumatic adjustment
RollersInterchangeable
Primary FunctionControlled solid-wood feeding
Worktable Support
Table SupportLarge-diameter screws
GuidanceSide linear guides
Working Range3.5–300 mm
Production FocusStable, precise table movement
Applications and Project Review
MaterialsSolid wood and glued-up stock
ComponentsCabinet / furniture / millwork / stair / door
Final ReviewUtilities / safety / installation / layout
Production Environments
Where the Class S 630 / S 520 Fits
Professional thicknessing planers for cabinet, furniture, architectural millwork, joinery, stair, door, and daily solid-wood component production.
Cabinet and Furniture Shops
Strong fit for face-frame stock, furniture components, table parts, drawer stock, panels, and solid-wood cabinet components.
Architectural Millwork and Joinery
Supports wider boards, custom stock, trim, premium visible components, and repeat preparation for downstream machining.
Stair and Door Component Production
Fits treads, rails, stiles, door parts, glued-up stock, and other dimension-critical production components.
Professional Thicknessing · Two Working-Width Formats
A practical Class-series planer family that brings controlled feeding, stable table movement, and daily production capability into the solid-wood shop.
The Class S 630 / S 520 family gives manufacturers a clear choice between wider 630 mm capacity and a more compact 520 mm working format.
Both machines support 3.5–300 mm working height, up to 8 mm stock removal, and a 4–20 m/min feed range for varied species, component sizes, and production requirements.
Pneumatic roller adjustment, interchangeable rollers, and guided worktable support create a controlled, professional thicknessing station for daily cabinet, furniture, millwork, stair, door, and joinery production.
