Continuous-cycle pressing for door, coated-panel, and parquet production.

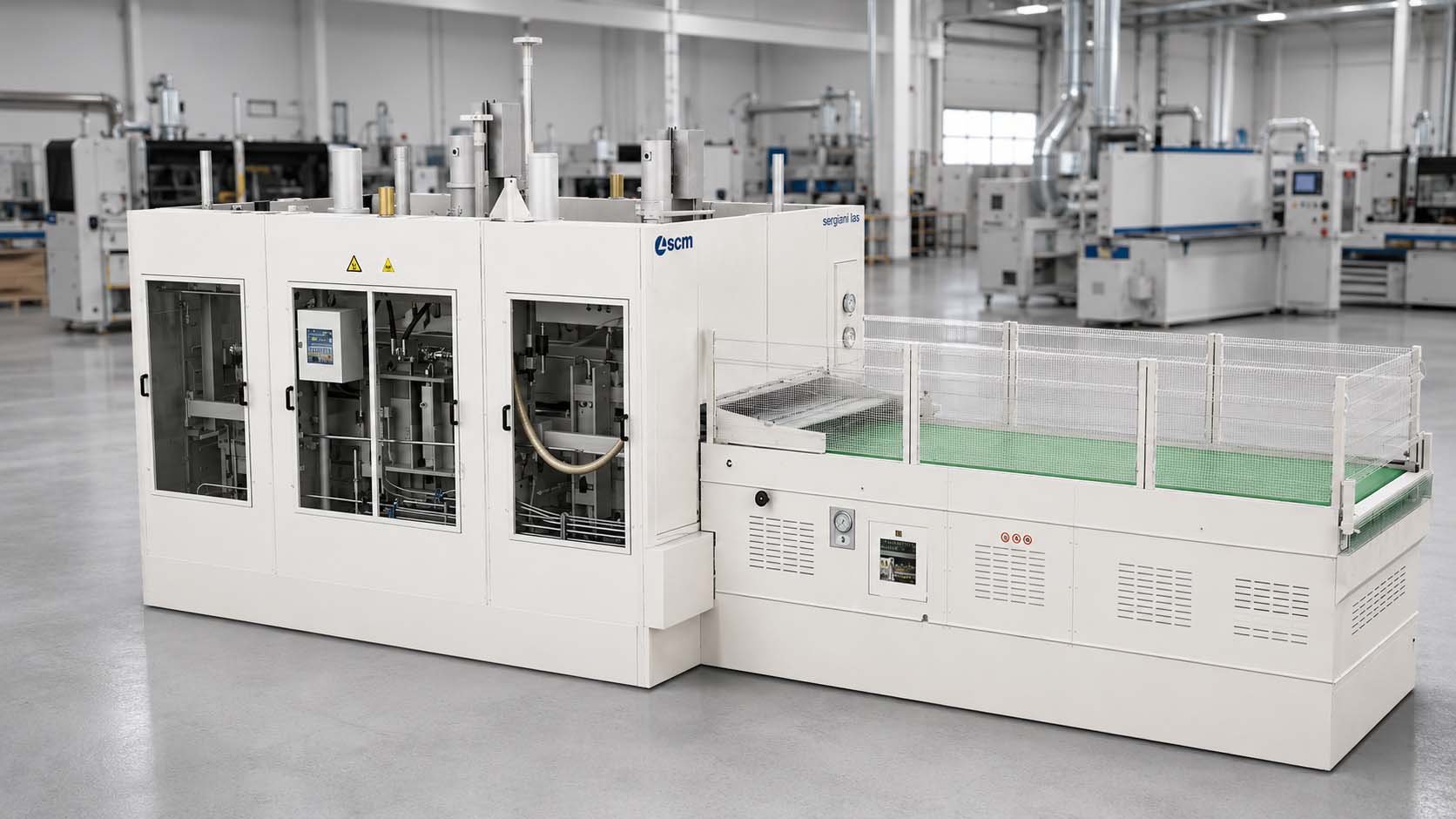

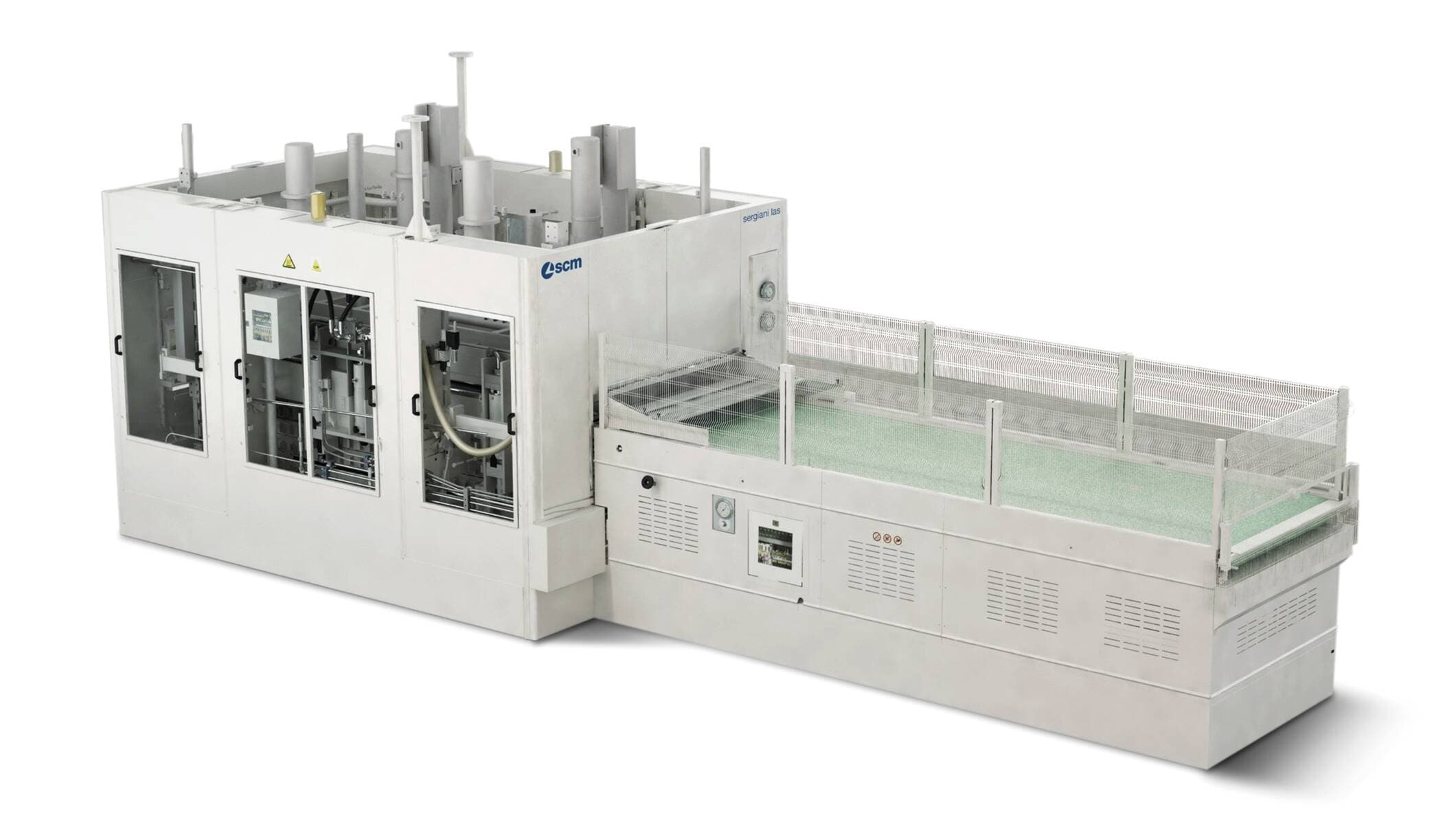

The SCM Sergiani LAS is an automatic continuous-cycle multi-daylight press for manufacturers that need sequential loading and unloading while the other press compartments remain under controlled pressure.
Its press families cover hollow-core and coated doors, furniture doors, laminated components, veneer, HPL, CPL, and 2- or 3-layer pre-finished parquet.
LAS S, LAS P, and RLAS S configurations allow the pressing platform, platen size, daylight count, total thrust, loading automation, glue process, utilities, and line layout to be matched to the production requirement.
5 / 6 / 7 / 10Daylights
120–200 tonsTotal Thrust Range
Up to 1 door / 20 secOutput Reference
Over 1,200 doors / shiftShift Output Reference
Capability Matrix
One continuous pressing platform. Five production roles.
The Sergiani LAS supports sequential pressing for doors, coated components, laminated assemblies, and multi-layer parquet within a configurable line.
Mode 01
Continuous Loading and Unloading
One door or panel can enter or leave the line while other press compartments remain under controlled pressure.
Mode 02
Hollow-Core Door Pressing
Supports repeat pressing workflows for hollow-core door production and high-output door-line integration.
Mode 03
Veneer, HPL and CPL Components
Fits coated doors, furniture doors, decorative panels, and laminated components using veneer, HPL, or CPL surfaces.
Mode 04
Furniture and Laminated Doors
Provides a configurable multi-daylight pressing platform for furniture doors, cabinet doors, and bonded assemblies.
Mode 05
2- and 3-Layer Parquet
Supports pre-finished parquet production where bonding consistency and continuous process flow are central to the line.
Production Advantages
Designed around continuous production rhythm, independent press compartments, and configurable line integration.
The LAS multi-daylight concept supports controlled pressure and loading flow without requiring every compartment to begin and end its cycle together.
Independent Press Compartments
Each door or panel occupies its own pressing compartment, supporting stable pressure and gluing conditions during sequential production.
Controlled Production Rhythm
Continuous loading and unloading help align pressing time, glue timing, material flow, and downstream handling.
Compact Line Footprint
The continuous multi-daylight concept can reduce occupied line space compared with larger simultaneous-loading press arrangements.
Equipment Range
Lineup Positioning
120–140 Ton Platform
Sergiani LAS S
Configured around 2500 × 1300 mm or 2800 × 1400 mm platens, with 5, 6, or 10 daylights and 120 or 140 tons total thrust.
200 Ton Platform
Sergiani LAS P
Configured around 2500 × 1300 mm or 2800 × 1300 mm platens, with 5, 6, or 10 daylights and 200 tons total thrust.
Large-Format Platform
Sergiani RLAS S
Configured around a 3350 × 1400 mm platen, with 5 or 7 daylights and 175 tons total thrust.
Technical Specifications
Sergiani LAS
Machine Profile
ManufacturerSCM / Sergiani
SeriesSergiani
ModelLAS
Machine TypeAutomatic continuous-cycle press
Production Applications
Door ProductionHollow-core / coated / furniture doors
Built for 2- or 3-layer parquet manufacturers that need continuous pressing, stable bonding, and integrated line flow.
Continuous Pressing · Door, Panel and Parquet Production
A production press line built around controlled pressure, sequential loading, and a steady material-handling rhythm.
The Sergiani LAS turns multi-daylight pressing into a continuous production process, allowing material to move through the line while other compartments remain under controlled pressure.
Its LAS S, LAS P, and RLAS S platforms cover different platen sizes, daylight counts, and thrust requirements for hollow-core doors, coated components, furniture doors, laminated assemblies, and parquet.
When integrated with glue spreading, loading, unloading, utilities, safety, and downstream handling, the LAS becomes the controlled centre of a complete door, panel, or flooring production line.
