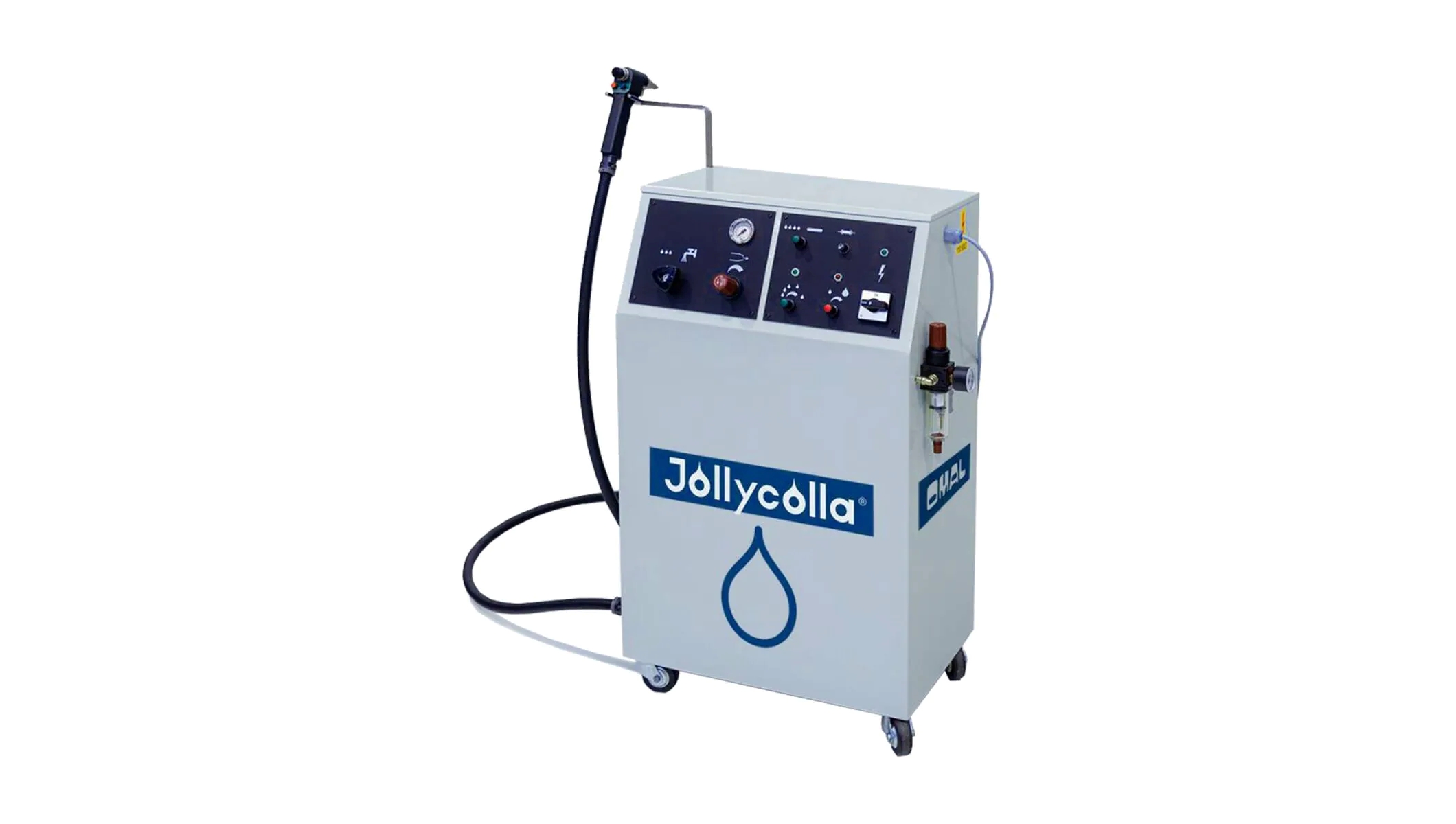

SCM Omal Jolly Colla Precision Glue-Dosing Machine
A compact precision glue-dosing system for dowel construction, drawer-box assembly, case-clamp preparation, and repeatable adhesive application at assembly stations.
Controlled adhesive dosing for repeat assembly work.
The Omal Jolly Colla is a compact glue-dosing machine for cabinet, drawer-box, furniture, fixture, and commercial casework assembly departments using dowel-joined components.
Glue quantity is controlled electronically through a potentiometer and electronic control card, reducing reliance on hand pressure from squeeze bottles and supporting a more repeatable application process.
Separate 8 L / 2 gal glue and washing tanks support adhesive delivery and circuit cleaning. Single- or dual-injector packages, approved glue types, voltage, hoses, nozzles, and accessories must be confirmed for the quoted configuration.
600 x 350 x 980 mmOverall Dimensions
3 mFeed Tube Length
1500–4000 cpsViscosity Reference
1 / 2Injector Configurations
Capability Matrix
Dosing & Assembly Modes
Configure the Jolly Colla around joint patterns, adhesive characteristics, injector count, cleaning practice, and assembly-station workflow.
Mode 01
Impulse Dosing
Deliver a controlled single injection for individual dowel holes or discrete joint locations.
Mode 02
Continuous Dosing
Maintain adhesive flow for longer joint paths, repeated patterns, or continuous application requirements.
Mode 03
Electronic Quantity Control
Adjust output electronically using the potentiometer and control card rather than operator hand pressure alone.
Mode 04
Washing & Purging
Use the separate washing tank to support circuit cleaning and adhesive-system maintenance.
Mode 05
Single or Dual Injector
Select a one- or two-gun configuration to match the assembly bench, operator flow, and joint pattern.
Production Advantages
More Consistent Glue Application at the Assembly Station
The Jolly Colla replaces uncontrolled bottle pressure with an adjustable dosing system and a dedicated cleaning circuit.
Repeatable Dosing Control
Electronic quantity adjustment supports a consistent target volume across repeat parts and operators.
Dedicated Washing Circuit
The separate 8 L washing tank supports purging and maintenance of the adhesive-delivery circuit.
Assembly-Station Flexibility
The 3 m feed tube and selectable injector package support placement beside case clamps, drawer benches, and dowel-assembly work areas.
Equipment Range
Lineup Positioning
Manual Application
Squeeze Bottles & Hand Application
For occasional assembly where adhesive volume and operator variation are managed manually.
Metered Bench Dosing
Dedicated Single-Station Dosing
For repeat glue application where a controlled injector is integrated into one assembly workstation.
Omal Jolly Colla
Mobile Precision Glue-Dosing System
For impulse or continuous dosing, separate glue and washing tanks, electronic quantity control, and one- or two-injector packages.
Technical Specifications
SCM Omal Jolly Colla
Machine Profile
Brand / Manufacturer
OMAL
Titan Machine Name
SCM Omal Jolly Colla
Machine Type
Automatic Precision Glue-Dosing Machine
Primary Use
Dowel construction and controlled assembly-station glue application
Dimensions & Delivery
Overall Dimensions
600 x 350 x 980 mm
Feed Tube Length
3 m
Injector Package
One or two guns, configuration dependent
Nozzles / Accessories
Confirmed for the joint pattern and quoted package
Tank & Fluid System
Glue Tank Capacity
8 L / 2 gal
Washing Tank Capacity
8 L / 2 gal
Cleaning Circuit
Separate washing / purging tank
Pressure Supply
Compressed-air requirement confirmed by quote
Dosing Control
Dosing Modes
Impulse / single injection and continuous
Application Pattern
Discrete shots or continuous adhesive flow
Quantity Adjustment
Electronic potentiometer and control card
Operator Delivery
Handheld injector gun
Adhesive Range & Application
Glue Viscosity
1500–4000 cps reference
Joint Applications
Dowel holes, cabinet cases, drawers, fixtures, and repeat assemblies
Approved Adhesives
Confirmed against glue type and regional package
Production Mode
Single-shot or continuous dosing
Configuration & Support
Package Confirmation
Injector count, hoses, nozzles, glue type, washing liquid, voltage, and spare parts
Station Review
Assembly-bench layout, case-clamp access, hose routing, and operator reach
Electrical
Voltage and regional electrical requirements confirmed by quote
Support
Delivery, startup, training, warranty, and service confirmed by quote

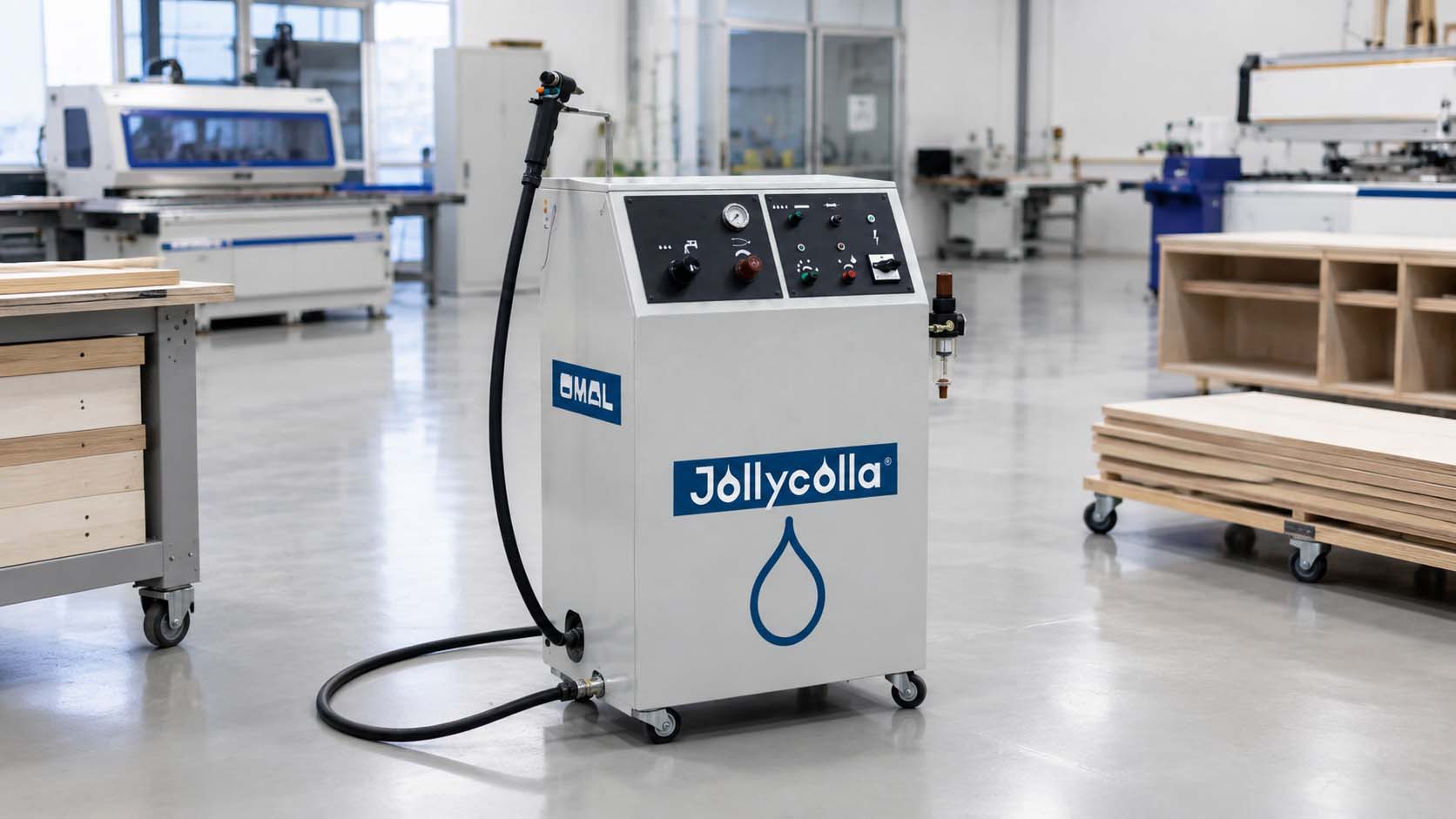

Production Environments
Where the Jolly Colla Fits
For assembly departments that need controlled adhesive output before dowel insertion, clamping, or final case assembly.
Cabinet & Casework Assembly
Cases, fixed shelves, partitions, stretchers, end panels, and repeat dowel-joined cabinet components.
Drawer-Box & Furniture Assembly
Drawer sides, fronts, backs, frames, panel assemblies, and furniture components prepared before clamping.
Commercial Case-Clamp Cells
Institutional, office, healthcare, retail, and commercial cabinetry requiring repeat glue application at the clamp station.
Controlled Assembly Workflow
Standardize glue delivery before parts enter the clamp.
The Jolly Colla gives operators an adjustable dosing system for repeat joint patterns, replacing uncontrolled bottle pressure with impulse or continuous delivery.
Separate glue and washing tanks support day-to-day adhesive use and circuit maintenance, while one- or two-injector configurations allow the package to match the assembly workstation.
Final configuration should confirm adhesive type and viscosity, injector count, hoses, nozzles, washing liquid, voltage, compressed-air supply, assembly-station layout, startup, training, warranty, and support.
