A modular industrial edgebander for medium-to-large panel-processing operations requiring consistent edge application, flexible glue technology, softforming capability, advanced finishing units, and an automation-ready production path.
Industrial edge processing configured around material, glue, finish, and production flow.

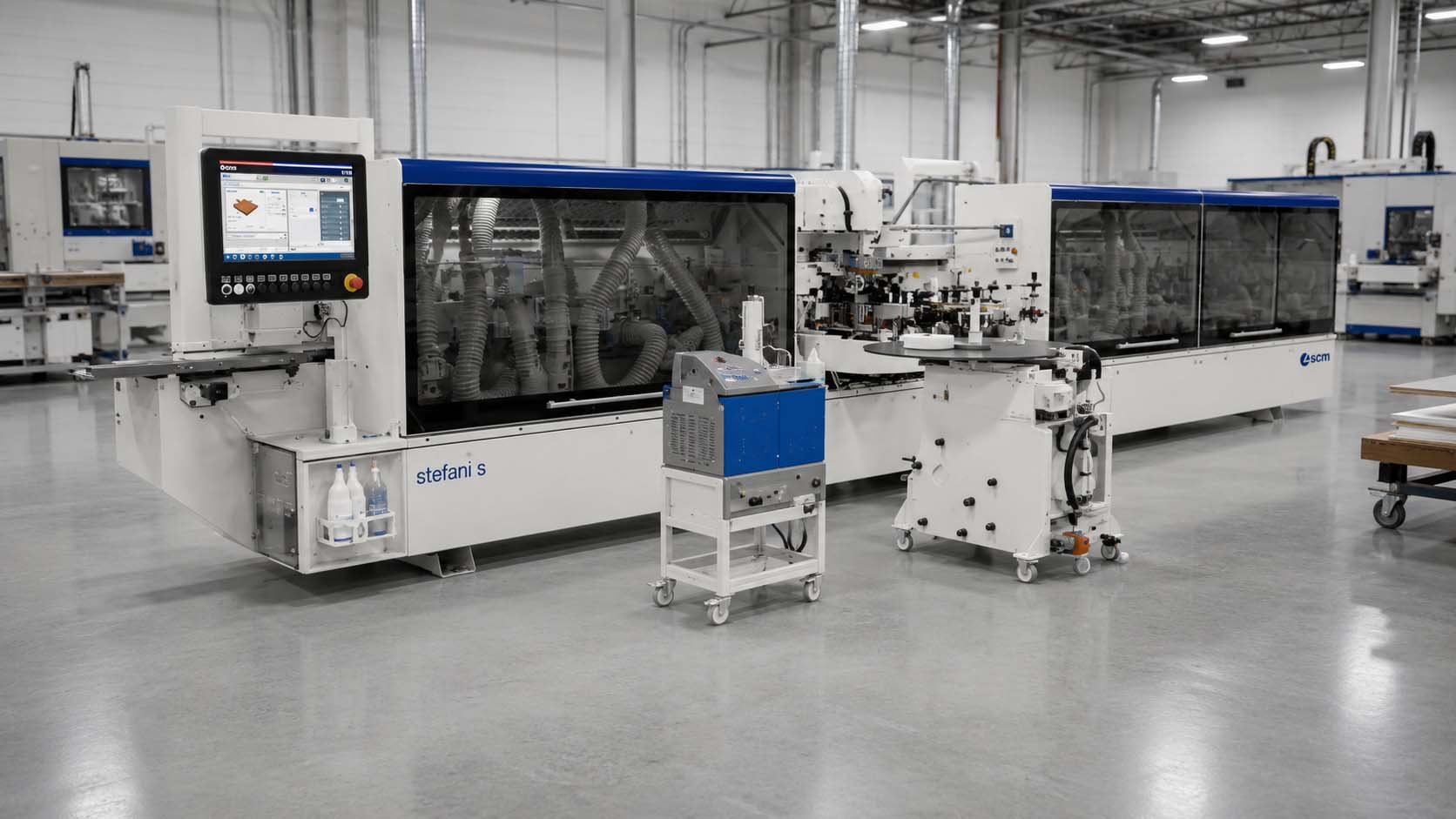

The SCM Stefani S is a modular single-sided automatic edgebander for panel components, doors, furniture parts, cabinet components, closet systems, and commercial millwork where edge quality and consistent finishing matter.
The platform supports straight panels, softforming panels, and doors, with available glue paths including EVA, PUR, combined EVA + PUR configurations, and AirFusion+ according to the selected machine composition.
Pre-milling, gluing, pressure, trimming, corner rounding, scraping, buffing, sanding, grooving, control, return handling, and future line integration are configured around the actual panel mix and production requirements.
25 m/minStandard Working Speed
30 m/minOptional Working Speed
60 mmStandard Panel Thickness
3 mmMaximum Coil Edge Thickness
Capability Matrix
Production Modes
Configure the machining sequence around edge application, profile finishing, surface protection, and the panel families produced by the shop.
Mode 01
Edge Application
Apply coil edge, solid-wood edge, or selected specialty edge materials using the configured glue and pressure system.
Mode 02
End & Fine Trimming
Trim the applied edge to the panel geometry with unit selection matched to material, thickness, and finish expectations.
Mode 03
Corner Rounding
Finish panel corners and end transitions on compatible edge and panel applications with the selected rounding package.
Mode 04
Profile & Glue Scraping
Refine the edge profile and remove residual glue according to the selected finishing-unit composition.
Mode 05
Buffing & Final Finish
Complete the edge with buffing, sanding, or other available finishing units selected for the surface and edge material.
Production Advantages
Modular Edgebanding With Multiple Technology Paths
The Stefani S can be built around glue requirements, finishing expectations, softforming work, and the desired level of material-handling automation.
Glue Technology Flexibility
EVA, PUR, combined EVA + PUR solutions, AirFusion+, and available Glue Switch strategies support different durability, finish, and changeover requirements.
Configurable Unit Composition
Pre-milling, gluing, trimming, rounding, scraping, buffing, sanding, and grooving units are selected around the application rather than forced into one fixed layout.
Automation-Ready Architecture
The machine can be planned with return conveyors, loading and unloading, software, barcode strategy, and future Stefani cell integration where configured.
Equipment Range
Lineup Positioning
Compact Automatic Edgebanding
Olimpic / KD-Class Platform
For smaller-to-mid production requirements with a focused automatic edgebanding composition and limited line integration.
SCM Stefani S
Modular Industrial Edgebanding
Multiple glue technologies, finishing-unit flexibility, softforming capability, and an automation-ready architecture for growing production.
Advanced Stefani Line
Stefani One / Stefani M-Class Production
For higher automation, batch-one requirements, deeper servo control, or more extensively integrated multi-shift panel flow.
Technical Specifications
SCM Stefani S
Machine Profile
Manufacturer
SCM
Series / Model
Stefani S
Machine Type
Single-Sided Automatic Edgebander
Applications
Straight panels, softforming panels, and doors
Panel & Edge Capacity
Panel Thickness
10–60 mm standard; 80 mm optional
Coil Edge Thickness
0.3–3 mm
Solid-Wood Edge
Up to 25 mm; confirm selected package
Edge Materials
ABS, PVC, PP, PMMA, veneer, solid wood, and aluminium-look edges
Speed & Glue Technologies
Working Speed
25 m/min standard; 30 m/min optional
Glue Technologies
EVA / PUR / EVA + PUR / AirFusion+
Zero-Joint Technology
AirFusion+ where configured
Glue Changeover
Glue Switch / multiple-glue strategy available by configuration
Machining & Finishing Units
Panel Preparation
Pre-milling where configured
Edge Finishing
End trimming and fine trimming
Profile Operations
Corner rounding, profile scraping, and glue scraping
Final Operations
Buffing, sanding, and grooving available by composition
Control & Software
Operator Interface
eye-M console where configured
Machine Software
Maestro active where configured
Connectivity
Maestro Connect where configured
Application Programming
Straight-panel, softforming, and door programs according to composition
Automation & Services
Automation Path
Return conveyor, loading/unloading, Stefani cell, and future line integration
Material Flow
Standalone or integrated panel-handling strategy confirmed by quote
Utilities
Dust extraction, compressed air, voltage, phase, and CSA requirements confirmed by quote
Support
Delivery, installation, commissioning, training, warranty, and service confirmed by quote
Production Environments
Where the Stefani S Fits
For panel-processing departments that have outgrown compact edgebanding and need industrial consistency, technology choice, and a clear automation path.
Build the machine around the edge mix and the production plan.
The Stefani S becomes a production platform when glue technology, machining units, finish requirements, controls, return handling, and material flow are selected as one coordinated system.
Its modular architecture supports shops processing different panel surfaces, edge materials, straight work, softforming applications, doors, and varying finish expectations without reducing the machine to one fixed composition.
Final configuration should confirm panel and edge ranges, glue strategy, unit sequence, working speed, software, barcode requirements, return or loading systems, utilities, installation, training, and service support.
