A compact single-sided automatic edgebander for small woodworking and panel shops requiring professional edge quality, automatic setup support, multi-radius finishing, and approachable touchscreen control.
Compact professional edgebanding with automatic setup support.

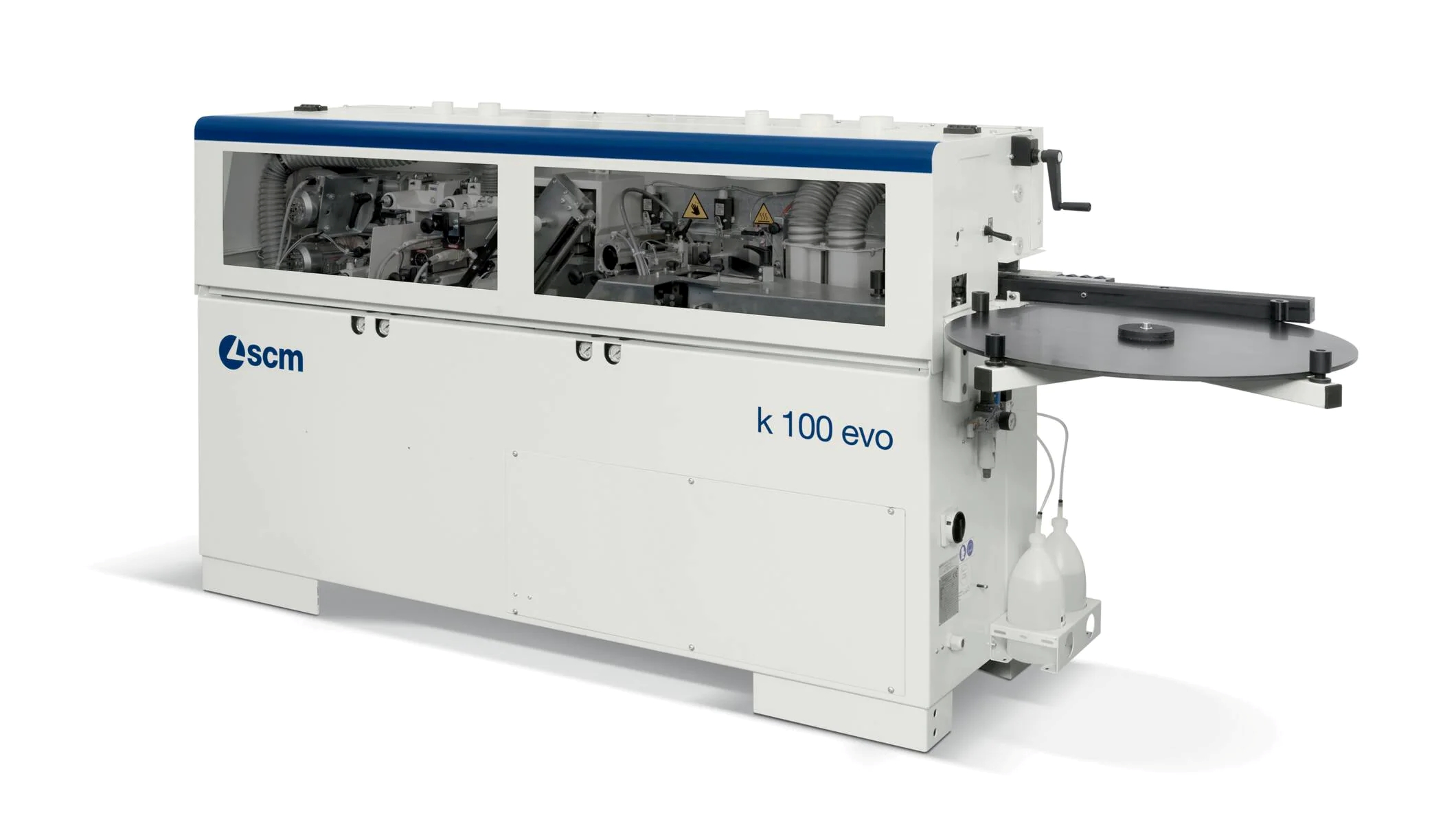

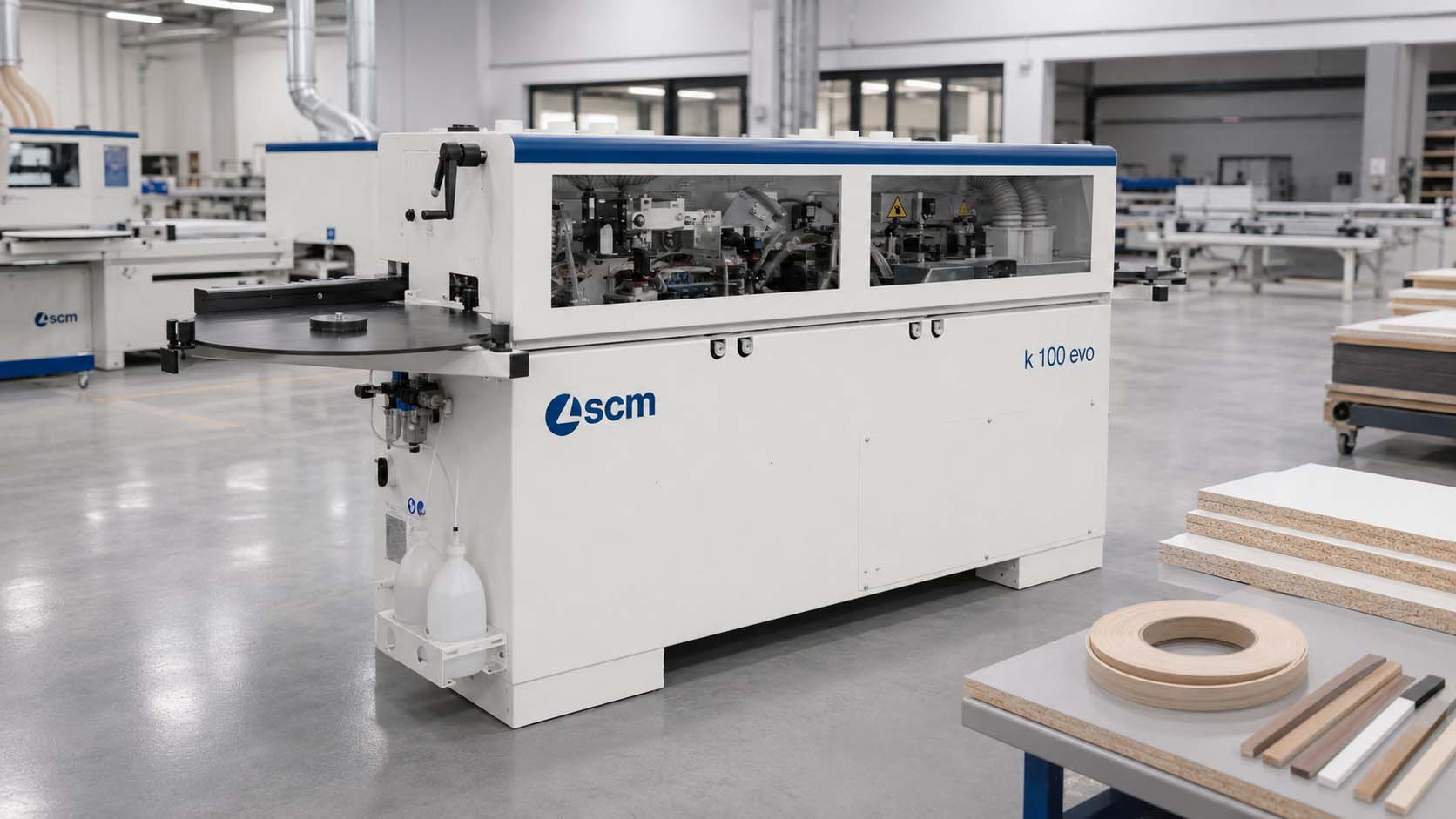

The SCM K 100 Evo is a compact single-sided automatic edgebander for small cabinet, closet, furniture, casegoods, custom woodworking, commercial millwork, and panel-processing shops moving beyond manual or basic entry-level edging.
Its verified working range includes 8–50 mm panel thickness, 0.4–3 mm coil edge thickness, 7 m/min feed speed, and a 6 bar compressed-air basis.
Automatic pneumatic on/off systems, multi-radius tools, a 5 mm strip-edge kit, premilling, grooving, PUR equipment, spare glue pots, double thermoregulation, eye-S Compact, and Maestro active edge depend on the selected machine package and must be confirmed by quote.
7 m/minFeed Speed
3 mmMaximum Coil Edge
50 mmMaximum Panel Thickness
10"Touchscreen Control
Capability Matrix
Production Modes
Configure the K 100 Evo around standard edge application, automatic unit activation, multi-radius finishing, glue requirements, and operator control.
Mode 01
Coil & Strip Edge Application
Apply 0.4–3 mm coil edge, with 5 mm strip-edge capability available through the required package or kit.
Mode 02
Automatic Unit Activation
Machine-NC-controlled pneumatic on/off systems support repeatable activation of selected trimming and scraping units.
Mode 03
Multi-Radius Finishing
Multi-radius trimming and edge-scraping tools support common edge thicknesses with faster program changes where equipped.
Mode 04
Glue-System Selection
Configure the standard glue pot, PUR option, spare pot, and double thermoregulation around the required workflow.
Mode 05
Graphical Touch Control
The 10-inch eye-S Compact console with Maestro active edge provides graphical control where included.
Production Advantages
Professional Edge Quality Without a Large Industrial Footprint
The K 100 Evo brings setup assistance, flexible finishing tools, and modern operator control into a compact automatic edgebander.
Automatic Setup Support
NC-controlled pneumatic on/off systems reduce manual intervention when selected units change between production programs.
Multi-Radius Tooling
Available multi-radius tools support common edge thicknesses with less operator adjustment and more repeatable setup.
eye-S Compact Interface
The 10-inch touchscreen and Maestro active edge software provide approachable graphical machine control where configured.
Equipment Range
Lineup Positioning
Manual / Basic
Manual Edging or Compact Entry Machines
For occasional production, simpler edge programs, and lower setup requirements.
Compact Automatic
SCM ME-Series Platform
For straightforward automatic edging with a smaller feature and configuration envelope.
SCM K 100 Evo
Compact Professional Automatic Edgebanding
For automatic setup support, multi-radius tools, touchscreen control, and package-dependent strip-edge and PUR capability.
Technical Specifications
SCM K 100 Evo
Machine Profile
Manufacturer
SCM
Titan Model
K 100 Evo
SCM Family Name
Olimpic K 100
Machine Type
Compact Single-Sided Automatic Edgebander
Panel & Edge Capacity
Panel Thickness
8–50 mm
Coil Edge Thickness
0.4–3 mm
Extended Strip-Edge Value
5 mm, package dependent
Feed Speed
7 m/min
Controls & Setup
Control
eye-S Compact console
Screen
10-inch touchscreen
Software
Maestro active edge
Setup Support
Automatic pneumatic on/off systems where equipped
Machining & Finishing
Premilling
Available by selected machine package
Edge Processing
Trimming, edge scraping, glue scraping, and buffing by composition
Radius Tooling
Multi-radius tools where equipped
Grooving
Available by package
Glue System & Utilities
Glue System
Standard pot; PUR option, spare pot, and double thermoregulation available
Compressed Air
6 bar basis
Dust Extraction
Connections and airflow confirmed by final operating-unit composition
Electrical
Voltage, phase, power draw, and CSA requirements confirmed by quote
Configuration & Support
Package Confirmation
Premilling, grooving, strip-edge kit, glue equipment, control, and operating units
Materials
Panel and edge materials confirmed for the application
Installation Review
Floor space, extraction, air, electrical, access, and delivery route
Support
Delivery, installation, commissioning, training, warranty, and service confirmed by quote
Production Environments
Where the K 100 Evo Fits
For compact production departments requiring automatic edging, improved setup repeatability, and professional finished-edge quality.
Small Cabinet Shops
Kitchen panels, gables, shelves, drawer fronts, doors, fillers, finished ends, vanity parts, and standard casework components.
Closet, Storage & Furniture Shops
Closet shelving, partitions, wardrobe panels, garage storage parts, panel furniture, fronts, and small repeat batches.
Bring setup control and repeatable finishing into a smaller production space.
The K 100 Evo provides a structured automatic edgebanding workflow for shops that need professional results without moving immediately into a larger Olimpic or Stefani platform.
Its available automatic unit activation, multi-radius tooling, glue options, and touchscreen control support faster, more repeatable daily changeovers.
Final configuration should confirm the exact Olimpic K 100 generation, edge and panel range, 5 mm strip-edge kit, premilling, grooving, operating units, glue-pot and PUR equipment, double thermoregulation, eye-S Compact, Maestro active edge, extraction, compressed air, electrical service, CSA requirements, installation, training, and support.
