An industrial single-sided automatic edgebander for mixed-panel continuous production, controlled glue application, flexible PUR and EVA processing, AirFusion+ capability, and automatic three-radius finishing.
Mixed-panel industrial edgebanding with advanced glue control and automatic finishing flexibility.

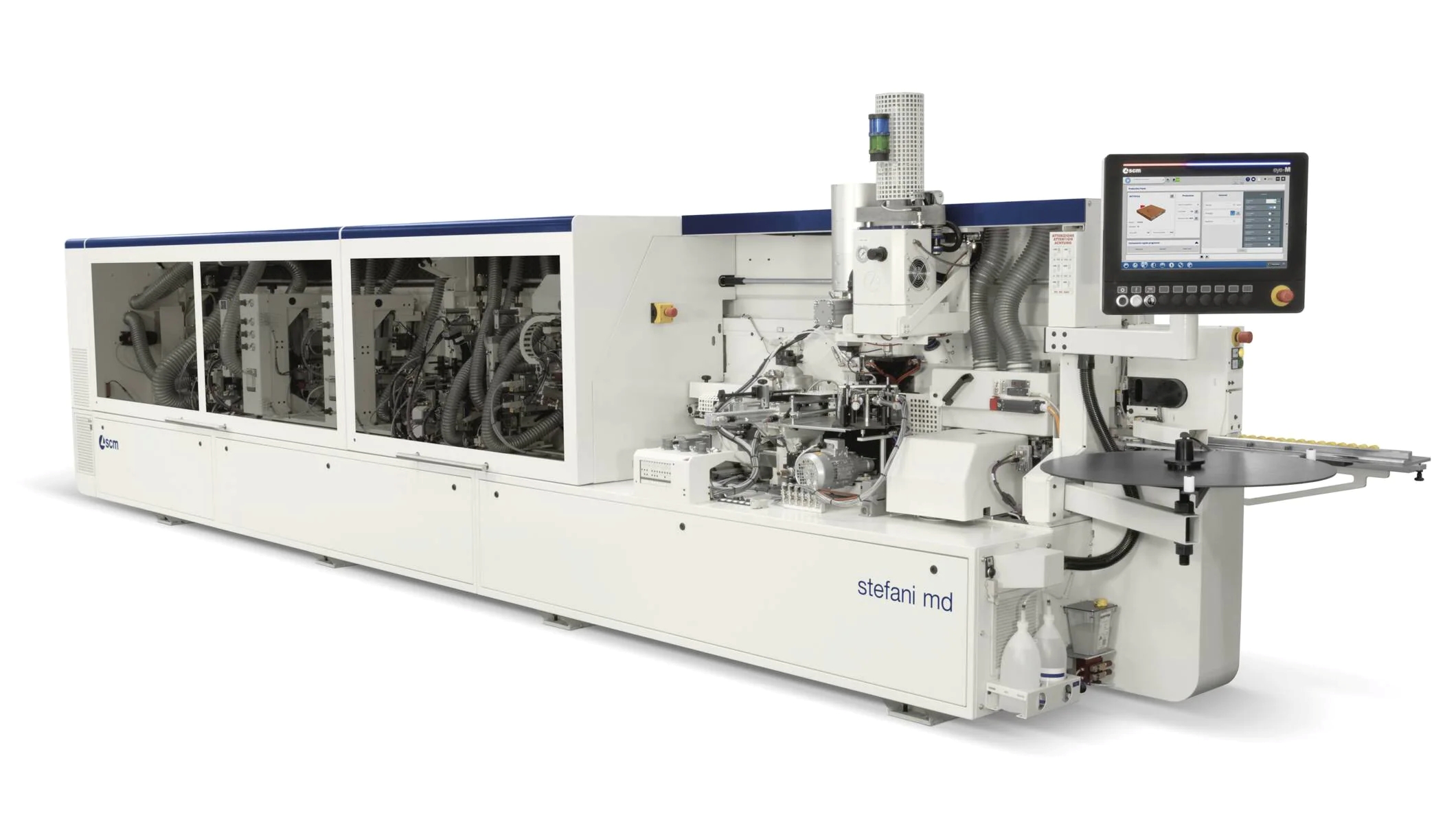

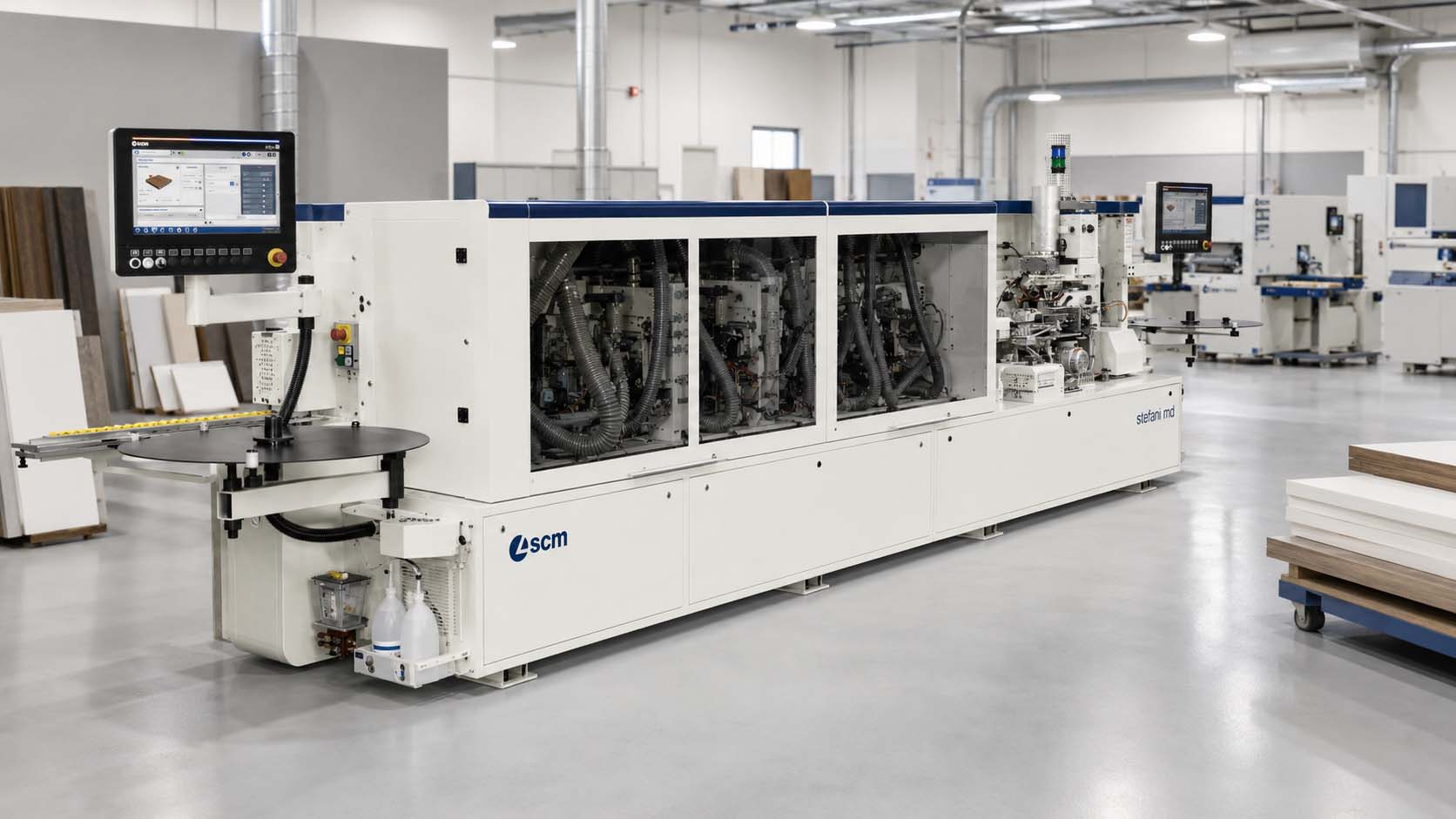

The SCM Stefani MD is an industrial single-sided automatic edgebander for production environments processing changing panel materials, edge types, glue requirements, and finishing programs throughout the day.
Its available technology package includes SGP Smart Glue Pot control, PU BOX L, EVA pre-melting, AirFusion+, three-radius finishing, and software-driven setup for repeatable mixed-panel production.
The machine is configured around the actual edge mix, glue strategy, machining-unit sequence, software workflow, return handling, automation requirements, and finish expectations of the panel department.
22 m/minStandard Maximum Feed Speed
15 mmStandard Maximum Edge Thickness
60 mmStandard Maximum Panel Thickness
3Automatic Finishing Radii
Capability Matrix
Production Modes
Configure the Stefani MD around mixed-panel edge application, glue-system control, finishing quality, and integrated panel flow.
Mode 01
Edge Application
Apply selected coil and heavy edge materials using the configured glue, pressure, and feed system.
Mode 02
Controlled Glue Application
Use SGP Smart Glue Pot technology and the selected PUR, EVA, pre-melt, or AirFusion+ package for the required joint strategy.
Mode 03
Trimming & Profile Processing
Complete end trimming, fine trimming, profile processing, and scraping through the selected machining-unit composition.
Mode 04
Three-Radius Finishing
Process changing radius programs with automatic multi-edge units and reduced manual adjustment between panel families.
Mode 05
Integrated Panel Flow
Plan return handling, barcode workflow, loading or unloading, and future flexible-cell integration around the production plan.
Production Advantages
Glue-System Control for Changing Panel Programs
The Stefani MD combines glue management, multi-radius finishing, and automation-ready production architecture for varied industrial panel runs.
SGP Smart Glue Pot
Smart glue-pot control supports controlled dosing and spreading for cleaner glue management and repeatable joint quality.
PU BOX L + EVA Pre-Melting
Configure the glue strategy around PUR durability, EVA practicality, colour matching, pre-melting, and job-change requirements.
AirFusion+ & Radius Automation
AirFusion+ and automatic three-radius finishing support premium decorative surfaces and changing edge programs where configured.
Equipment Range
Lineup Positioning
Stefani S
Modular Industrial Edgebanding
For flexible industrial edgebanding, multiple glue technologies, softforming capability, and an automation-ready production path.
Stefani M
Heavy-Duty Servo-Assisted Production
For heavy-duty edgebanding with servo-assisted setup, three-radius finishing, and flexible edgebanding-cell integration.
SCM Stefani MD
Mixed-Panel Glue-Control Platform
For continuous mixed-panel production where SGP control, PU and EVA flexibility, AirFusion+, radius automation, and changing job programs are central requirements.
Technical Specifications
SCM Stefani MD
Machine Profile
Manufacturer
SCM
Series / Model
Stefani MD
Machine Type
Industrial Single-Sided Automatic Edgebander
Primary Production Role
Mixed-panel continuous production with changing edge, glue, and radius programs
80 mm panel thickness and 22 mm edge thickness only where included in the quoted package
Feed & Utilities
Feed Speed
10–22 m/min standard; 25 m/min optional
Compressed Air
6 bar basis
Dust Extraction
Connection and airflow requirements confirmed by final machining-unit composition
Electrical
Voltage, phase, and CSA requirements confirmed by quote
Glue Systems
Glue Control
SGP Smart Glue Pot
PUR System
PU BOX L where configured
EVA Processing
EVA pre-melting where configured
Premium Joint Technology
AirFusion+ where configured
Machining & Finishing
Panel Preparation
Pre-milling according to selected composition
Edge Processing
End trimming, fine trimming, profile processing, and scraping by composition
Radius Finishing
Automatic three-radius finishing
Final Operations
Buffing, sanding, glue scraping, profile scraping, and grooving by composition
Control, Automation & Services
Operator Interface
eye-M console where configured
Software
Maestro active edge and barcode workflow where configured
Automation Path
Return conveyor, loading/unloading, flexible edgebanding cell, and future line integration
Support
Delivery, installation, commissioning, training, warranty, and service confirmed by quote
Production Environments
Where the Stefani MD Fits
For industrial panel departments that need mixed-material flexibility, controlled glue application, automatic finishing changes, and a scalable automation path.
Matte, textured, high-pressure laminate, decorative, high-gloss, and glue-line-sensitive panels used in furniture and casegoods.
Commercial Millwork & Automated Panel Flow
Office, retail, healthcare, hospitality, institutional, and fixture production with return handling, barcode flow, or future cell integration.
Mixed-Panel Edge Department
Coordinate glue, finish, software, and panel flow as one production system.
The Stefani MD becomes a complete production platform when glue technology, machining units, radius programs, controls, material handling, and software are selected together.
Its architecture supports changing panel materials, multiple edge types, demanding glue-line expectations, varied radii, and continuous mixed-panel production without reducing the machine to one fixed process.
Final configuration should confirm panel and edge ranges, SGP scope, PU BOX L, EVA pre-melting, AirFusion+, finishing-unit composition, software, barcode flow, return or loading systems, utilities, installation, training, and service support.
