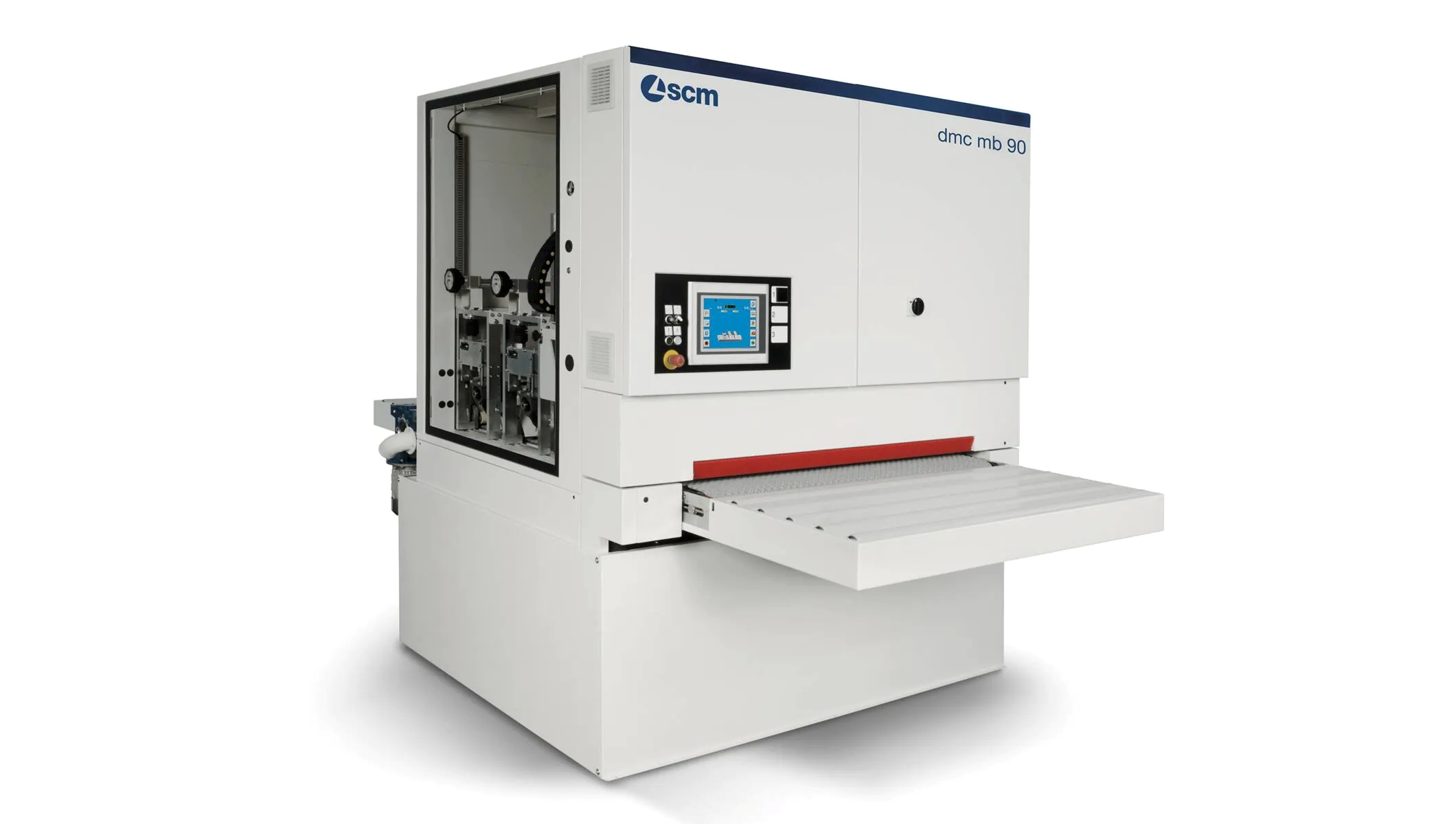

A professional automatic brushing and profile-sanding machine
for routed MDF, assembled cabinet doors, painted panels,
windows, skirting, matchboarding, mouldings, and profiled parts.
Controlled profile brushing, edge rounding, and finish preparation for routed, painted, and profiled components.
The SCM DMC MB90 automates brushing and profile sanding on
routed MDF, cabinet doors, painted panels, doors, windows,
mouldings, skirting, matchboarding, and other profiled parts.
DBB, BBB, and BB configurations combine brushing units and,
where specified, the DT17 oscillating disc unit to address
edge rounding, raised-fibre removal, profile cleanup, and
finish preparation.
Pro-Sand control, stored working programs, oscillating brush
units, and available vacuum support create a repeatable
machine process for jobs that would otherwise depend heavily
on manual sanding.
1350 mmWorking Width
2–16 m/minFeed Speed
300 mmBrush Diameter
120Stored Programs
Capability Matrix
One automatic brushing platform. Five focused finishing roles.
The DMC MB90 is configured around profile brushing, edge treatment, fibre removal, painted-part preparation, and repeat production.
Mode 01
Profile Brushing
Oscillating brush units reach routed details, shaped surfaces, mouldings, and profiles that are difficult to process consistently by hand.
Mode 02
Edge Rounding
The DT17 disc unit and brushing layouts support controlled edge softening on rough or painted panels and routed components.
Mode 03
Raised-Fibre Removal
Brushing units remove raised fibres from routed MDF, primed surfaces, profiled doors, and shaped parts before finishing.
Mode 04
Paint and Finish Preparation
Processes rough, primed, or painted components where consistent profile cleanup and surface preparation are required.
Mode 05
Repeat Programmed Production
Pro-Sand control with up to 120 stored jobs supports repeat setup across recurring doors, panels, profiles, and finishing programs.
Production Advantages
Designed around controlled profile access, repeatable brushing action, and efficient job recall.
The MB90 combines specialized working units and production controls for routed, painted, and profiled components.
DT17 Oscillating Disc Unit
Seventeen counter-rotating discs support edge rounding, profile access, and finish preparation on complex panel shapes.
Oscillating Brush Units
Inclination adjustment, lateral oscillation, and brush-rotation reversal support effective contact across changing profile geometry.
Pro-Sand Stored Programs
Electronic control with up to 120 working programs helps operators recall repeat jobs and manage production changes.
Equipment Range
Lineup Positioning
Two-Brush Configuration
DMC MB90 BB
Uses two brushing units for panels and components requiring a controlled brushing pass before finishing.
Three-Brush Configuration
DMC MB90 BBB
Uses three brushing units for raised-fibre removal and brushing painted profiled kitchen cabinet doors.
Disc + Brush Configuration
DMC MB90 DBB
Combines the sliding DT17 disc unit with two brushing units for edge rounding and brushing rough or painted panels.
Technical Specifications
DMC MB90
Machine Profile
ManufacturerSCM / DMC
SeriesDMC
ModelMB90
Machine TypeAutomatic brushing machine
Capacity and Feed
Working Width1350 mm
Working Thickness3–170 / 200 mm
Feed Speed2–16 m/min
VersionsDBB / BBB / BB
Working Units
Disc UnitDT17
Disc Count17 counter-rotating
Brush Diameter300 mm
Brush OscillationIncluded
Control System
SystemPro-Sand
Display5.7 or 10.4 inch
Working ProgramsUp to 120
Primary PurposeProfile and finish preparation
Production Features
Edge RoundingSupported
Raised-Fibre RemovalSupported
Profile SandingSupported
Paint PreparationSupported
Available Support Equipment
Vacuum TableOptional
Table BeltDiamond-pattern natural rubber
Cleaning BlowersRotating system available
UtilitiesConfirm electrical and dust collection
Production Environments
Where the DMC MB90 Fits
An automatic brushing and profile-sanding machine for routed MDF, cabinet doors, profiles, windows, joinery, and finishing preparation.
Cabinet-Door and MDF-Door Shops
Supports routed fronts, painted shaker doors, applied-profile doors, MDF components, and raised-fibre removal before finishing.
Fits joinery producers and finishing operations reducing hand sanding around profiles, edges, routed details, and painted surfaces.

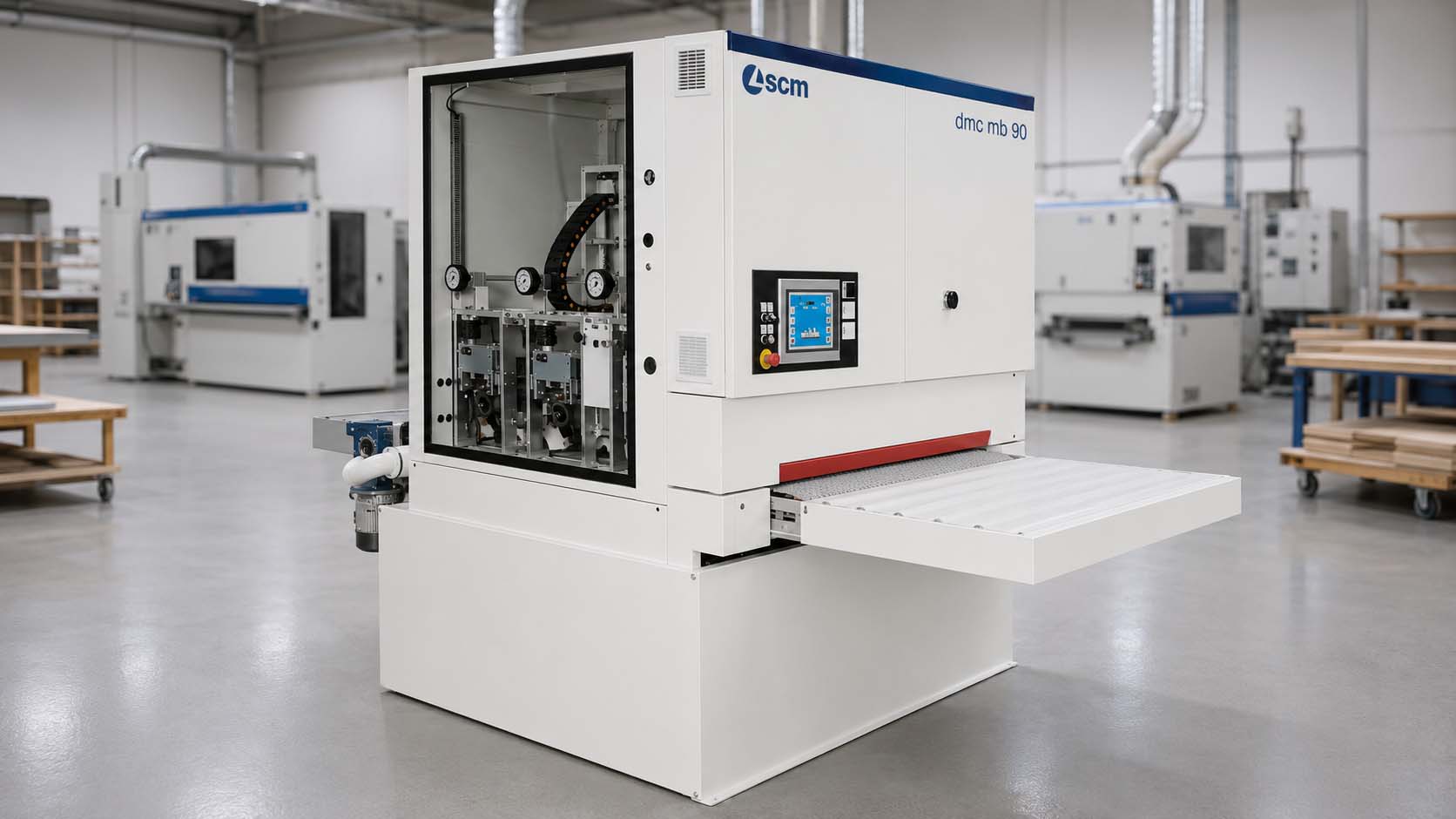

Automatic Brushing · Profile and Edge Preparation
A compact finishing station that turns difficult profile sanding into a more controlled production step.
The DMC MB90 combines oscillating brushes, available disc processing,
programmed setup, and controlled workpiece feed in an enclosed machine
designed for routed, painted, and profiled components.
Its working-unit configurations allow the process to be tuned for
edge rounding, raised-fibre removal, profile brushing, paint preparation,
and repeat jobs across doors, panels, mouldings, and joinery parts.
For manufacturers trying to reduce variation around profiles and edges,
the MB90 creates a clearer relationship between workpiece preparation,
brushing sequence, machine settings, and finish-ready output.
