A compact single-sided automatic edgebander for small shops requiring professional edge quality, 7 m/min feed speed, 5 mm strip-edge capability, combined end cutting and corner rounding, and reduced manual finishing.
Compact professional edgebanding with integrated corner-finishing capability.

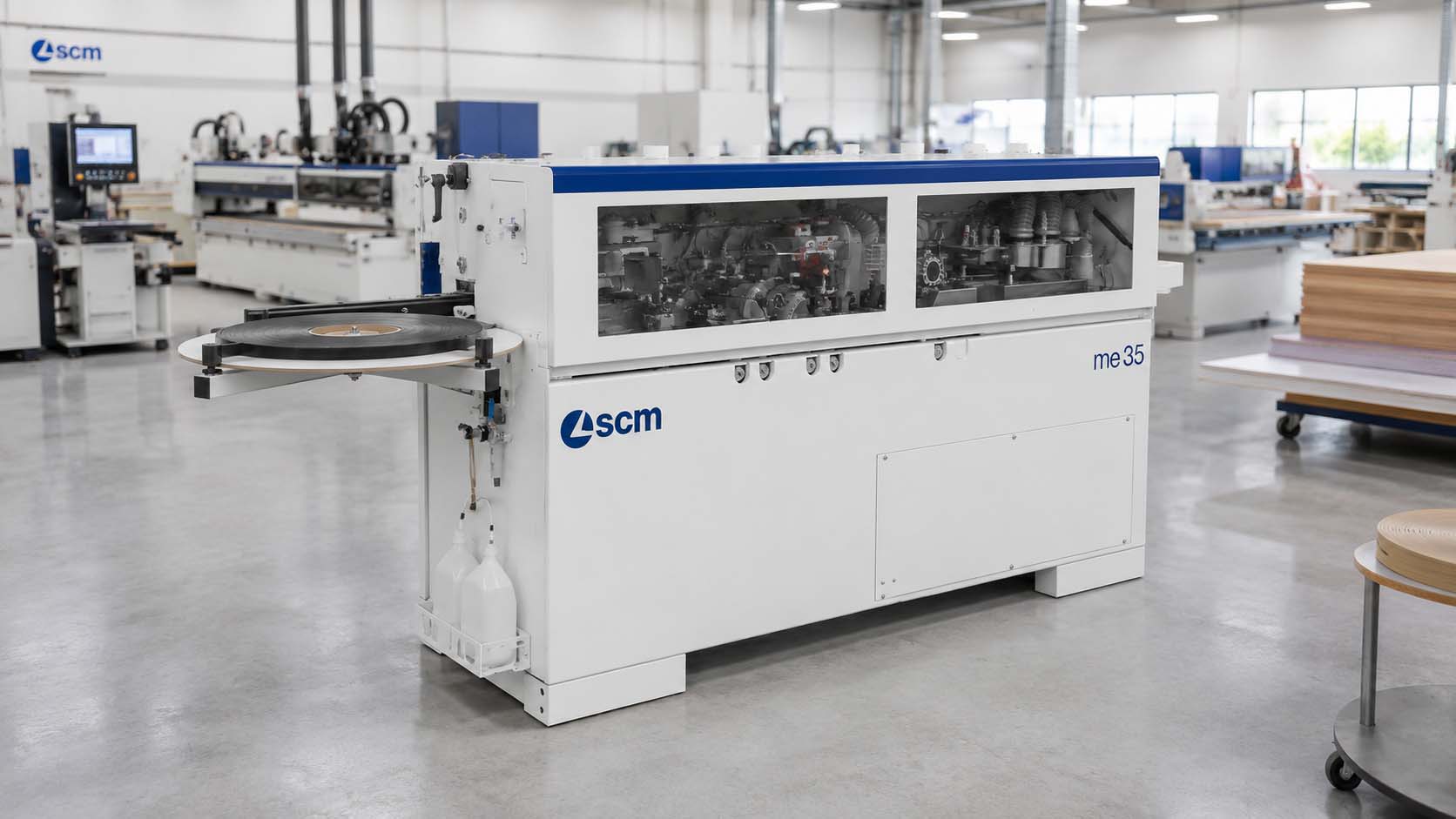

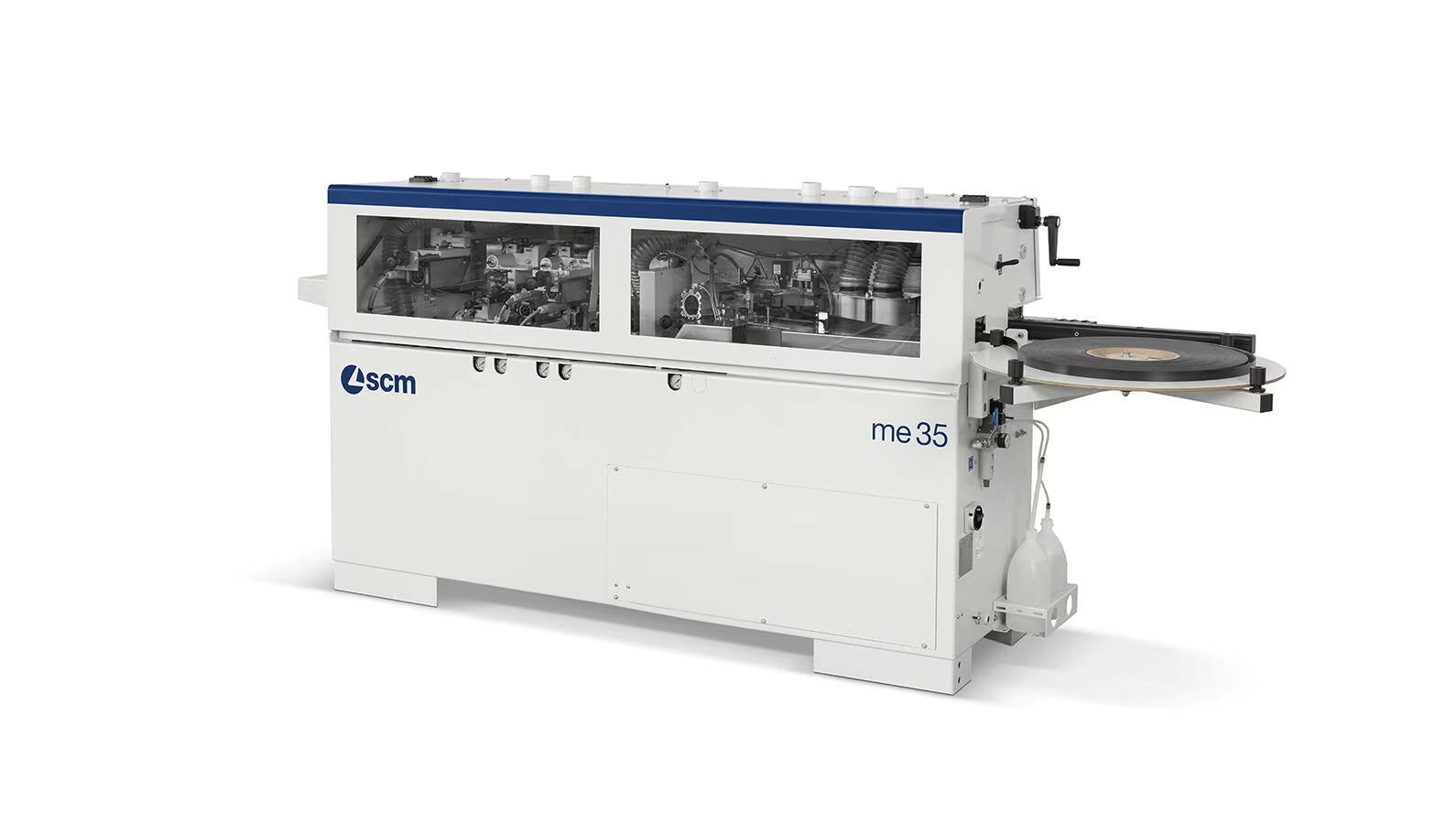

The SCM ME 35 is a compact automatic edge bander for cabinet, closet, furniture, casegoods, custom woodworking, light commercial millwork, and panel-processing shops that need cleaner finished panels without stepping into a larger production platform.
Its supplied working data includes 7 m/min feed speed, 8–50 mm panel height, 0.4–3 mm rolled edge thickness, 5 mm strip edge capacity, and a 3000 × 525 mm worktable.
The combined end-cutting and corner-rounding unit, pre-milling, profile scraping, glue scraping, buffing, PUR-compatible glue equipment, interchangeable pots, double thermoregulation, eye-S Compact, and Maestro active edge depend on the quoted configuration.
7 m/minFeed Speed
5 mmStrip Edge Capacity
50 mmMaximum Panel Height
120 / 110 mmMinimum With End Cut / Rounding
Capability Matrix
Production Modes
Configure the ME 35 around the shop’s edge materials, corner-finishing requirements, glue process, and selected finishing units.
Mode 01
Rolled & Strip Edge Application
Apply 0.4–3 mm rolled edge and process strip edge up to 5 mm through the selected machine package.
Mode 02
End Cutting & Trimming
Complete end cutting and top/bottom trimming for repeatable panel-edge geometry and cleaner transitions.
Mode 03
Combined Corner Rounding
The combined end-cutting and rounding unit supports thin and thick edges up to 3 mm where configured.
Mode 04
Scraping & Buffing
Profile scraping, glue scraping, and buffing units reduce visible residue and secondary hand finishing.
Mode 05
Glue-System Flexibility
Configure EVA or PUR-compatible glue equipment, interchangeable pots, spare pots, and double thermoregulation around the application.
Production Advantages
Cleaner Corners and Finished Edges in a Compact Platform
The ME 35 combines a manageable footprint with professional corner processing, guided operation, and practical edge-material flexibility.
Combined End Cutting & Rounding
The combined unit brings automatic corner finishing into a compact machine and reduces the amount of manual cleanup required after edging.
5 mm Strip-Edge Capability
The verified strip-edge value broadens the machine beyond thin coil programs when the required configuration is included.
eye-S Compact Operation
The available 10-inch touchscreen and Maestro active edge interface give operators graphical access to machine functions.
Equipment Range
Lineup Positioning
Compact Entry
SCM ME 25 / ME 28T
For lighter production and simpler edge-finishing requirements.
Compact Upgrade
SCM ME 30-Class Workflow
For shops increasing automatic edge-processing capability before adding the ME 35 corner-finishing package.
SCM ME 35
Compact Automatic Edgebanding With Corner Rounding
For 7 m/min production, 5 mm strip edge, combined end cutting and rounding, graphical control, and package-dependent glue flexibility.
Technical Specifications
SCM ME 35
Machine Profile
Manufacturer
SCM
Model
ME 35
Machine Type
Compact Automatic Glue-Pot Edge Bander
Primary Role
Automatic panel edgebanding with combined end cutting and corner rounding
Working Area & Panel Capacity
Published Worktable
3000 × 525 mm
Panel Height
8–50 mm
Minimum Panel Length / Width
190 / 110 mm
Minimum With End Cutting / Rounding
120 / 110 mm
Edge & Feed Data
Rolled Edge Thickness
0.4–3 mm
Strip Edge Thickness
5 mm
Feed Speed
7 m/min
Rounding Range
Thin and thick edges up to 3 mm where configured
Control & Interface
Control
eye-S Compact console
Screen
10-inch touchscreen
Software
Maestro active edge
Setup Support
Corner-rounding and selected operating-unit control by configuration
Machining & Finishing
Pre-Milling
Available by selected package
Edge Processing
Top/bottom trimming, combined end cutting and corner rounding by composition
Finishing
Profile scraping, glue scraping, and buffing where equipped
Additional Units
Exact operating-unit sequence confirmed by quote
Glue, Utilities & Support
Glue System
EVA; PUR-compatible options, interchangeable pot, spare pot, and double thermoregulation by package
Compressed Air
6 bar basis
Dust Extraction
Connections and airflow confirmed by final operating-unit composition
Support
Electrical and CSA review, delivery, installation, startup, training, warranty, and service confirmed by quote
Production Environments
Where the ME 35 Fits
For compact production departments requiring automatic edging, cleaner finished corners, practical strip-edge capacity, and less secondary hand work.
Move panels from edge application to cleaner finished corners in one machine.
The ME 35 gives smaller production shops a structured automatic workflow for edge application, trimming, combined end cutting and corner rounding, scraping, and buffing.
Its compact footprint and available graphical control package make it suitable for shops improving panel quality without moving immediately into a larger Olimpic or Stefani platform.
Final configuration should confirm panel and edge ranges, operating-unit sequence, 5 mm strip edge, pre-milling, combined end cutting and rounding, scraping, buffing, EVA or PUR glue equipment, interchangeable or spare pots, double thermoregulation, eye-S Compact, Maestro active edge, extraction, compressed air, electrical service, CSA requirements, installation, training, and support.
