A compact single-sided automatic edgebander for small shops moving into professional edge quality, repeatable setup, EVA or PUR glue flexibility, and approachable touchscreen control.
Professional automatic edgebanding in a compact small-shop platform.

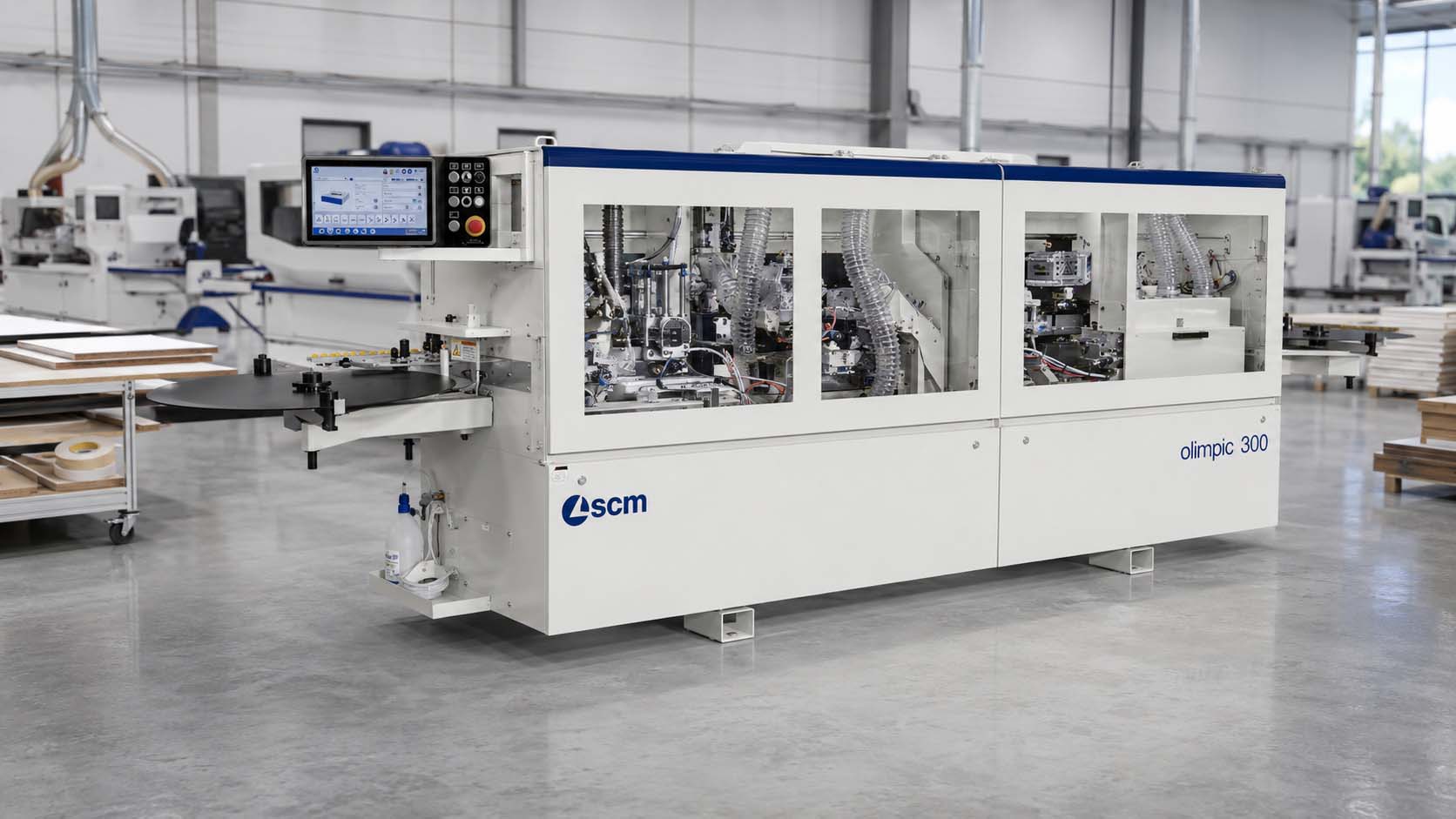

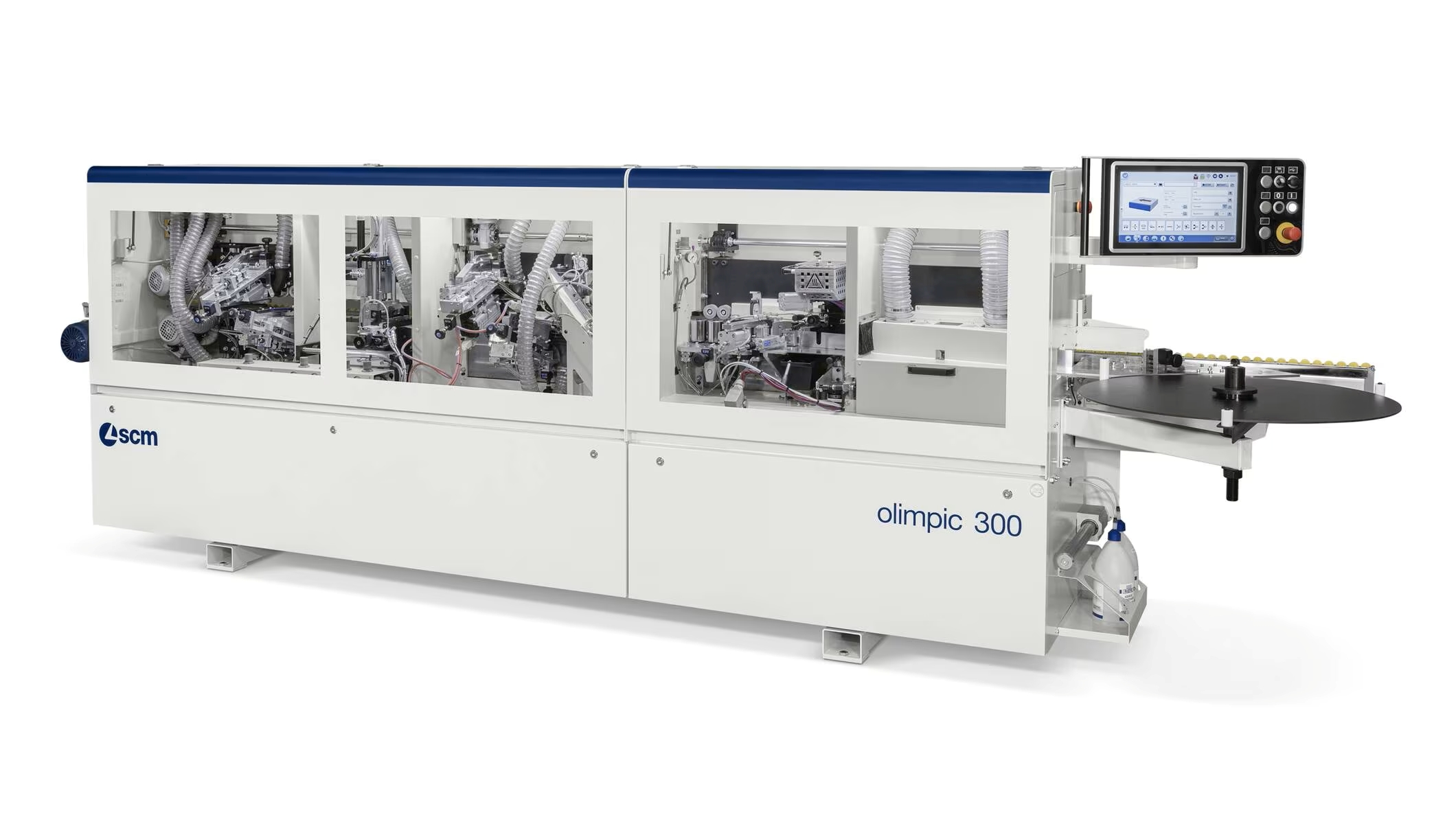

The SCM Olimpic 300 is a compact single-sided automatic edge bander for cabinet, closet, furniture, casegoods, custom woodworking, and light commercial millwork shops moving beyond manual or very small edge-processing systems.
Its core working range includes 0.3–3 mm official edge thickness, 8–60 mm panel thickness, a 70 mm minimum panel width, 10 m/min feed speed, and a 6 bar compressed-air basis.
SGP-E glue-pot capability, EVA and PUR operation, two-radius setup, numeric indicators, eye-S Compact control, Maestro active edge, pre-milling, corner rounding, and extended 6 mm edge capacity are configuration-dependent and must be confirmed with the quoted package.
10 m/minFeed Speed
3 mmOfficial Maximum Edge
60 mmVerified Panel Thickness
70 mmMinimum Panel Width
Capability Matrix
Production Modes
Configure the Olimpic 300 around common small-shop edge materials, glue requirements, finishing programs, and operator setup needs.
Mode 01
Edge Application
Apply thin and standard edge materials within the official 0.3–3 mm range, with extended values confirmed by package.
Mode 02
EVA & PUR Glue Workflows
Use the configured SGP-E glue pot for standard EVA production or PUR applications requiring a different bond strategy.
Mode 03
Trimming & Scraping
Complete end trimming, fine trimming, profile work, scraping, and buffing through the selected operating units.
Mode 04
Two-Radius Adjustment
Numeric indicators support repeatable changeover between two radii, thin edges, and selected solid-wood edge programs.
Mode 05
Touchscreen Operation
eye-S Compact with Maestro active edge provides an approachable control path where included in the machine configuration.
Production Advantages
A Practical First Step Into Professional Automatic Edgebanding
The Olimpic 300 combines compact construction, glue flexibility, guided setup, and modern operator control for growing small-shop production.
SGP-E Glue-Pot Flexibility
The selected SGP-E package supports EVA and PUR glue through one glue-pot workflow with controlled dosing and spreading.
Guided Two-Radius Setup
Numeric indicators help operators reproduce settings for two radii, thin edges, and selected solid-wood edge work.
eye-S Compact Control
The available touchscreen and Maestro active edge interface keep daily operation accessible without turning the machine into a complex industrial cell.
Equipment Range
Lineup Positioning
Manual / Compact
Manual Edging or Basic Compact Systems
For occasional work, simple edge programs, and very light production demand.
Automatic Entry
SCM ME / K-Series Platform
For smaller automatic workflows and a focused first step into SCM edgebanding.
SCM Olimpic 300
Entry Professional Automatic Edgebanding
For 10 m/min production, EVA or PUR glue options, two-radius adjustment, modern control, and professional finished-edge quality.
Technical Specifications
SCM Olimpic 300
Machine Profile
Manufacturer
SCM
Series / Model
Olimpic 300
Machine Type
Single-Sided Automatic Edge Bander
Primary Role
Entry professional automatic edgebanding for small-shop panel production
Panel & Edge Capacity
Official Edge Thickness
0.3–3 mm
Extended Edge Value
6 mm shown in legacy source; confirm exact variant and package
Panel Thickness
8–60 mm verified in source summary; 70 mm appears in legacy table and requires confirmation
Minimum Panel Width
70 mm
Feed & Utilities
Feed Speed
10 m/min
Compressed Air
6 bar basis
Dust Extraction
Connections and airflow confirmed by final operating-unit composition
Electrical
Voltage, phase, power draw, and CSA requirements confirmed by quote
Glue System
Glue Pot
SGP-E glue pot; confirm selected package
Glue Compatibility
EVA / PUR where configured
Glue Application
Controlled dosing and dedicated spreading roller
Glue Package
Pot type, glue colour, maintenance equipment, and changeover process confirmed by quote
Machining & Finishing
Panel Preparation
Pre-milling where included in the selected composition
Edge Processing
End trimming, fine trimming, scraping, and buffing by composition
Radius Capability
Two radii with numeric indicators and dedicated tools where configured
Corner Rounding
Available by machine version and working-unit composition
Controls, Variants & Support
Operator Interface
eye-S Compact touchscreen where configured
Software
Maestro active edge where configured
Variant Naming
Olimpic 300 / 300B / 300TE / 300ERT; exact generation and package confirmed by quote
Support
Delivery, installation, commissioning, training, warranty, and service confirmed by quote
Production Environments
Where the Olimpic 300 Fits
For smaller production departments requiring professional edge quality, repeatable automatic processing, and practical glue-system flexibility.
Closet shelving, partitions, wardrobe components, garage storage parts, panel furniture, fronts, and small repeat batches.
Light Commercial Millwork & Custom Work
Office, retail, institutional, renovation, architectural casework, and custom woodworking where professional edge quality matters.
Professional Small-Shop Edge Department
Replace inconsistent manual edging with a repeatable automatic workflow.
The Olimpic 300 gives small production shops a structured edgebanding process for common panel and edge materials without requiring the footprint or complexity of a larger production line.
Its available glue, finishing, and control packages support shops that need cleaner visible edges, repeatable setup, and a more professional operator workflow.
Final configuration should confirm exact machine generation, panel and edge ranges, SGP-E glue package, EVA or PUR requirements, two-radius tooling, pre-milling, corner rounding, eye-S Compact, Maestro active edge, dust extraction, compressed air, electrical service, CSA requirements, installation, training, and support.
