A compact single-sided automatic edgebander for small-to-medium shops requiring 9 m/min production, corner rounding, professional finishing, and flexible glue and grooving packages.
Compact production edgebanding with stronger finishing capability.

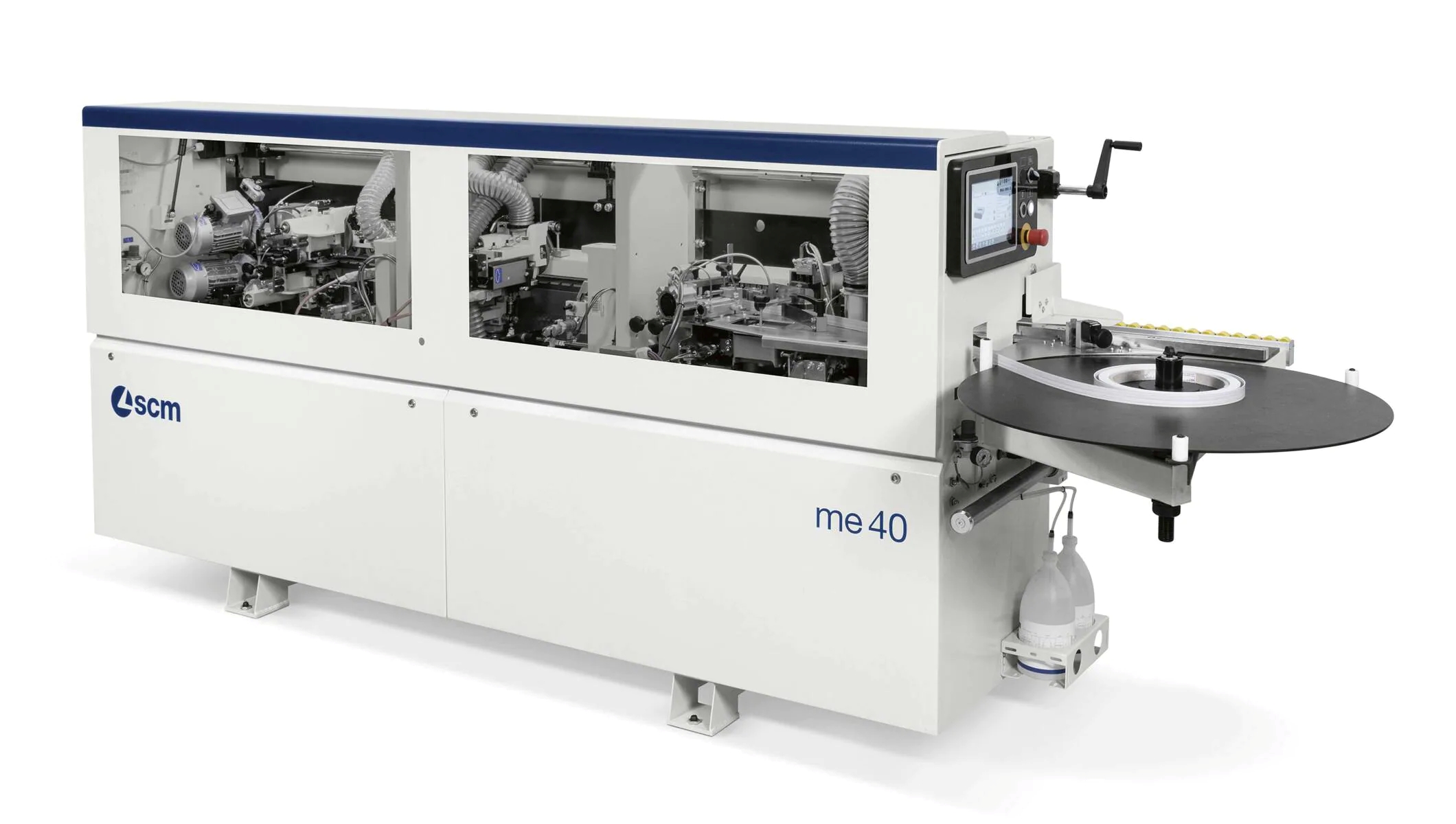

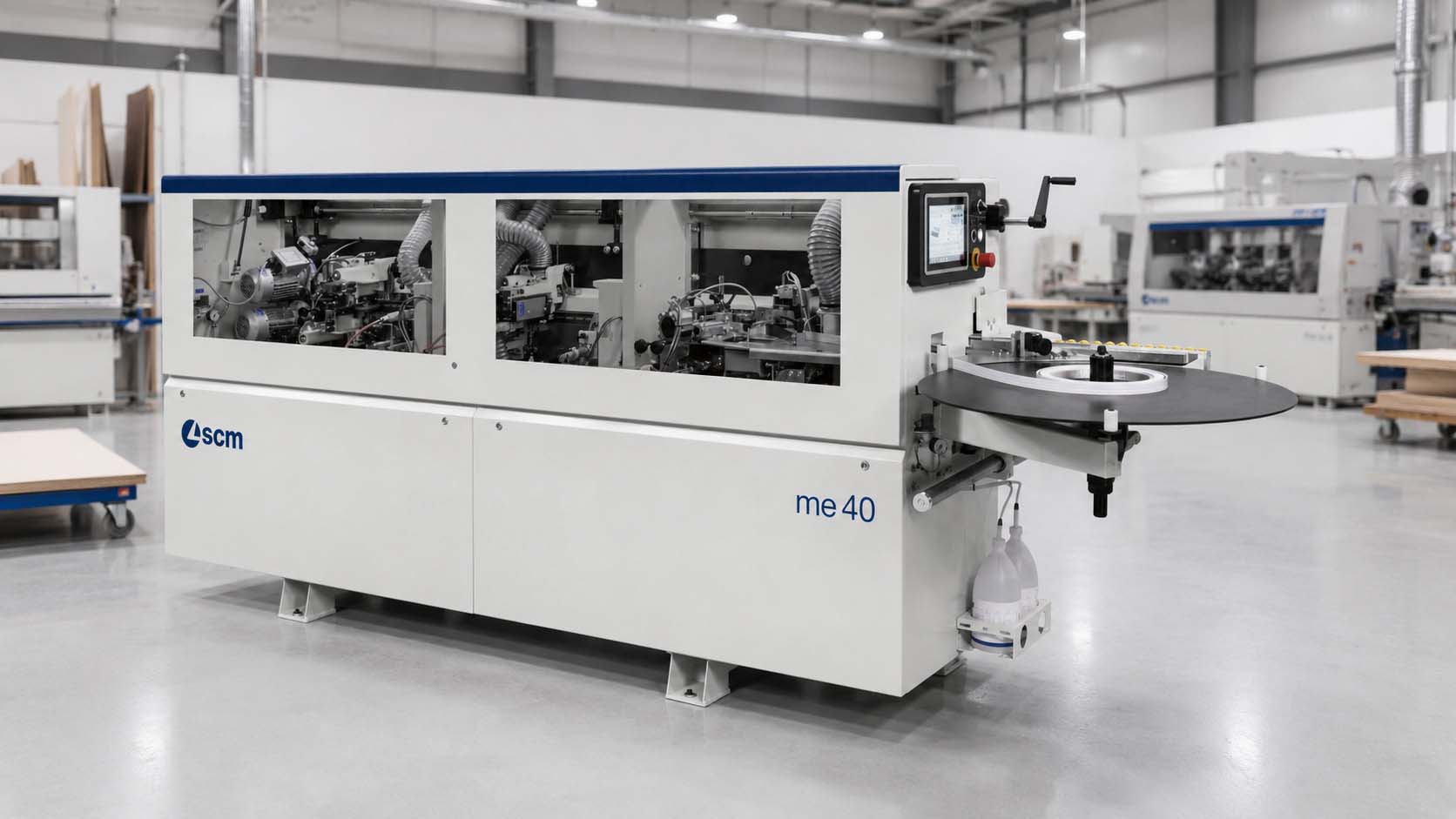

The SCM ME 40 is a compact automatic edge bander for cabinet, closet, furniture, casegoods, light commercial millwork, and panel-processing shops requiring cleaner finished panels without moving into a larger production-class platform.
Its supplied working data includes 9 m/min feed speed, 8–50 mm panel height, 0.4–3 mm rolled edge thickness, 5 mm strip edge capacity, and minimum panel dimensions of 190 mm long by 110 mm wide.
Pre-milling, PUR capability, spare glue pots, double thermoregulation, grooving, rounding, scraping, buffing, eye-S Compact control, and Maestro active edge depend on the selected configuration and must be confirmed with the quoted package.
9 m/minFeed Speed
0.4–3 mmRolled Edge Range
8–50 mmPanel Height
190 / 110 mmMinimum Length / Width
Capability Matrix
Production Modes
Configure the ME 40 around the shop’s edge materials, finishing requirements, glue process, and optional machining units.
Mode 01
Rolled & Strip Edge Application
Apply 0.4–3 mm rolled edge and process 5 mm strip edge through the appropriate machine configuration.
Mode 02
End & Top/Bottom Trimming
Complete the selected end-cutting and top/bottom trimming sequence for consistent panel-edge geometry.
Mode 03
Corner Rounding
The configured rounding unit processes thin and thick edges up to 3 mm for cleaner finished corners.
Mode 04
Scraping & Buffing
Edge scraping, glue scraping, and buffing units reduce visible residue and manual finishing where included.
Mode 05
PUR & Grooving Flexibility
Configure PUR-compatible glue equipment, spare pots, thermoregulation, and grooving around the production requirement.
Production Advantages
Higher Compact Productivity With Ready-to-Use Finishing
The ME 40 combines a manageable footprint with stronger feed speed, rounding, finishing, and configuration flexibility than a basic compact machine.
9 m/min Compact Production
The verified feed speed supports recurring daily panel programs while retaining a compact machine format.
Corner Rounding & Finishing
Rounding, scraping, and buffing options support cleaner panels directly from the machine and reduce secondary touch-up.
eye-S Compact Control
The available 10-inch touchscreen and Maestro active edge interface provide graphical access to machine functions.
Equipment Range
Lineup Positioning
Compact Entry
SCM ME 25 / ME 28T
For lighter production and simpler edge-finishing requirements.
Compact Production
SCM ME 35
For growing shops requiring additional compact-machine capability before the ME 40 configuration level.
SCM ME 40
High-Capability Compact Edgebanding
For 9 m/min production, corner rounding, 5 mm strip edge, PUR and grooving options, and stronger finishing packages.
Technical Specifications
SCM ME 40
Machine Profile
Manufacturer
SCM
Model
ME 40
Machine Type
Compact Automatic Glue-Pot Edge Bander
Primary Role
Small-to-medium automatic panel edgebanding and finishing
Working Area & Panel Capacity
Published Worktable
3465 × 710 mm
Panel Height
8–50 mm
Minimum Panel Length
190 mm
Minimum Panel Width
110 mm
Edge & Feed Data
Rolled Edge Thickness
0.4–3 mm
Strip Edge Thickness
5 mm
Feed Speed
9 m/min
Rounding Range
Thin and thick edges up to 3 mm where configured
Control & Interface
Control
eye-S Compact console
Screen
10-inch touchscreen
Software
Maestro active edge
Setup
Machine functions and selected operating units managed by configuration
Machining & Finishing
Pre-Milling
Available by selected package
Edge Processing
End cutting, top/bottom trimming, rounding, scraping, and buffing by composition
Finishing
Edge scraping and glue scraping where equipped
Grooving
Available by machine package
Glue, Utilities & Support
Glue System
EVA; PUR-compatible options, spare PUR pot, and double thermoregulation by package
Compressed Air
6 bar basis
Dust Extraction
Connections and airflow confirmed by final operating-unit composition
Support
Electrical and CSA review, delivery, installation, startup, training, warranty, and service confirmed by quote
Production Environments
Where the ME 40 Fits
For compact production departments requiring stronger feed speed, rounded corners, reduced hand finishing, and flexible glue or grooving options.
Improve corner quality and finishing without oversizing the machine.
The ME 40 provides a structured automatic workflow for shops that need stronger compact-machine output and cleaner finished panels.
Its rounding, scraping, buffing, glue, and optional grooving capabilities can be configured around the materials and production programs being processed.
Final configuration should confirm panel and edge ranges, operating-unit sequence, 5 mm strip edge, pre-milling, rounding, scraping, buffing, grooving, EVA or PUR glue equipment, spare pot, thermoregulation, eye-S Compact, Maestro active edge, extraction, compressed air, electrical service, CSA requirements, installation, training, and support.
