An industrial automatic edgebander for continuous small- and large-batch panel production with SGP Smart Glue Pot control, EVA and polyurethane glue capability, automatic two-radius setup, and solid-wood edge processing up to 12 mm.
Industrial Stefani edge quality for changing panel programs and repeat production.

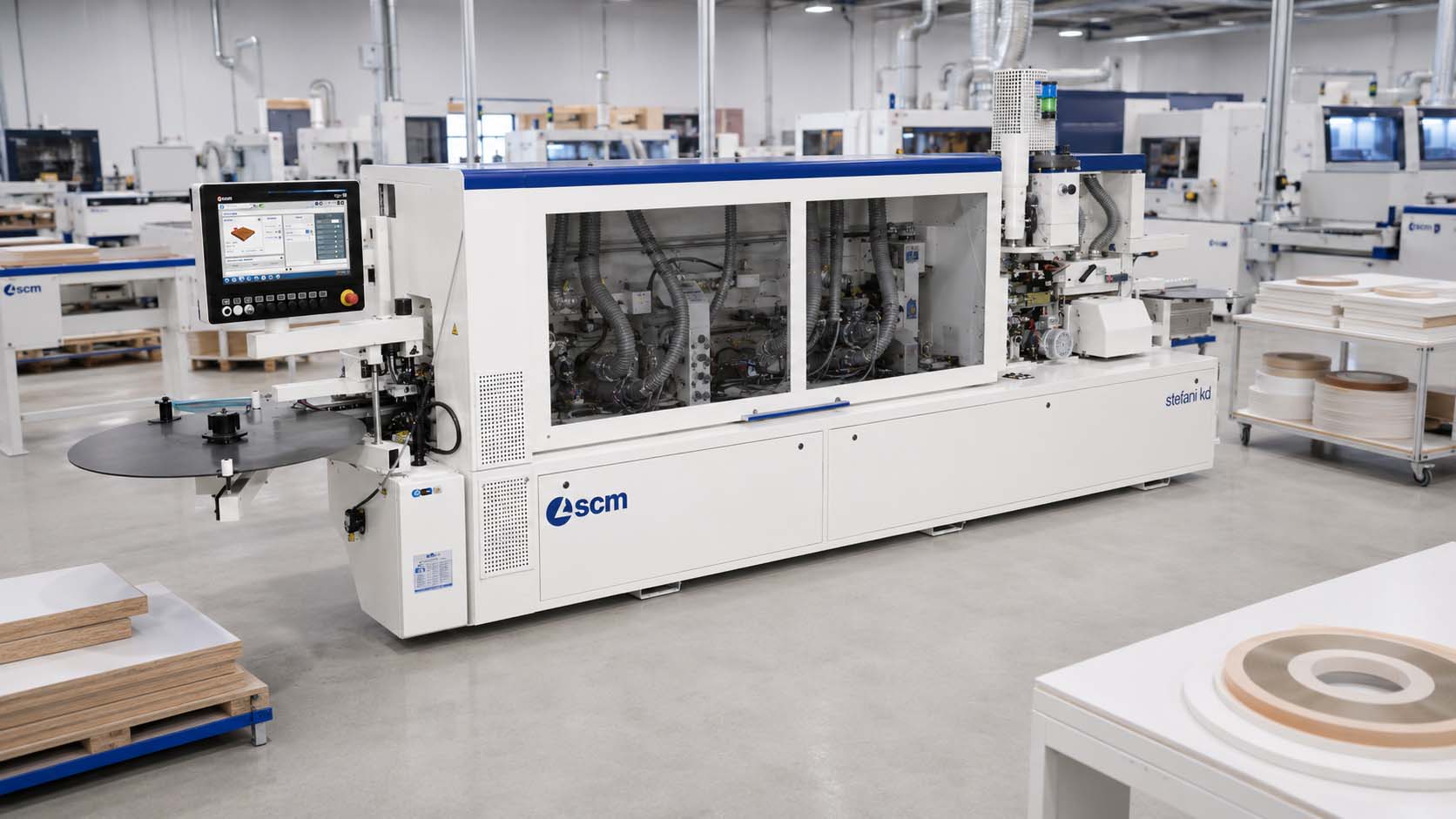

The SCM Stefani KD is a single-sided automatic edgebander for companies producing many panels in both small and large batches, with a practical balance of industrial construction, glue control, and automatic finishing setup.
Its SGP Smart Glue Pot supports EVA and polyurethane glues, while electronically controlled machining units allow automatic setup for two different radii, thin edges, and solid-wood edge material up to 12 mm.
The final machine composition is selected around panel and edge materials, glue strategy, machining units, finish expectations, production volume, utilities, and any return-handling or future automation requirements.
20 m/minMaximum Feed Speed
60 mmMaximum Panel Thickness
12 mmMaximum Edge Thickness
2Automatic Finishing Radii
Capability Matrix
Production Modes
Configure the Stefani KD around the edge materials, glue requirements, finishing sequence, and production flow used in the shop.
Mode 01
Edge Application
Apply thin edges, common cabinet edging, and solid-wood edge material up to 12 mm using the selected machine package.
Mode 02
SGP Glue Control
Use the SGP Smart Glue Pot for controlled spreading and dosing with EVA or polyurethane glue.
Mode 03
Trimming & Profile Processing
Complete end trimming, fine trimming, profile processing, and scraping through the selected operating-unit composition.
Mode 04
Two-Radius Finishing
Electronically controlled multi-edge units support automatic setup for two different radii and thin-edge programs.
Mode 05
Delicate-Surface Handling
A polyurethane pressure-belt solution supports panels with delicate surfaces or protective film where configured.
Production Advantages
Industrial Glue and Finish Control Without Unnecessary Complexity
The Stefani KD focuses on the production functions that matter most when a shop moves beyond compact automatic edgebanding.
SGP Smart Glue Pot
A special spreading roller and controlled dosing support a clean, repeatable glue line, with EVA and polyurethane compatibility.
Electronic Two-Radius Setup
Electronic axes allow automatic setup for two different radii, helping reduce manual adjustment between common edge programs.
Delicate Panel Support
The available polyurethane pressure belt supports consistent edgebanding on delicate surfaces and panels with protective film.
Equipment Range
Lineup Positioning
Compact Automatic
Olimpic / Compact Edgebanding
For lower-volume production where compact footprint and practical automatic edge processing are the main requirements.
SCM Stefani KD
Industrial Entry Platform
For small- and large-batch production requiring SGP glue control, EVA and polyurethane flexibility, and automatic two-radius setup.
Advanced Stefani
Stefani MD / M / S / One
For broader glue technologies, higher speed, deeper servo control, more radii, softforming, or more extensively integrated panel flow.
Technical Specifications
SCM Stefani KD
Machine Profile
Manufacturer
SCM
Series / Model
Stefani KD
Machine Type
Industrial Single-Sided Automatic Edgebander
Production Role
Continuous small- and large-batch panel edgebanding
Panel & Edge Capacity
Panel Thickness
8–60 mm
Edge Thickness
0.4–12 mm
Edge Capability
Thin edges and solid wood up to 12 mm
Final Material Range
Edge materials and optional package confirmed by quote
Feed & Utilities
Feed Speed
10–20 m/min
Compressed Air
6 bar
Dust Extraction
Connection and airflow confirmed by final operating-unit composition
Electrical
Voltage, phase, and CSA requirements confirmed by quote
Glue System
Glue Pot
SGP Smart Glue Pot
Glue Compatibility
EVA and polyurethane
Glue Dosing
Controlled spreading roller and dosing
Glue Changeover
Fast glue changeover; package and procedure confirmed by quote
Machining & Finishing
Automatic Setup
Electronic axes for 2 different radii
Edge Processing
End trimming, trimming, scraping, and final units by composition
Corner Rounding
Selected corner-rounding package confirmed by quote
Delicate Surfaces
Polyurethane pressure belt where configured
Control, Configuration & Services
Control Package
Operator interface, electronic axes, and software confirmed by composition
Material Handling
Standalone, return conveyor, or future line integration confirmed by quote
Operating Units
Pre-milling, gluing, trimming, rounding, scraping, and buffing selected by application
Support
Delivery, installation, commissioning, training, warranty, and service confirmed by quote
Production Environments
Where the Stefani KD Fits
For panel-processing departments that need true industrial edgebanding without moving immediately into the highest levels of Stefani automation.
Office, retail, healthcare, hospitality, institutional, and architectural casework where visible edge consistency matters.
Industrial Edge Department
Build the machine around the panel mix and finishing sequence.
The Stefani KD is most effective when glue technology, edge materials, operating units, radius programs, and production flow are selected together.
Its SGP system and automatic two-radius setup support shops processing recurring panel families while changing edge materials and finishing requirements throughout the day.
Final configuration should confirm panel and edge ranges, EVA and polyurethane scope, operating-unit sequence, delicate-surface requirements, software, return handling, dust extraction, compressed air, electrical service, installation, training, and support.
