A compact four-spindle automatic planer and throughfeed moulder for clean four-sided planing, repeatable S4S stock, light profiling, cabinet components, furniture parts, millwork stock, door and window components, stair parts, and solid-wood production flow.
The compact SCM entry point into automatic four-sided planing and light profile production.

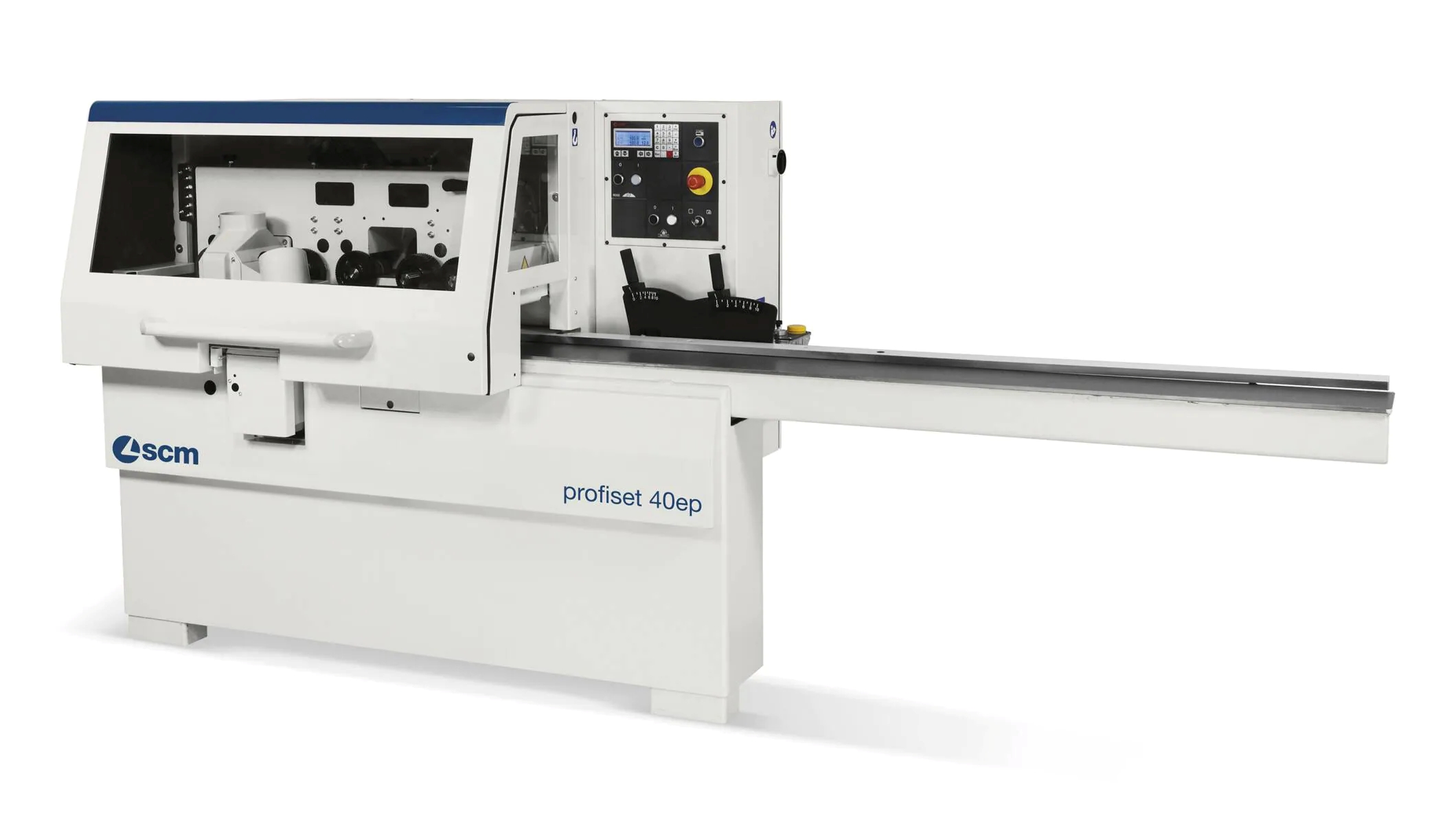

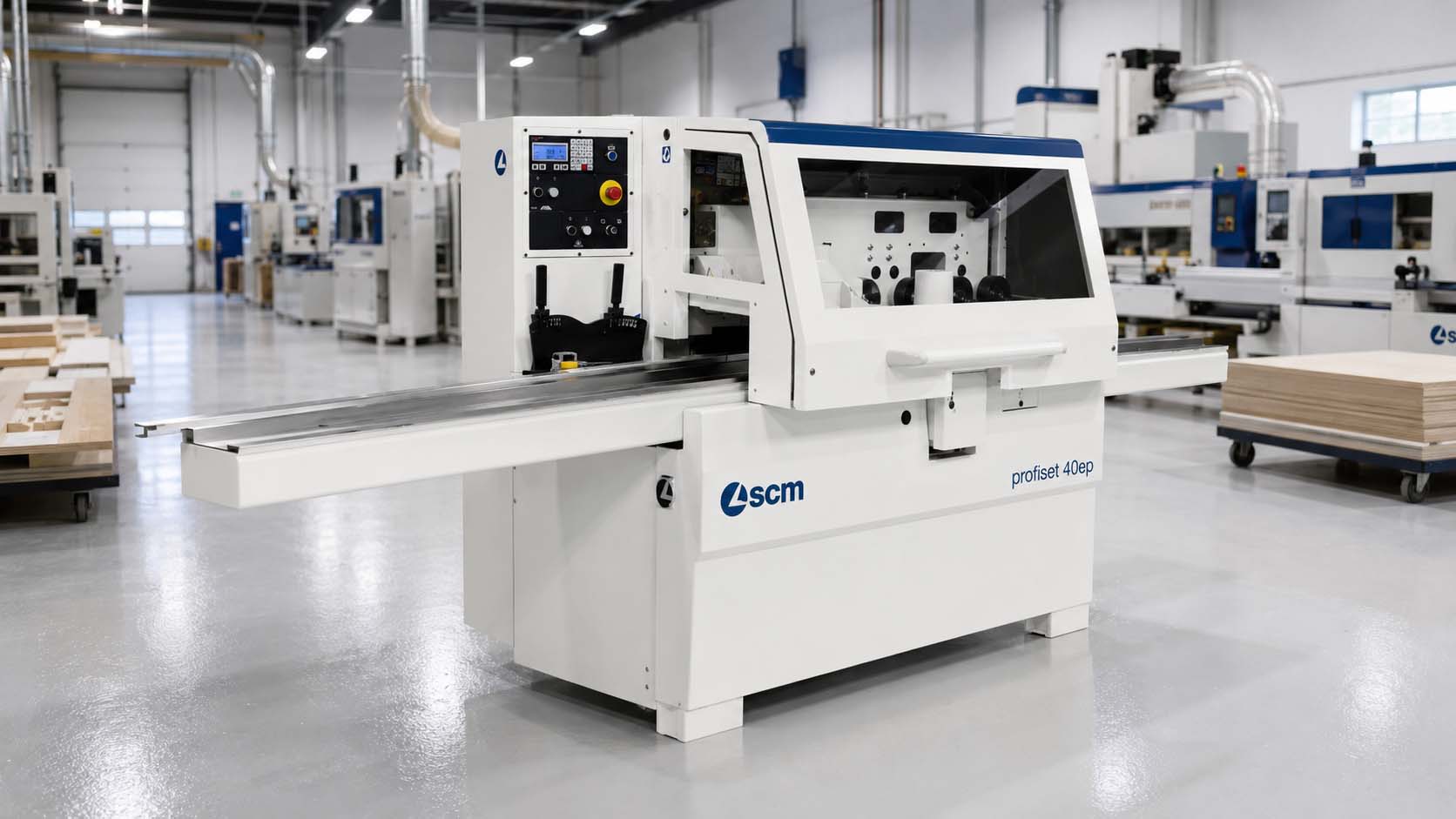

The SCM Profiset 40 is designed for shops that need more consistency and less handling than a traditional manual surfacing workflow can provide.
Its four-spindle throughfeed layout combines four-sided planing with limited profiling through the vertical spindles, making it suitable for S4S stock, face-frame components, furniture parts, trim stock, beads, frame parts, and other recurring linear components.
The compact 180 × 105 mm working envelope and 6–12 m/min feed range make it a practical fit where production consistency matters but the application does not require the greater spindle flexibility or section capacity of the Profiset 60 and larger SCM moulders.
180 mmMaximum Finished Width
105 mmMaximum Finished Height
12 m/minMaximum Feed Speed
10 mmVertical-Spindle Profiling
Capability Matrix
Production Modes
Use the four-spindle sequence for repeatable stock preparation and light profile work in one compact throughfeed process.
Mode 01
Four-Sided Planing
Produce straight, square, consistent S4S stock in one automatic longitudinal process.
Mode 02
Light Profiling
Use the vertical-spindle profiling capacity for eased edges, simple decorative details, beads, trim, and light moulding work.
Mode 03
Multi-Side Processing
Combine the four working heads to complete repeated longitudinal machining in a single feed sequence.
Mode 04
Controlled Feed
Steel feed rollers and a compact throughfeed path support stable movement through the machining units.
Mode 05
Repeat Component Production
Support recurring cabinet, furniture, trim, frame, stair, door, window, and joinery parts with consistent setup.
Production Advantages
Compact Four-Sided Processing With Practical Operator Access
The Profiset 40 focuses on repeatable stock preparation, light profiling, and straightforward daily adjustment.
Reduced Material Handling
Combining four-sided machining into one throughfeed sequence reduces repeated movement between separate surfacing and shaping machines.
Front-Side Adjustment
Controls at the operator side and mechanical decimal readouts support direct adjustment of the working units.
Rigid Workpiece Support
Heavy ribbed steel-base construction, cast-iron worktables, worktable lubrication, and an idle outfeed roller support consistent material travel.
Equipment Range
Lineup Positioning
Conventional Workflow
Separate Jointer, Planer & Shaper
Suitable where manual handling, repeated setup, and lower-volume stock preparation remain acceptable.
Compact Automatic
Automatic Four-Sided Processing
Moves recurring stock preparation into one controlled throughfeed sequence with less handling and stronger repeatability.
SCM Profiset 40
Entry-Level SCM Moulder Platform
Four spindles, a compact 180 × 105 mm working envelope, and light profiling capacity for smaller production environments.
Trim, frame stock, light mouldings, furniture blanks, leg stock, rails, and small-to-medium repeat profile work.
Joinery, Stair, Door & Window Components
Smaller frame parts, beads, stair stock, railing components, joinery parts, and repeat four-sided linear stock.
Compact Production Platform
Bring recurring stock preparation into one controlled workflow.
The Profiset 40 is designed for shops that repeatedly surface and lightly profile the same classes of cabinet, furniture, trim, frame, stair, railing, door, and window components.
Its compact format supports a cleaner production path without forcing the shop into a larger spindle package or working section than the application requires.
Final configuration should confirm Profiset 40 versus 40EP, READY control requirements, stock sizes, profile depth, tooling, dust extraction, electrical service, CSA requirements, infeed and outfeed space, installation, training, and service support.
