A flagship 20-inch long-bed jointer for wide-stock flattening, long-board straightening, accurate glue-joint preparation, and dependable reference-face production on high-value solid wood.
Premium wide-stock jointing for accurate reference faces and dependable glue joints.

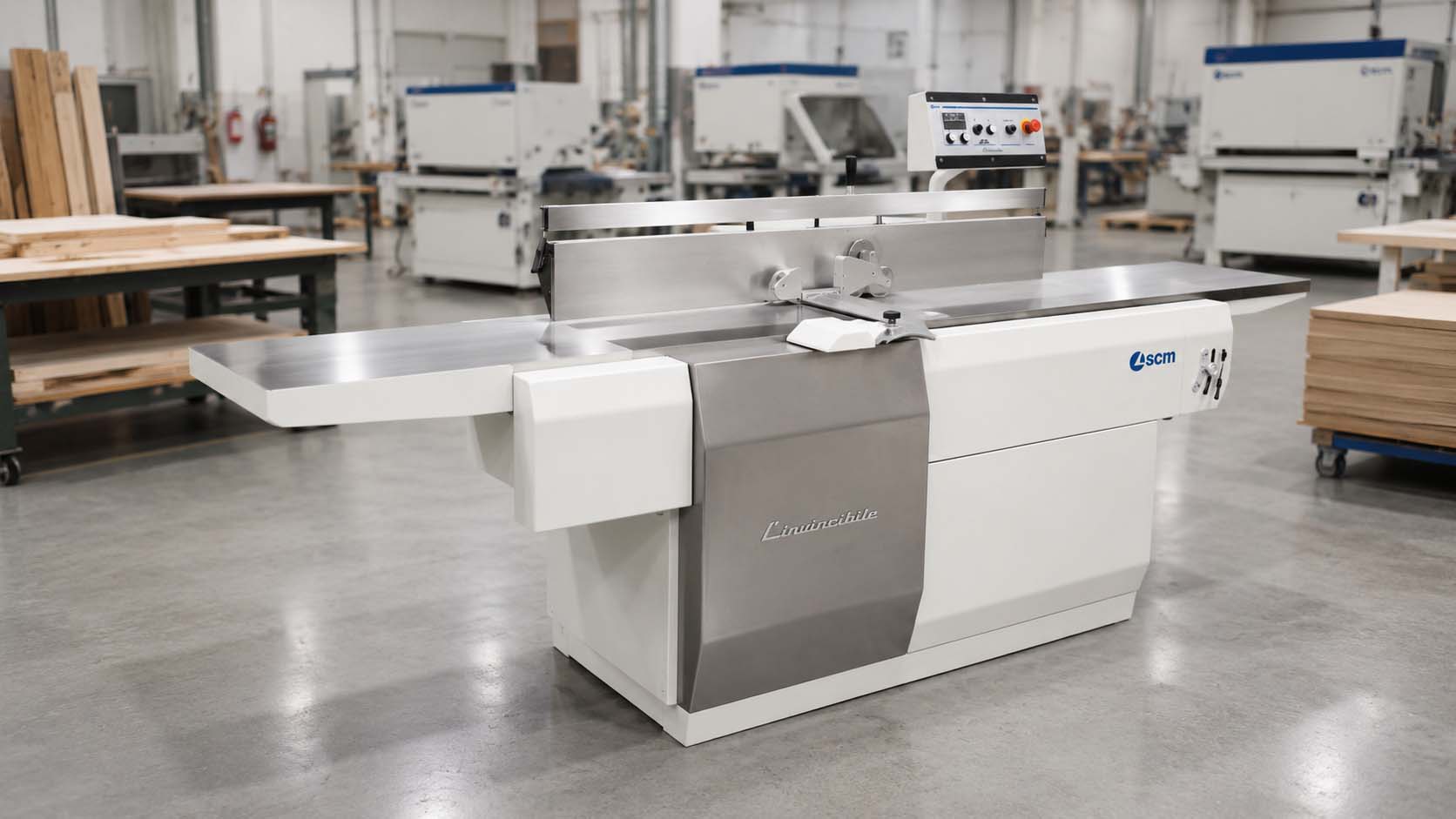

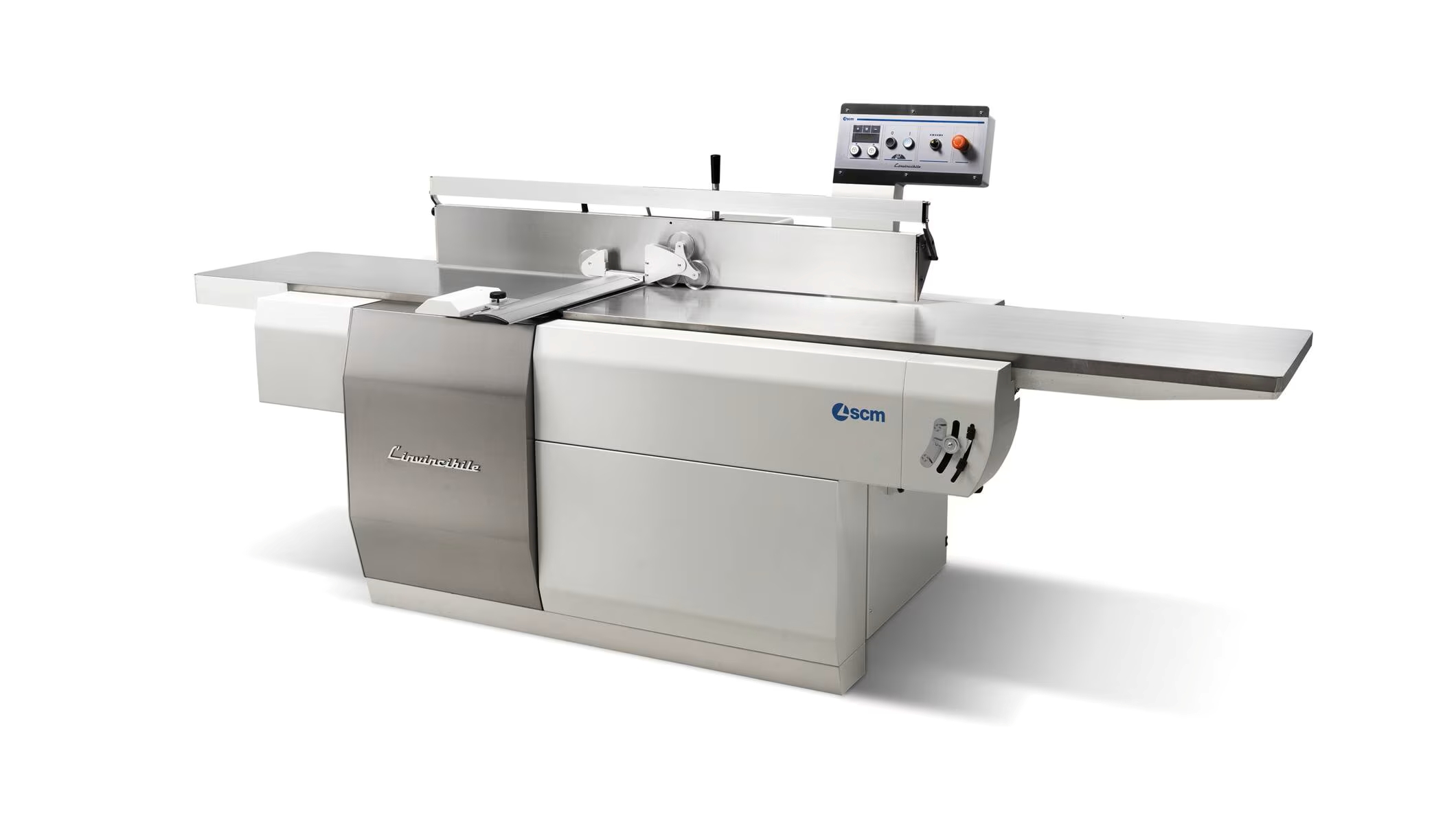

The SCM L’invincibile F 7 is a heavy-duty surfacer planer and jointer for professional solid-wood shops that need to flatten faces, straighten long edges, and prepare wide or high-value material with confidence.
Its 520 mm / 20 inch working width and 3008 mm / 118 inch bed provide the capacity and material support required for long rails, wide boards, furniture stock, door parts, architectural components, and demanding glue-joint preparation.
The machine can be configured with a TERSA straight-knife cutterhead or SCM’s Xylent spiral helical cutterhead, allowing the cutterhead package to be selected around finish expectations, operating preference, noise, chip formation, and extraction requirements.
520 mmMaximum Working Width
3008 mmJointer Bed Length
8 mmMaximum Stock Removal
11 HPThree-Phase Power
Capability Matrix
Production Modes
Use the long-bed platform to establish accurate faces and edges before material moves into planing, shaping, CNC machining, assembly, or finishing.
Mode 01
Face Flattening
Create a stable first reference face on wide hardwood, premium boards, furniture stock, and architectural components.
Mode 02
Edge Straightening
Use the long bed and fence support to establish straight reference edges on rails, stiles, frame stock, and long components.
Mode 03
Glue-Joint Preparation
Prepare clean mating edges for furniture panels, doors, frames, tabletops, and other solid-wood assemblies.
Mode 04
Long-Stock Support
The 3008 mm / 118 inch bed supports long boards and components while the operator establishes a consistent reference surface.
Mode 05
Finish-Focused Stock Preparation
Select the cutterhead configuration around finish requirements, species, noise preference, chip control, and extraction strategy.
Production Advantages
Long-Bed Stability, Wide Capacity, and Cutterhead Choice
The F 7 is built around accurate reference preparation and practical daily operation on demanding solid-wood stock.
3008 mm Long-Bed Support
The extended table length gives the operator the support required to straighten long material and build reliable reference surfaces.
TERSA or Xylent Configuration
Choose the straight-knife TERSA system or the Xylent spiral helical system according to the application and finish expectations.
Operator-Focused Options
Powered infeed movement, digital depth readout, Smart Lifter guarding, and heavy fence support are available or package-dependent and confirmed by quote.
Equipment Range
Lineup Positioning
Compact Joinery
Minimax / Nova Jointer Class
Suitable for smaller shops, shorter material, and lower-volume solid-wood preparation.
Production Joinery
SCM Class Jointer Platform
Supports stronger daily production where professional capacity is required without the full L’invincibile feature package.
SCM L’invincibile F 7
Premium 20-Inch Long-Bed Jointer
Wide-stock capacity, 3008 mm table support, cutterhead choice, and available operator-focused control and guarding features.
Technical Specifications
SCM L’invincibile F 7
Machine Profile
Manufacturer
SCM
Series / Model
L’invincibile F 7
Machine Type
Premium Surfacer Planer / Jointer
Primary Work
Face flattening, edge straightening, glue-joint preparation, and wide-stock surfacing
Capacity & Table
Working Width
520 mm / 20 in
Jointer Bed Length
3008 mm / 118 in
Maximum Stock Removal
8 mm
Motor Power
11 HP three phase
TERSA Cutterhead
Cutterblock Diameter
120 mm
Cutterhead Layout
4 straight knives
Knife Size
520 × 35 × 3 mm
Configuration Status
TERSA package selected and confirmed by quote
Xylent Cutterhead
Cutterblock Diameter
120 mm spiral helical
Insert Count
84 inserts
Insert Usage
Four usable cutting tips per insert
Application Notes
Finish, noise, chip formation, and extraction benefits depend on material and operating conditions
Operator Controls & Safety
Digital Depth Readout
Available / configuration dependent
Powered Infeed Movement
Available / configuration dependent
Smart Lifter Guard
Available / configuration dependent
Fence & Table Adjustment
Heavy fence support and stable adjustment; final package confirmed by quote
Configuration & Services
Cutterhead Package
TERSA or Xylent
Electrical
Voltage, phase, and CSA requirements confirmed by quote
Dust Extraction
Connection and airflow requirements confirmed for the selected cutterhead package
Support
Delivery, installation, commissioning, training, warranty, and service confirmed by quote
Production Environments
Where the L’invincibile F 7 Fits
For professional solid-wood shops where accurate reference preparation supports every operation that follows.
Long trim, wide solid-wood sections, doors, frames, restoration pieces, and specialty architectural components.
Door, Window & Solid-Wood Shops
Frame stock, stile and rail preparation, long-edge jointing, glue-joint work, and wide component surfacing.
Reference-Surface Control
Build downstream accuracy from the first machined face.
The F 7 establishes the flat face and straight edge that guide planing, shaping, CNC machining, assembly, sanding, and finishing operations later in the process.
Its long-bed structure and wide working capacity support demanding hardwood, furniture, architectural, door, window, and frame applications where poor stock preparation creates variation and rework downstream.
Final configuration should confirm stock dimensions, material species, cutterhead choice, finish expectations, dust extraction, electrical and CSA requirements, guarding and adjustment options, floor space, installation, training, and service support.
