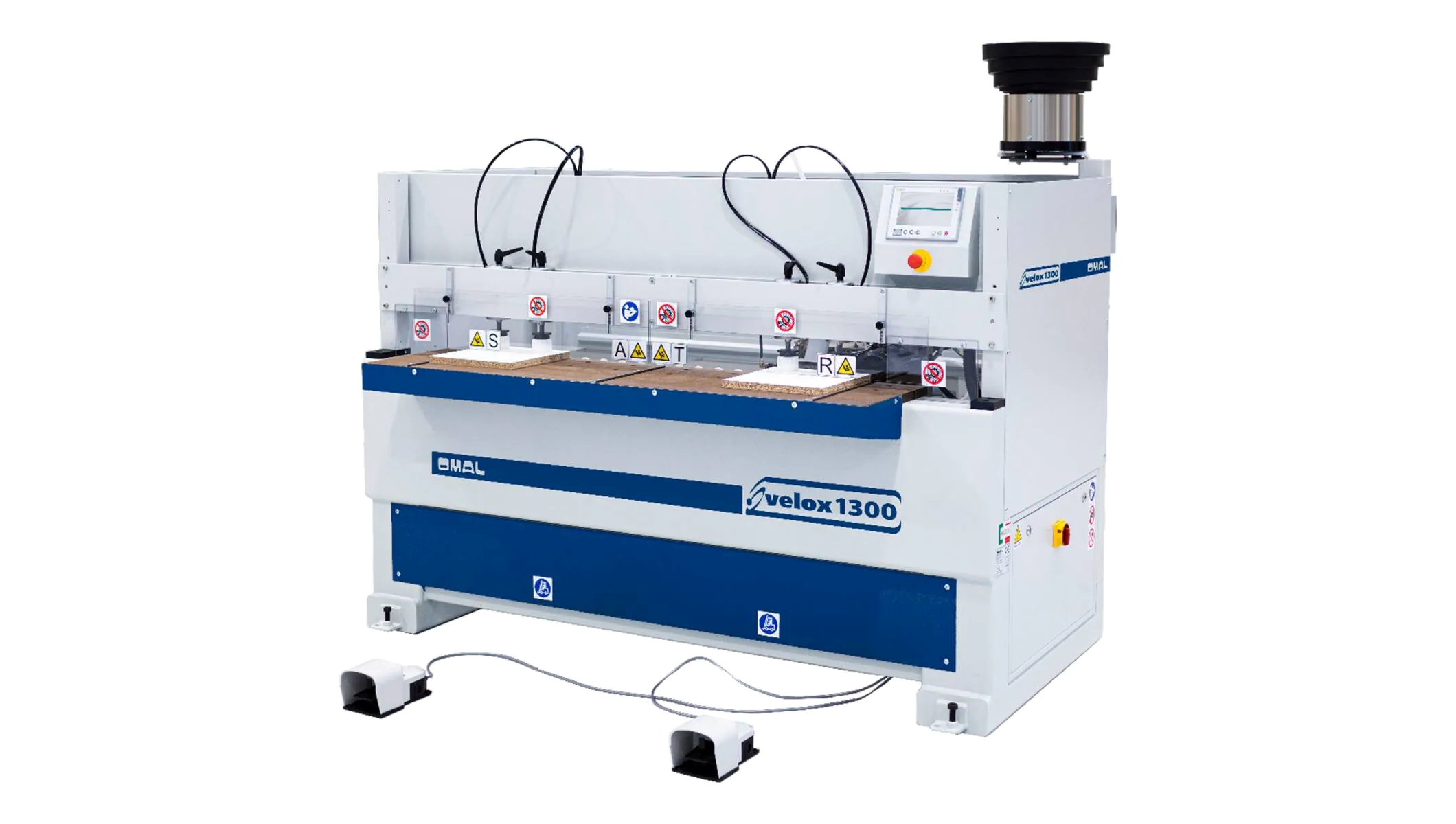

SCM OMAL Velox 1300 CNC Bore, Glue & Dowel Machine
A speed-focused CNC machine for horizontal drilling, glue injection, and dowel insertion in cabinet, casework, closet, furniture, and panel production.
Fast horizontal dowel preparation in one controlled CNC process.
The SCM OMAL Velox 1300 combines horizontal drilling, glue injection, and dowel insertion for repeat cabinet, casework, closet, furniture, and panel components.
Its 1300 mm / 51 in X-axis working area, PLC touch-screen programming, Sure Shot dowel verification, and available width laser support a focused production workflow for horizontal parts.
The supplied source positions the machine at approximately one second per bore-glue-dowel cycle at 32 mm intervals, while noting conflicting dealer interval data. Cycle wording, dowel package, glue equipment, laser, barcode functions, electrical service, and utilities must be confirmed for the quoted configuration.
1300 mm / 51 inX-Axis Working Area
Approx. 1 sec32 mm Cycle Reference
8 L + 8 LGlue / Cleaning Tanks
6 barCompressed-Air Basis
Capability Matrix
Horizontal Dowel-Production Modes
Configure the Velox 1300 around drilling, adhesive delivery, dowel insertion, verification, measurement, and production-data requirements.
Mode 01
Horizontal Boring
Drill repeat dowel patterns into horizontal panel components across the 1300 mm X-axis working area.
Mode 02
Glue Injection
Inject adhesive into the prepared holes as part of the integrated bore-glue-dowel sequence.
Mode 03
Dowel Insertion & Verification
Use the Sure Shot revolver and fibre-optic verification system to support dependable dowel delivery.
Mode 04
Laser Width Measuring
An available width laser measures the panel and helps determine dowel spacing from the called program.
Mode 05
Program & Barcode Workflow
PLC software can support parametric programs, graphical icons, lists, barcode or program-name control, and reference offsets where configured.
Production Advantages
Speed, Verification & Shop-Floor Control
The Velox 1300 concentrates on repeat horizontal processing with integrated drilling, glue, dowel insertion, and machine-control functions.
High-Speed Cycle Positioning
The source references approximately one second per bore-glue-dowel cycle at 32 mm intervals; final performance wording should be confirmed for the selected package.
Sure Shot Dowel Verification
A fibre-optic sensor verifies dowel presence while another dowel is inserted, helping identify missed-dowel conditions.
PLC Touch-Screen Programming
Parametric programs, graphical icons, available measurement, and data-flow options support repeat shop-floor operation.
Equipment Range
Lineup Positioning
Manual Process
Separate Drilling, Gluing & Dowel Insertion
For low-volume work where drilling, adhesive application, dowel placement, and part sequencing remain separate operator-controlled steps.
Open-Frame Alternative
SCM OMAL HBD 1300 1H
For shops prioritizing retractable fences, alternate long-panel referencing, and open-frame horizontal or vertical workholding options.
SCM OMAL Velox 1300
Speed-Focused Horizontal Dowel Production
For 1300 mm CNC horizontal processing with Sure Shot verification, PLC touch control, available laser measurement, and integrated bore-glue-dowel operation.
Technical Specifications
SCM OMAL Velox 1300
Machine Profile
Manufacturer
SCM OMAL
Model
Velox 1300
Machine Type
1300 mm X-Axis CNC Bore, Glue and Dowel Machine
Primary Use
Fast horizontal dowel construction for cabinets, casework, closets, furniture and panels
Panel Capacity
X-Axis Working Area
1300 mm / 51 in
Panel Width
40 mm to unlimited reference; confirm application
Panel Thickness
10–25.4 mm reference
Processing Orientation
Focused horizontal panel processing
Cycle & Dowel Package
Cycle Time
Approx. 1 second at 32 mm intervals; source notes conflicting dealer interval data
Standard Dowel Reference
8 x 35 mm
Maximum Dowel Length
40 mm reference
Insertion System
OMAL Sure Shot revolver
Glue & Verification
Glue Tank
8 L reference
Cleaning Tank
8 L reference
Glue Viscosity
900 cps reference
Quality Sensors
Fibre-optic dowel verification; injector-shot sensor referenced by dealer package
Control & Automation
Control
PLC touch-screen
Programming
Parametric programs and graphical icons
Width Laser
Available system measures panel width and helps determine dowel spacing
Data Workflow
List management, barcode / program-name control and left / right offset selection where configured
Utilities & Configuration
Electrical Reference
10 kW installed power / 220 V / 60 Hz / 3-phase; confirm regional build
Compressed Air
6 bar basis
Extraction Reference
60 mm hood / 250 CFM
Support
Configuration, installation, startup, training, warranty, service and software workflow confirmed by quote
Production Environments
Where the Velox 1300 Fits
For production departments requiring fast, verified horizontal bore-glue-dowel insertion without a larger vertical-drilling platform.
Prepare repeat panel components for assembly through one CNC dowel process.
The Velox 1300 combines horizontal boring, glue injection, dowel insertion, and verification in a compact production platform.
PLC touch-screen programming and available width measurement support repeat part families, while the Sure Shot system adds dowel-presence verification during insertion.
Final configuration should confirm panel thickness, dowel diameter and length, glue package, injector sensing, laser measurement, barcode or program-name workflow, electrical service, compressed air, extraction, installation, training, warranty, and support.
