SCM Formula DG60

SCM Formula · DG60 / DG60B

SCM Formula DG60 Modular Disc Sander

A compact professional sanding station for controlled edge sanding, profile cleanup, bevel work, tilted components, and shaped woodworking parts, with expanded belt-and-roller capability available in the DG60B configuration.

600 mm Sanding Disc Diameter
900 rpm Disc Speed
0°–45° Table and Fence Tilt
DG60B Belt and Roller Option

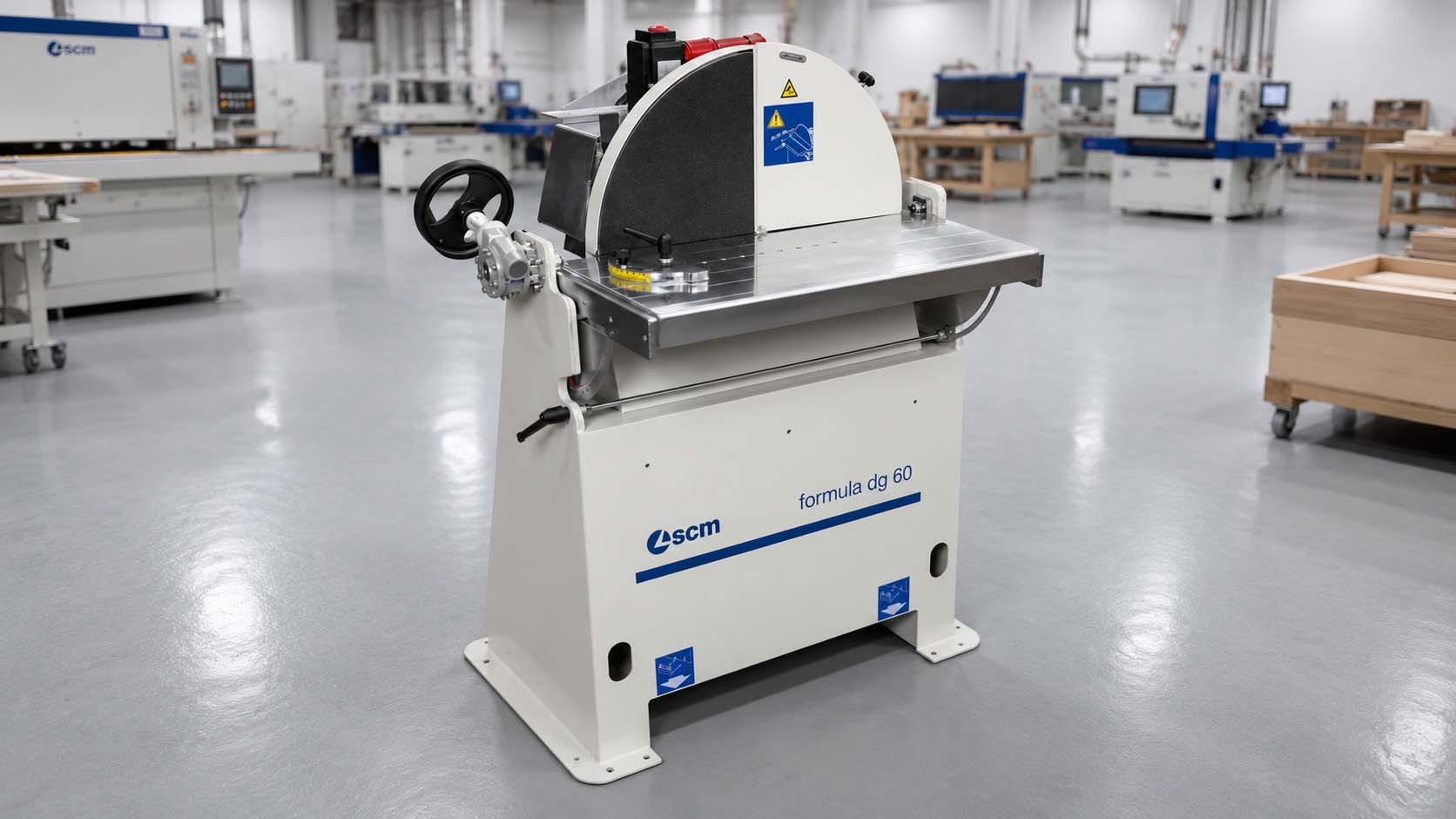

SCM Formula DG60 modular disc sander in a professional woodworking shop
Machine Overview

Stable disc sanding for cleaner edges, controlled bevels, and repeatable daily finishing work.

The SCM Formula DG60 gives professional woodworking shops a dedicated sanding station for edge refinement, profile cleanup, bevel preparation, tilted parts, and shaped components. Its compact footprint creates a practical step beyond hand sanding and light-duty bench equipment.

The base DG60 is built around a 600 mm sanding disc, a 700 × 350 mm worktable, a 900 rpm disc speed, a 2.2 kW motor, and table and fence adjustment from 0° to 45°. Together, these features support stable handling and controlled contact across varied woodworking parts.

For shops needing broader capability, the DG60B configuration adds disc-and-belt sanding, vertical belt-unit tilting from 0° to 90°, and a 70 mm horizontal pneumatic roller for curves, holes, longer workpieces, and shaped parts.

600 mm Sanding Disc Diameter
900 rpm Disc Speed
2.2 kW Motor Power
700 × 350 Worktable · mm
Capability Matrix

One compact sanding platform. Five practical shop roles.

The DG60 supports controlled disc sanding for straight, angled, profiled, and shaped components, while the DG60B configuration extends the machine into belt-and-roller work.

Mode 01

Disc Sanding

The 600 mm disc creates a broad, stable sanding surface for routine woodworking cleanup and controlled contact.

Mode 02

Edge Sanding

Refines straight edges on cabinet components, shelves, panels, frame parts, joinery, and furniture workpieces.

Mode 03

Bevel and Angle Work

Table and fence adjustment from 0° to 45° supports bevelled edges, mitres, tilted profiles, and non-square components.

Mode 04

Profile Cleanup

Provides controlled contact for profile refinement, detail cleanup, trims, stair components, and custom millwork parts.

Mode 05

Curves and Shapes

The DG60B belt unit and 70 mm horizontal pneumatic roller expand support for curves, holes, longer parts, and shaped workpieces.

Production Advantages

Built around stable contact, adjustable geometry, and expandable sanding capability.

The Formula DG60 combines a large disc surface with a practical worktable and controlled adjustment for everyday professional sanding tasks.

Large Disc Surface

The 600 mm sanding disc provides a broad contact area for controlled edge refinement, profile cleanup, bevel preparation, and shaped-component work.

Adjustable Work Geometry

Table and fence tilting from 0° to 45° supports angled profiles, bevelled edges, mitred components, and other non-square workpiece geometry.

DG60B Capability Expansion

The DG60B configuration adds disc-and-belt sanding, 0°–90° vertical belt-unit tilting, and a 70 mm horizontal pneumatic roller for more varied work.

Equipment Range

Lineup Positioning

Entry Level

Hand / Bench Sanding

Suitable for occasional touch-up work and low-volume sanding, but limited in workpiece support, angle repeatability, and dedicated production control.

Dedicated Disc Station

Formula DG60

Adds a stable 600 mm disc, a 700 × 350 mm worktable, 0°–45° table and fence adjustment, and professional support for repeat sanding tasks.

Expanded Configuration

Formula DG60B

Extends the platform with belt sanding, vertical belt-unit tilting, and a horizontal pneumatic roller for curves, holes, longer parts, and shaped work.

Technical Specifications

Formula DG60 / DG60B
Machine Profile
  • Manufacturer SCM
  • Series Formula
  • Models DG60 / DG60B
  • Machine Type Modular Disc Sander
DG60 Disc Sanding Unit
  • Disc Diameter 600 mm
  • Disc Speed 900 rpm
  • Motor Power 2.2 kW
  • Primary Use Edge, profile and bevel sanding
Table and Fence
  • Worktable Dimensions 700 × 350 mm
  • Table Tilting 0°–45°
  • Fence Tilting 0°–45°
  • Workpiece Geometry Angled, mitred and shaped parts
DG60B Expanded Configuration
  • Configuration Disc + belt sanding
  • Belt Unit Tilting 0°–90° vertical tilting
  • Pneumatic Roller 70 mm horizontal roller
  • Expanded Use Curves, holes, long parts and shapes
Production Applications
  • Edge Work Shelves, panels, frames and components
  • Profile Work Trims, stair parts and joinery details
  • Angled Work Bevelled, tilted and mitred parts
  • Finishing Role Cleanup and preparation before finishing
Workflow Position
  • DG60 Role Dedicated professional disc sanding
  • DG60B Role Disc, belt and roller sanding
  • Footprint Position Compact dedicated sanding station
  • Production Role Repeatable daily sanding support
Production Environments

Where the DG60 Fits

A compact professional sanding platform for woodworking environments that need greater control than hand sanding or light-duty bench equipment can provide.

Cabinet Shops

Supports edge refinement, cabinet-component cleanup, shelf and panel work, frames, and repeat sanding before assembly or finishing.

Millwork and Joinery

Useful for trims, profile details, bevelled components, stair parts, railing pieces, angled work, and custom joinery.

Furniture and Finishing

Improves control on solid wood, veneered parts, shaped components, curves, detailed workpieces, and preparation before finishing.

Compact Production Sanding

A dedicated sanding station that brings more control and intention to everyday shop work.

The Formula DG60 combines a compact footprint with a substantial 600 mm disc, a practical worktable, and controlled table-and-fence adjustment. The result is a professional station that feels stable, accessible, and purpose-built for daily sanding.

From cabinet components and joinery details to bevelled parts, profile cleanup, and finishing preparation, the DG60 gives operators a consistent place to handle work that would otherwise move between hand tools and lighter bench equipment.

The DG60B configuration extends that same compact platform into belt and roller sanding, making the system a stronger fit for shops working with curves, holes, longer components, and more varied shapes.

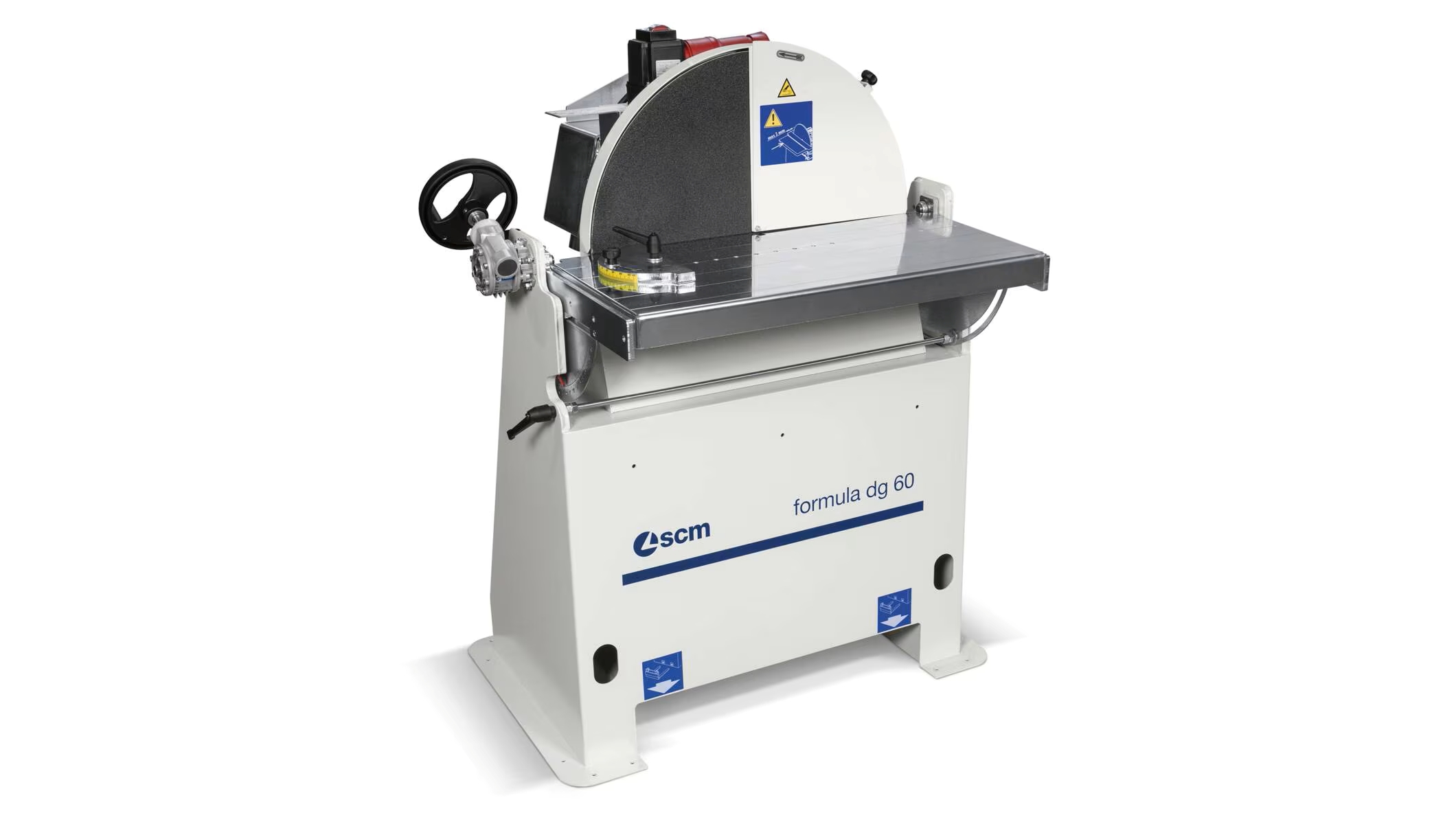

SCM Formula DG60 modular disc sanding machine
