A specialized automatic press for continuous edge-glued beam and panel production with automatic composition, loading, unloading, independent pressure control, rear-pressure support, and optional multi-row panel capability.
Automatic pressing for continuous edge-glued beam and panel production.

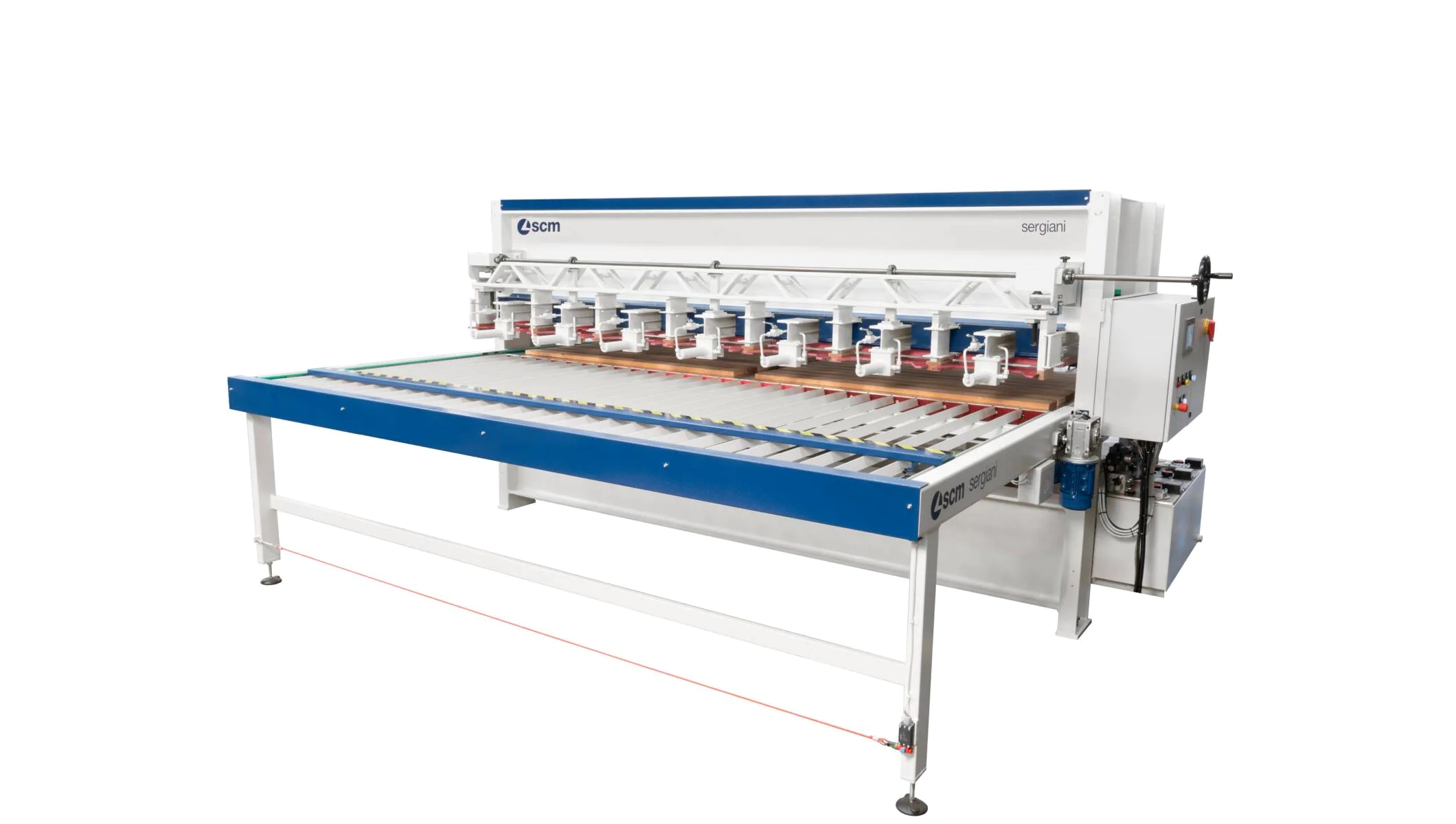

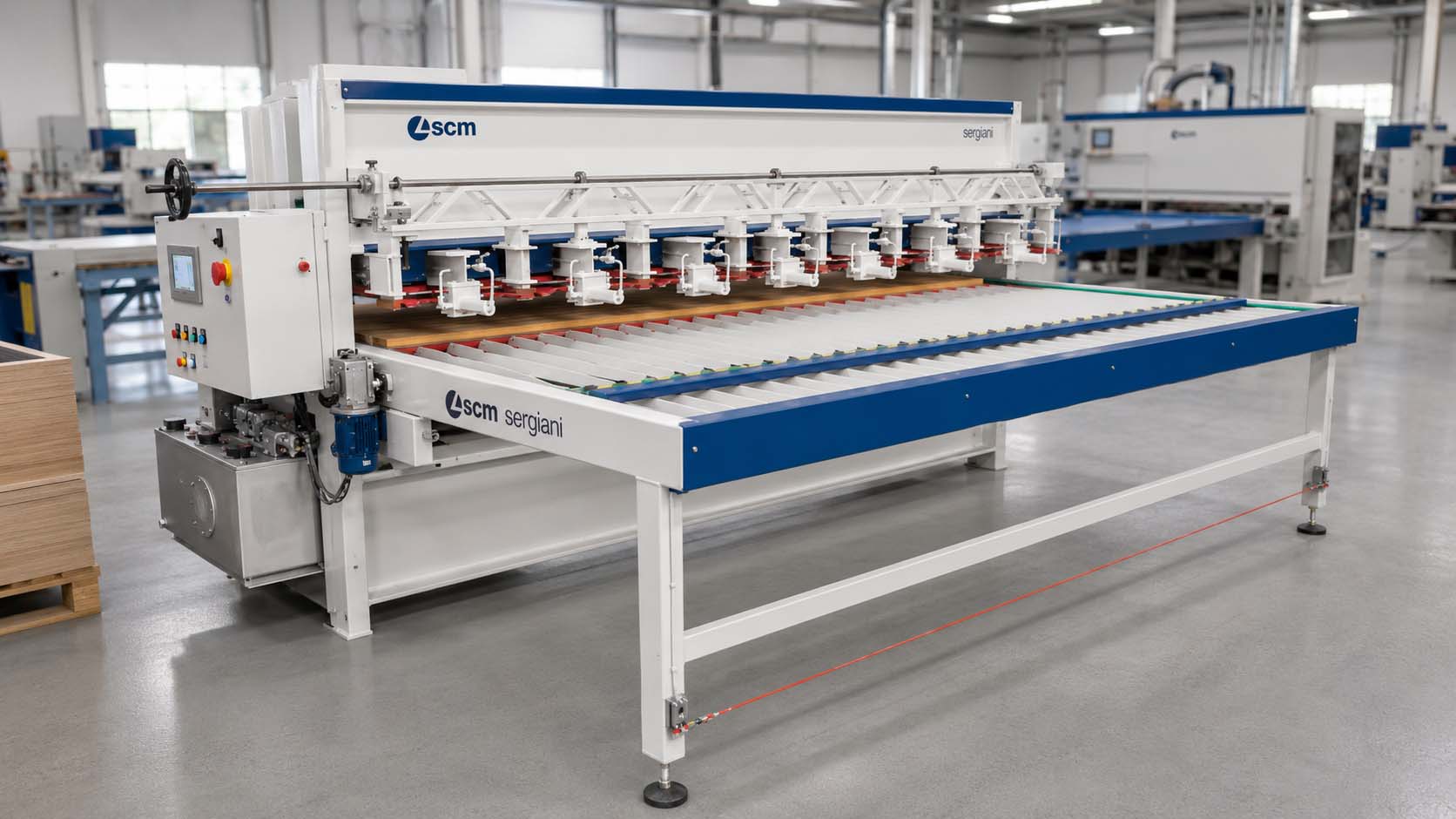

The SCM Sergiani GSL-A is an automatic edge-glued panel press developed for continuous production of beam-style panels, glued timber components, and repeat panel assemblies.
Automatic panel composition, loading, and unloading organize the material flow, while three independent hydraulic systems allow vertical, horizontal, and rear pressure to be adjusted around the product and adhesive process.
The family includes 25-13, 30-13, and 35-13 models with platen sizes from 2500–3500 × 1300 mm, 40 or 60 mm thickness families, side thrust from 7.5–28 tons, and a 30-ton pressure bar.
40 / 60 mmThickness Families
2500–3500 × 1300 mmPlaten Range
7.5–28 tonsSide Thrust
3 Independent SystemsPressure Directions
Capability Matrix
One automatic pressing platform. Five coordinated production functions.
The GSL-A combines continuous edge-glued panel pressing, automatic composition, automatic material handling, independent pressure control, and optional multi-row layouts.
Mode 01
Continuous Edge-Glued Pressing
Supports repeat beam-style and edge-glued panel production within an organized automatic cycle.
Mode 02
Automatic Panel Composition
Material is composed for the pressing cycle through an automatic panel-assembly workflow.
Mode 03
Automatic Loading and Unloading
Integrated handling reduces manual movement around the press and organizes material transfer.
Mode 04
Independent Pressure Control
Three separate hydraulic systems control vertical, horizontal, and rear pressure independently.
Mode 05
Optional Multi-Row Layouts
Pneumatic stops can be reviewed for multi-row panel composition and varied production layouts.
Production Advantages
Designed around independent pressure adjustment, automatic handling, and repeat panel composition.
The GSL-A coordinates pressure and material flow for continuous edge-glued panel production.
Three Independent Hydraulic Systems
Vertical, horizontal, and rear pressure can be adjusted separately to suit the product and glue system.
Automatic Material Flow
Automatic composition, loading, and unloading create a more organized pressing cycle with less manual handling.
Rear Pressure Support
Rear pressure is integrated into the GSL-A concept to support continuous panel formation and controlled compression.
Equipment Range
Lineup Positioning
Manual or Clamp-Based
Conventional Edge Glue-Up
Suitable for lower-volume work where panel composition, pressure application, and material handling remain primarily operator managed.
Dedicated Automatic Press
Automatic Panel Pressing
Adds automatic composition and handling with controlled pressure for repeat edge-glued production.
Integrated Production Platform
SCM Sergiani GSL-A
Combines model-specific platen capacity, three independent pressure systems, automatic loading and unloading, and optional multi-row layouts.
Technical Specifications
Sergiani GSL-A
Machine Profile
ManufacturerSCM / Sergiani
SeriesSergiani
ModelGSL-A
Machine TypeAutomatic edge-glued panel press
Machine Range
Models25-13 / 30-13 / 35-13
Platen Sizes2500–3500 × 1300 mm
Thickness Families40 / 60 mm
Primary UseContinuous edge-glued panels
Production Workflow
Panel CompositionAutomatic
LoadingAutomatic
UnloadingAutomatic
WorkflowContinuous panel production
Pressure Control
Hydraulic Systems3 independent systems
Pressure DirectionsVertical / horizontal / rear
Pressure Bar30 tons
Side Thrust7.5–28 tons
Controls and Panel Layout
Control PanelSiemens touchscreen
Rear PressureIntegrated production support
Pneumatic StopsOptional
Multi-Row PanelsOptional configuration
Project Integration
Adhesive ProcessGlue system and open-time review
Line IntegrationComposition / loading / unloading
Plant ReviewUtilities / safety / layout / staging
Final ConfigurationApplication dependent
Production Environments
Where the Sergiani GSL-A Fits
A dedicated automatic press for edge-glued beam panels, structural timber components, repeat glued assemblies, and production lines requiring automatic panel handling.
Edge-Glued Panel Manufacturers
Strong fit for repeat beam-style panels, glued timber components, and continuous panel production.
Structural Timber and Engineered-Wood Plants
Supports products requiring independently controlled vertical, horizontal, and rear pressure.
Automatic Edge-Glued Production · Independent Pressure Control
A production press line that coordinates panel composition, material handling, and three independently controlled pressure directions.
The Sergiani GSL-A brings automatic composition, loading, unloading, and pressing into one continuous workflow for edge-glued beam and panel production.
Three separate hydraulic systems allow vertical, horizontal, and rear pressure to be adjusted independently, while the 25-13, 30-13, and 35-13 models cover 2500–3500 × 1300 mm platen requirements.
Optional pneumatic stops can extend the layout toward multi-row panel composition, while the final line is reviewed around thickness, glue open time, staging, utilities, safety, and target production flow.
