A manual-loading hydraulic hot press with electronic control for veneered panels, hollow-core doors, multi-layer panels, furniture and cabinet components, and laminated wood products.
Controlled hot pressing for veneer, doors, furniture, and laminated panels.

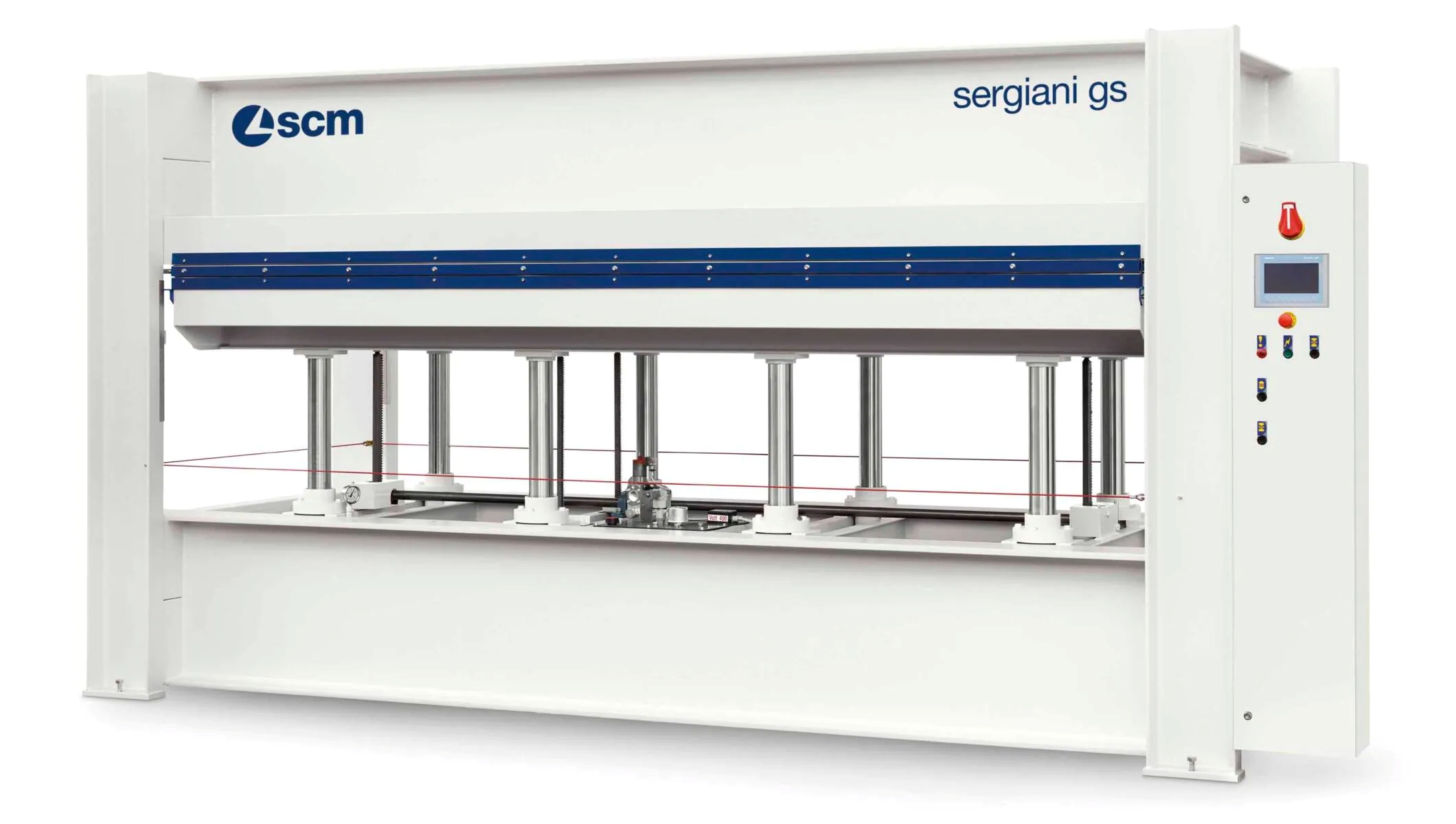

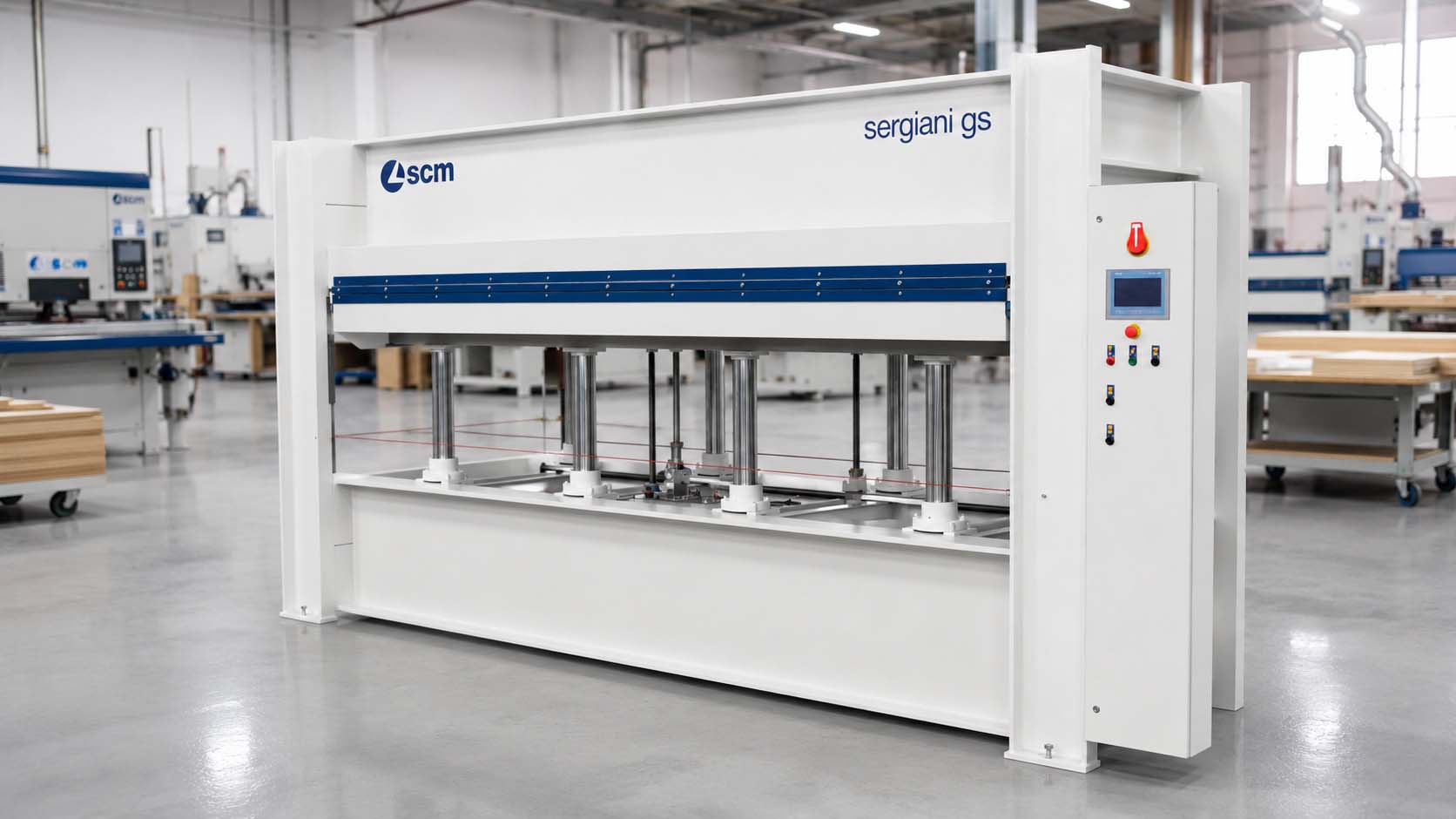

The SCM Sergiani GS is a manual-loading hydraulic hot press for manufacturers that need repeatable heated pressing without a fully automated loading and unloading line.
Its electronic control manages pressure, heating, diagnostics, working programs, and saved parameters for veneered panels, hollow-core doors, multi-layer products, cabinet components, furniture parts, and laminated wood assemblies.
The GS range covers 4, 6, 8, and 10-cylinder configurations, thrust ratings from 20–200 tons, platen sizes from 2500 × 1300 mm to 3800 × 1600 mm, and PA, PM, or PE platen packages.
20–200 tonsThrust Range
4 / 6 / 8 / 10Cylinder Counts
2500 × 1300–3800 × 1600 mmPlaten Sizes
PA / PM / PEPlaten Packages
Capability Matrix
One hydraulic hot-press platform. Five focused production roles.
The Sergiani GS supports heated pressing for veneer, hollow-core doors, multi-layer panels, cabinet and furniture components, and laminated wood products.
Mode 01
Veneered Panel Pressing
Supports controlled heated pressing for veneered, decorative, and furniture-panel assemblies.
Mode 02
Hollow-Core Door Production
Fits door skins, hollow-core constructions, and bonded door components requiring repeat pressure and heat.
Mode 03
Multi-Layer and Laminated Panels
Provides a configurable pressing platform for multi-layer panels and laminated wood products.
Mode 04
Cabinet and Furniture Components
Supports cabinet panels, furniture components, fronts, and other production glue-ups.
Mode 05
Electronically Controlled Press Cycles
The Siemens colour touchscreen manages pressure, heating, diagnostics, programs, and saved parameters.
Production Advantages
Designed around electronic process control, flexible press sizing, and configurable platen packages.
The GS combines manual material handling with professional hydraulic pressure, heated pressing, stored settings, and a broad family of press configurations.
Electronic Pressure and Heat Control
The Siemens colour touchscreen supports pressure calculation, heating management, diagnostics, program storage, and saved working parameters.
Broad Press Range
Four cylinder-count families cover 20–200 tons and platen sizes from 2500 × 1300 mm to 3800 × 1600 mm.
Configurable Platen Packages
PA assembled, PM solid, and PE electric platen options allow the press package to be matched to the product and heating requirement.
Equipment Range
Lineup Positioning
Basic Glue-Up
Manual Clamp or Cold-Press Workflow
Suitable for lower-volume work where pressure, heating, setup, and material handling remain primarily operator managed.
Dedicated Heated Press
Conventional Hydraulic Hot Press
Adds controlled hydraulic thrust and heated platens for repeat panel, door, and component pressing.
Electronically Controlled Platform
SCM Sergiani GS
Combines manual loading and unloading with Siemens control, stored parameters, 20–200 tons of thrust, and configurable PA, PM, or PE platens.
Technical Specifications
Sergiani GS
Machine Profile
ManufacturerSCM / Sergiani
SeriesSergiani
ModelGS
Machine TypeManual-loading hydraulic hot press
Primary Applications
PanelsVeneered / multi-layer / laminated
DoorsHollow-core door production
FurnitureCabinet and furniture components
WorkflowHeated glue-up pressing
Press Range
Cylinder Counts4 / 6 / 8 / 10
Thrust Range20–200 tons
Platen Sizes2500 × 1300 to 3800 × 1600 mm
Final SelectionApplication dependent
Platen Packages
PA PlatensAssembled platen package
PM PlatensSolid platen package
PE PlatensElectric platen package
Package SelectionProduct and heating dependent
Control System
InterfaceSiemens colour touchscreen
FunctionsPressure / heating / diagnostics
ProgramsSaved working parameters
SetupElectronic press-cycle control
Workflow and Project Review
Loading / UnloadingManual
Adhesive ProcessGlue system and press-cycle review
Heating ReviewPlaten package and utility dependent
A professional manual-loading hot press for veneer, door, cabinet, furniture, multi-layer panel, and laminated wood production.
Veneer and Panel Shops
Strong fit for veneered panels, laminated panels, furniture panels, cabinet panels, and architectural components.
Door and Component Production
Supports hollow-core doors, door skins, multi-layer panels, and heated glue-up workflows.
Cabinet and Furniture Manufacturing
Fits manufacturers moving into electronically controlled hot pressing with stored parameters and configurable platen packages.
Hydraulic Hot Pressing · Veneer, Doors and Laminated Panels
A professional pressing station that combines manual material handling with controlled hydraulic force, heat, and saved production settings.
The Sergiani GS gives veneer, door, cabinet, furniture, and panel manufacturers a dedicated heated press without requiring a fully automated material-handling line.
Its broad 20–200 ton range, four cylinder-count families, and platen sizes from 2500 × 1300 mm to 3800 × 1600 mm allow the machine to be matched to the workpiece and production role.
Siemens touchscreen control and PA, PM, or PE platen packages create a more organized relationship between pressure, heat, diagnostics, programs, and repeat press-cycle setup.
