A compact automatic edgebander for small-to-medium shops requiring controlled pre-milling before glue application, 0.4–3 mm coiled edge capacity, 5 mm strip-edge capability, and professional core finishing.
Prepare the panel edge before glue application in one compact automatic process.

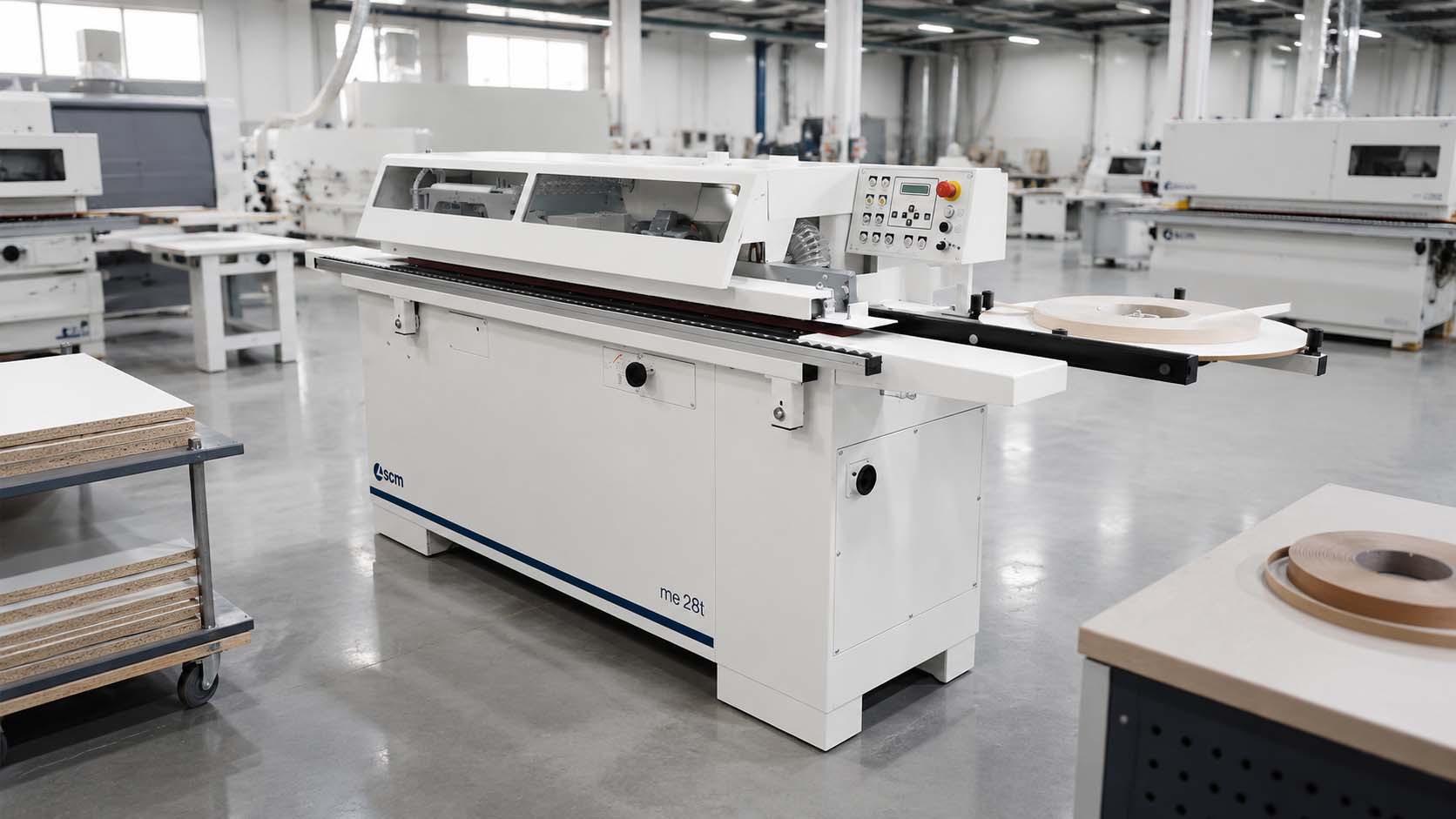

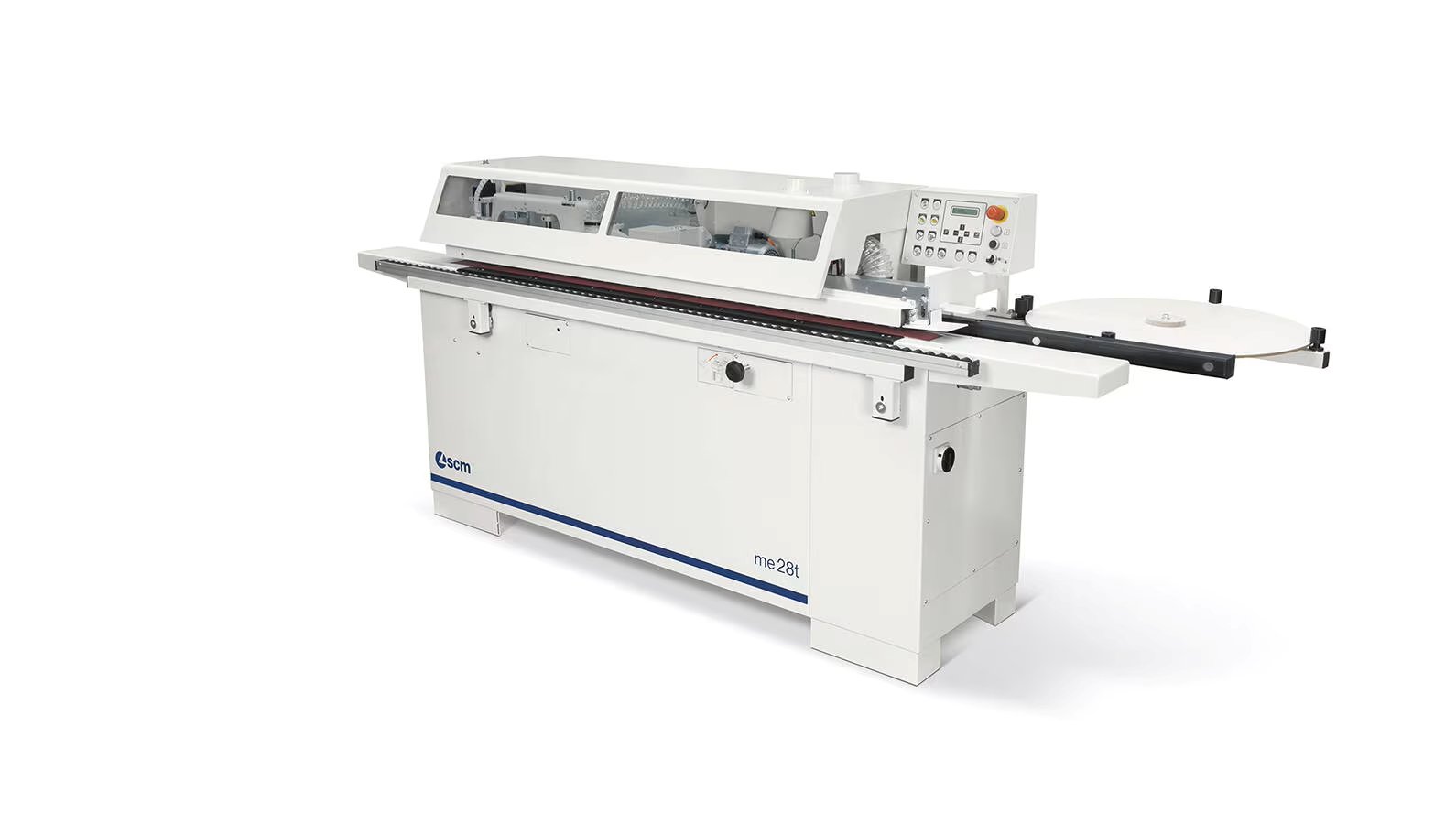

The SCM ME 28T is a compact automatic glue-pot edgebander with pre-milling for cabinet, closet, furniture, casegoods, custom woodworking, light commercial millwork, and panel-processing shops.
The pre-milling unit provides 0.5, 1, 1.5, and 2 mm stock-removal settings to correct saw marks, light chipping, handling damage, and stored-panel edge irregularities before the glue station.
Independent pre-milling extraction and air blowing, 0.4–3 mm coiled edge capacity, 5 mm wood-strip capability, 7 m/min feed-speed class, glue scraping, profile scraping, and buffing are based on the supplied source; final unit composition must be confirmed by quote.
4 SettingsPre-Mill Stock Removal
7 m/minFeed-Speed Class
3 mmMaximum Coiled Edge
5 mmWood Strip Capacity
Capability Matrix
Production Modes
Configure the ME 28T around panel-edge preparation, edge materials, glue application, trimming, scraping, and buffing requirements.
Mode 01
Pre-Milling Edge Preparation
Remove 0.5, 1, 1.5, or 2 mm before gluing to produce a more consistent panel edge.
Mode 02
Extraction & Air Cleaning
Independent extraction and air blowing help clear chips and dust before the glue station.
Mode 03
Coiled & Strip Edge Application
Process coiled edge from 0.4–3 mm and wood strips up to 5 mm where included.
Mode 04
End & Top/Bottom Trimming
Complete the selected end-cutting and top/bottom trimming sequence after edge application.
Mode 05
Scraping & Buffing
Profile scraping, glue scraping, and buffing reduce visible residue and secondary hand cleanup where configured.
Production Advantages
Cleaner Edge Preparation Before the Glue Station
The ME 28T adds controlled stock removal and edge cleaning to the core compact edgebanding process.
Four Pre-Mill Removal Settings
Selectable 0.5, 1, 1.5, and 2 mm removal values allow panel-edge preparation to match the incoming condition.
Edge Cleaning Before Glue
Dedicated extraction and air blowing help remove milling dust and chips before adhesive is applied.
Core Finishing Package
Quoted compositions can combine end cutting, top/bottom trimming, profile scraping, glue scraping, and buffing.
Equipment Range
Lineup Positioning
Compact Entry
SCM ME 20 / ME 25
For simpler automatic edging where dedicated pre-milling is not required.
SCM ME 28T
Compact Pre-Milling Edgebanding
For controlled panel-edge preparation, 3 mm coiled edge, 5 mm strip capability, and a practical core finishing sequence.
Compact Upgrade
SCM ME 35 / ME 40
For shops requiring corner rounding, stronger finishing packages, higher compact productivity, or broader glue options.
Technical Specifications
SCM ME 28T
Machine Profile
Manufacturer
SCM
Model
ME 28T
Machine Type
Compact Automatic Glue-Pot Edge Bander With Pre-Milling
Primary Role
Panel-edge preparation and automatic edgebanding for small-to-medium shops
Pre-Milling System
Stock-Removal Settings
0.5 / 1 / 1.5 / 2 mm
Local Extraction
Independent pre-milling extraction
Edge Cleaning
Air blowing before the glue station
Purpose
Correction of saw marks, light chips, handling, or storage-related edge irregularities
Panel, Edge & Feed Data
Coiled Edge Capacity
0.4–3 mm
Wood Strip Capacity
5 mm
Feed Speed
7 m/min class
Panel Height
8–50 mm in supplied summary; dealer table lists 12–50 mm — confirm exact build
Core Operating Units
Glue Application
EVA glue-pot package; exact glue equipment confirmed by quote
Cutting & Trimming
End cutting and top/bottom trimming by composition
Finishing
Profile scraping, glue scraping, and buffing where quoted
Optional Composition
Exact unit sequence and edge-material package confirmed by quote
Control & Utilities
Operator Control
Machine control panel; exact interface confirmed by build
Compressed Air
6 bar basis
Dust Extraction
Pre-milling and operating-unit extraction requirements confirmed by quote
Electrical
Voltage, phase, power draw, and CSA requirements confirmed by quote
Configuration & Support
Package Confirmation
Pre-milling, glue pot, end cutting, trimming, scraping, buffing, and edge-loading equipment
Materials
Melamine, PVC, ABS, wood strip, and panel substrates confirmed for the application
Installation Review
Floor space, extraction, air, electrical, access, and delivery route
Support
Delivery, installation, startup, training, warranty, and service confirmed by quote
Production Environments
Where the ME 28T Fits
For compact production departments that need controlled edge preparation before adhesive application and a repeatable core finishing process.
Correct the panel edge before adhesive and edge material are applied.
The ME 28T integrates controlled pre-milling into a compact automatic edgebanding process, helping shops address incoming edge inconsistencies at the machine.
Dedicated extraction and air cleaning prepare the milled edge for the glue station, while the selected downstream units complete trimming, scraping, and buffing.
Final configuration should confirm panel-height range, pre-milling stock removal, cutters, extraction, edge materials, glue-pot package, trimming and scraping units, buffing, compressed air, electrical service, CSA requirements, installation, training, and support.
